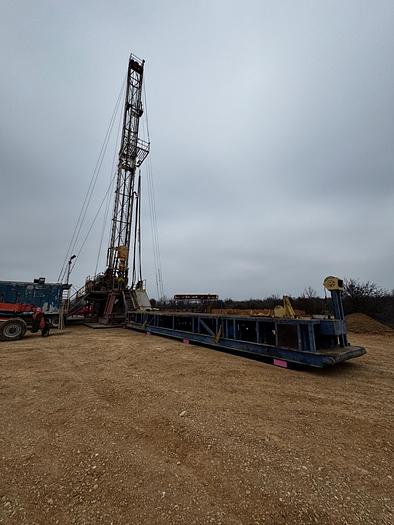

2009 SERVICE KING SK-575

Service King SK-575

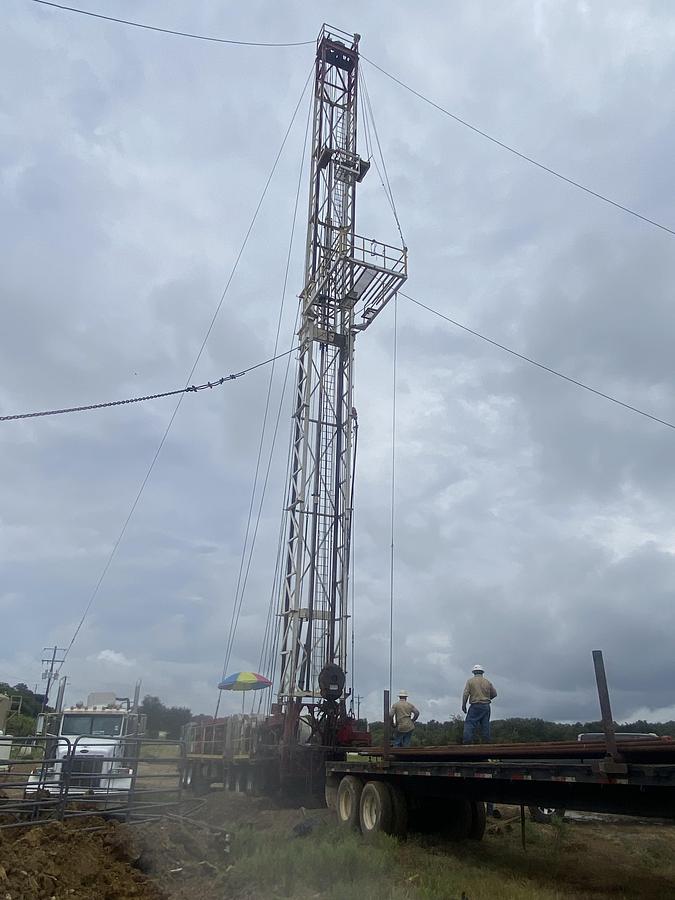

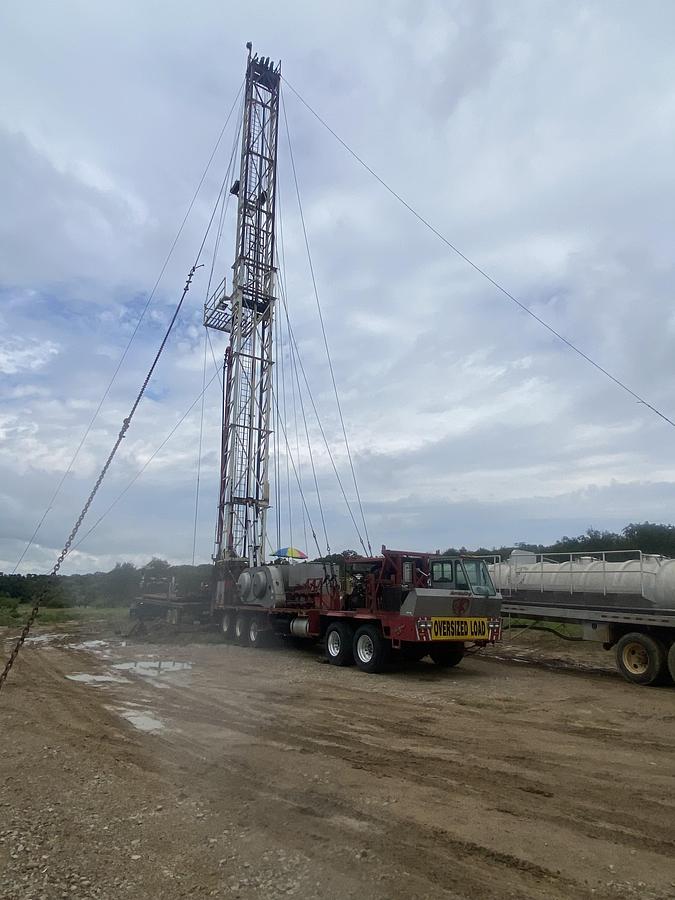

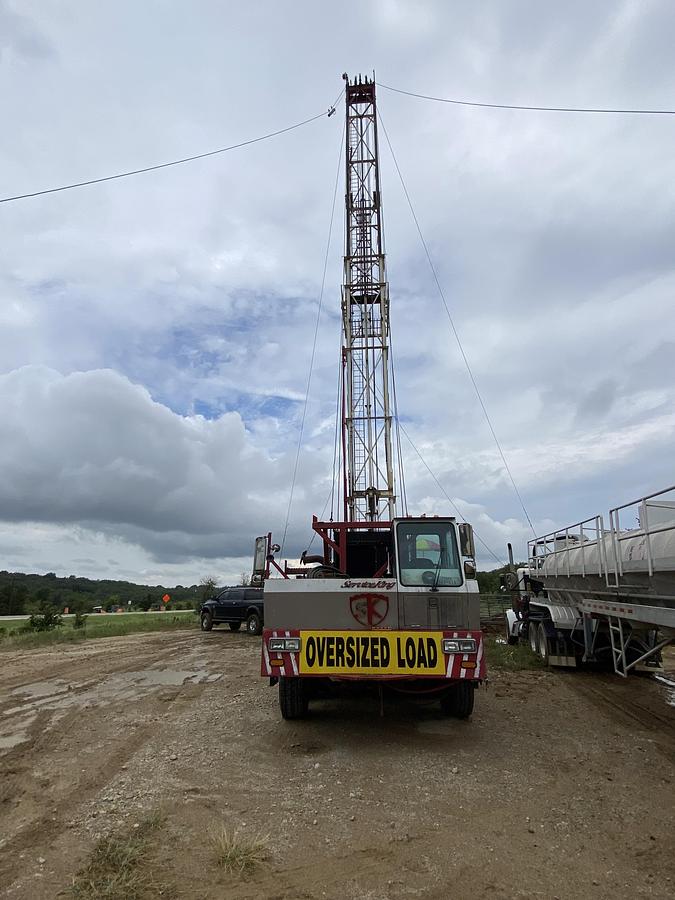

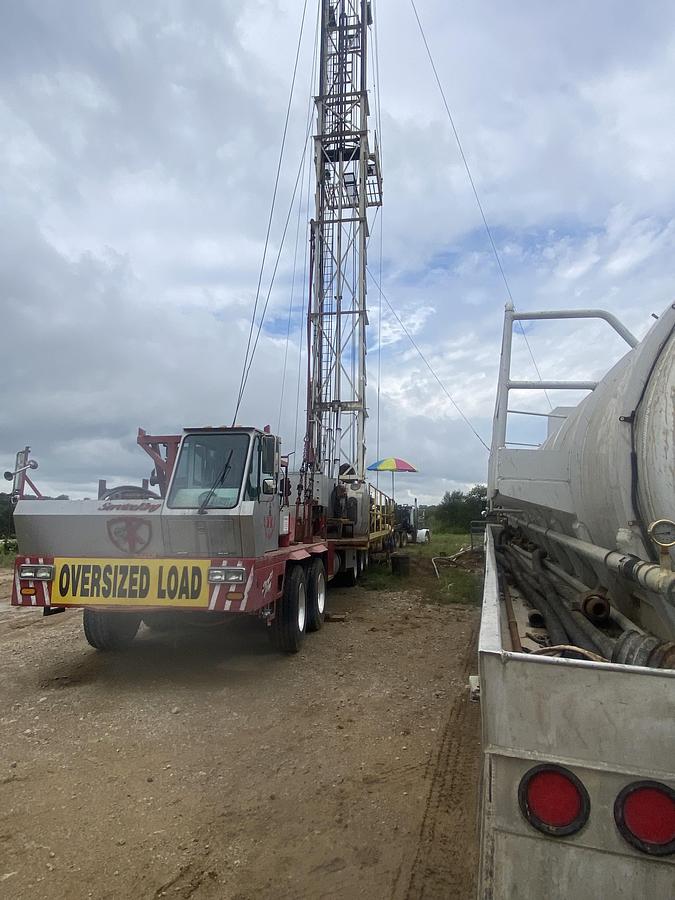

Well Service Rig set up for Well Service or Drilling. New Tubing Line, Currently in Service.

Service Depth - - - - - - - - - - 16,000'

Workover Depth - - - - - - - - 10,000'

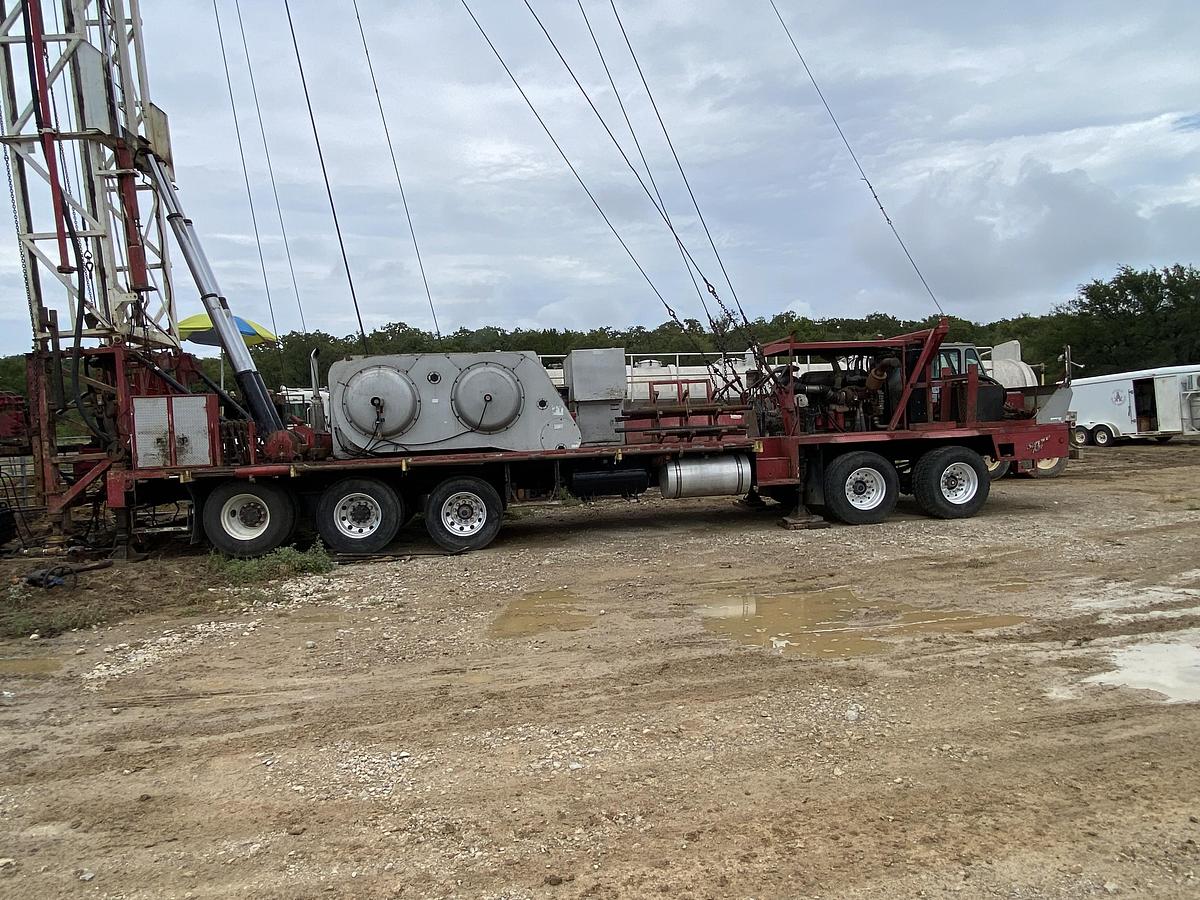

Carrier - - - - - 5 Axles High Tensile Alloy Wide Flanged Beam

Front Axles: 20,000# Capacity

Suspension: Spring

Rear Axles: 46,000# Tandem

Suspension: Walking Beam

Push Axle: 25,000# Capacity

Front Tires: 385/65R22.5

Rear Tires: 11R22.5

Power Train

Engine Detroit Series 60, 12.7 Litre

Transmission 4500 OFS Allison

Main Drum

Brakes: 42" diameter x 12" wide

Water spray brake cooling

Double 48 Air Cooled Disc Assist

Barrel: 16" diameter x 38" wide

Chain: Double 140 Clutch: 324

Shaft: 6.60" Lebus Grooving: 1" or optional 1 1/8

Sand Drum

Brakes: 42" diameter x 8" wide

Water spray brake cooling

Barrel: 16" diameter x 43" wide

Chain: Double 140 Clutch: 224

Shaft: 5.90"

Capacity: 14,400'- 9/16" or 11,800' - 5/8"

104 MAST

Clear Height 104

Maximum Static Load:

200,000# Capacity w/ 4 lines

250,000# Capacity w/ 6 lines

Tubing Board Capacity:

110,600# Pipe Setback Load

Rod Board Capacity:

31,208# Static Rod Load

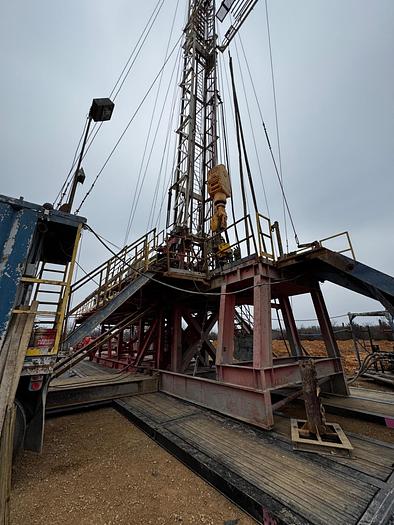

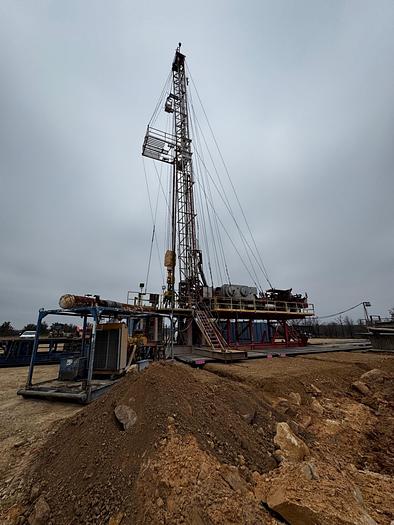

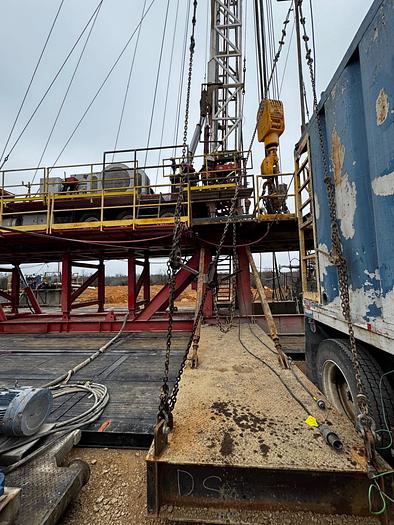

Service rig only. Sub and pipe handler available as add on.
