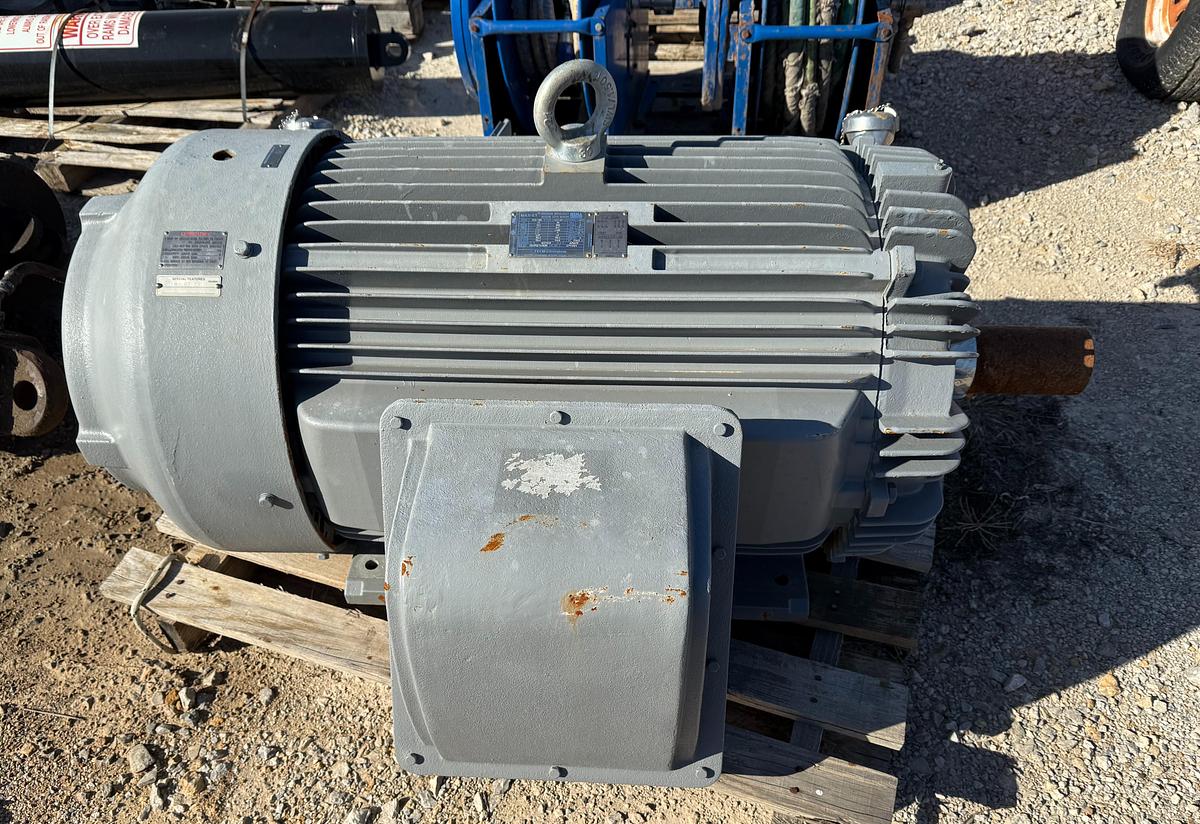

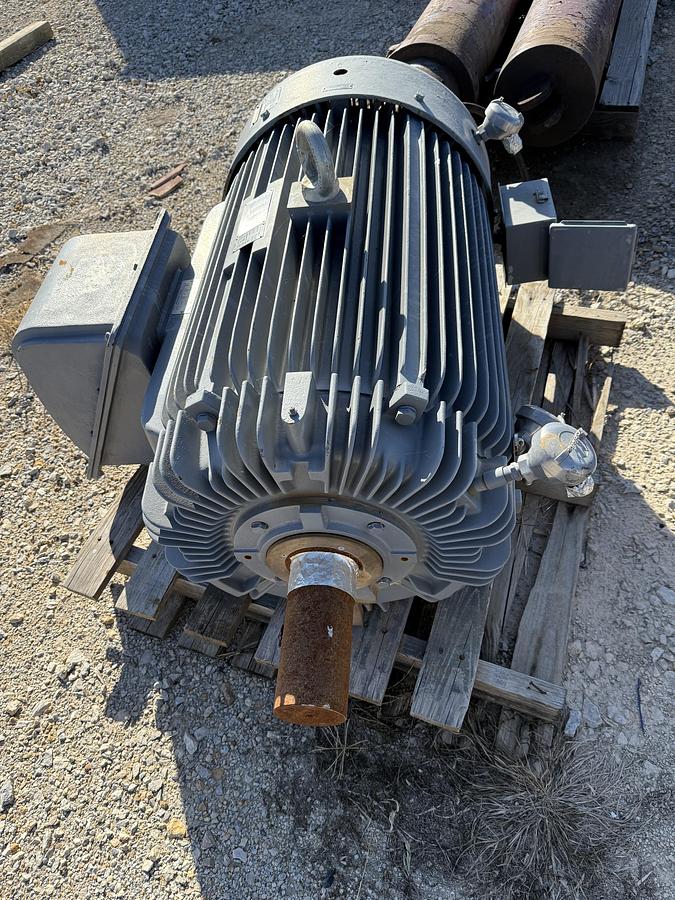

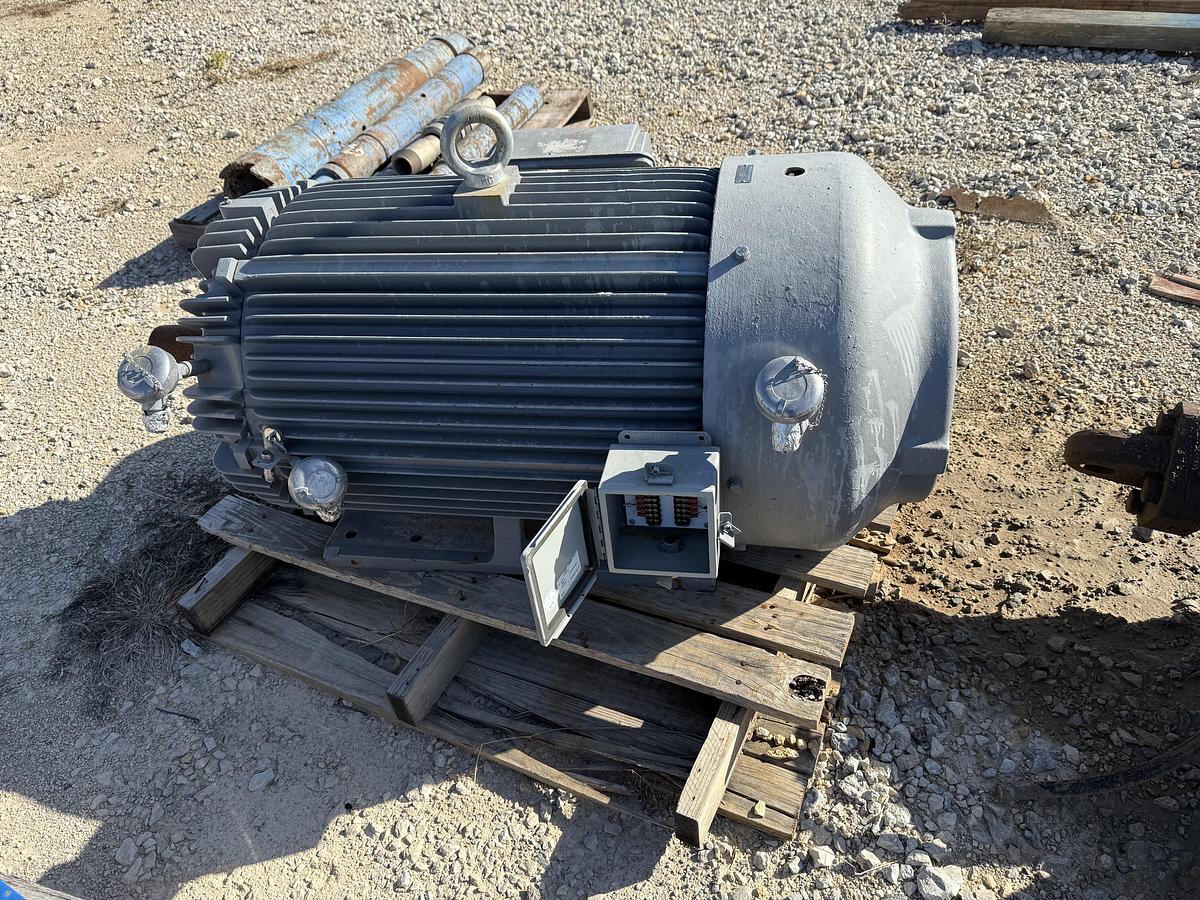

Teco-Westinghouse 250HP Cast Iron Electric Motor, 1800 RPM

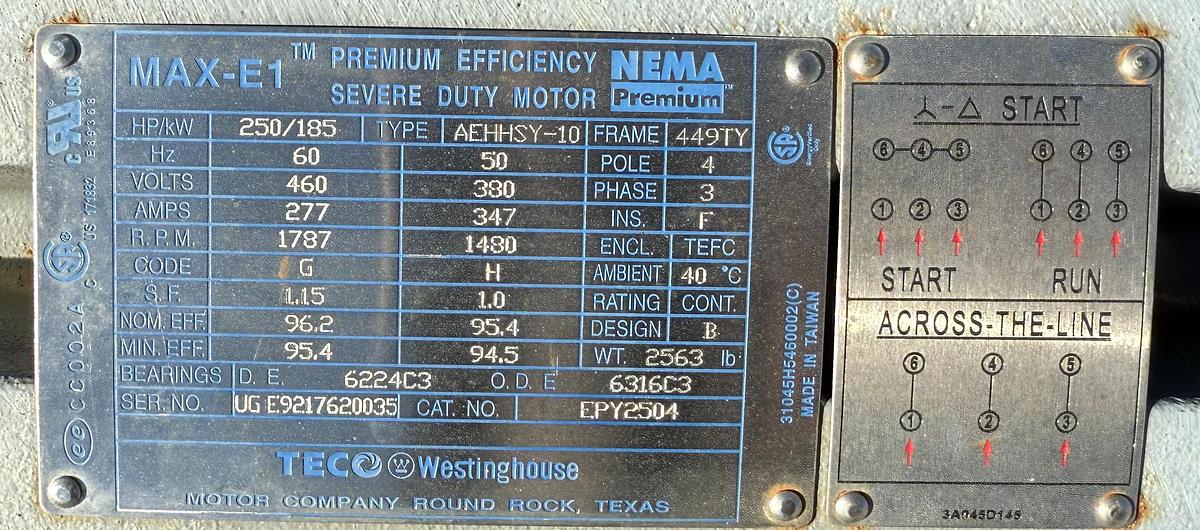

• Manufacturer: TECO-Westinghouse Motor Company, Round Rock, Texas
• Model/Catalog No.: EPY2504
• Horsepower (HP): 250 HP (185 kW)
• Speed: 1800 RPM (1480 RPM at 50 Hz)
• Frame: 447/449TY, cast iron construction
• Voltage: 460V at 60 Hz or 380V at 50 Hz, 3-phase
• Efficiency: 96.2% at 60 Hz, meeting NEMA Premium standards
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Weight: Approximately 2563 lbs (1165 kg)

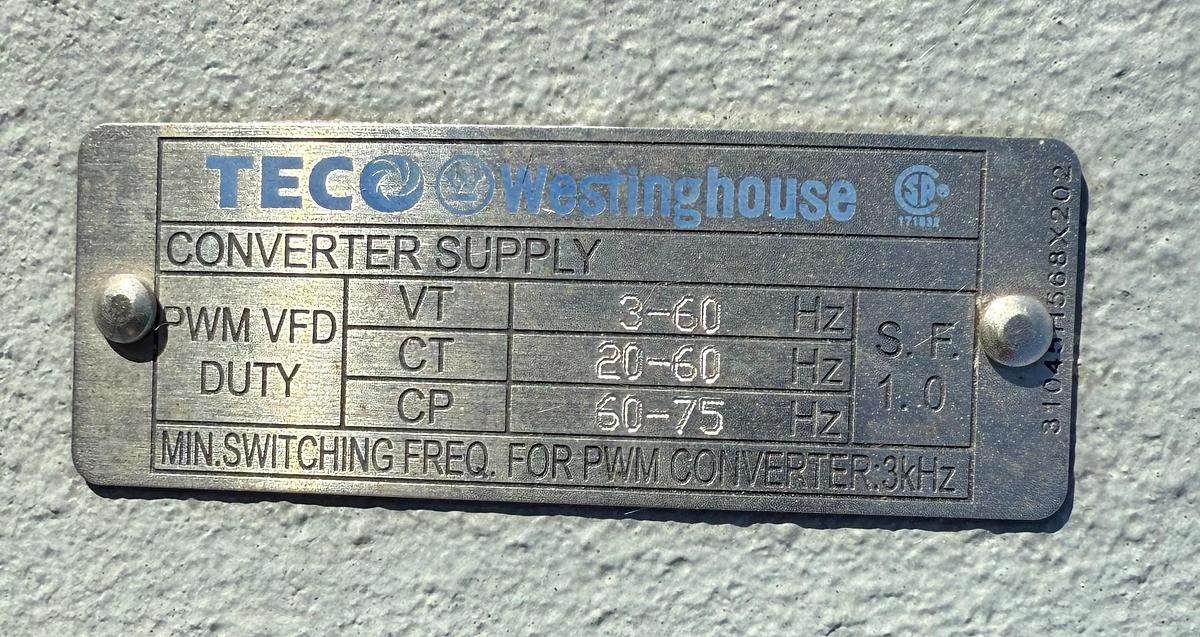

The motor is suitable for inverter duty applications and features regreasable high-quality ball or roller bearings on the drive and opposite drive ends.
