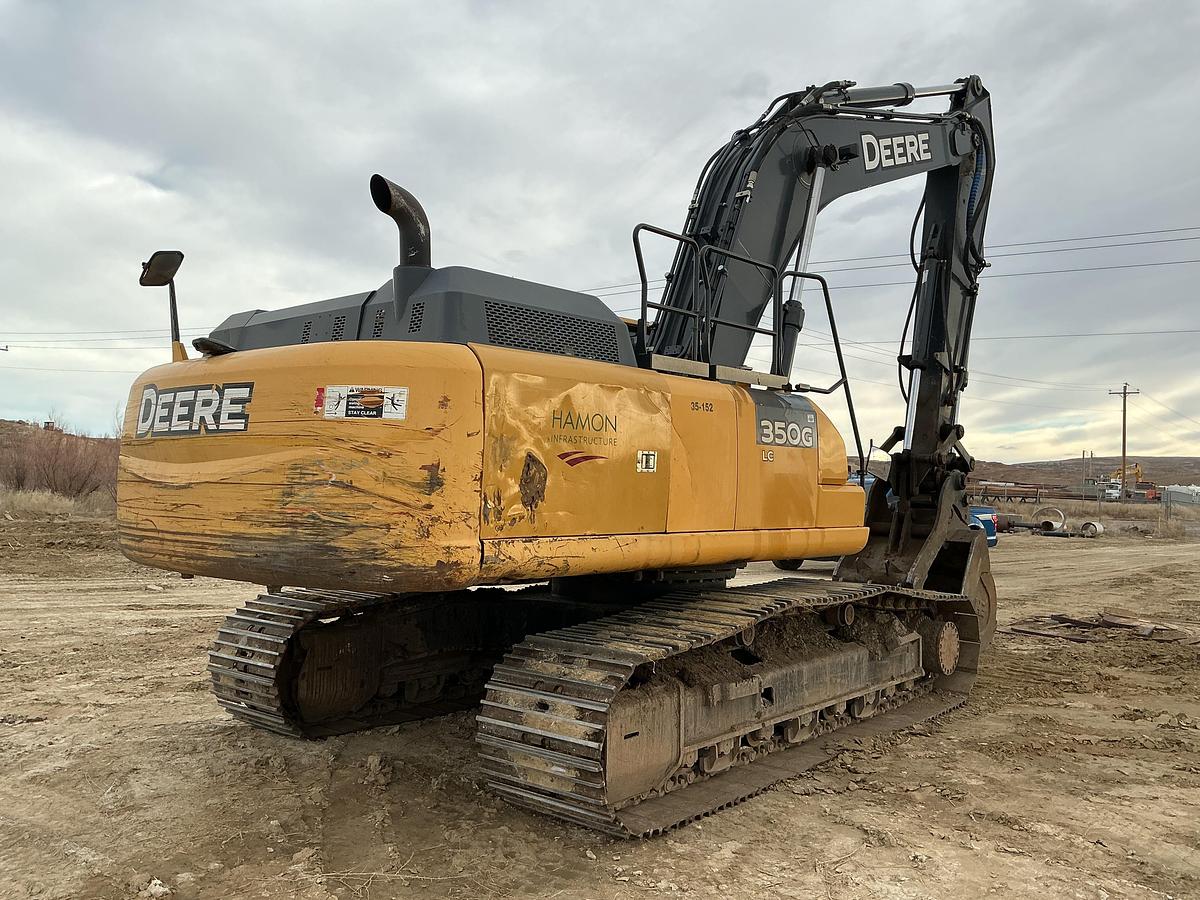

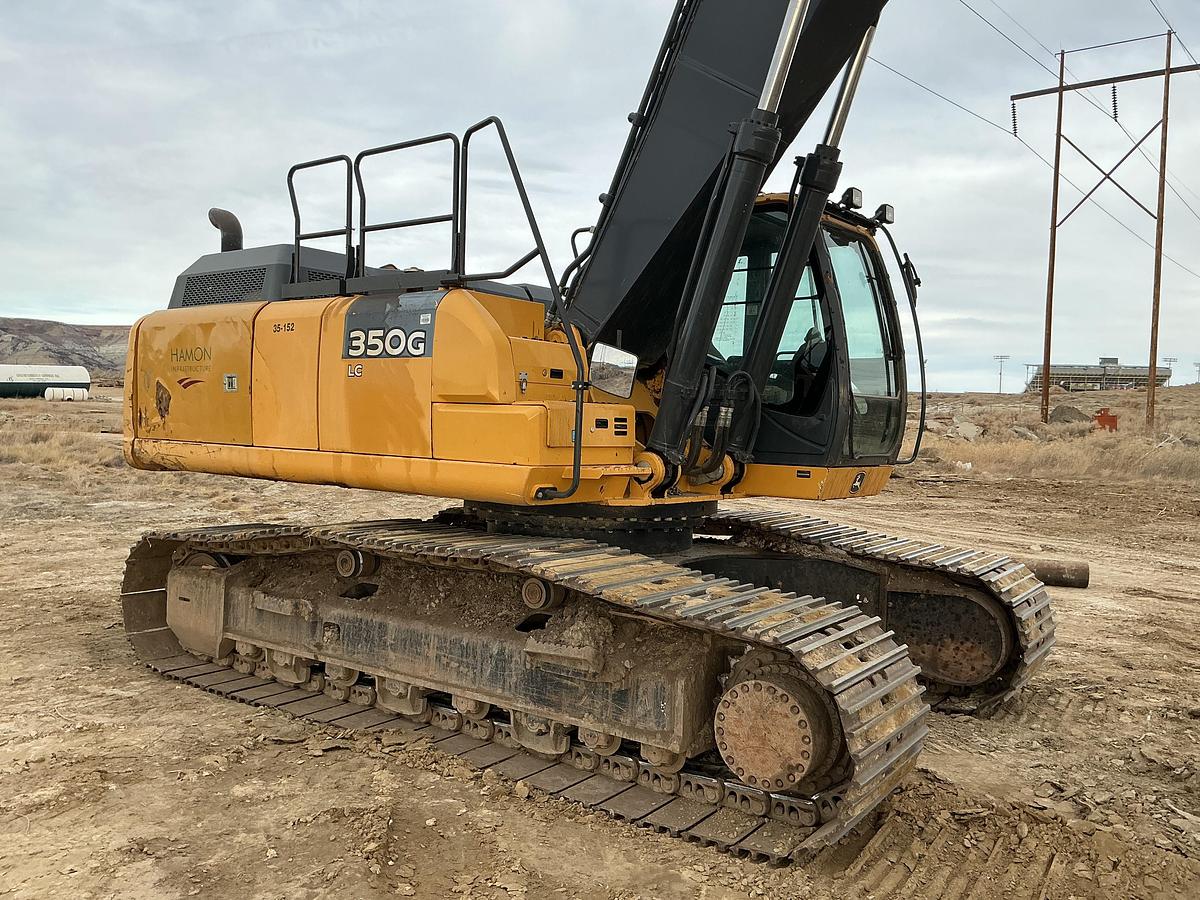

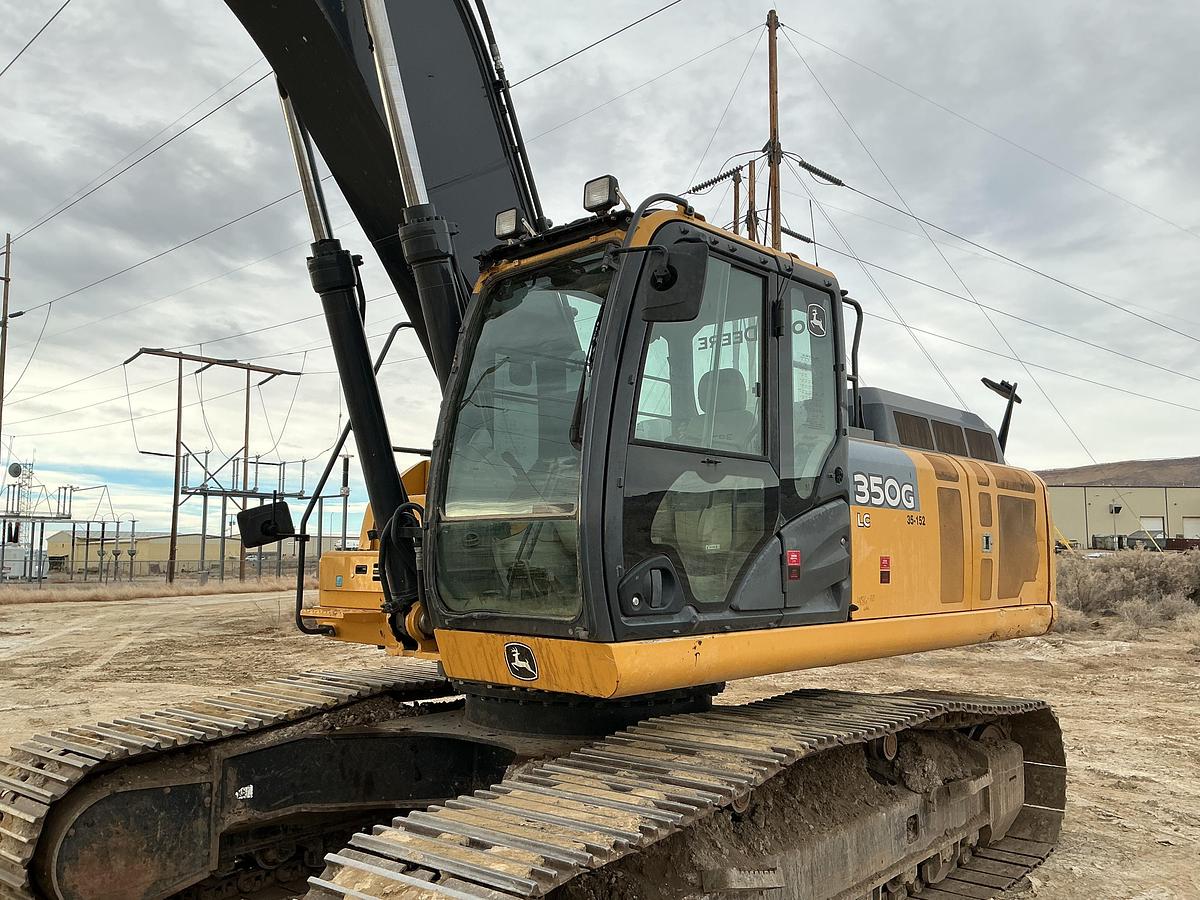

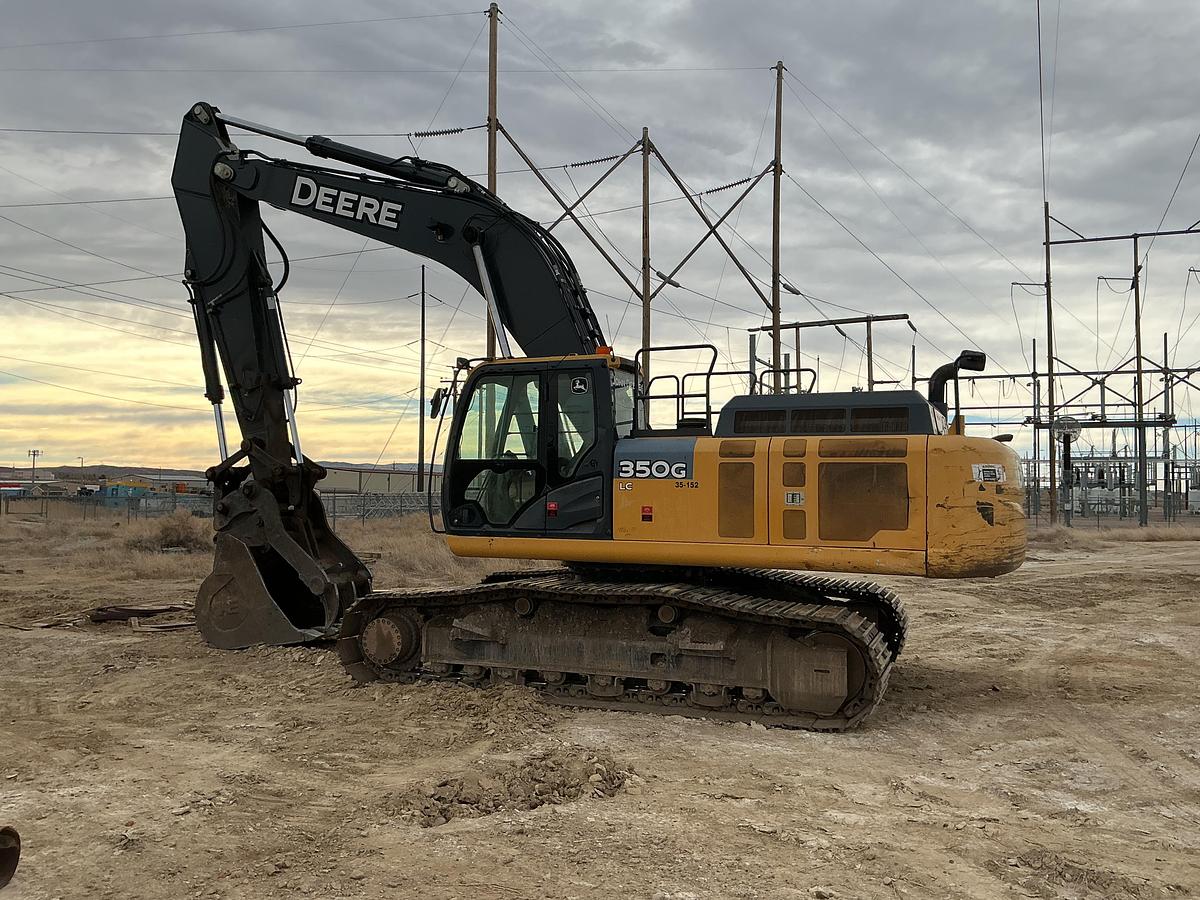

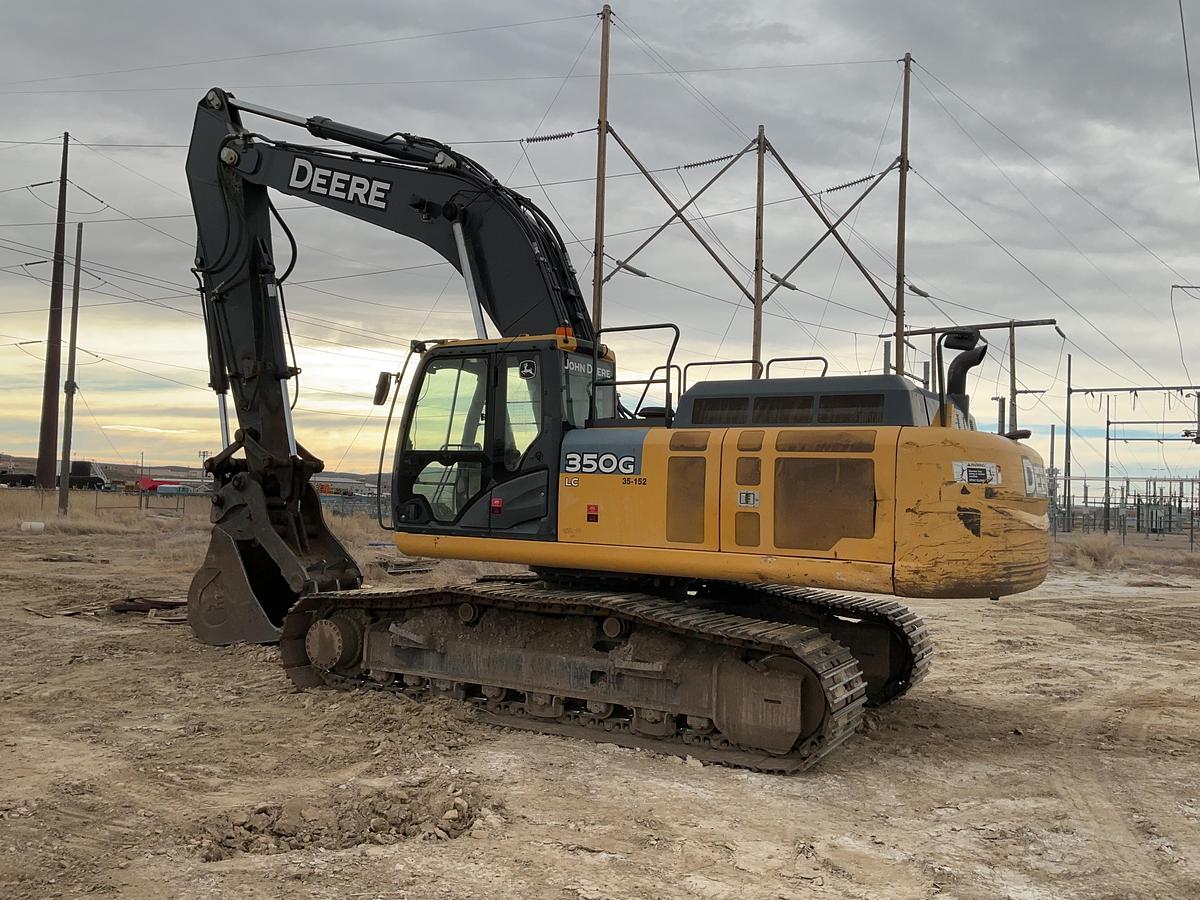

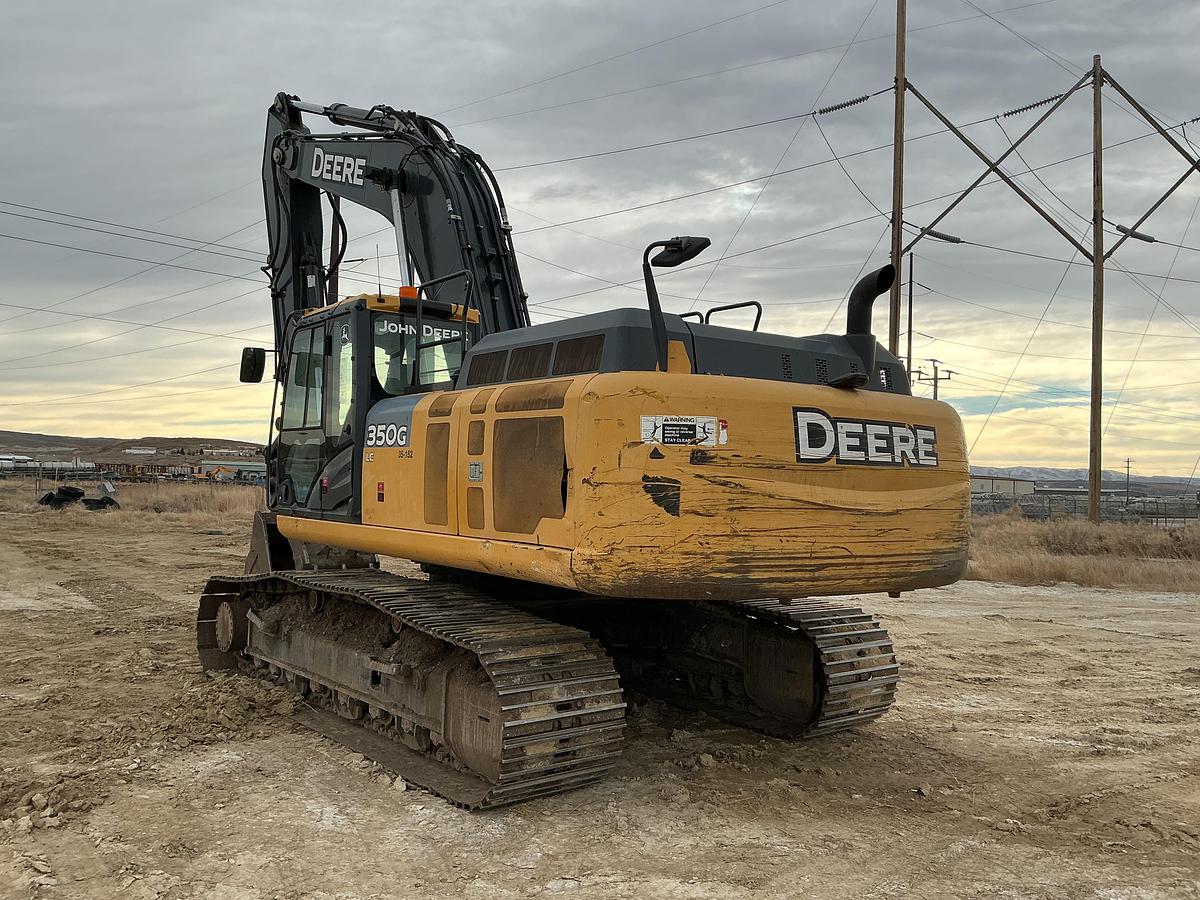

2015 DEERE 350G-LC

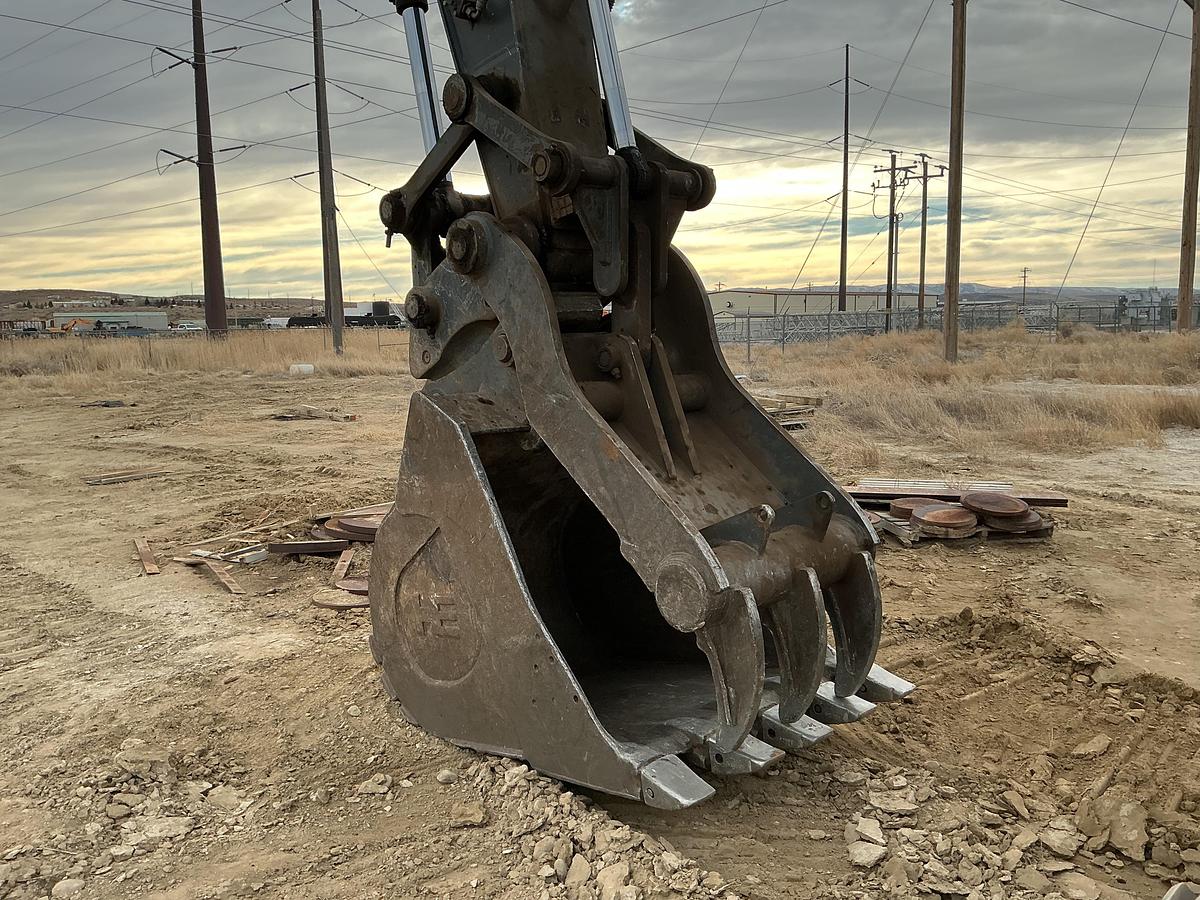

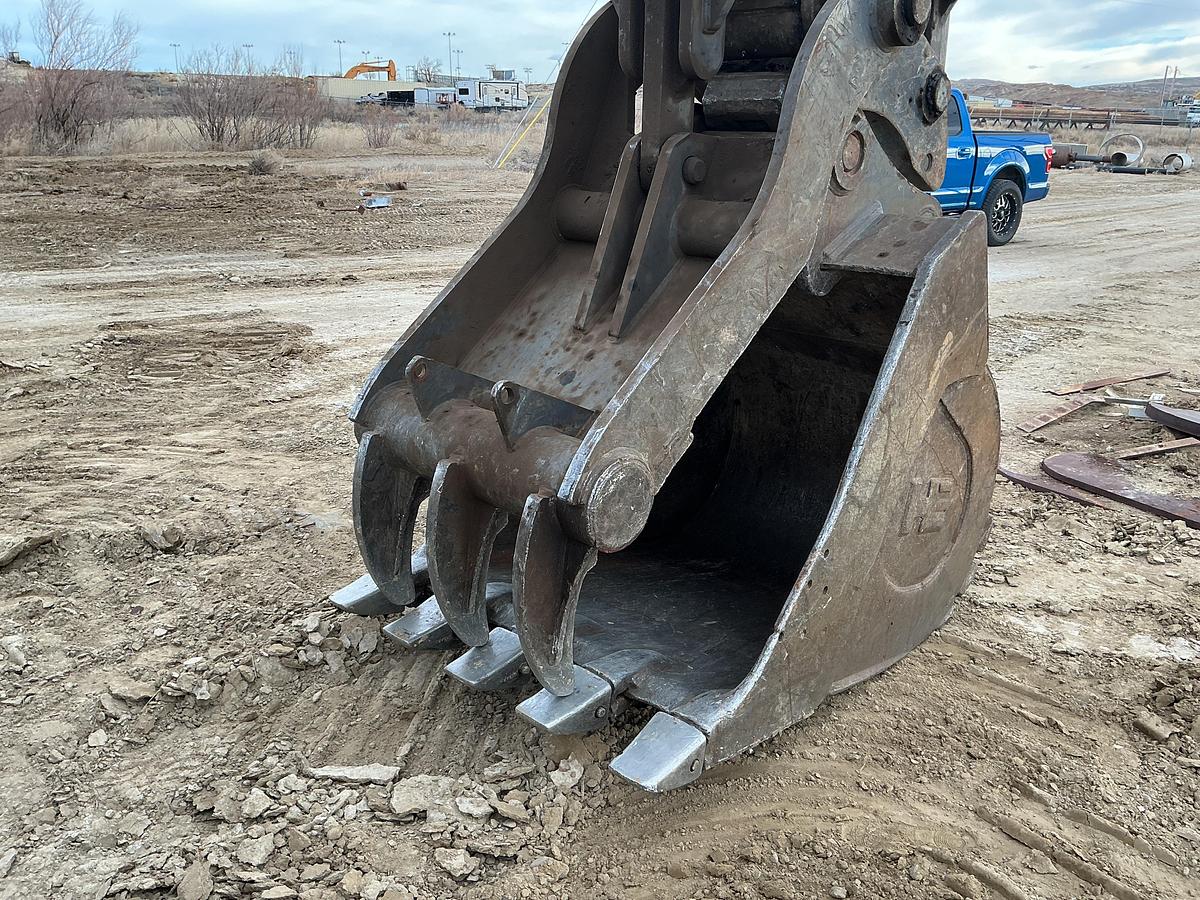

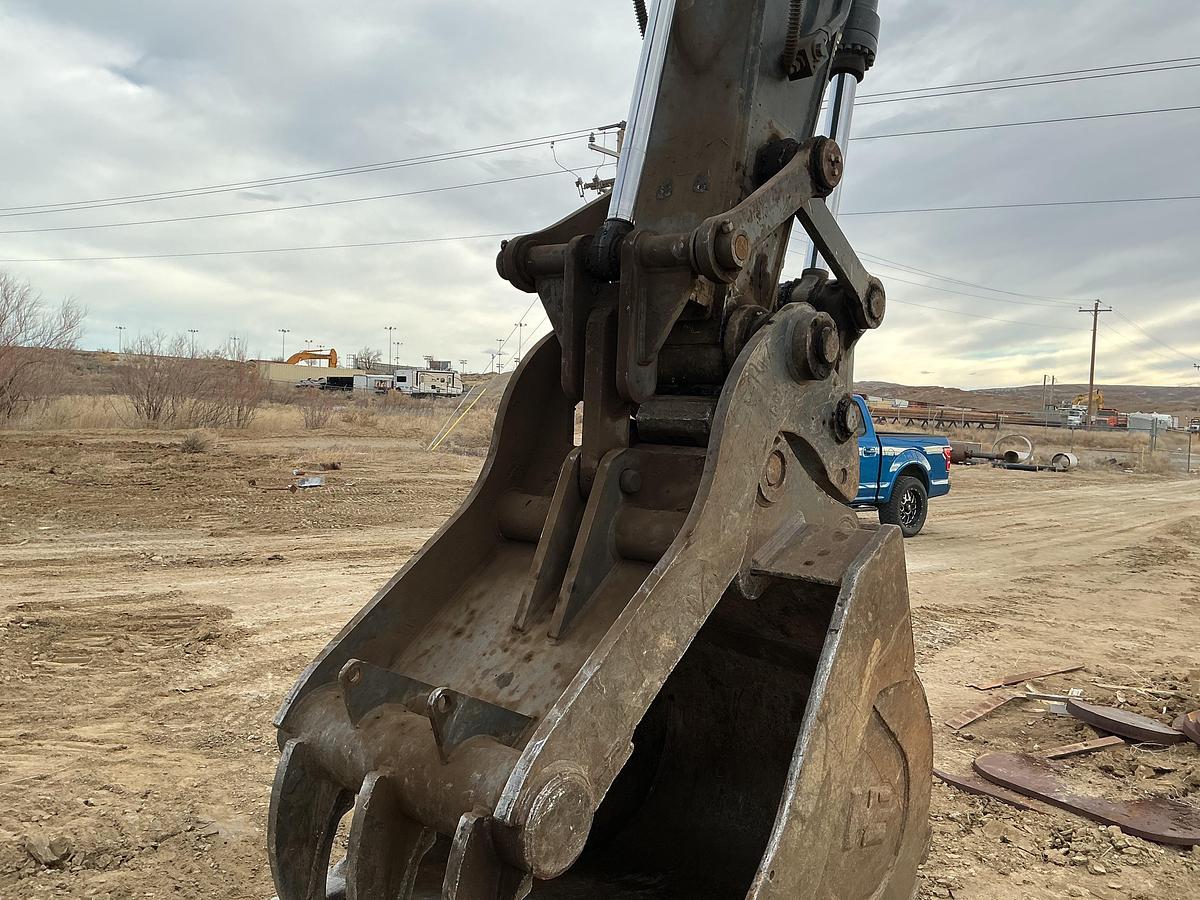

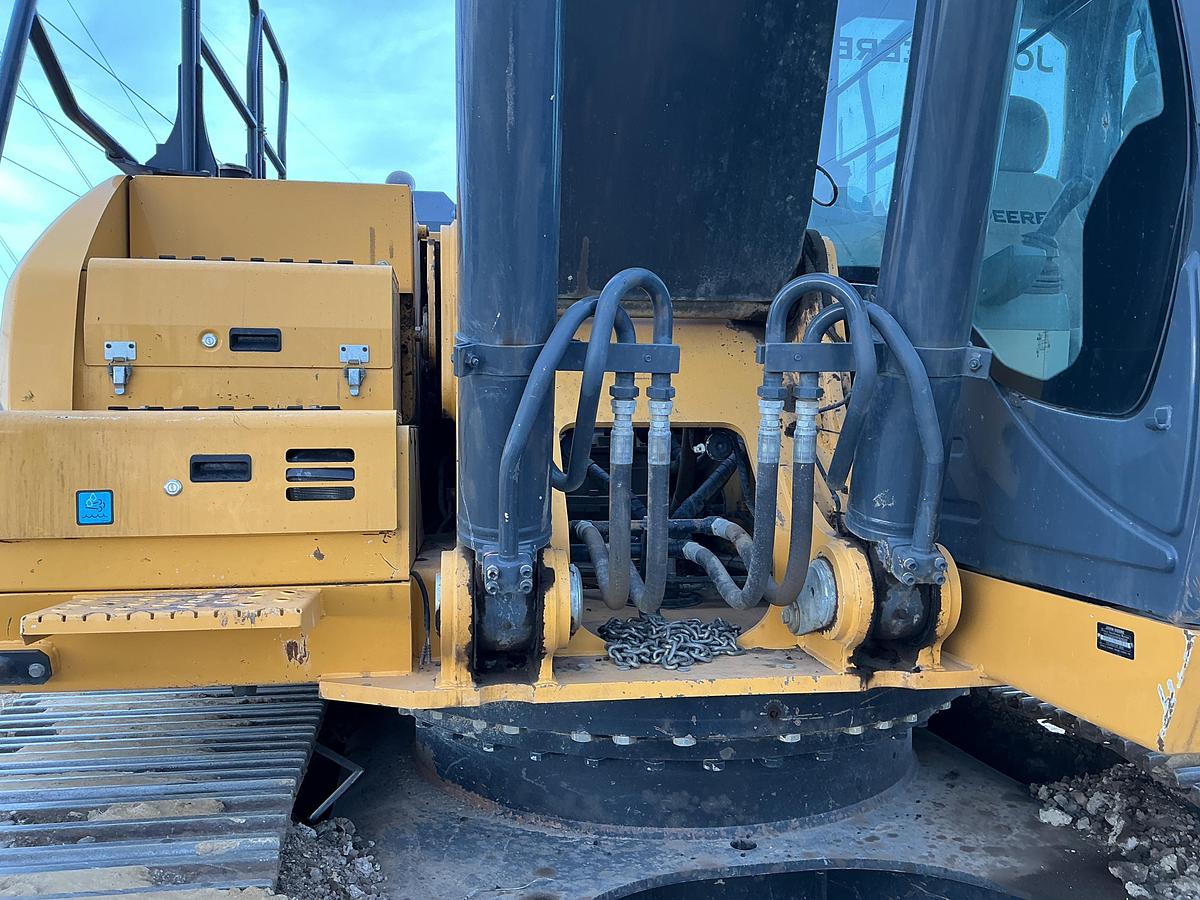

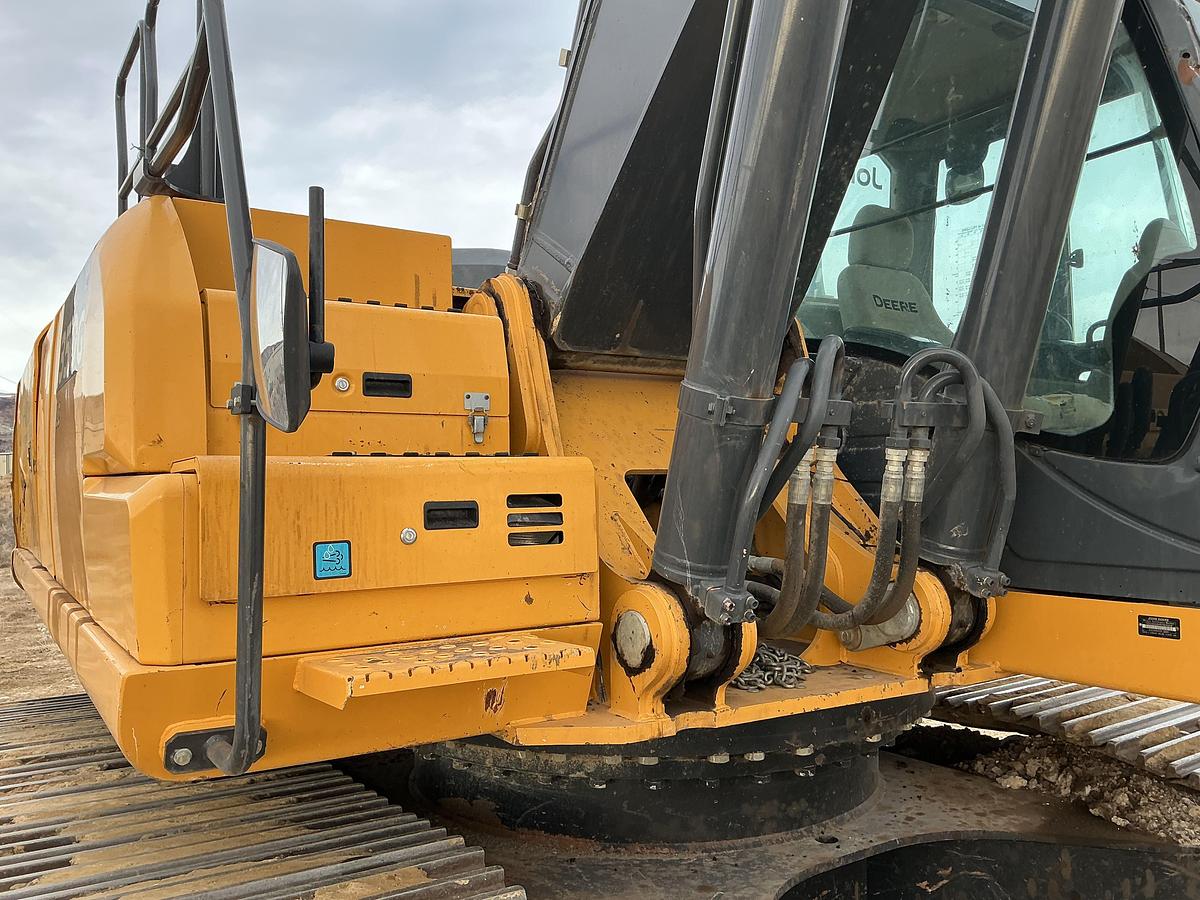

2015 John Deere 350G-LC Excavator. Hydraulic Bucket Quick Connect, Hydraulic Progressive Link Thumb, Long Carriage, Auxiliary Hydraulics for Attachments

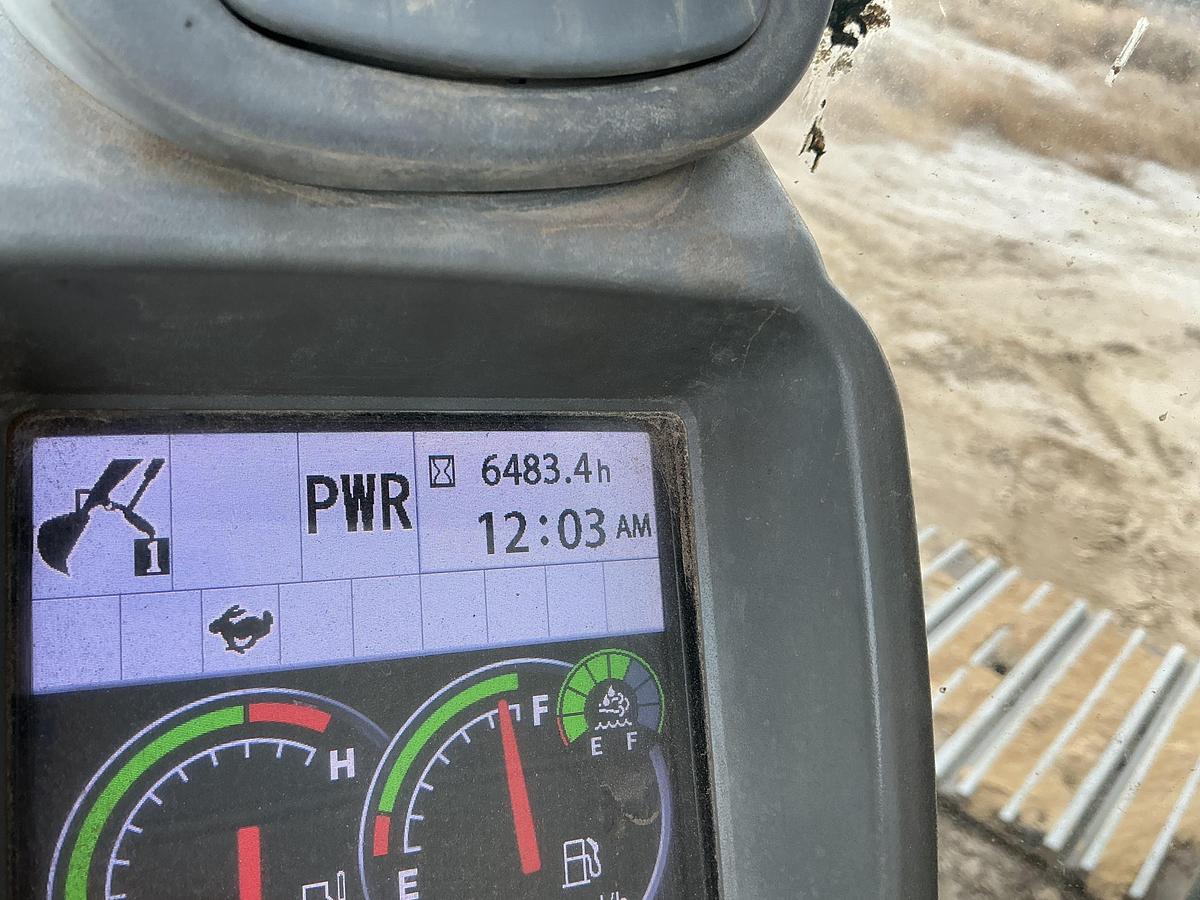

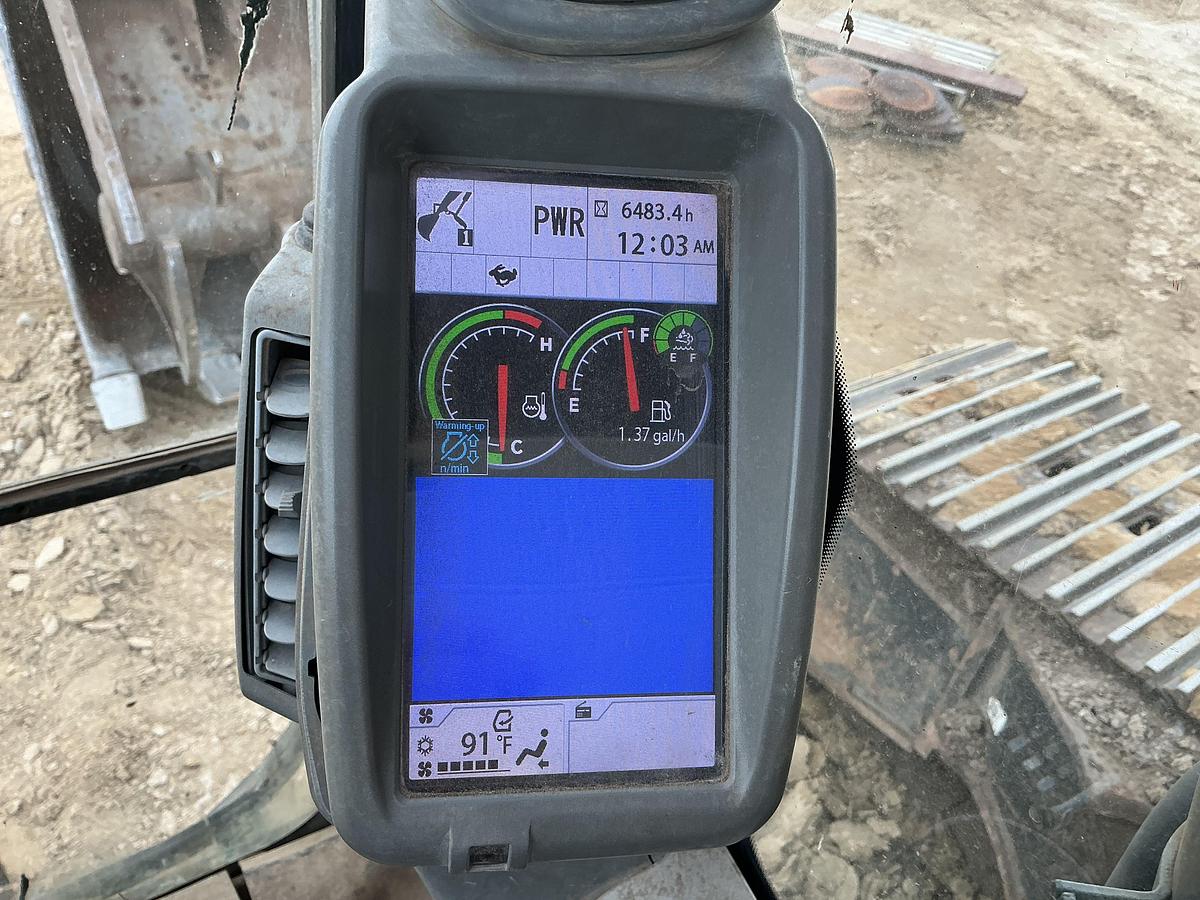

6484 Hours

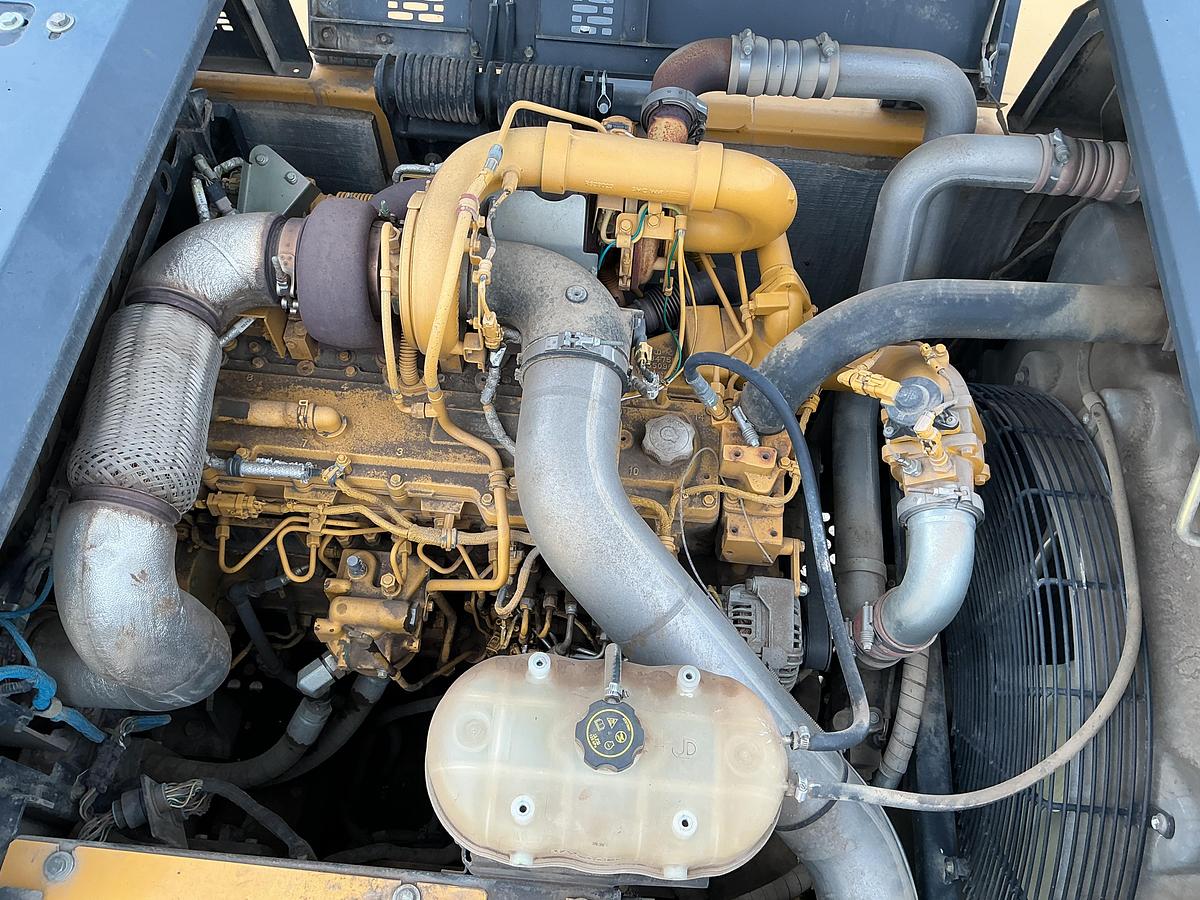

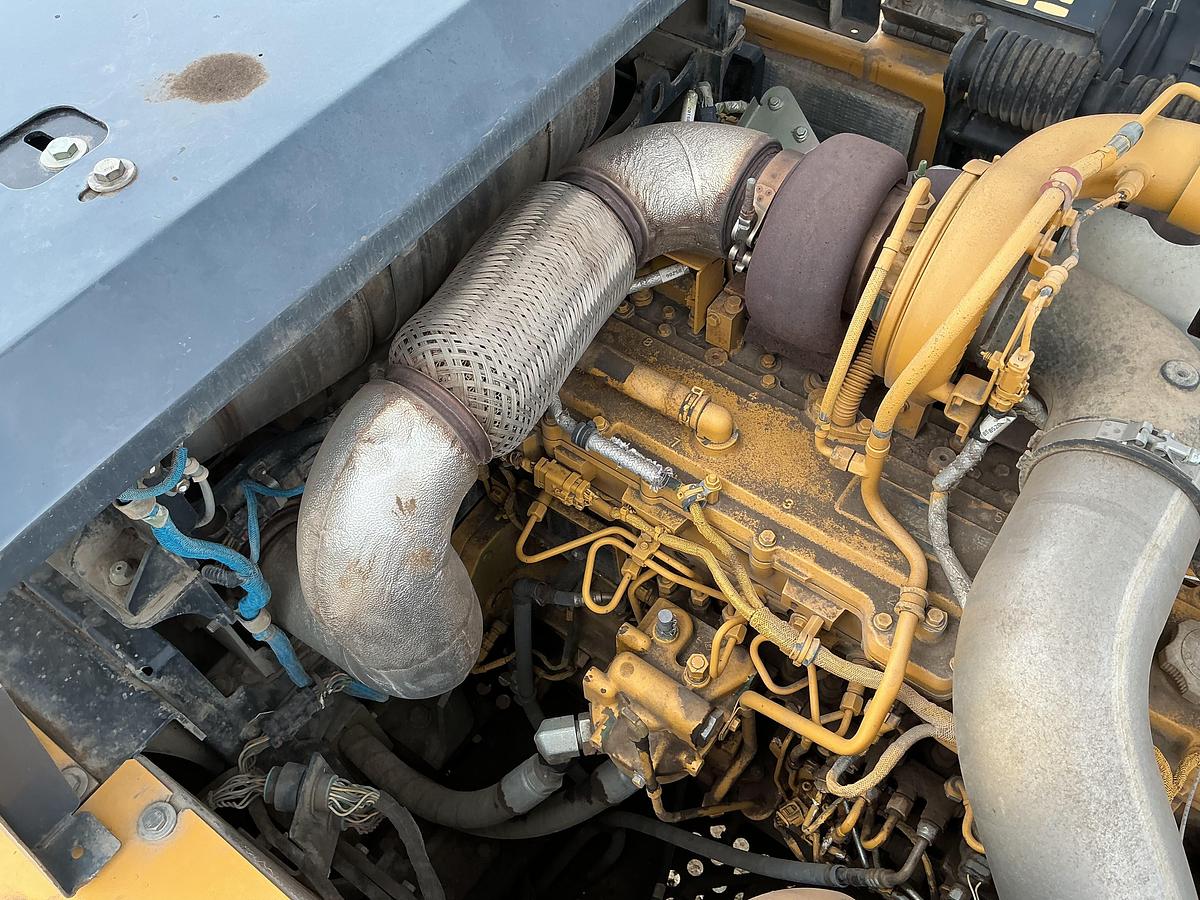

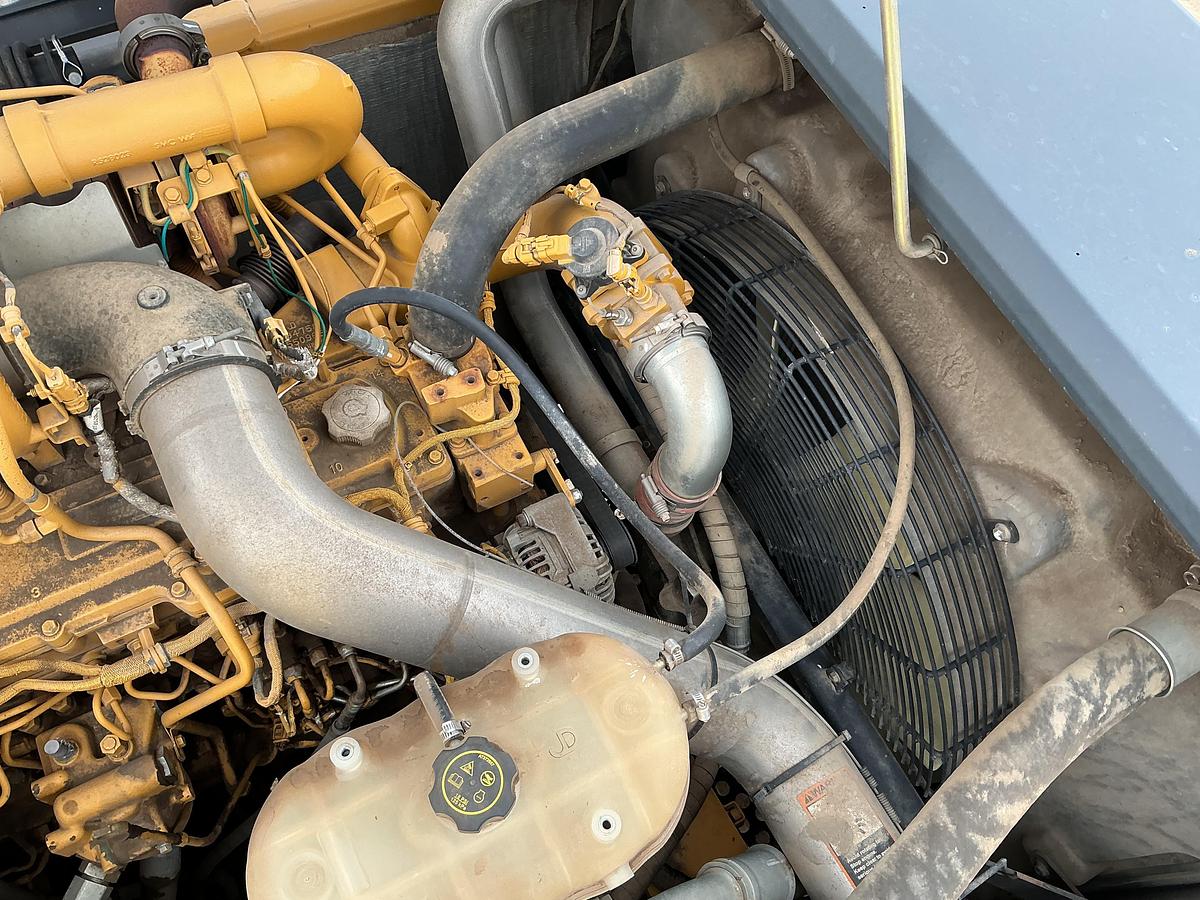

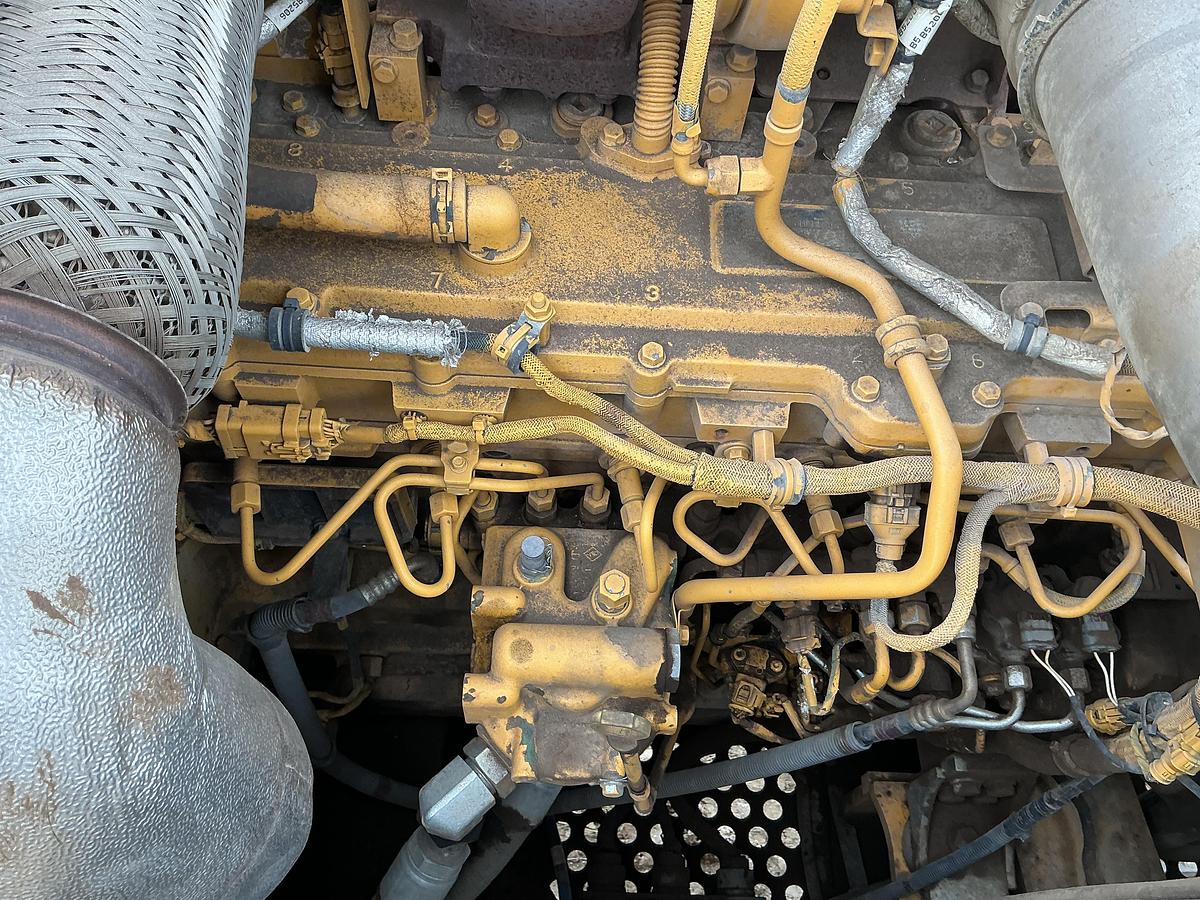

Engine & Performance

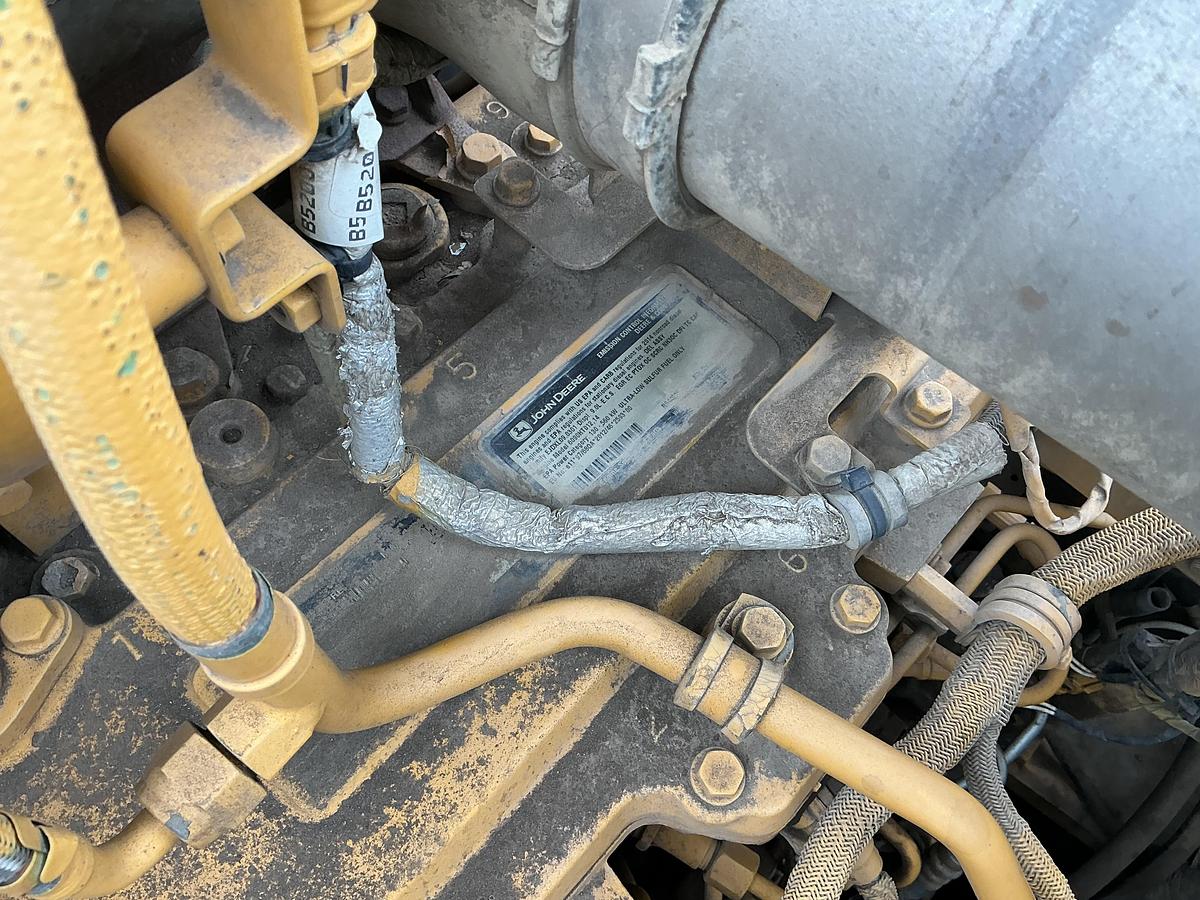

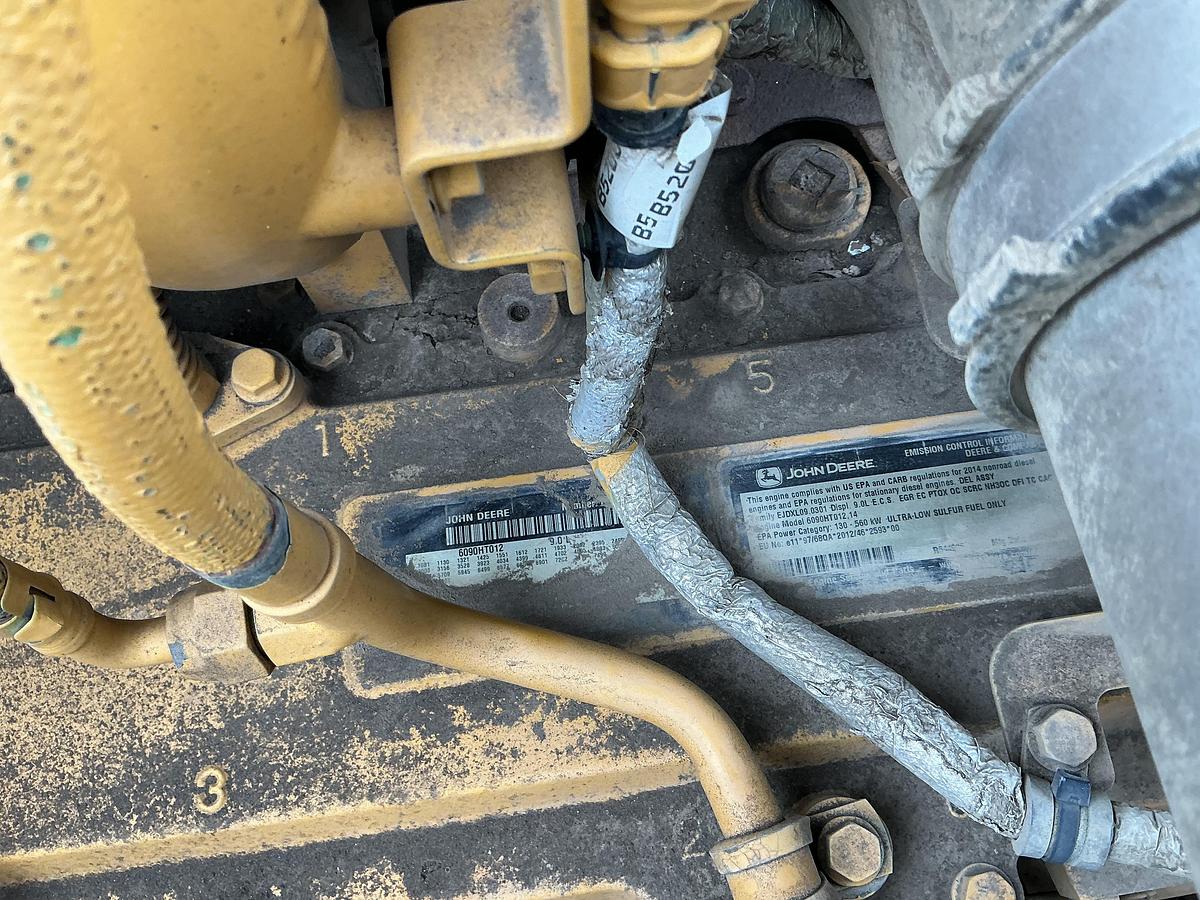

• Engine: John Deere PowerTech™ PSX 9.0 L Turbo Diesel
• Net Power: 271 hp (202 kW) @ 1900 rpm
• Emissions: Tier 4
• Hydraulic Flow: ~152 GPM (576 L/min)
• Bucket Force: ~50,600 - 55,300 lbs (225-246 kN)
• Arm Force: ~34,300 - 35,700 lbs (152-159 kN)

Dimensions & Weight

• Operating Weight: ~76,500 - 79,600 lbs (34,726 - 36,131 kg)
• Transport Length: ~37 ft (11.29 m)
• Transport Height: ~11 ft 10 in (3.6 m)
• Width (Fixed Tracks): ~11 ft 2 in (3.39 m)
• Ground Clearance: ~20 in (500 mm)

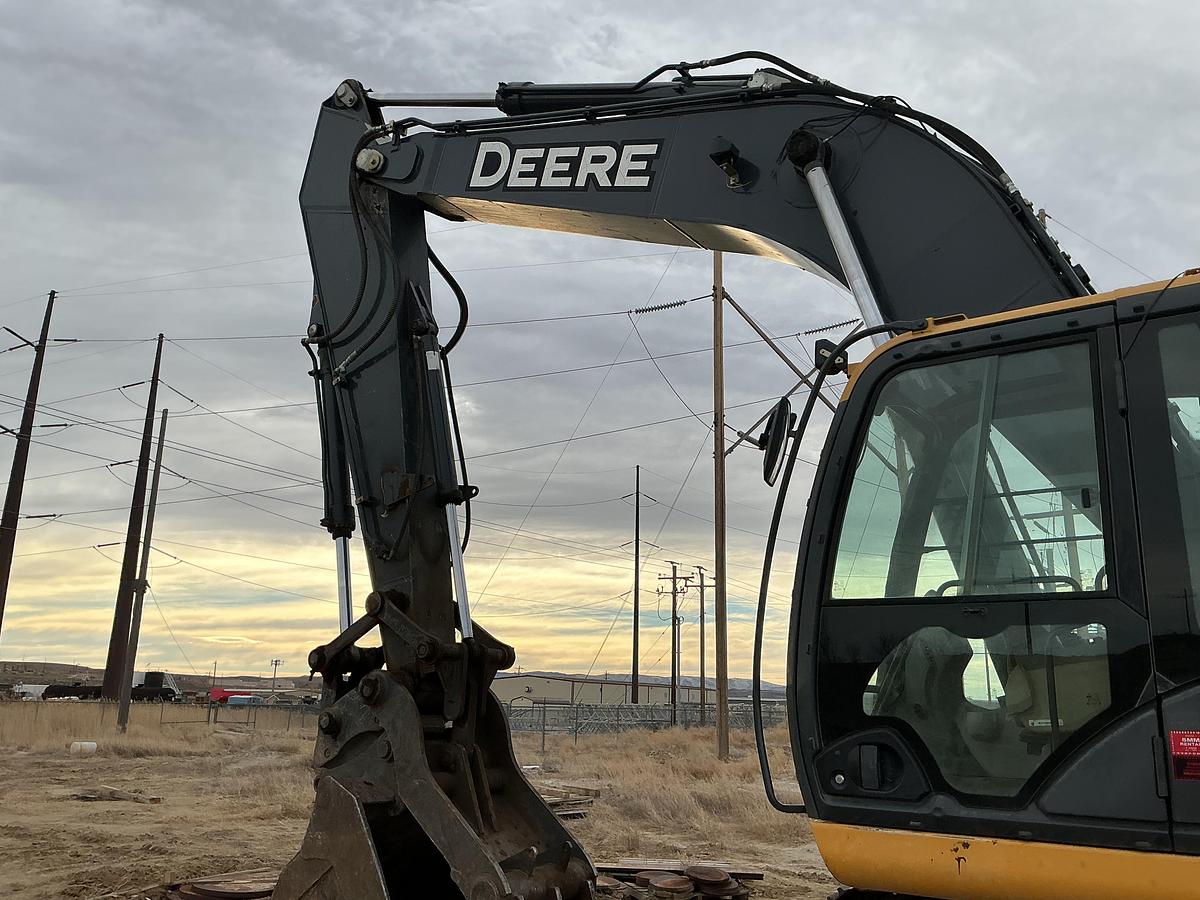

Reach & Digging Depth (Mono Boom)

• Max Dig Depth: ~26 ft 10 in (8.18 m)
• Max Reach (Ground Level): ~38 ft 3 in (11.67 m)
• Max Dump Height: ~25 ft (7.63 m)

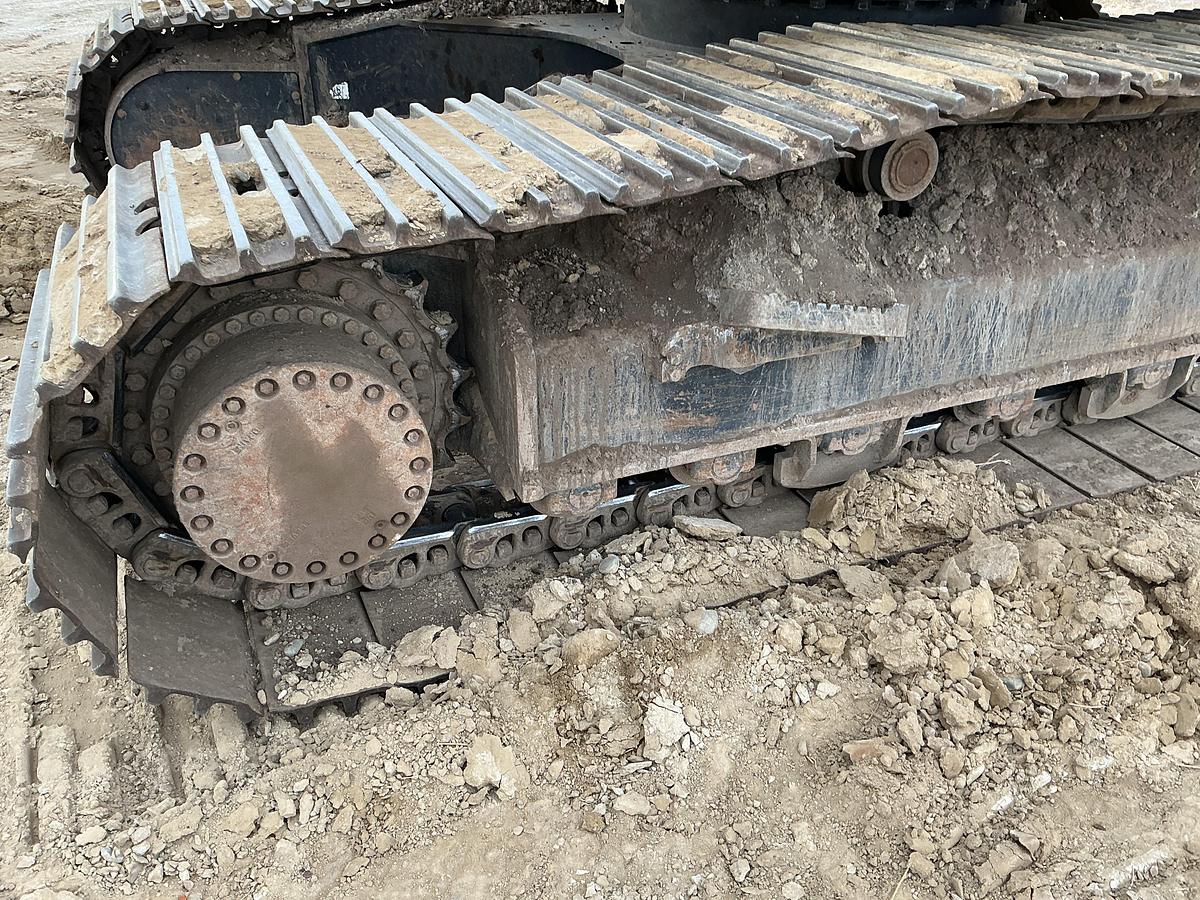

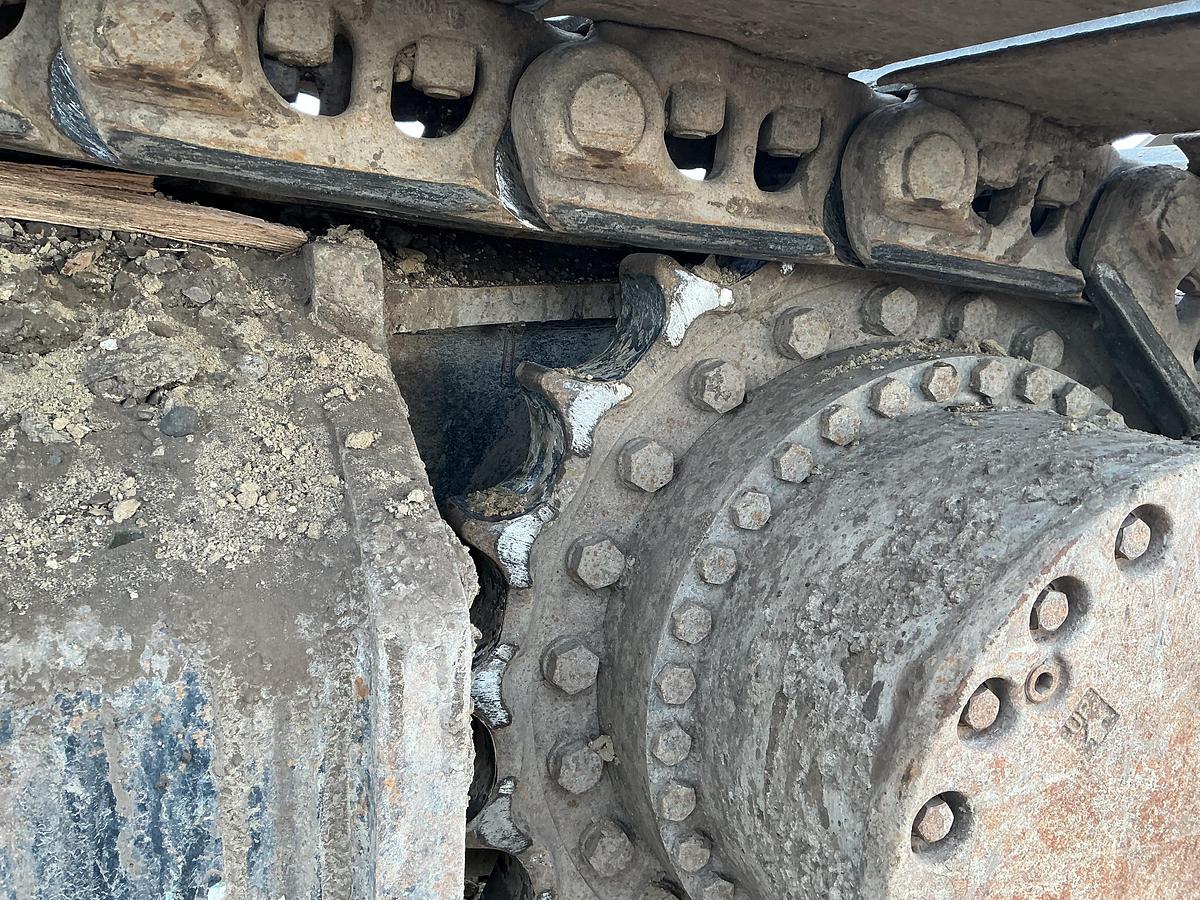

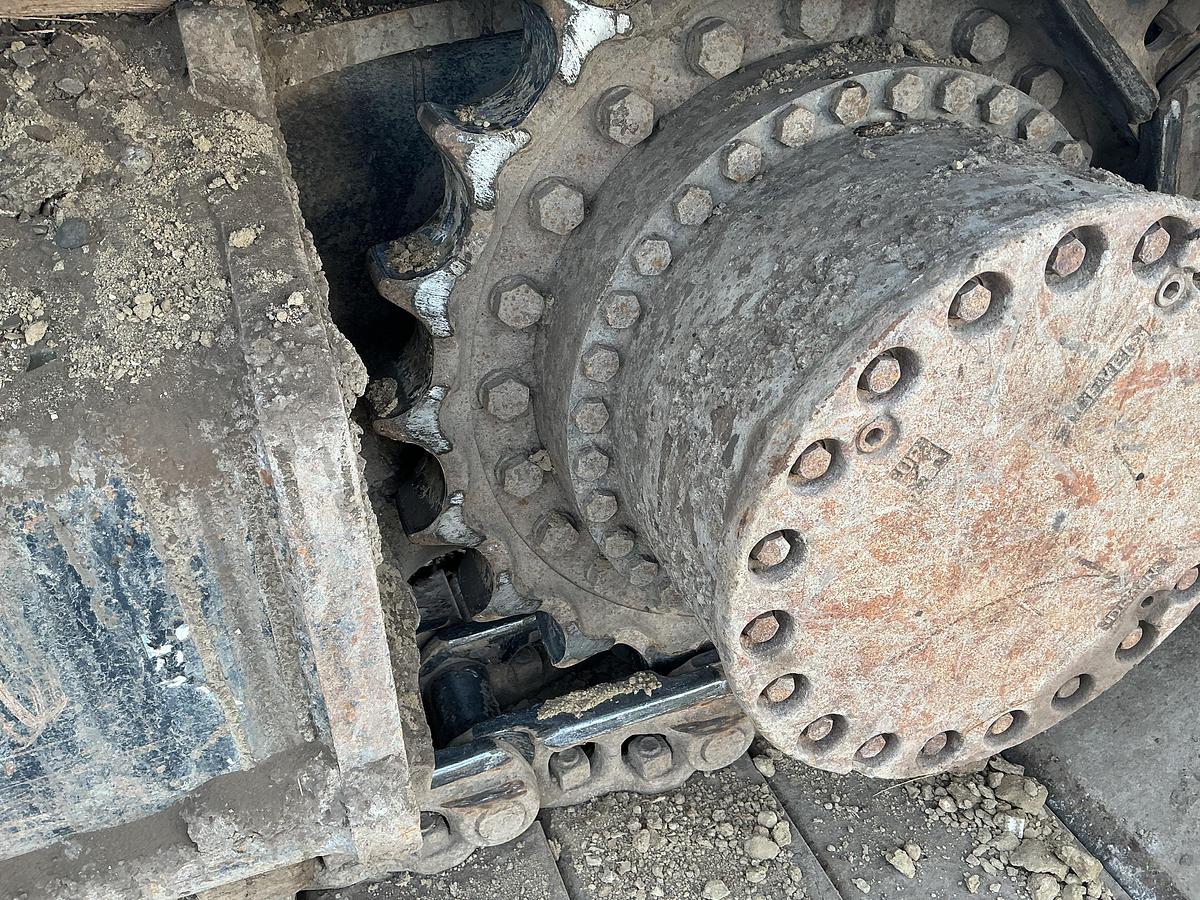

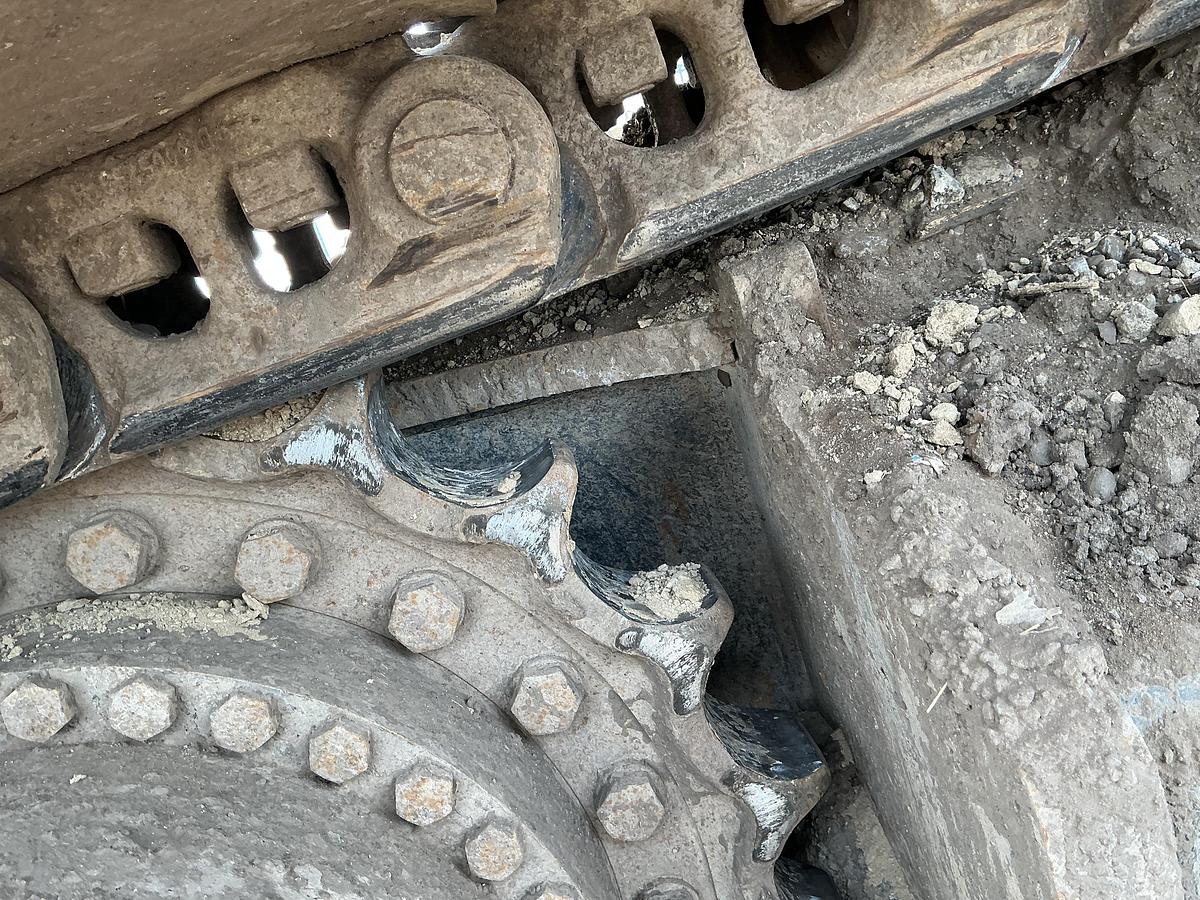

Undercarriage & Undercarriage

• Track Shoe Width: ~32 in (800 mm)
• Track Length on Ground: ~13 ft 3 in (4.05 m)
• Ground Pressure: ~7.3 - 7.7 PSI (50.1 kPa)

Capacities

• Fuel Tank: 166 Gallons (628 L)
• Hydraulic Tank: ~51 Gallons (193 L)
