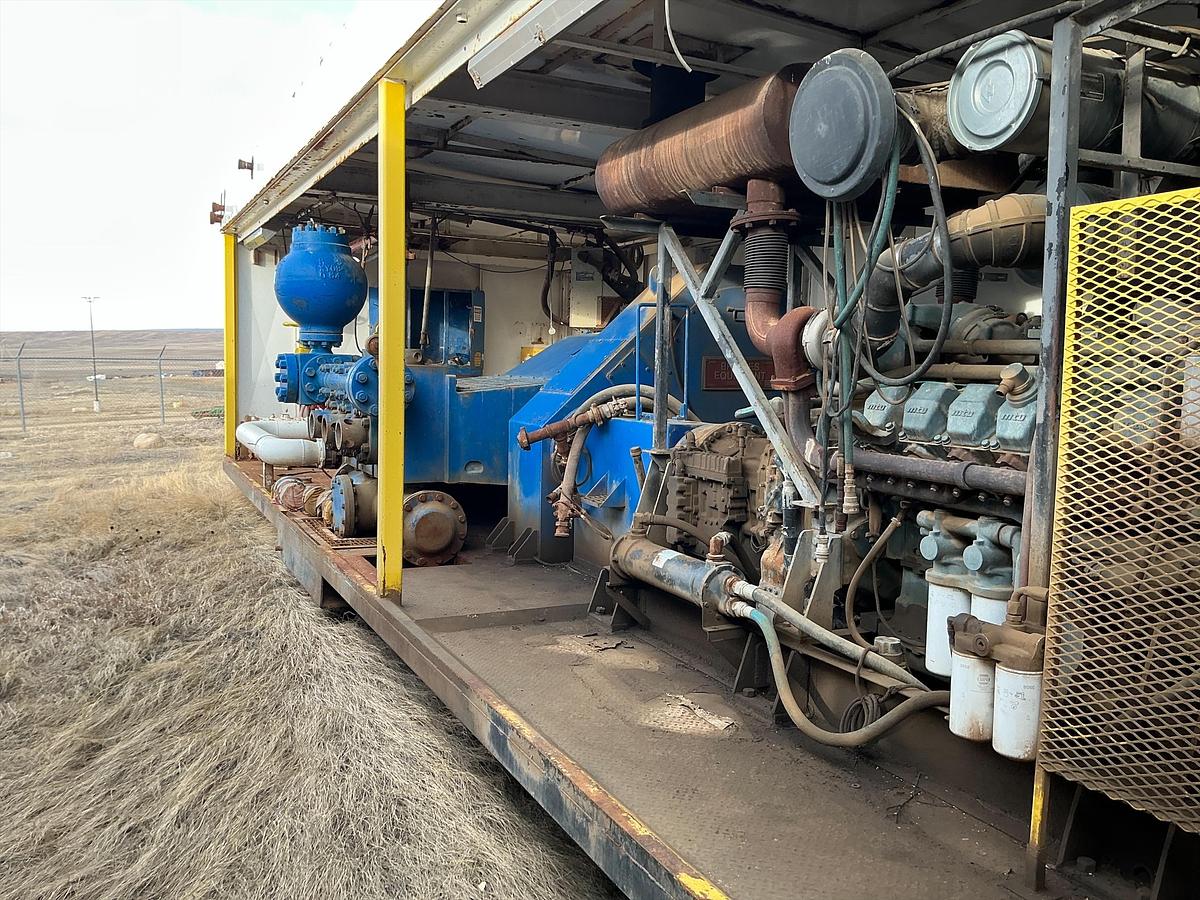

Mud Pump Skid Building w/ MTU Diesel Engine w/ RS-F1000 Pump

Mud Pump Skid Building w/ MTU Diesel Engine w/ RS-F1000 Pump

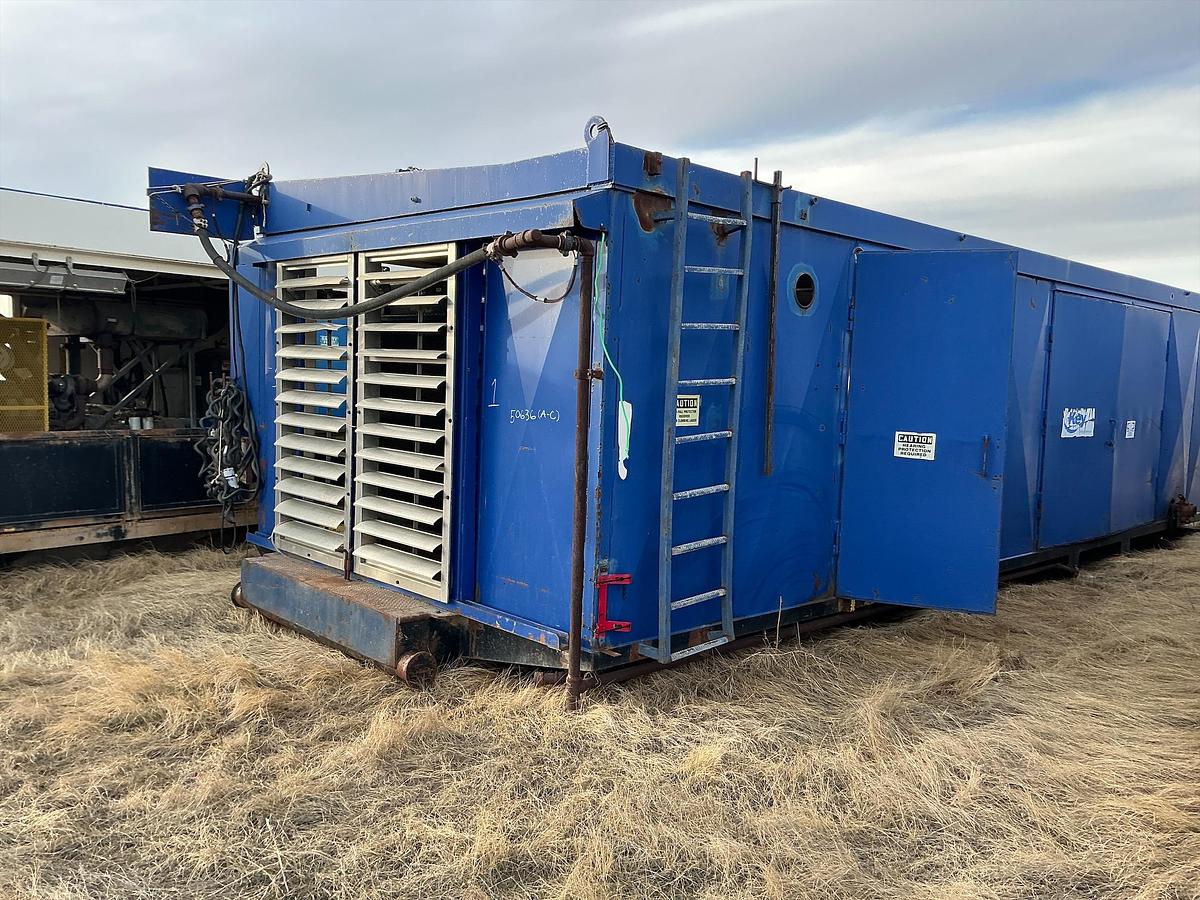

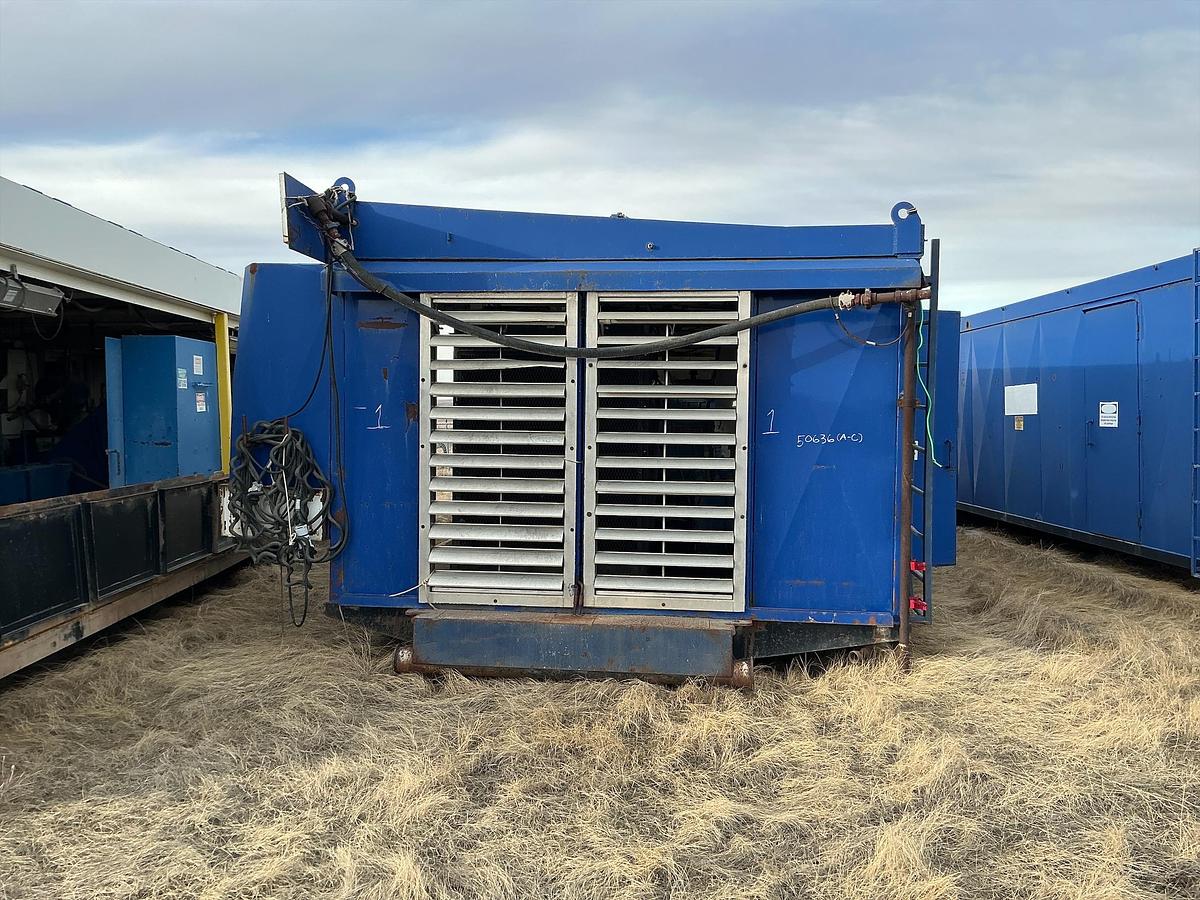

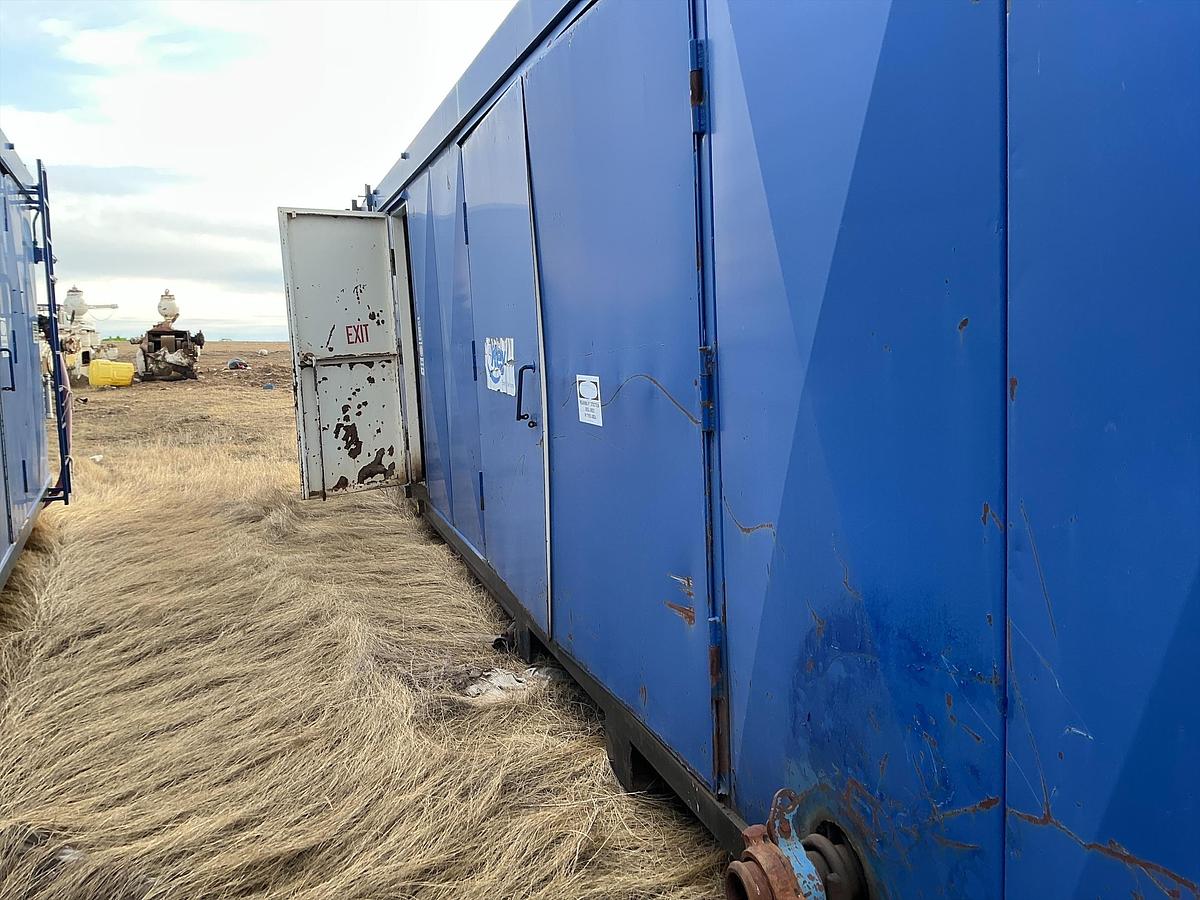

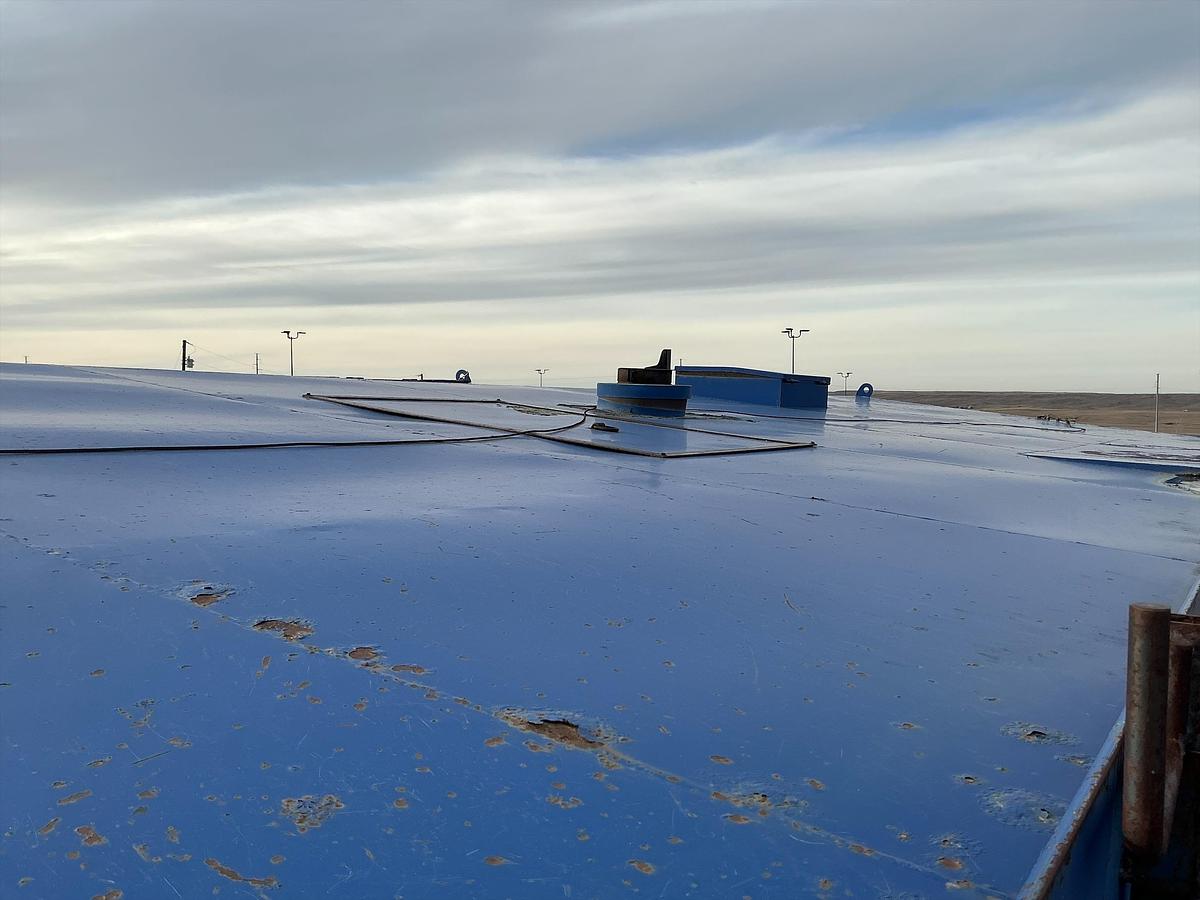

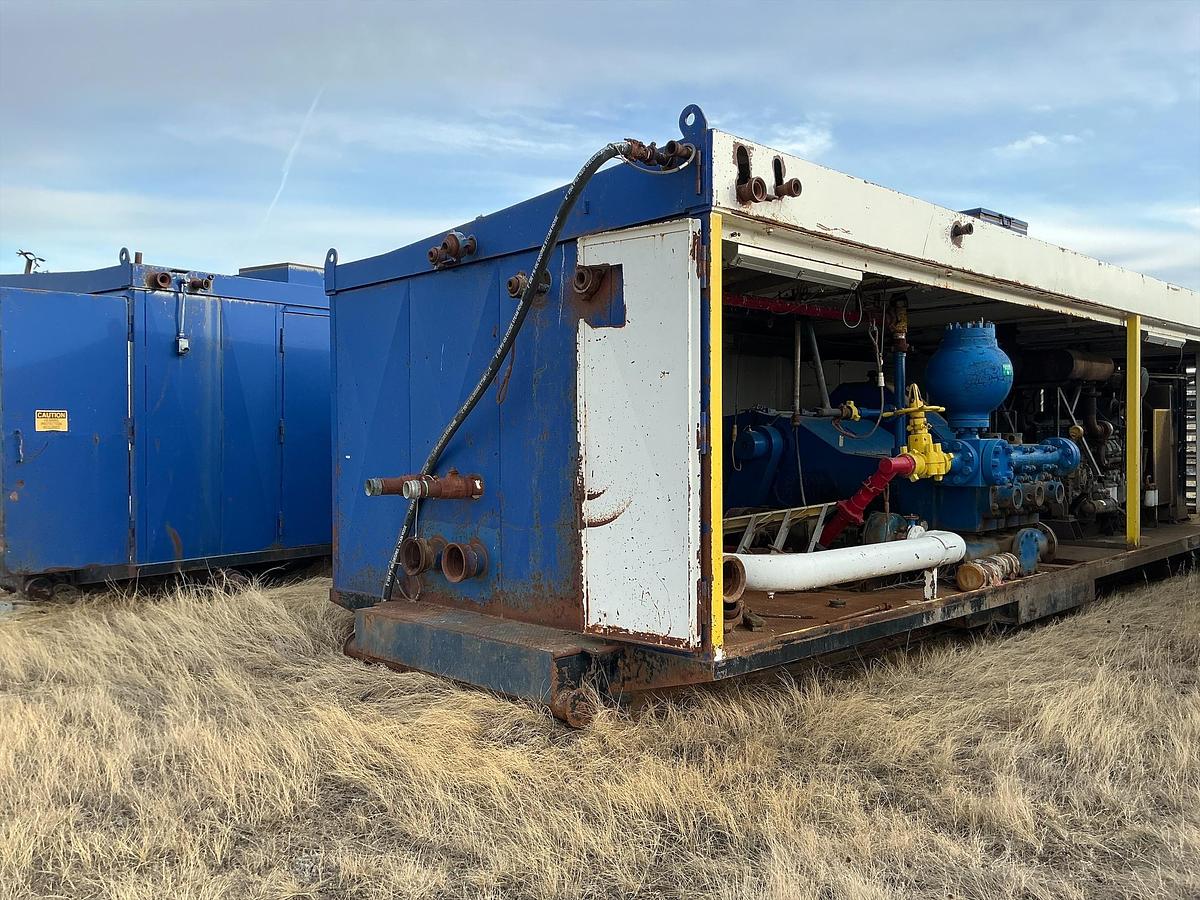

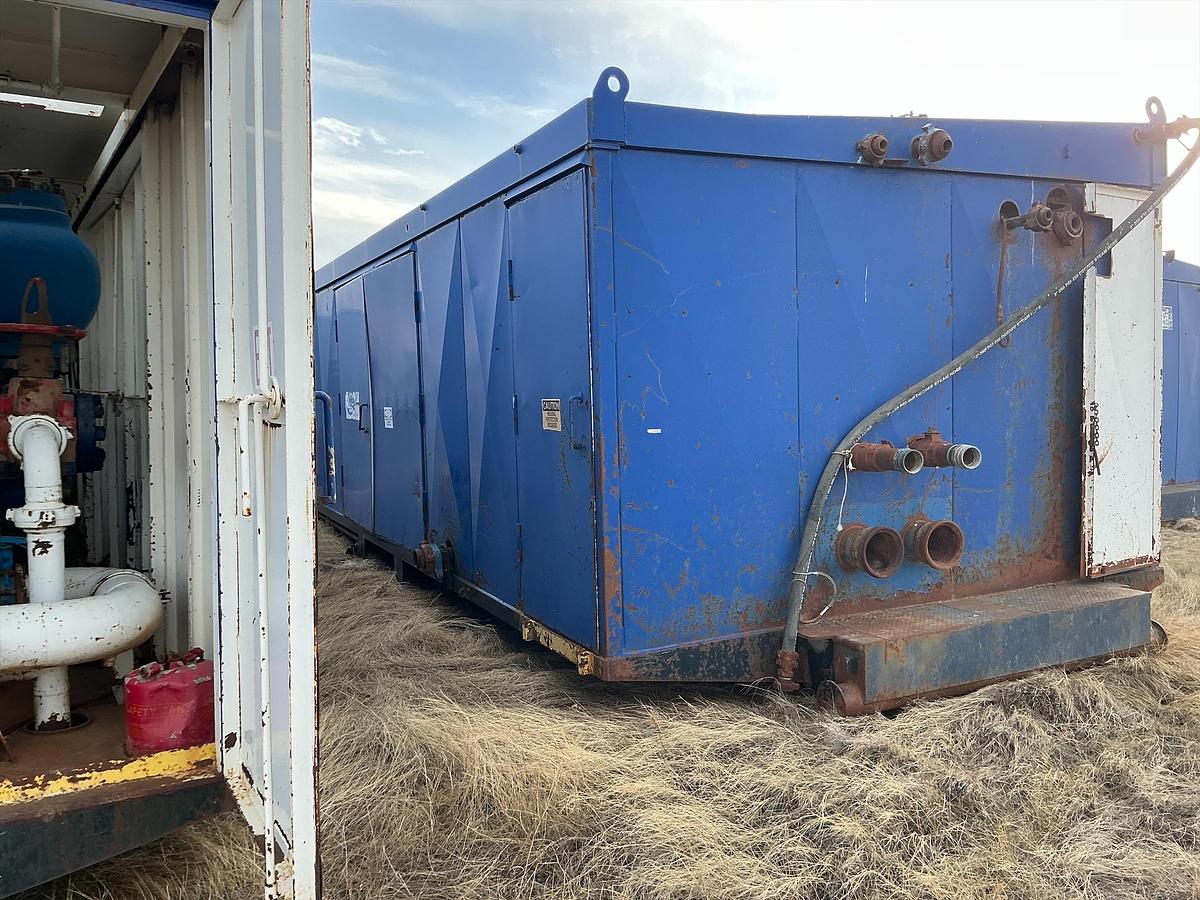

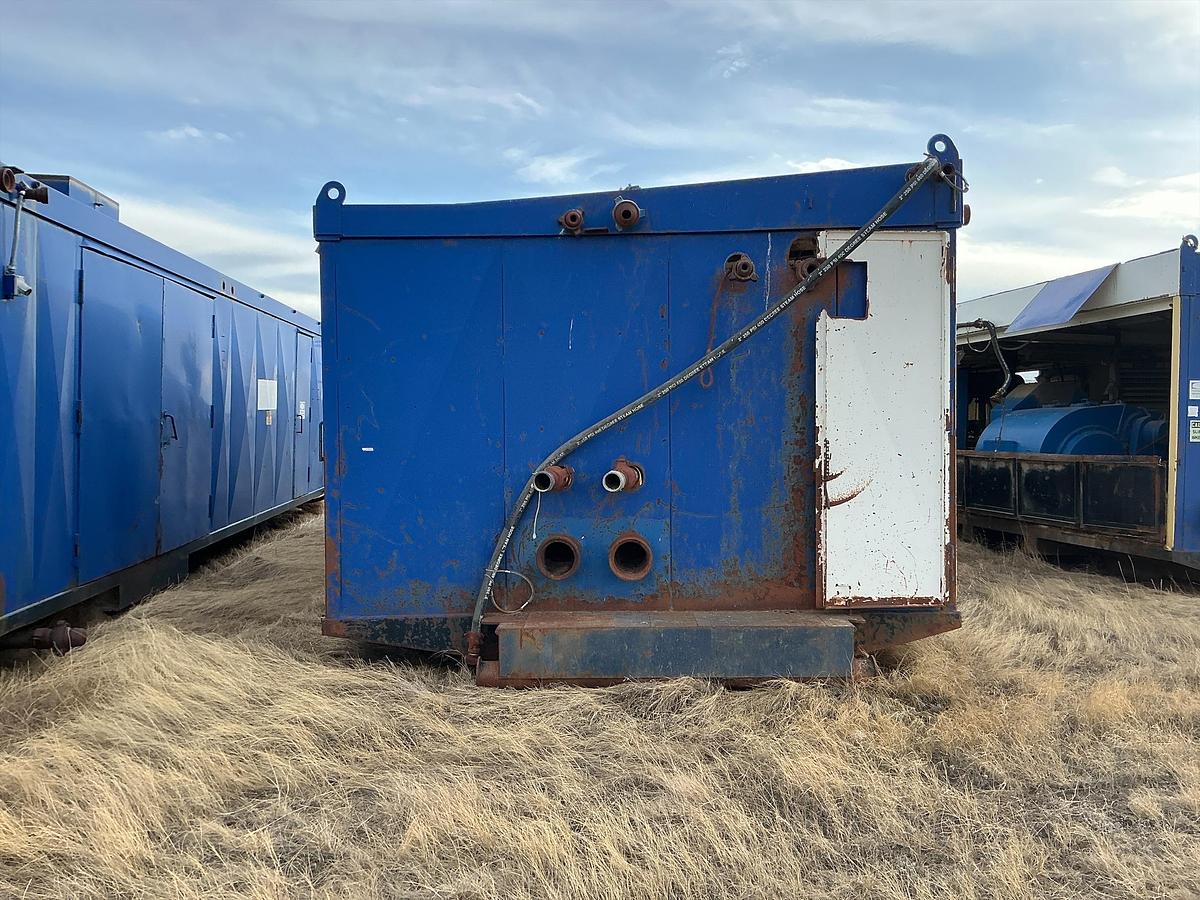

Stock #50636 .1.2.3. Mud Pump Building

43ft L x 12ft H x 14ft W

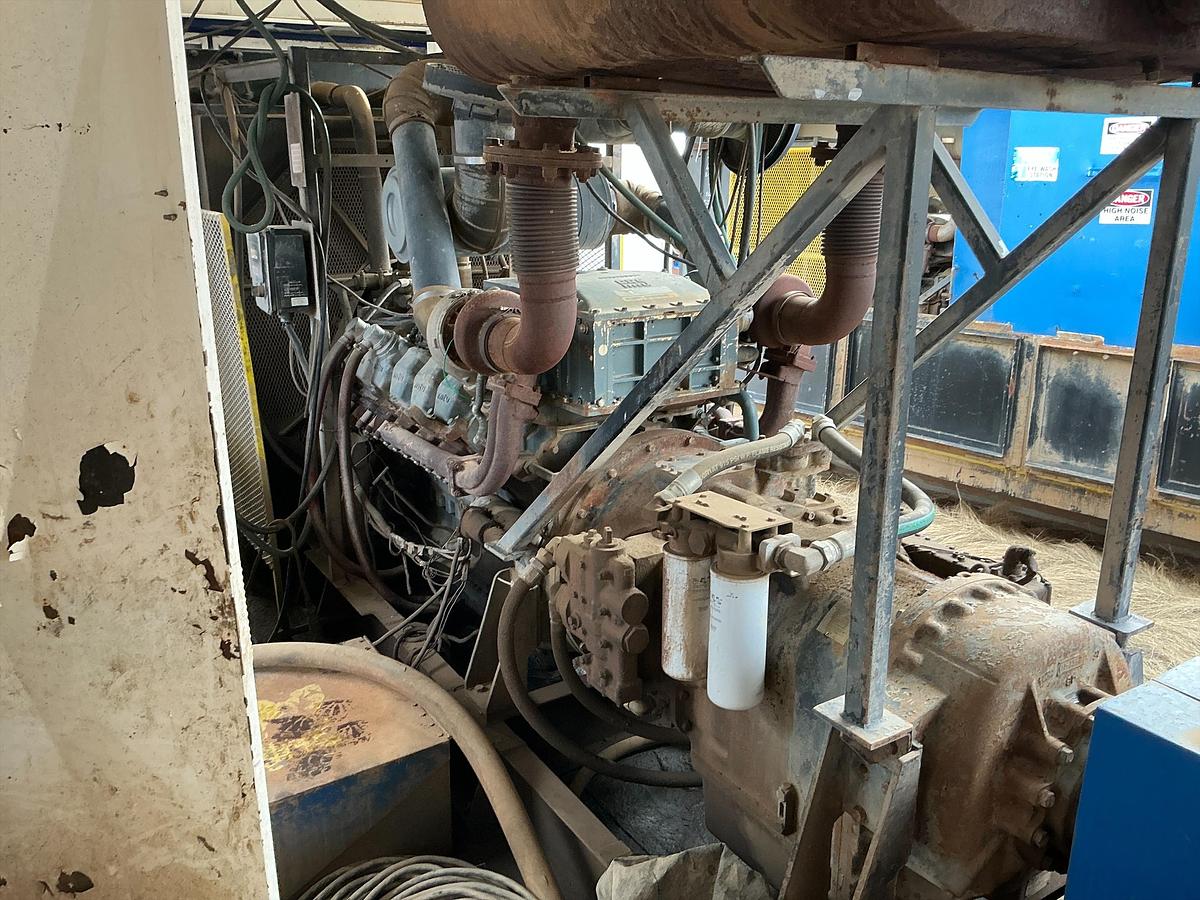

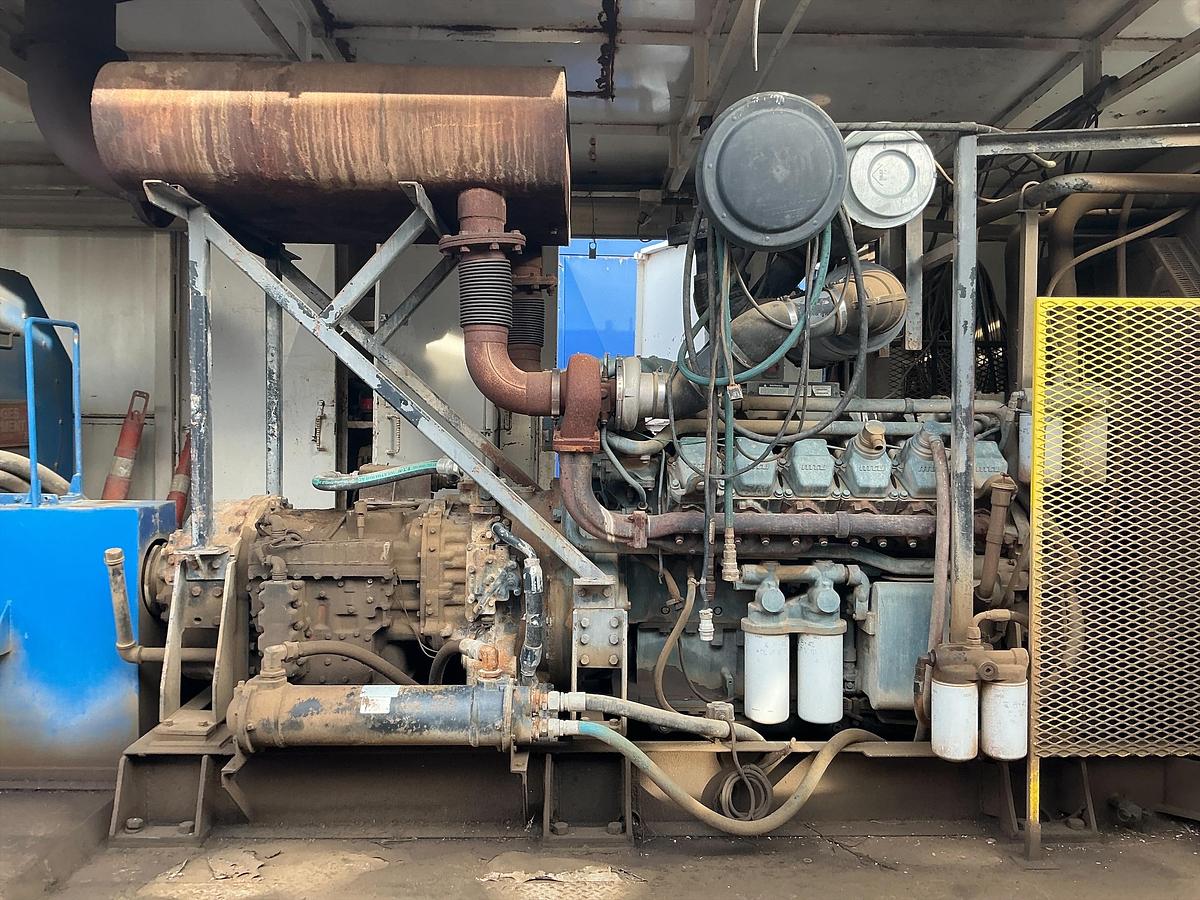

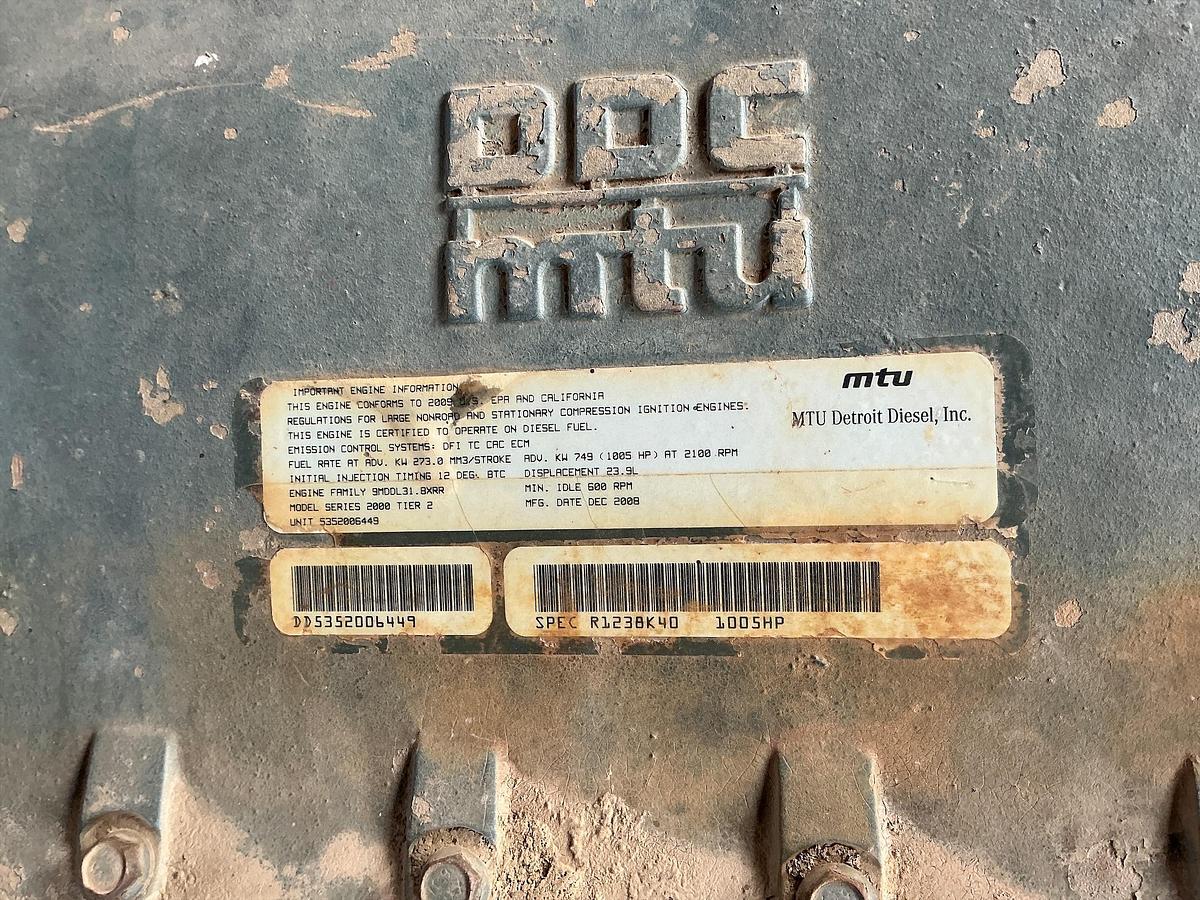

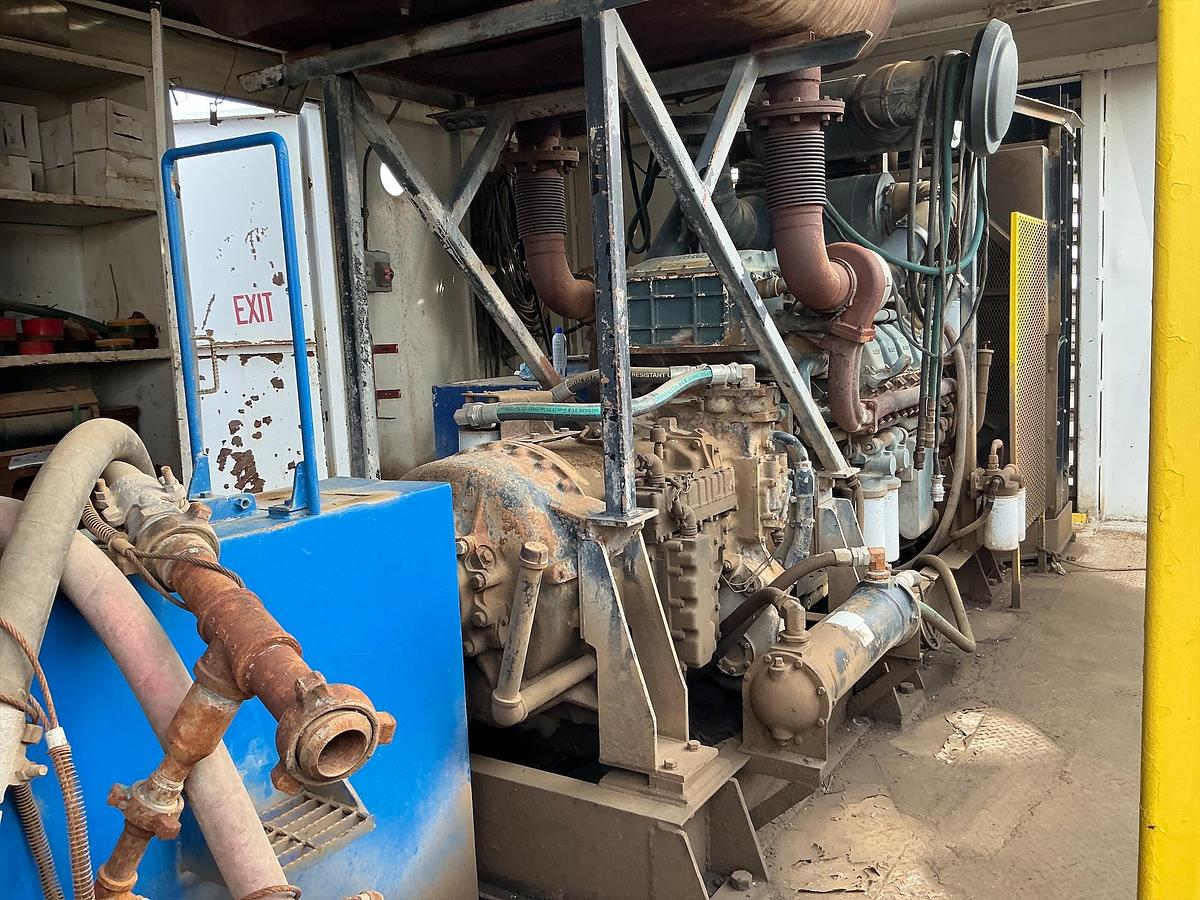

Stock #50636 .2    MTU Series 2000 Tier 2 Diesel Engine

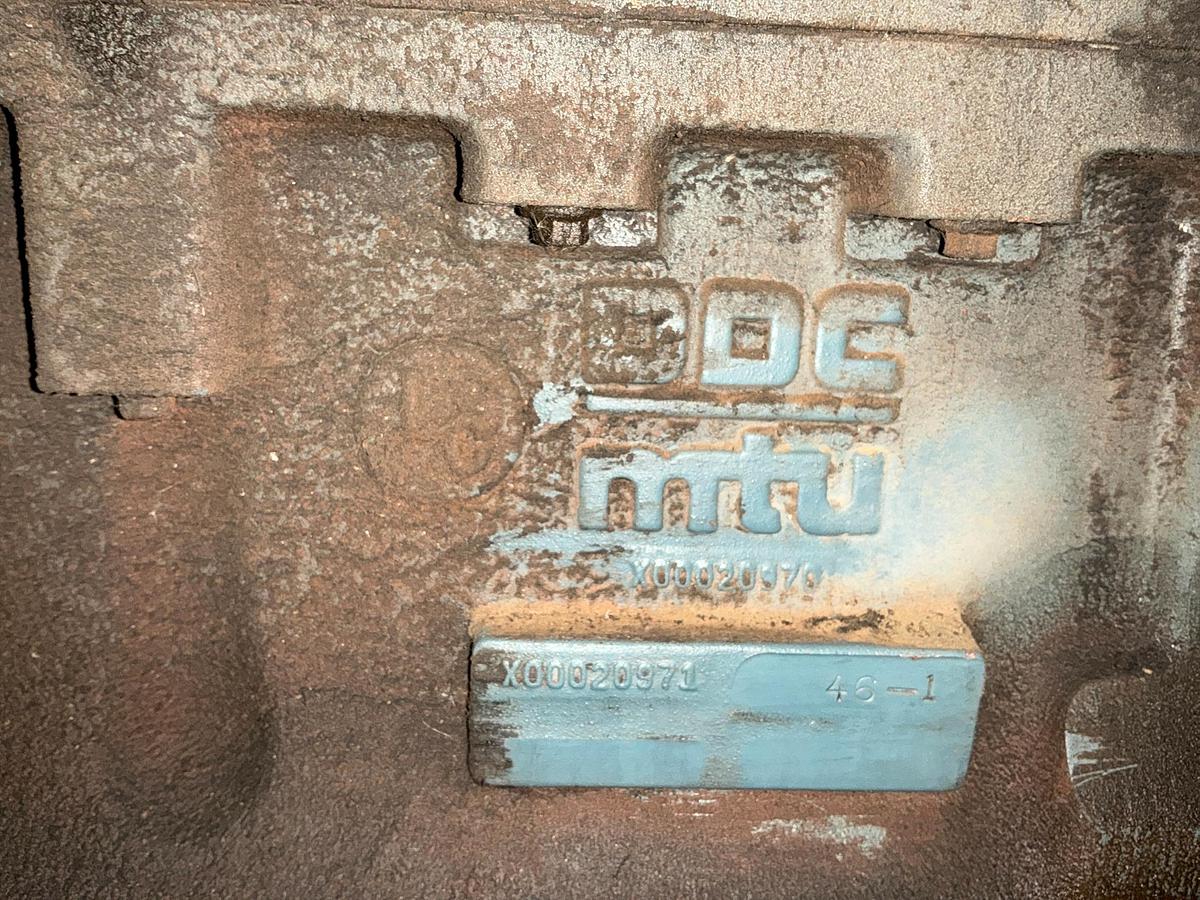

S/N: X00020971

The MTU Series 2000 is a versatile, high-speed diesel engine series used for marine propulsion (ferries, patrol boats, yachts) and power generation (generator sets). Based on your serial number X00020971 and the "Series 2000" designation, here are the general characteristics, though specific application, power rating, and configuration (8V, 12V, 16V) must be confirmed via the engine data plate or by contacting an authorized MTU/Rolls-Royce Solutions distributor with that serial number.

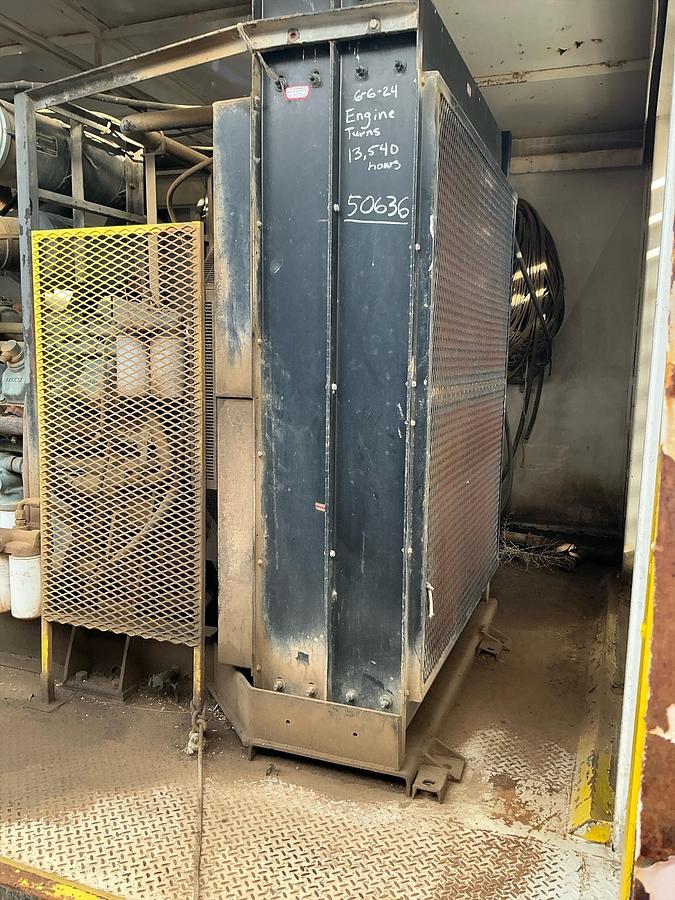

Hours 13,540

Dimensions: 13ft L x 7ft H x 5 ft W

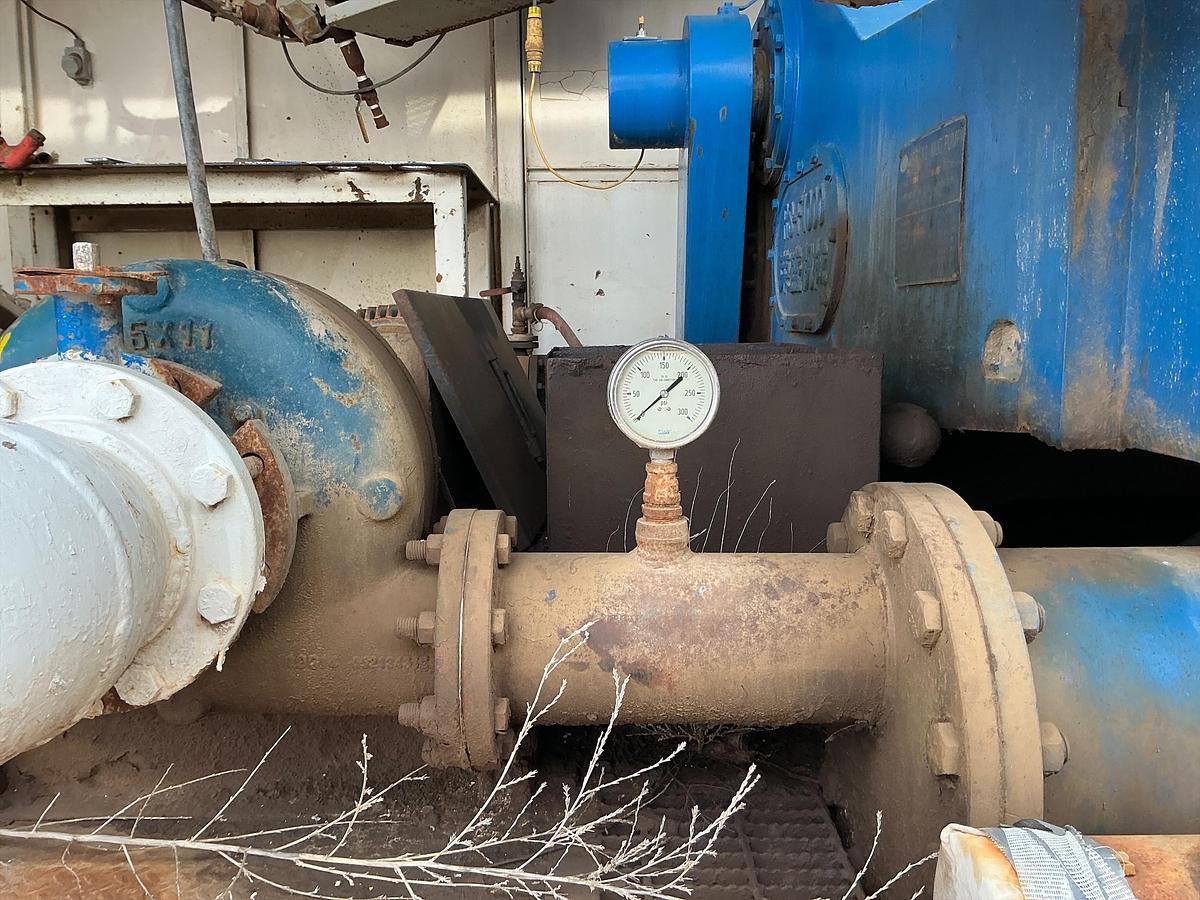

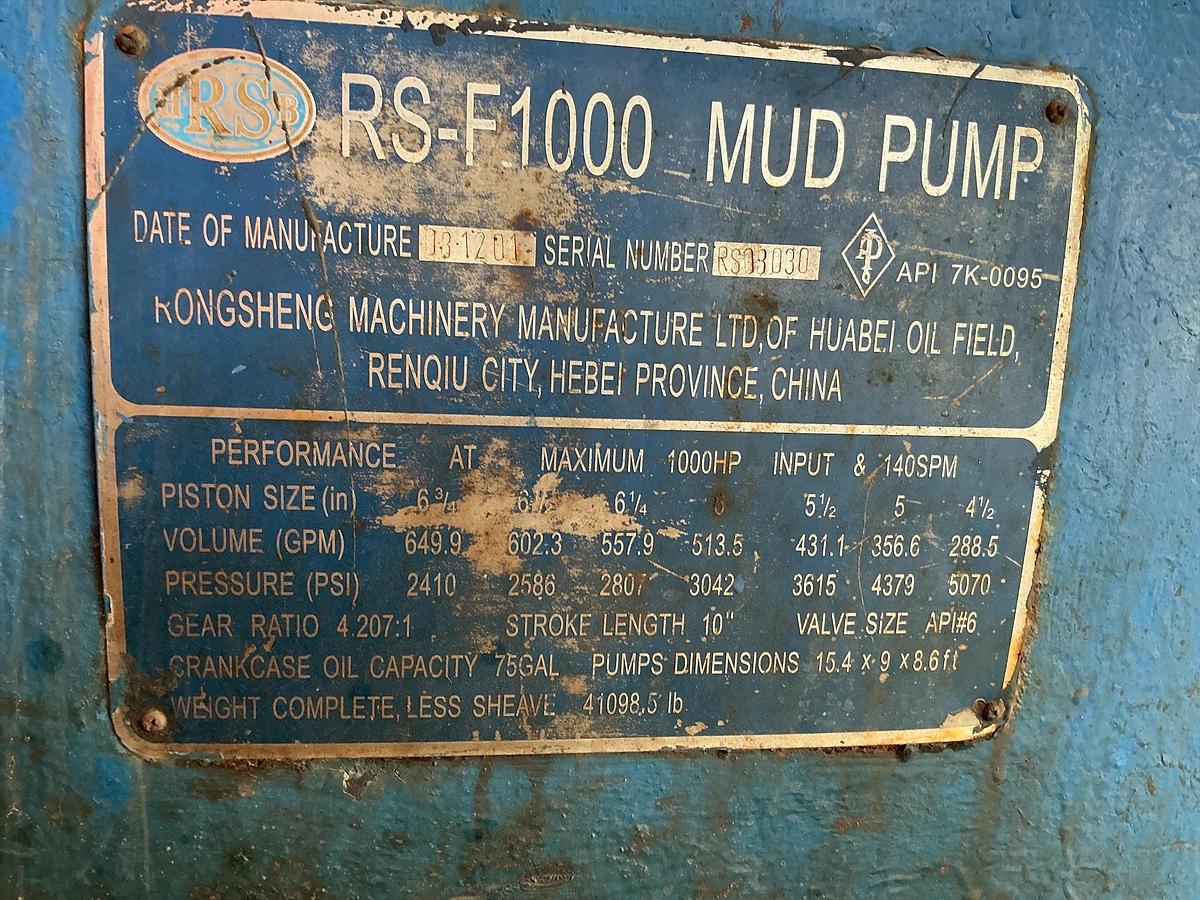

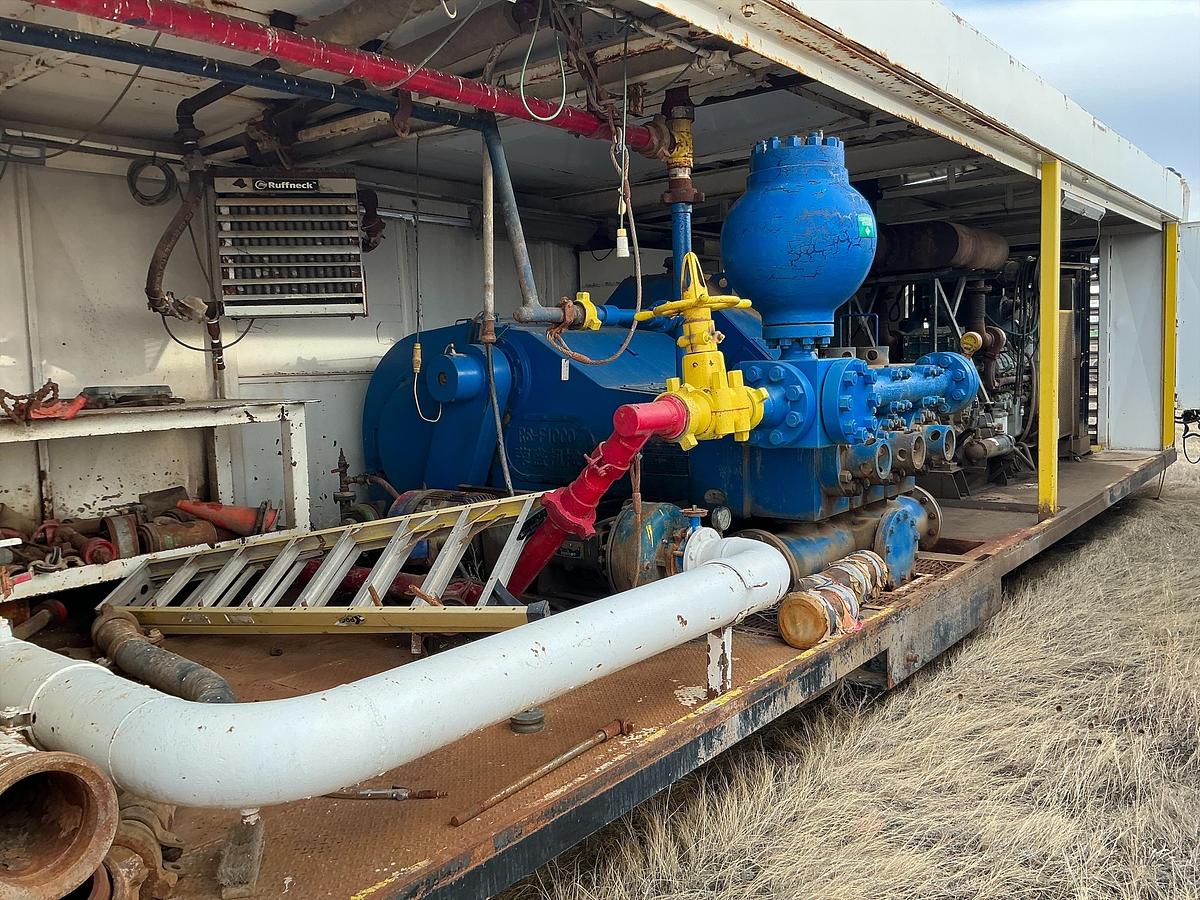

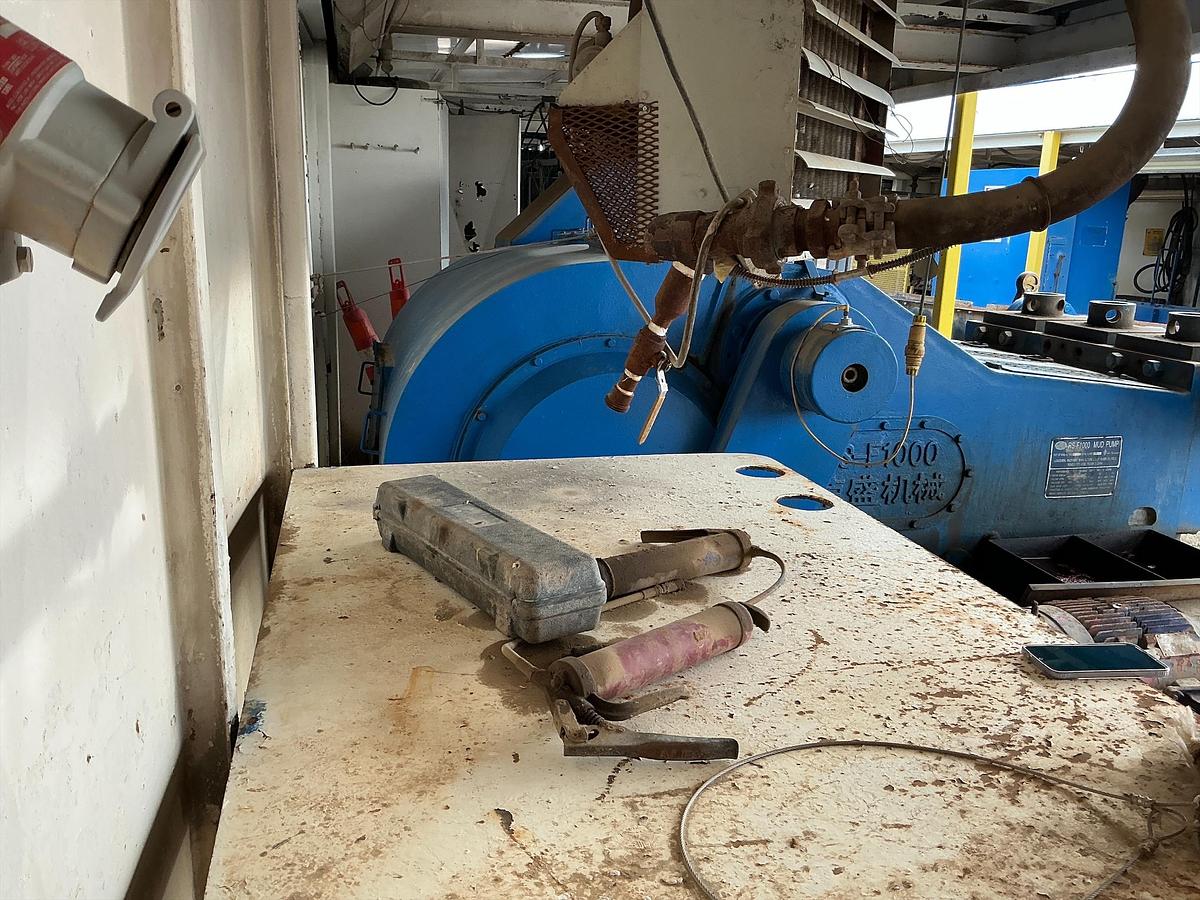

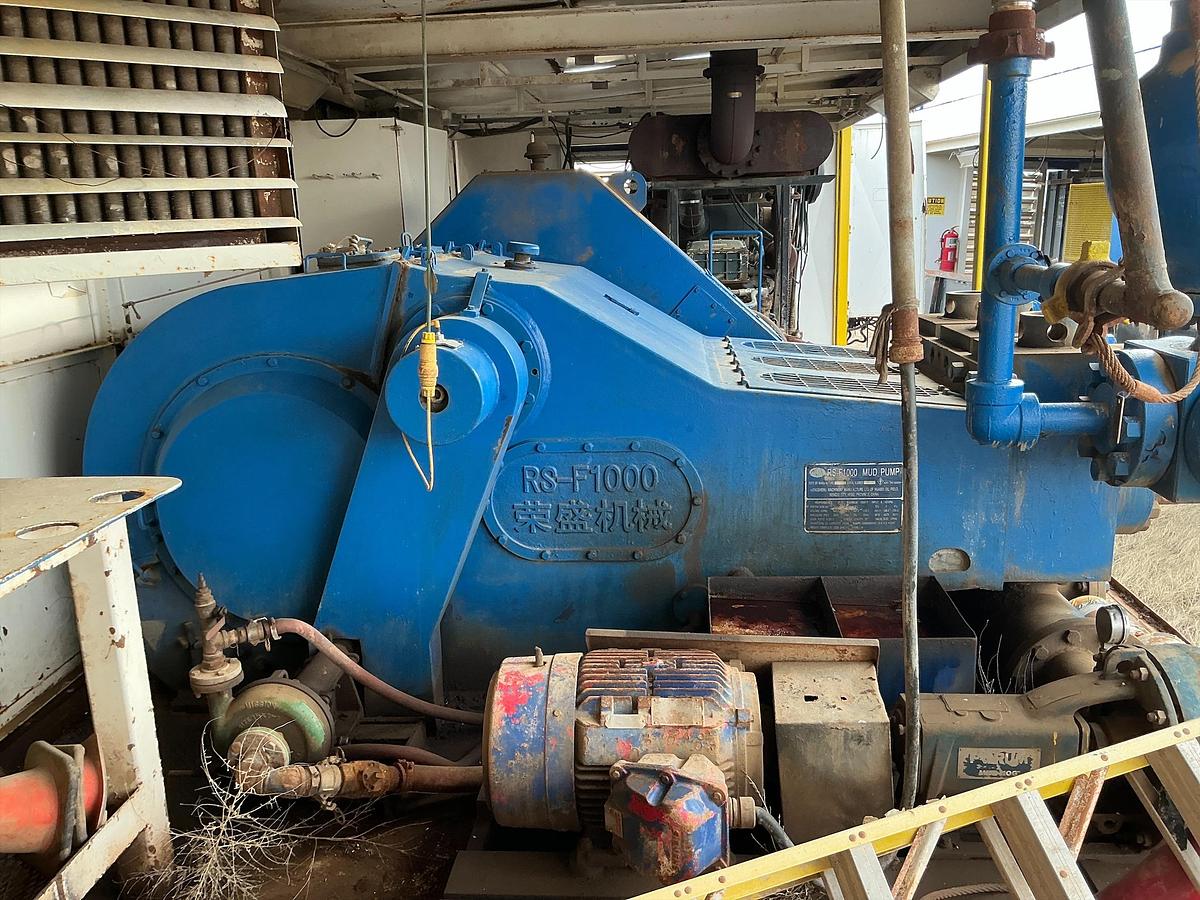

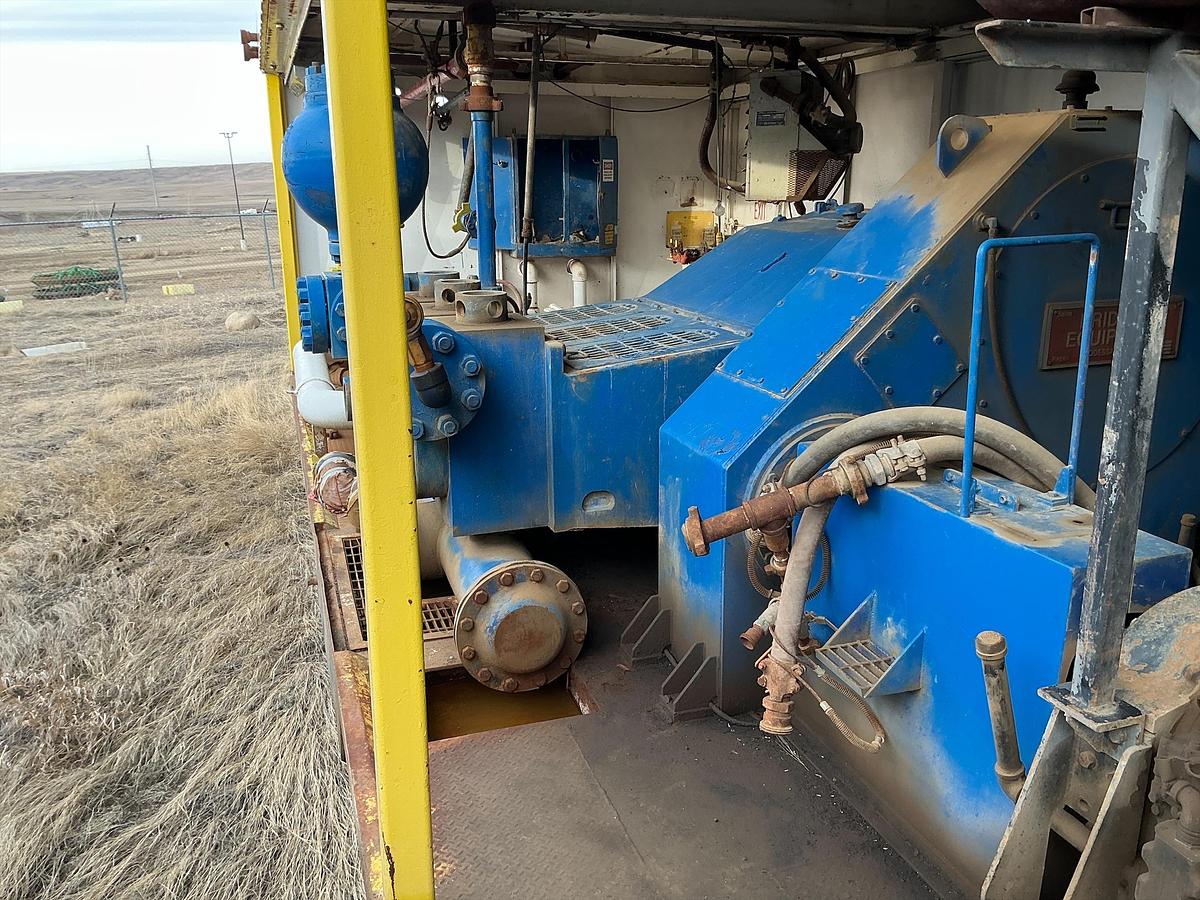

Stock #50636 .3    HRSB Pump Model: RS-F1000

S/N: RS08030

Dimensions: 24ft L x 8ft H x 14ft W

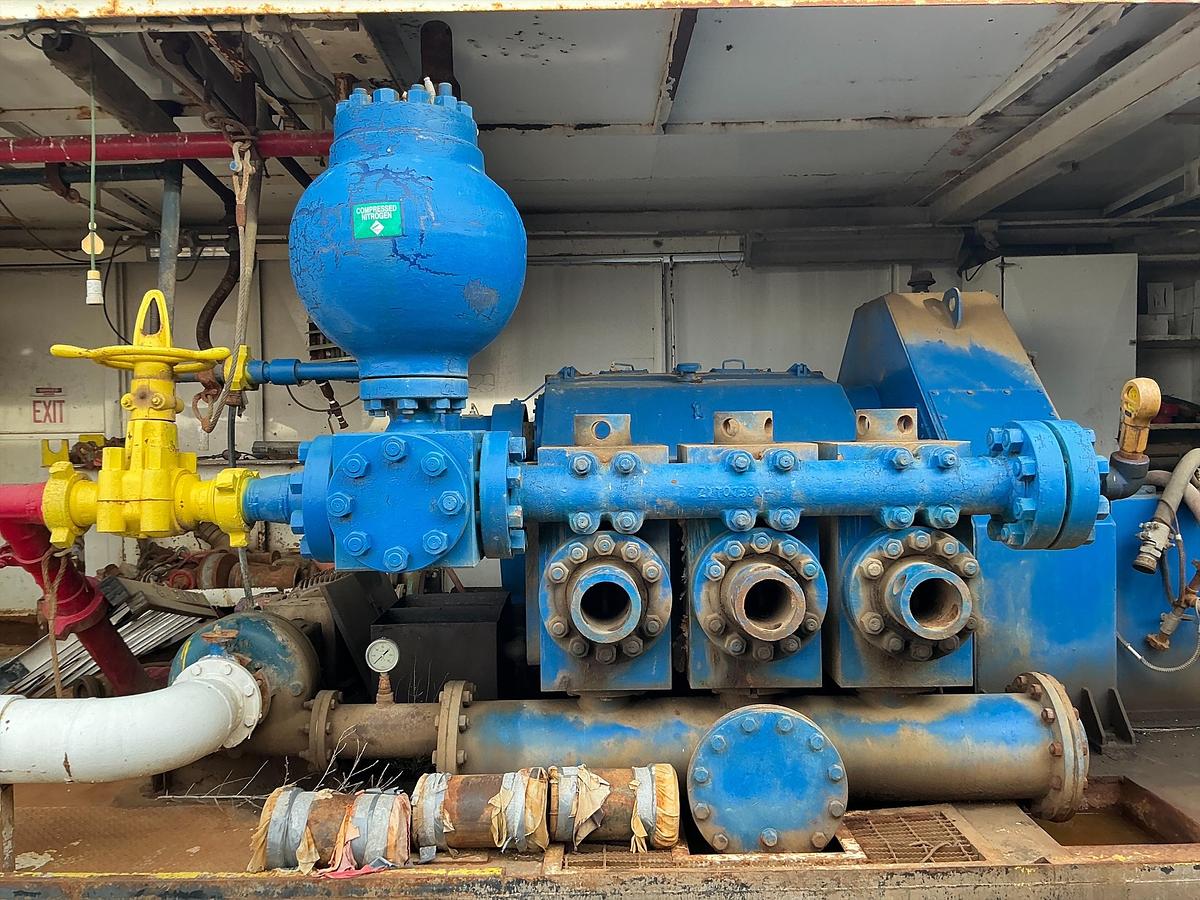

The HRSB RS-F1000 is a 1,000 horsepower (735 kW) triplex mud pump, typically manufactured by Rongsheng Machinery Manufacture Ltd. of Huabei. It is designed for drilling operations with a maximum stroke speed of 140 strokes per minute (SPM) and a stroke length of 10 inches (254 mm).

Key Specifications (RS-F1000)

• Power Rating: 1,000 HP (735 kW)
• Stroke Length: 10 inches (254 mm)
• Maximum Liner Size: 6-3/4 inches (171.5 mm)
• Gear Ratio: 4.207:1
• Rated Speed: 140 SPM
• Max Liner Pressure: 16.4 MPa (approx. 2,378 psi)
• Valve Pot: API #6
• Suction Inlet: 12 inches (305 mm)
• Discharge Outlet: 5-1/8 inches (5,000 psi flange)
• Weight (Main Body): Approximately 18,642 kg (41,425 lbs)

Performance at 140 SPM (Maximum Liner)

• Input Power: 1,000 HP (735 kW)
• Discharge Pressure: 16.4 MPa (2,378 psi)
• Capacity: 41 Liters/Second (approx. 650 gallons per minute)

Key Features

• Power End: Fabricated frame with alloy steel herringbone gears, designed with cast steel for the crankshaft bearing seat and pinion shaft.

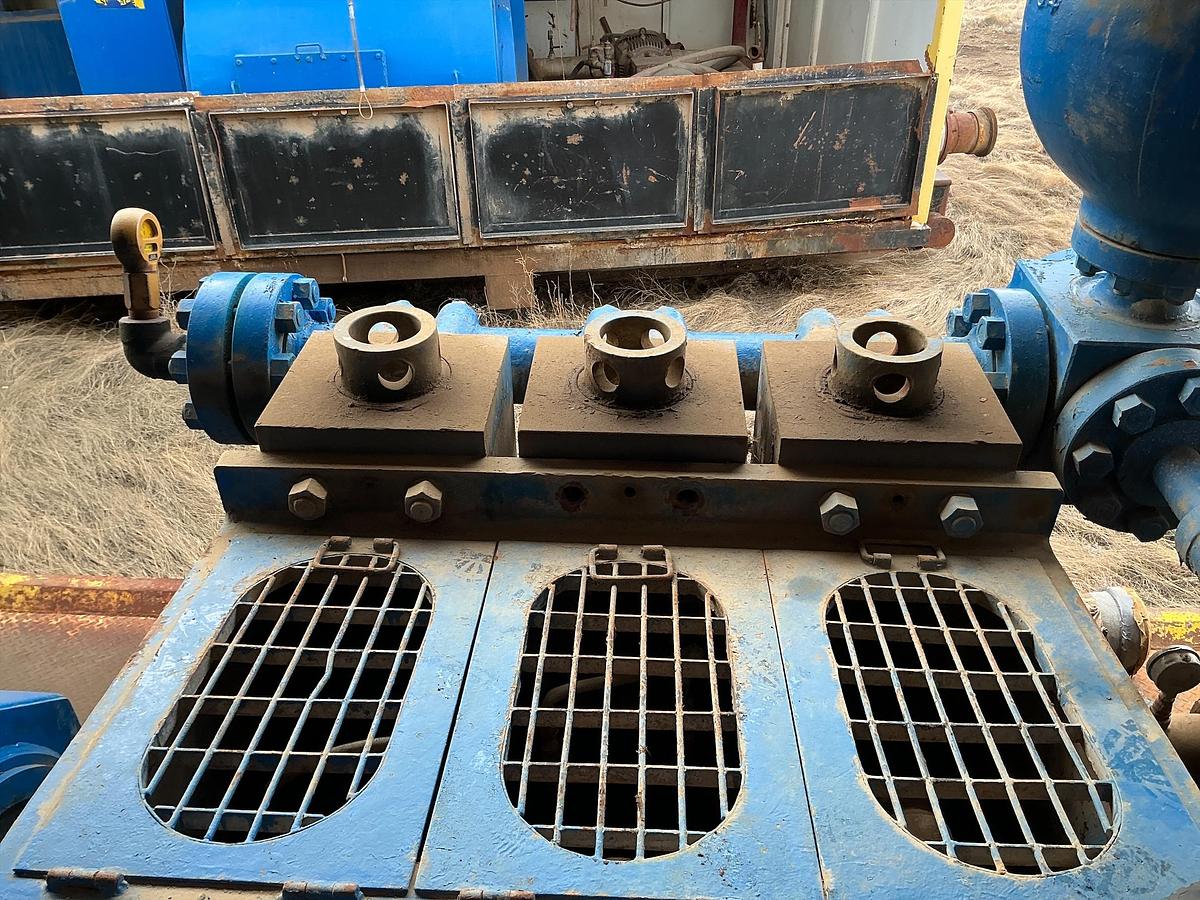

• Fluid End: Forged alloy steel cylinders (3 exchangeable units) with valve-over-valve construction.
• Lubrication: Combined pressure and splash lubrication system.
• Spray System: Centrifugal spray pump, water tank, and spray pipe for cooling and washing the liner and piston.

Based on typical manufacturing, the "RS" likely refers to Rongsheng and the "F1000" signifies a 1,000 HP F-series pump. Note that performance specs can vary slightly based on liner size, as smaller liners allow for higher pressure but lower capacity.
