Welded Steel 10,000 Gallon Diesel Fuel Tank

Welded Steel 10,000 Gallon Diesel Fuel Tank

$9,750 (USD)

Each

Location:Mineral Wells, TX

Description

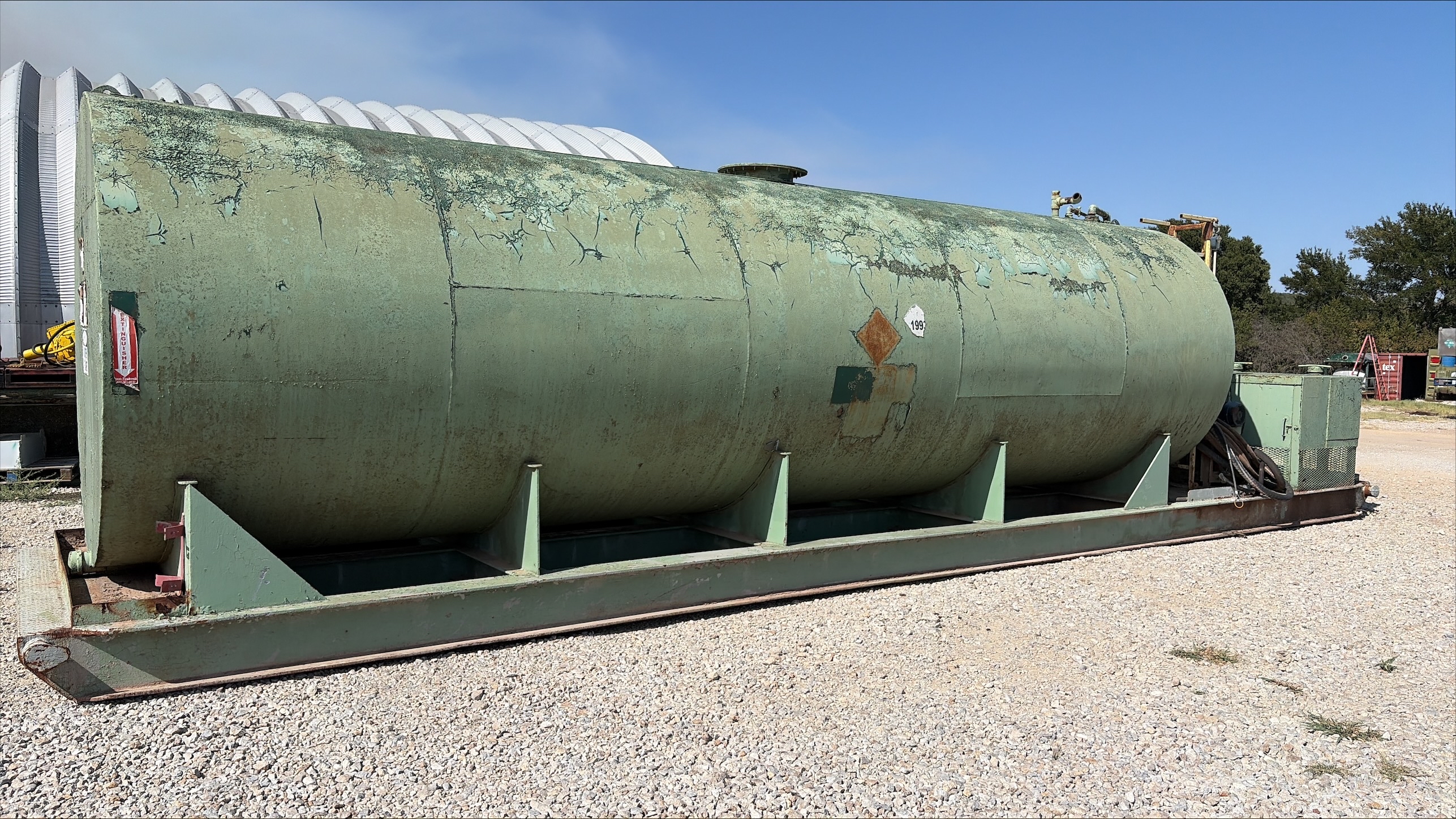

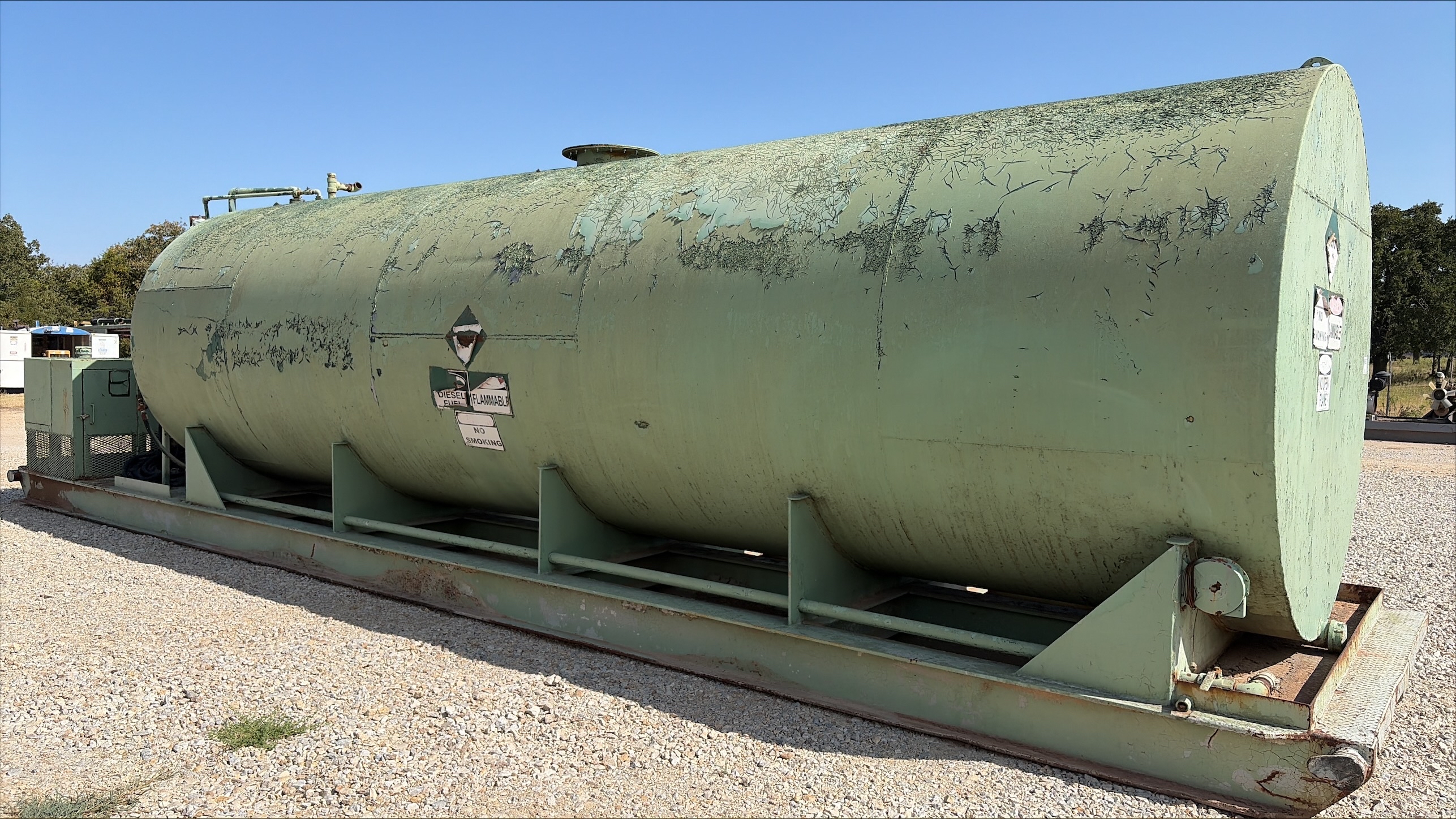

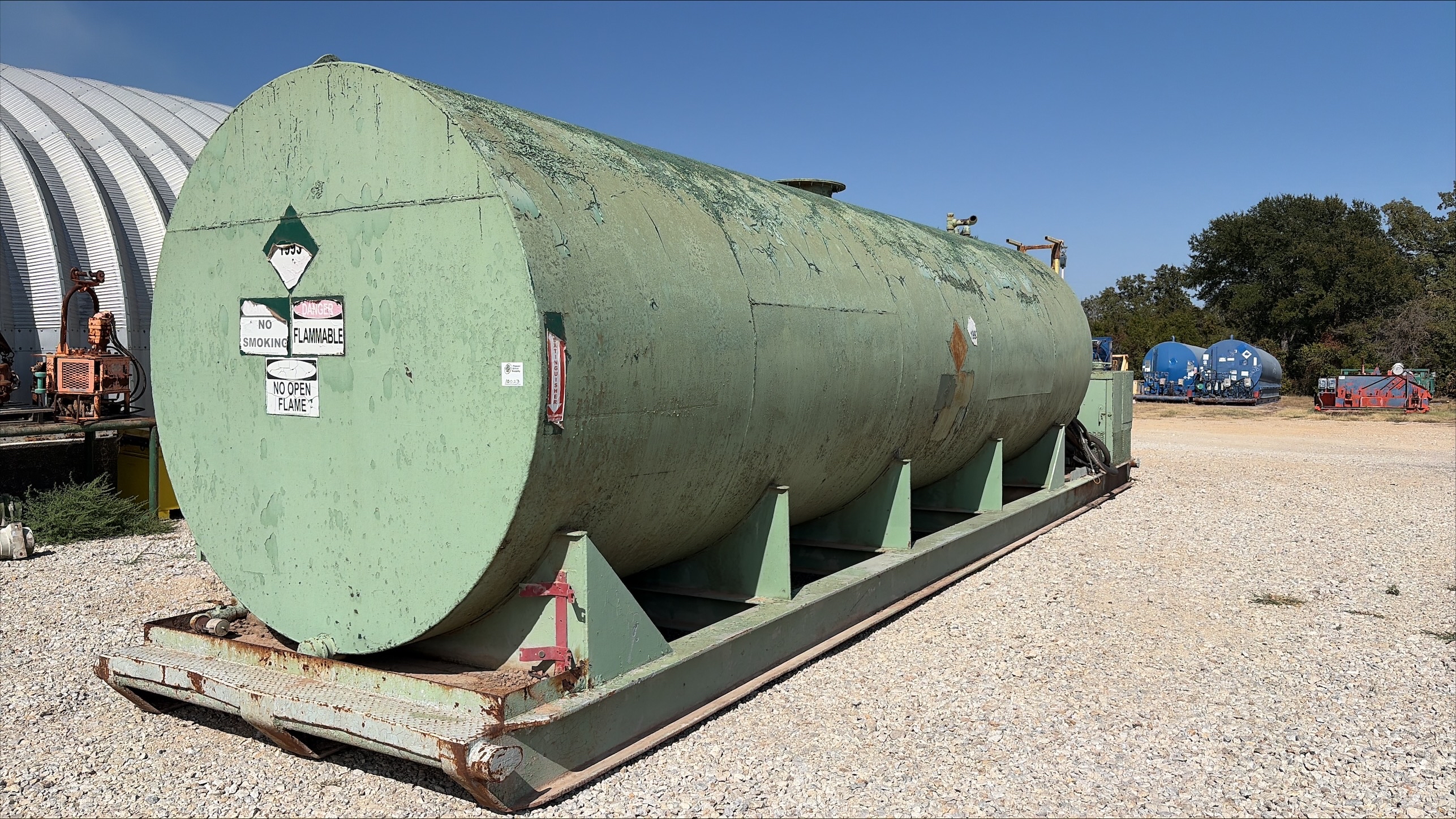

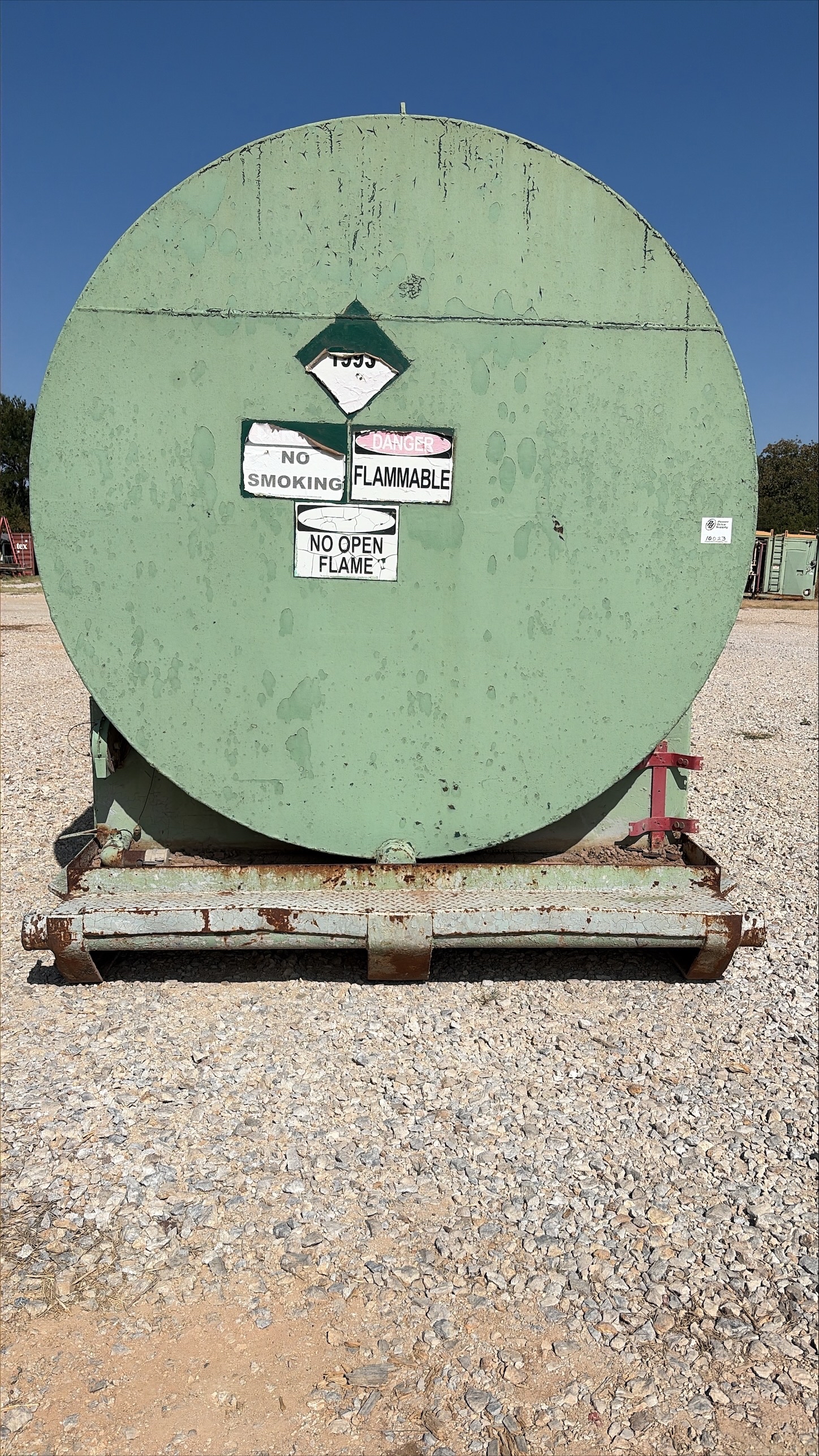

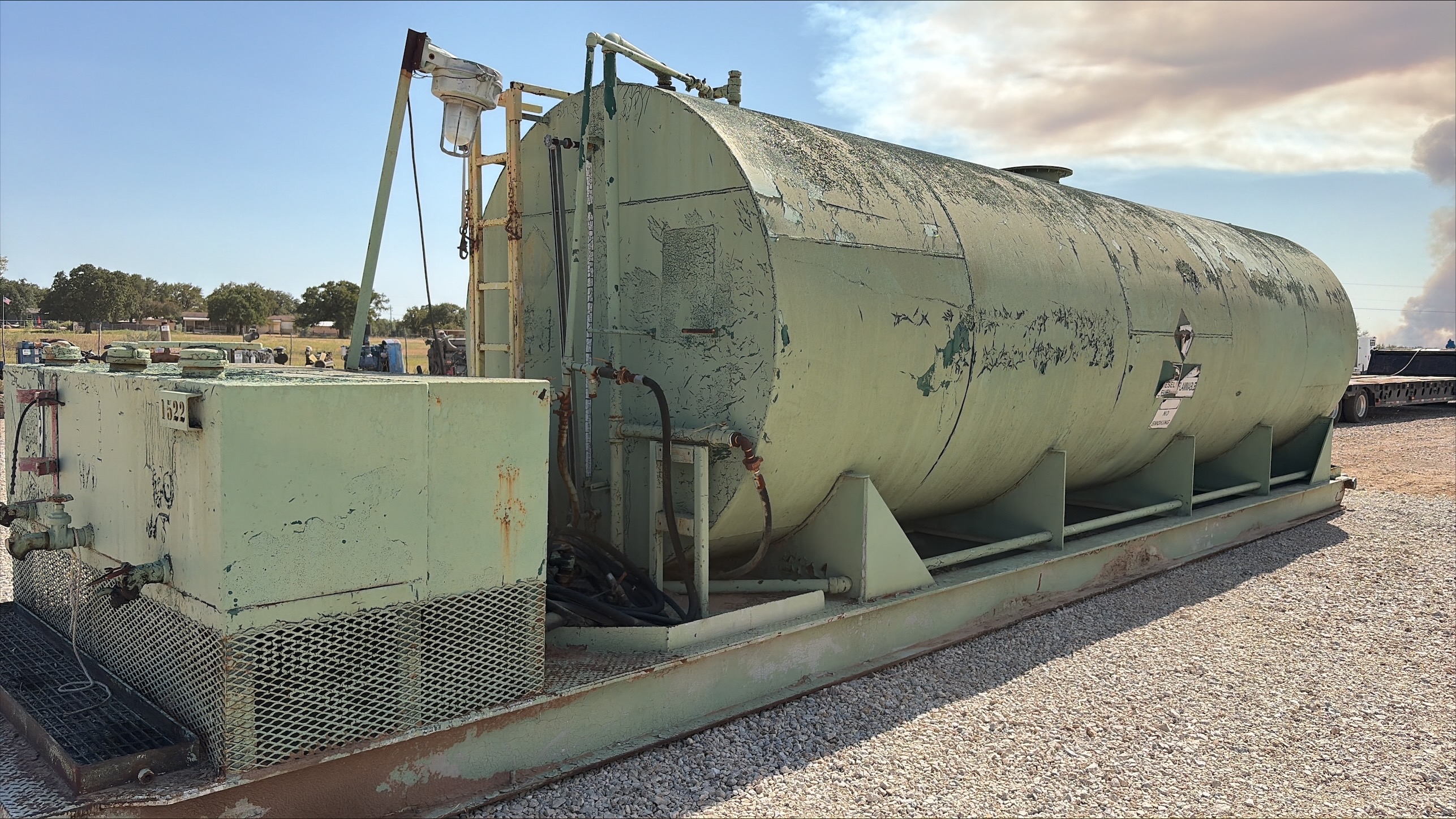

10,000-Gallon Single-Wall Welded Steel Diesel Fuel Storage Tank – Skid Mounted


Power Drive Supply is offering this used 10,000-gallon single-wall welded steel diesel fuel storage tank, mounted on a heavy-duty structural steel skid and equipped with associated electric pumping equipment, piping, hoses, and an external equipment enclosure.


This large-capacity horizontal storage tank features durable welded steel construction and a skid-mounted design, making it a potential option for industrial facilities, construction operations, equipment yards, agricultural operations, and other commercial bulk diesel fuel storage applications.


Tank Specifications


  • Equipment Type: Bulk Diesel Fuel Storage Tank
  • Tank Construction: Single-Wall Welded Steel
  • Capacity: 10,000 US Gallons (Approx. 37,854 Liters)
  • Tank Configuration: Horizontal Cylindrical
  • Wall Configuration: Single Wall – No Integrated Secondary Containment
  • Mounting: Heavy-Duty Structural Steel Skid
  • Overall Length: 38'4"
  • Overall Width: 8'
  • Overall Height: 10'3"
  • Intended Product: Diesel Fuel

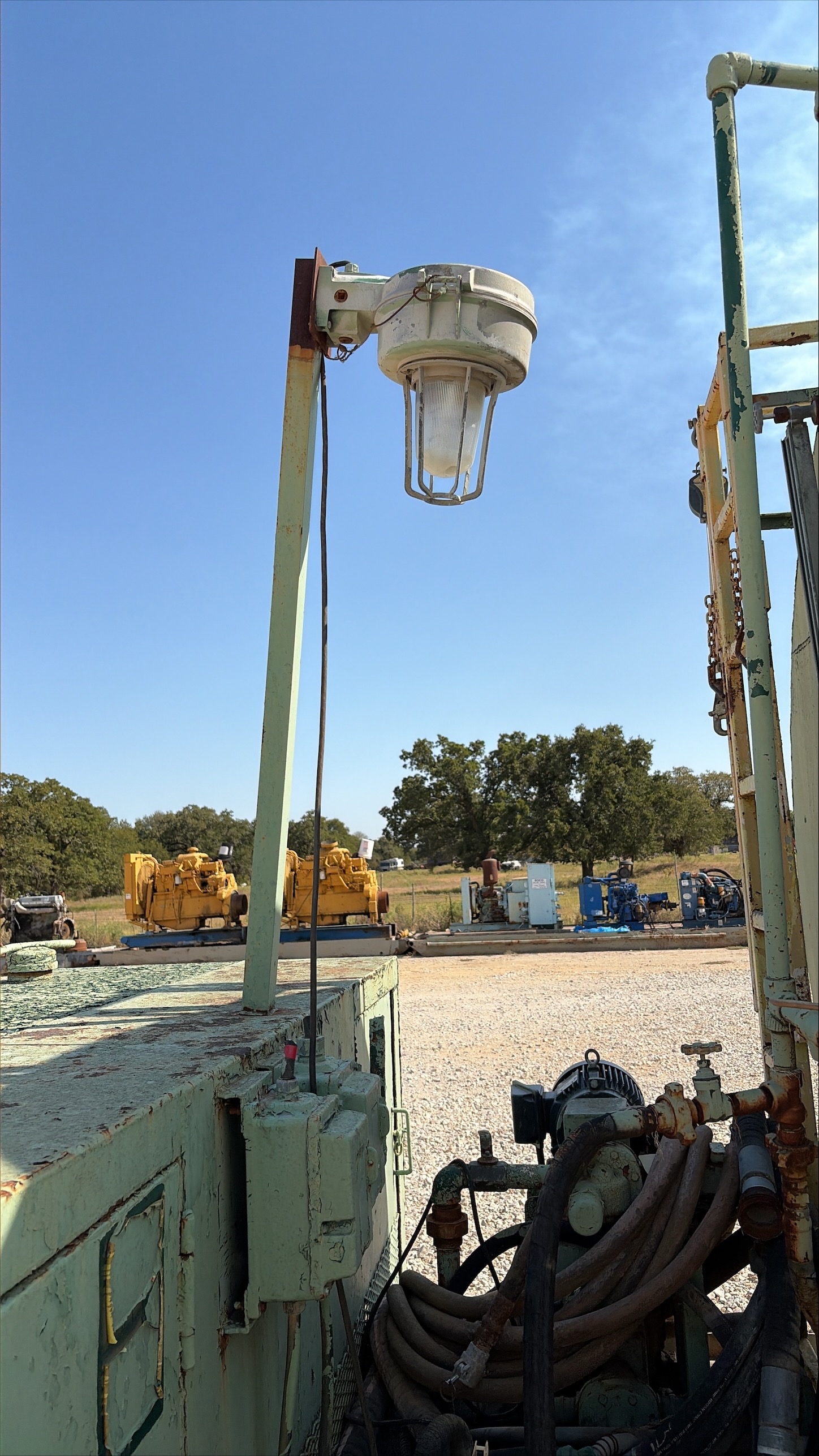

Electric Motors & Pumping Equipment

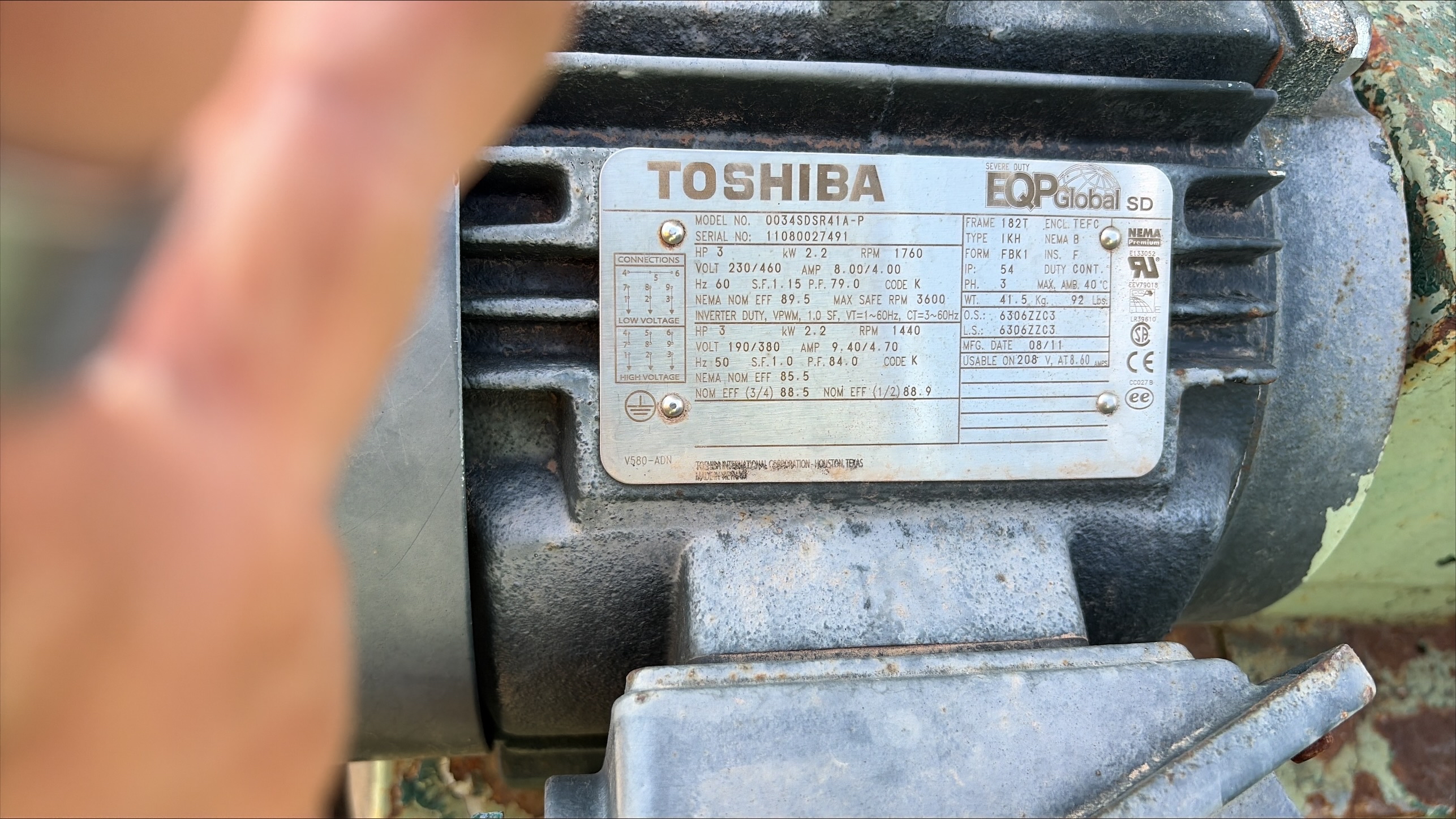

Toshiba EQP Global SD Electric Motor

  • Manufacturer: Toshiba
  • Motor Series: EQP Global SD
  • Horsepower: 3 HP (2.2 kW)
  • Voltage: 230/460V
  • Phase: 3-Phase
  • Frequency: 60 Hz
  • Speed: 1,760 RPM
  • Frame: 182T
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)

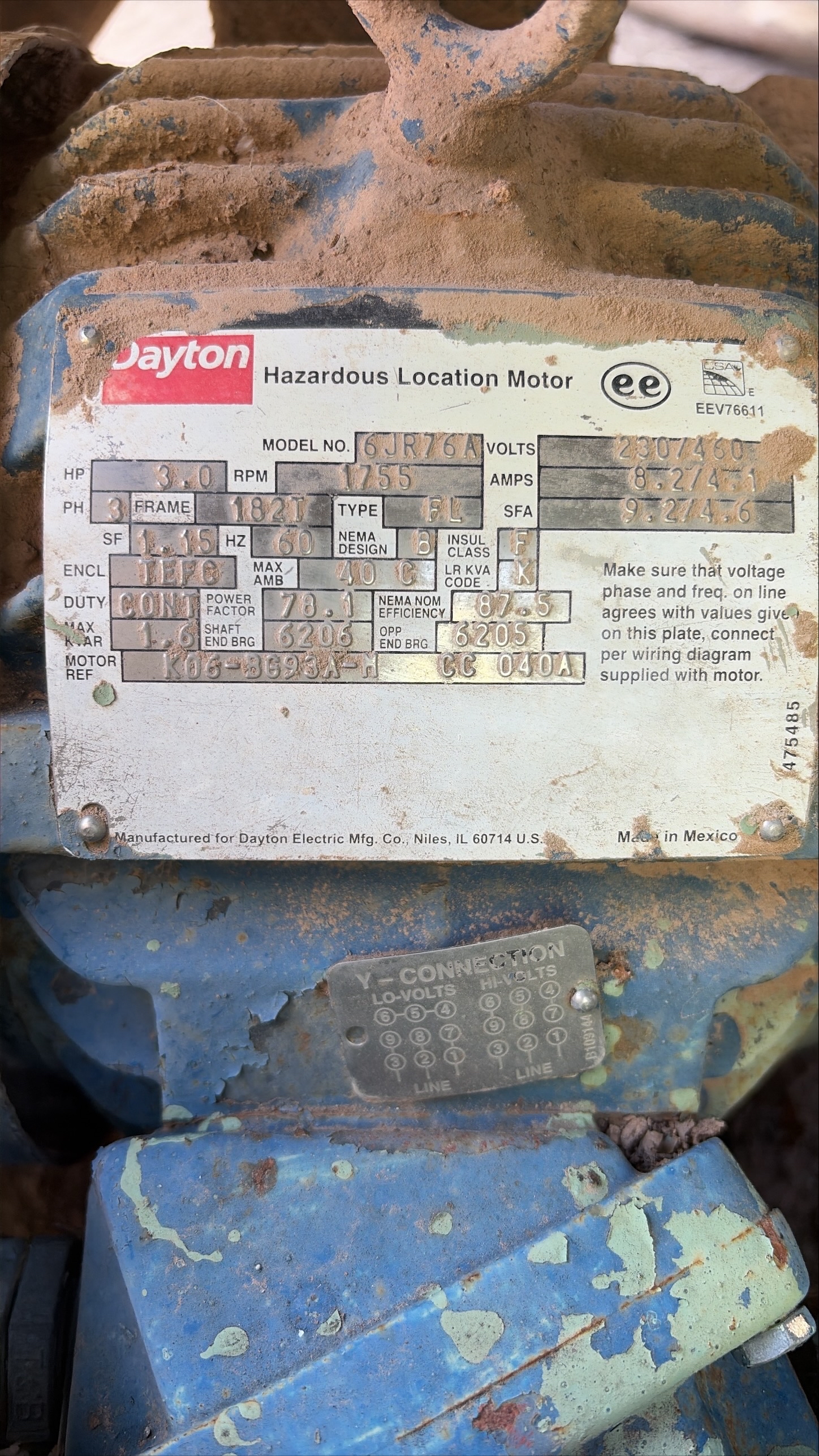

Dayton Hazardous Location Electric Motor

  • Manufacturer: Dayton
  • Motor Type: Hazardous Location
  • Horsepower: Approximately 2 HP
  • Voltage: 230/460V
  • Phase: 3-Phase
  • Frequency: 60 Hz
  • Speed: 1,755 RPM
  • Duty Rating: Continuous


Features & Highlights


  • 10,000-Gallon Bulk Diesel Storage Capacity
  • Single-Wall Welded Steel Construction
  • Horizontal Cylindrical Tank Design
  • Heavy-Duty Structural Steel Skid Base

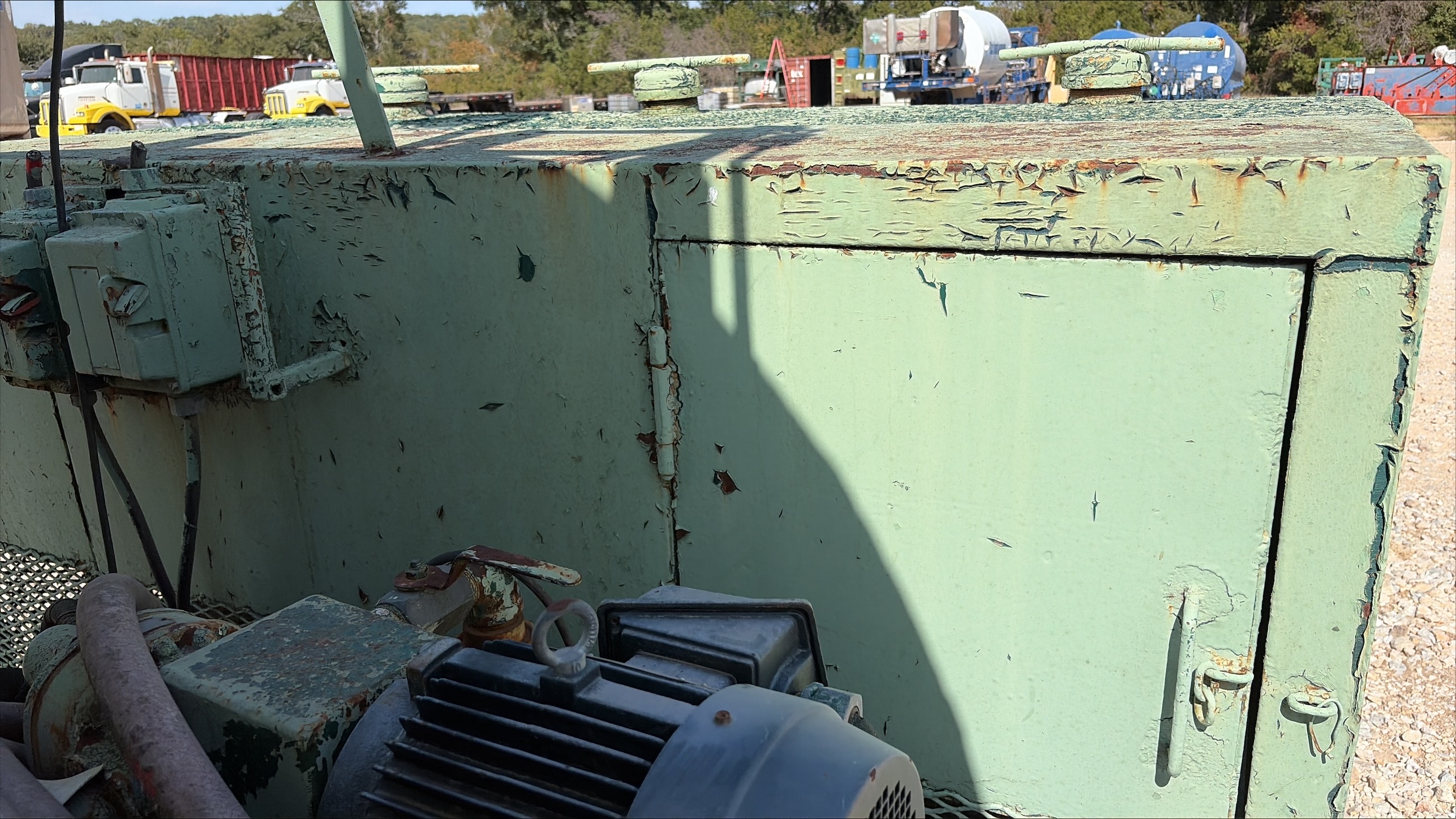

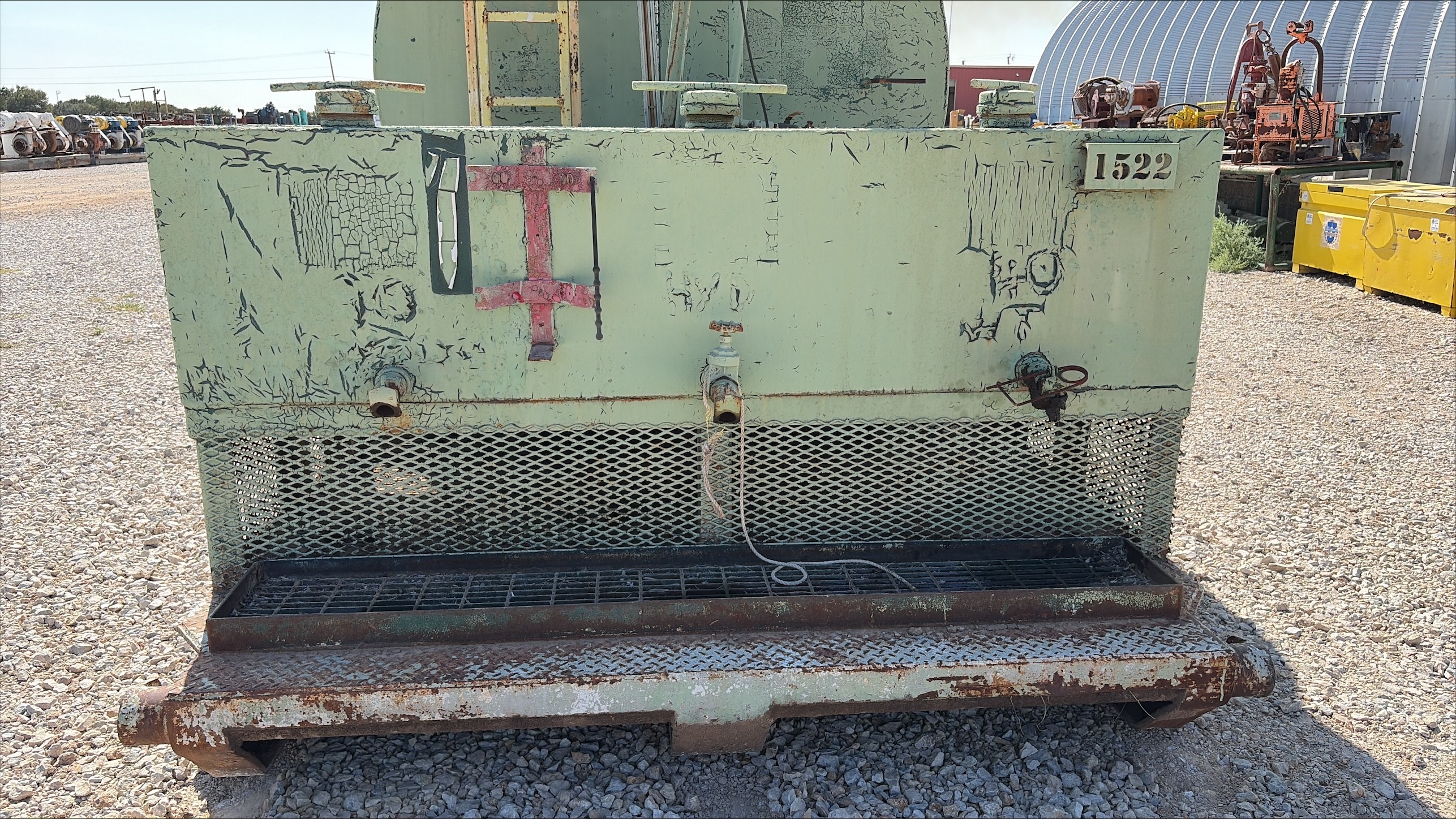

  • External Pumping Equipment Enclosure
  • Toshiba 3 HP Electric Motor
  • Dayton Hazardous Location Electric Motor

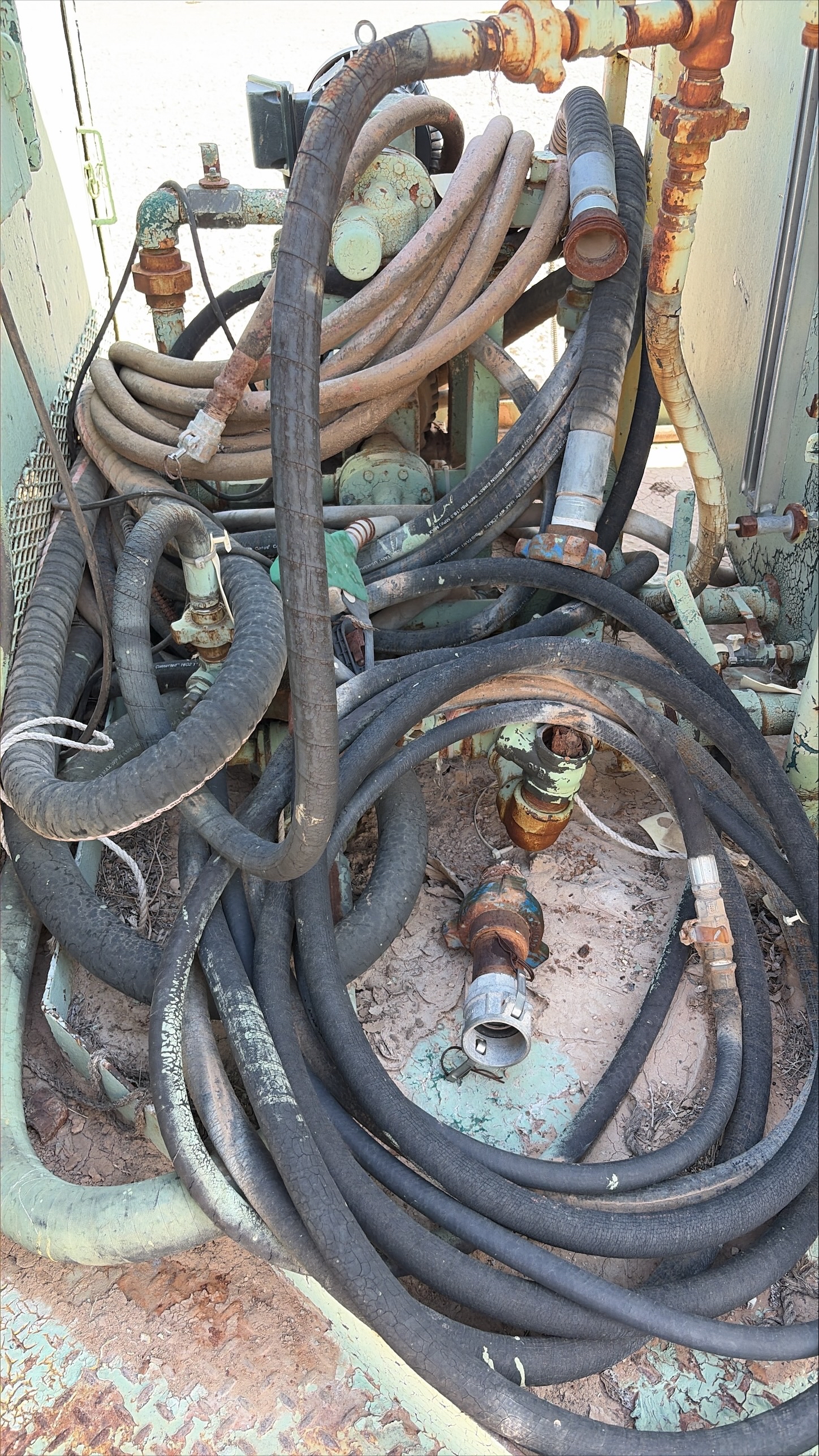

  • Associated Fuel Transfer Piping and Hoses

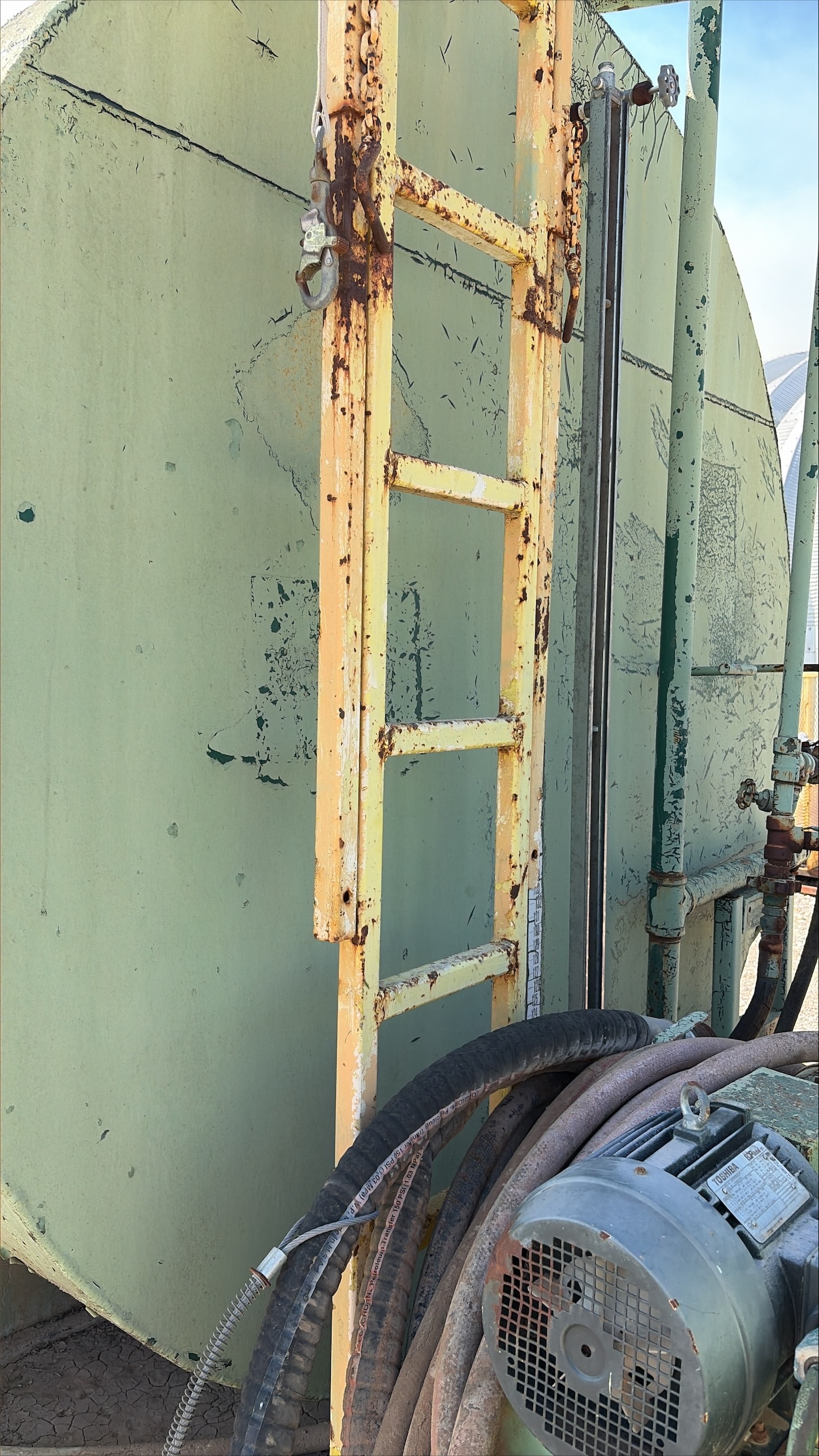

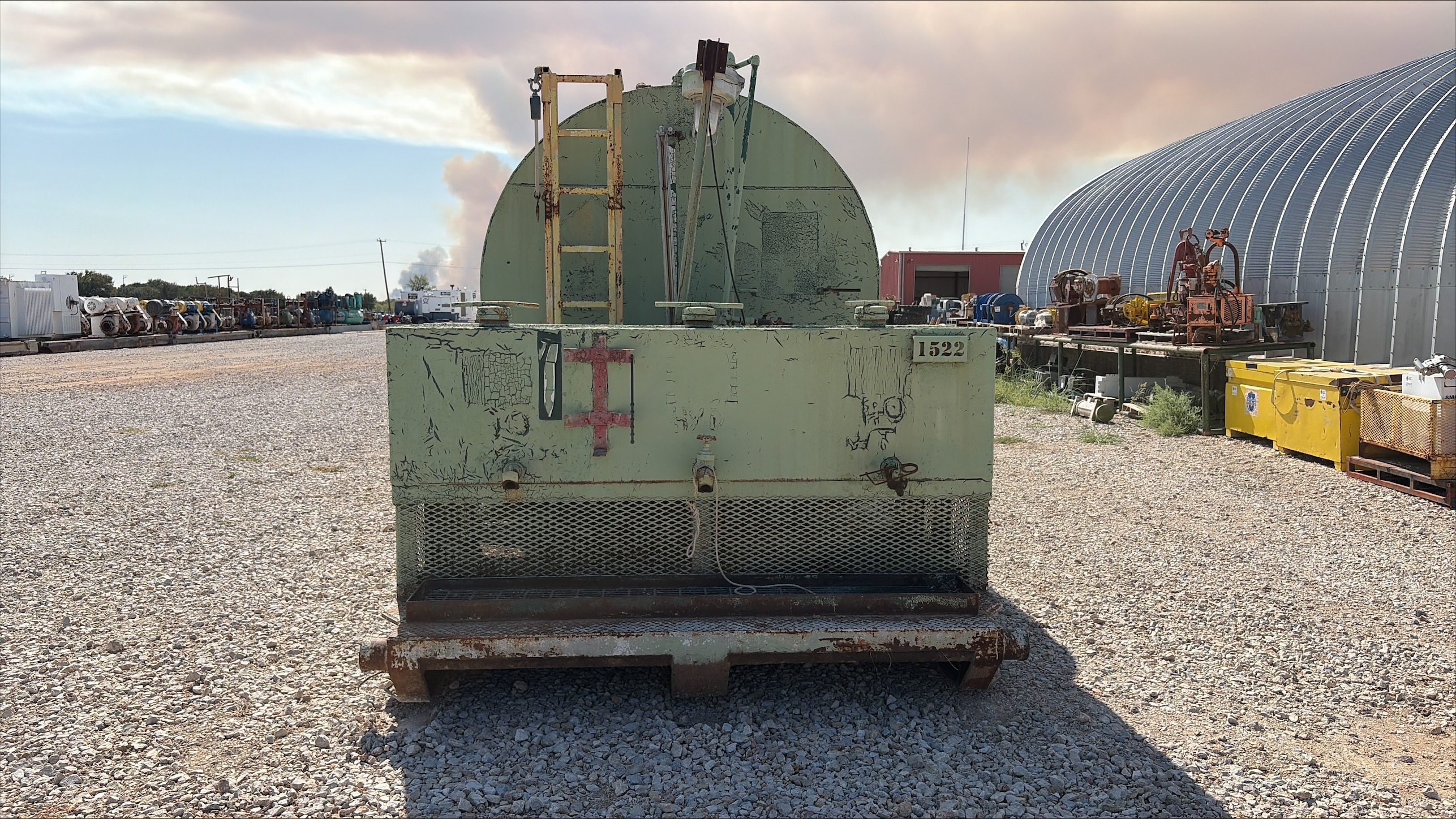

  • Exterior Tank Access Ladder

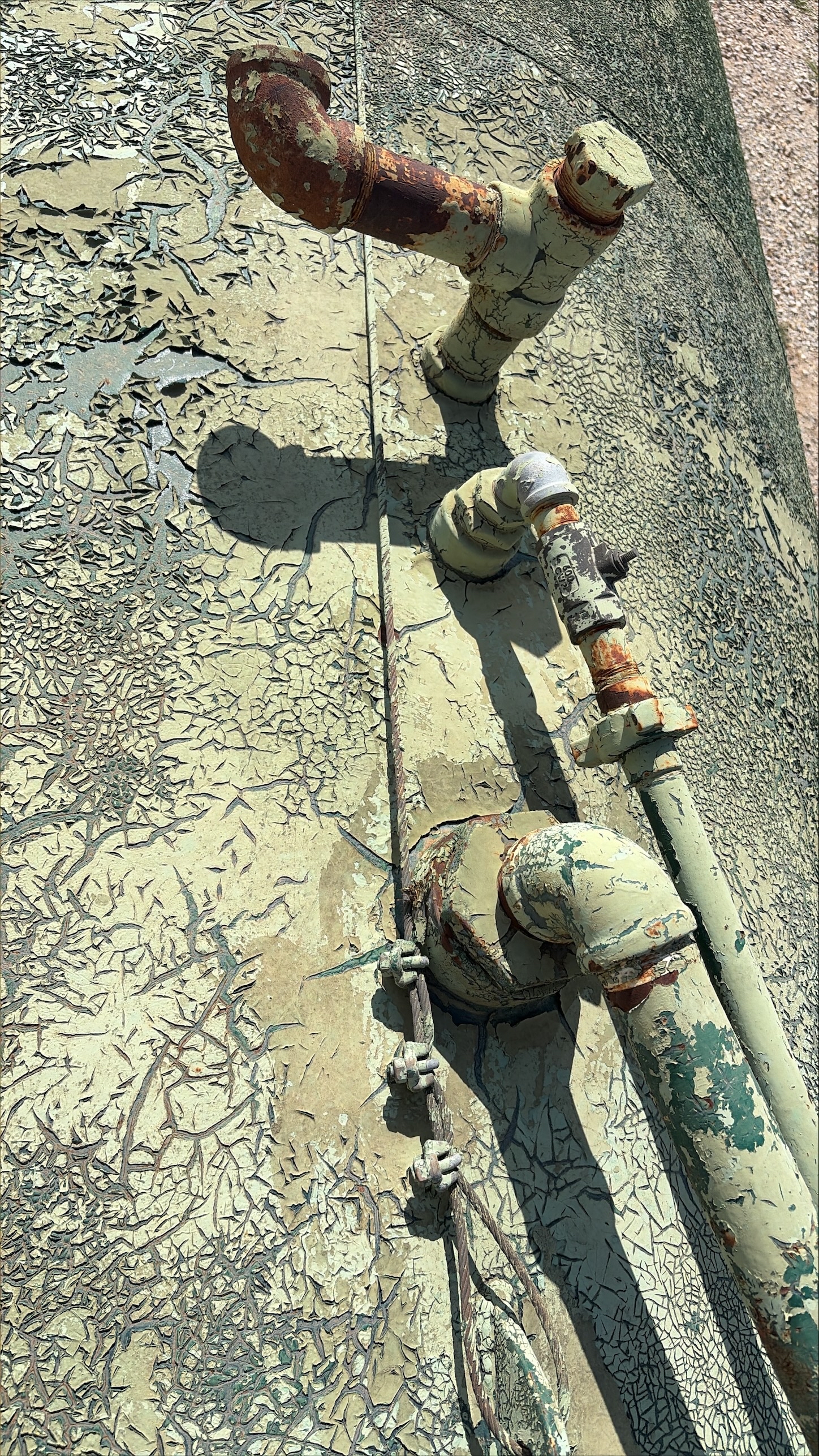

  • Visible Tank Access and Vent Components
  • Large-Capacity Industrial Storage Design


Potential Applications


  • Industrial Diesel Fuel Storage
  • Construction Equipment Fuel Supply
  • Oilfield and Energy Operations
  • Heavy Equipment and Machinery Yards
  • Agricultural and Commercial Fuel Storage
  • Industrial Fuel Distribution Operations


Condition Information

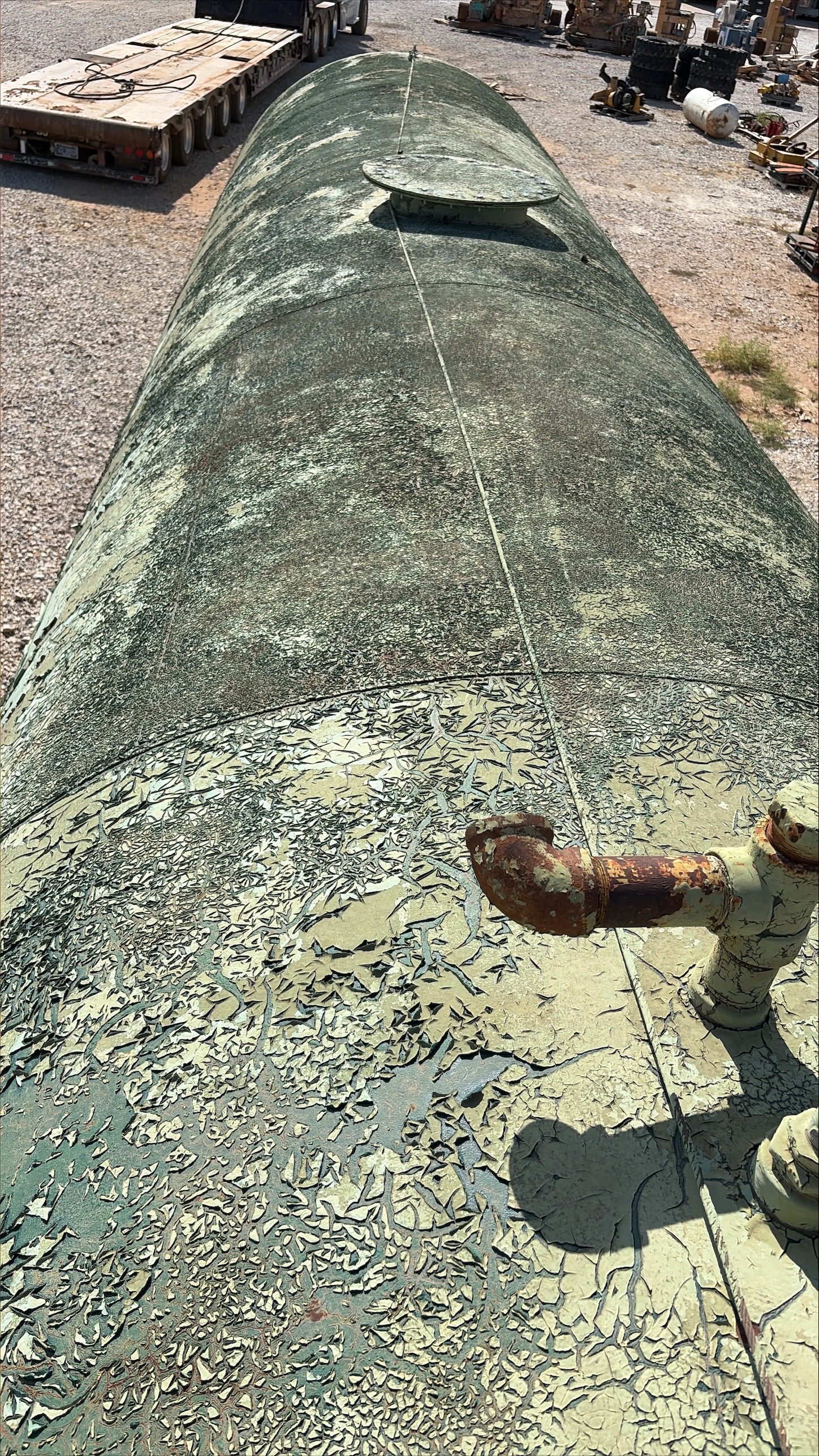

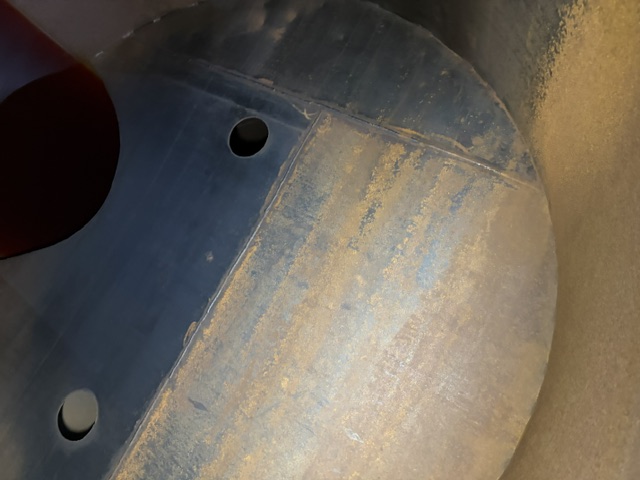

This is a used industrial diesel fuel storage tank showing visible signs of previous use, age, and outdoor exposure, including paint deterioration, surface rust, and weathering on the tank exterior, skid frame, and associated equipment enclosure.


Prospective buyers are encouraged to perform a thorough inspection and verify all equipment specifications and operating conditions prior to purchase.


Important – Single-Wall Tank Construction


This tank is constructed with a single-wall steel design and does not include integrated secondary containment.


The buyer is responsible for verifying compliance with all applicable federal, state, and local environmental, fire safety, and fuel storage regulations before installation or use.


Contact Power Drive Supply for pricing, additional photographs, equipment details, inspection arrangements, and transportation assistance.

Specifications

ConditionUsed
Stock Number10023
