2010 Service King SK-675 Drill Rig

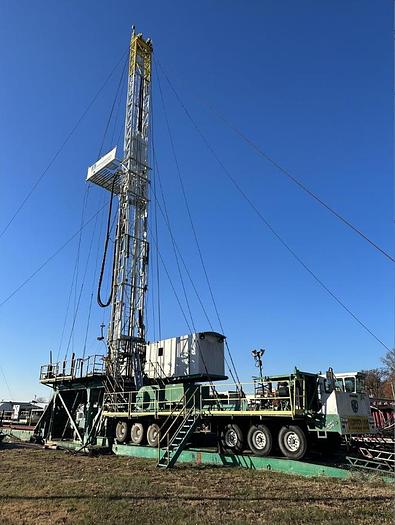

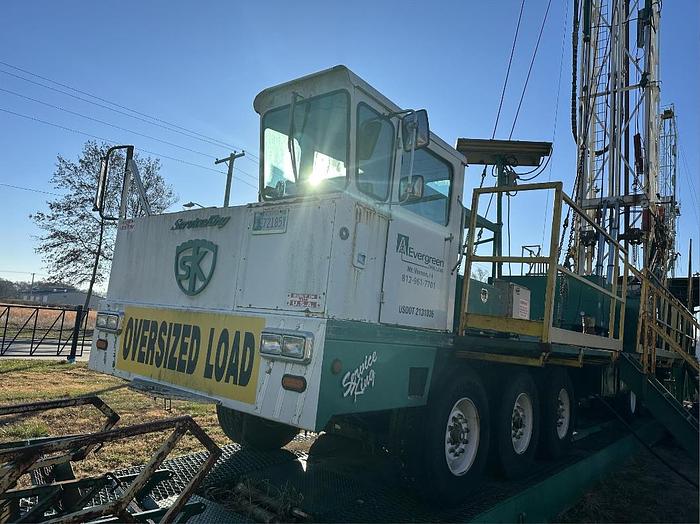

2010 Service King SK-675 Carrier Mounted Drilling Rig, 6-Axle Carrier, 665HP Detroit, 4500 OFS Allison Transmission, Rated 10,000’, Consisting of:

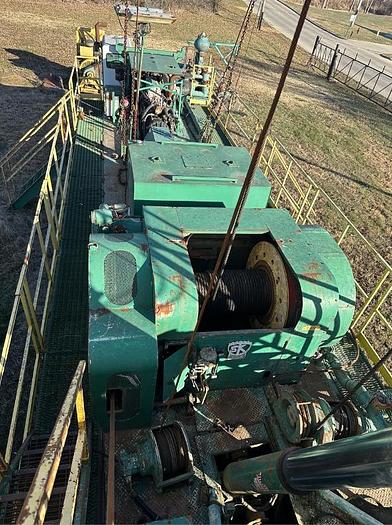

Drawworks: 2010 Service King Model 42 x 12 Water Cooled Drums with Hercules Quick Release Deadline Anchor S/N DW 2121

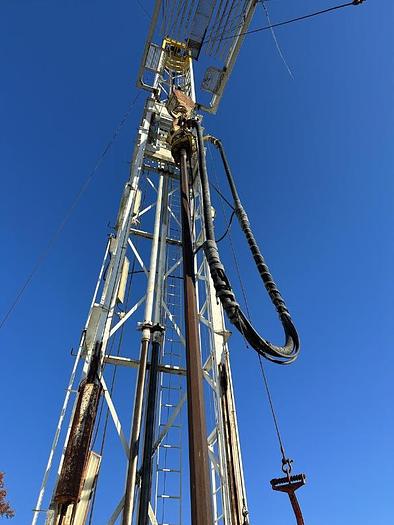

Mast: Service King 109’ Telescoping w/Static Hook Load of 315,000-LB, Racking Board with Crown Saver, S/N DK303

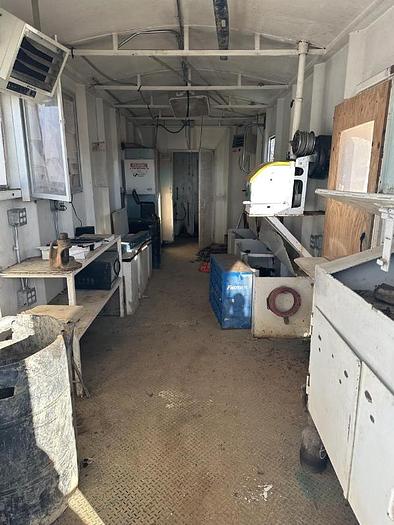

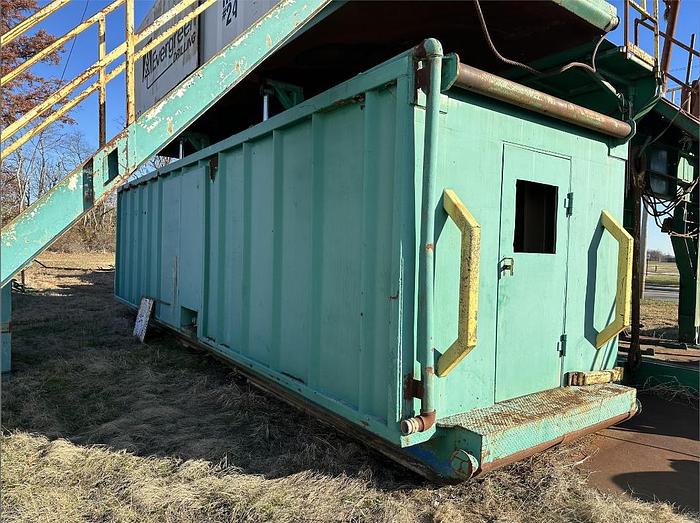

Upper dog house

Substructure: 8’ x 13’ Cantilever with Base Beam, 350,000-LB Setback Capacity

Brake: Double Disc Assist 48” x 8”

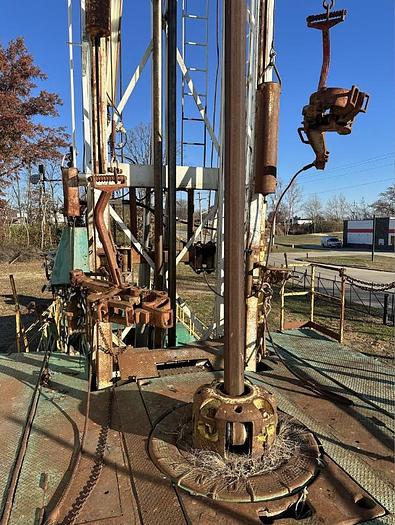

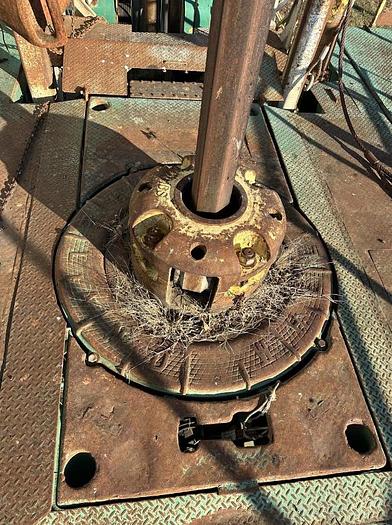

Rotary Table: Wheland 20-1/2” Rotary Table

Blocks: 150-Ton Sentry, 4-Sheave, 8-Lines with Spring Hooks

Mud Pumps: Emsco DA -500 Duplex Pump w/ Matco Fluid End, Powered by Cat 3406, S/N 4ZR07175;

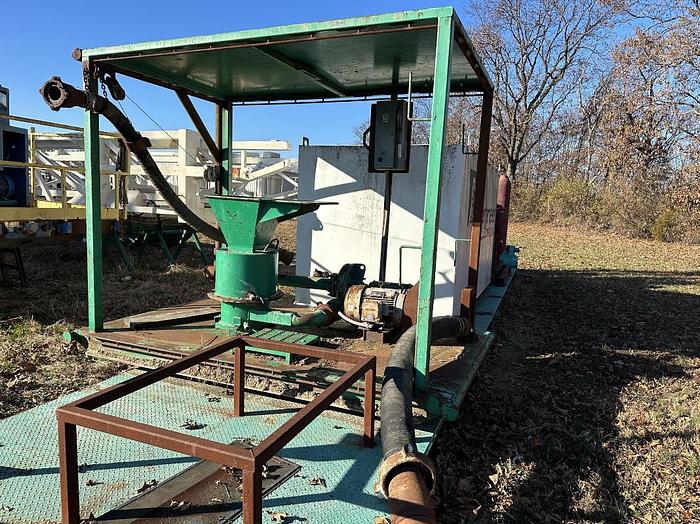

Mud Mixing Pump: Side Winder With 15-HP Electric

Kelly With Roller Bushings: 40’ – 5-1/4 Hex

Mast photos Kelly Spinner: N.O.V. Hydraulic Forward And Reserve

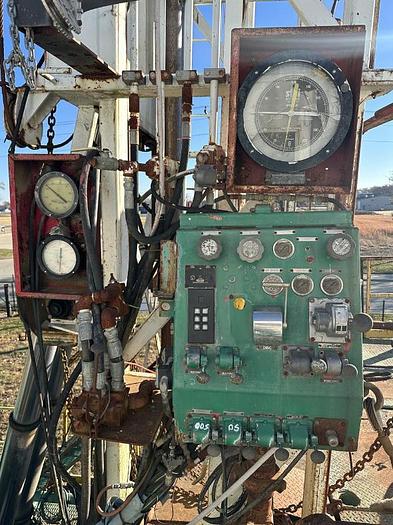

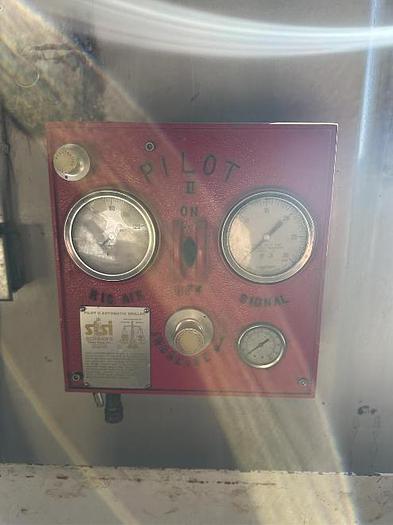

Automatic Driller: Schwab’s Pilot II Automatic Driller

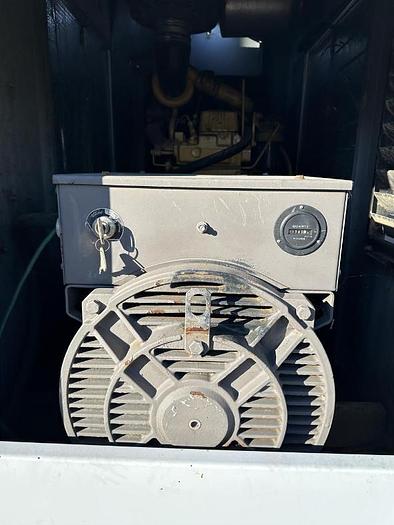

Light Plant: Marcelli 75KW With John Deere Power (Mounted on Manac Trailer)

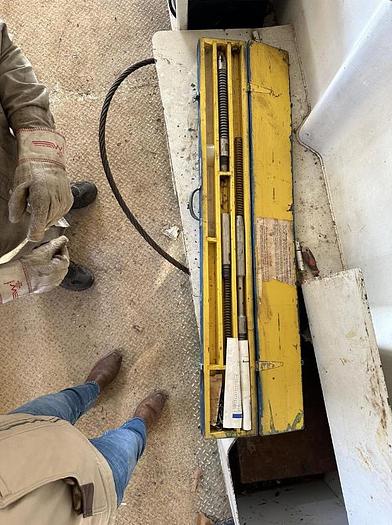

Straight hole tool-incomplete

Wireline: 7 Degree Sure Shot Tool, 5 Star 15,000’ Electric Over Hydraulic (Mounted On Manac Trailer)

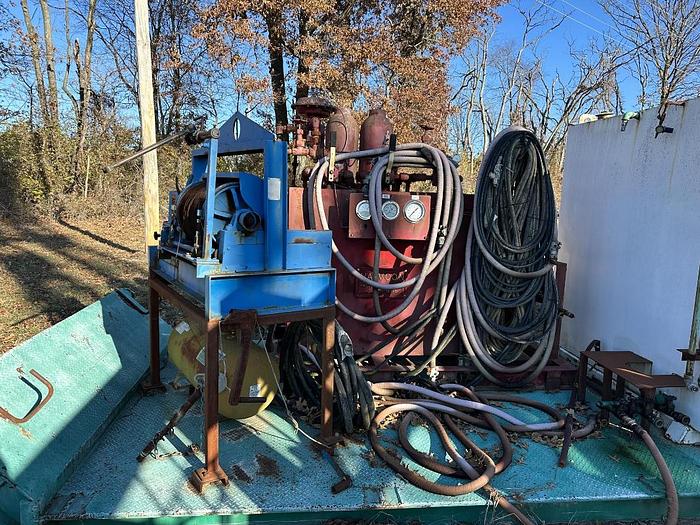

Well Control: 9” x 3,000 PSI BOP Stack; Accumulator: Burnsco 8-Bottle (Mounted On Manac Trailer)

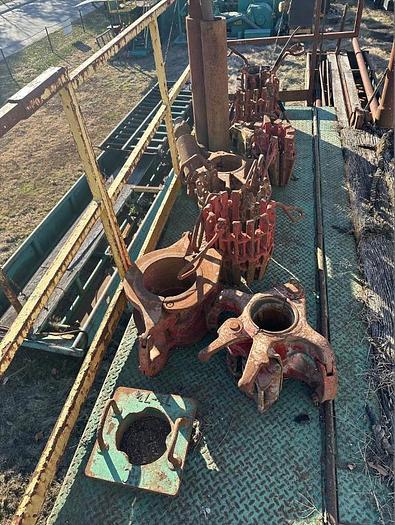

Elevators: DP 4-1/2” 150-Ton BN Casing 7”, 5-1/2”, 4-1/2”, 9-5/8”

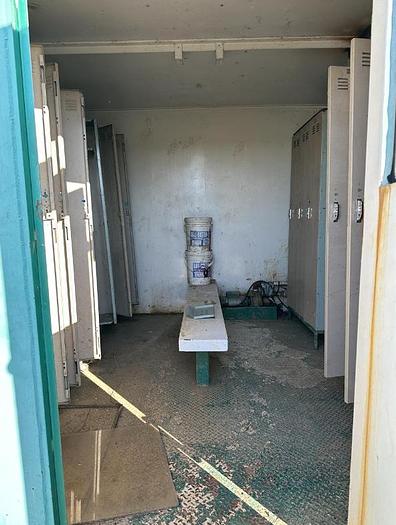

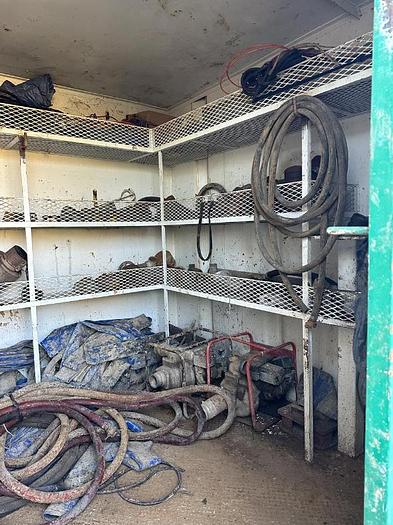

Miscellaneous: Portable Steel Building w/Water Tank 200 BBL Capacity, Tool Shed, & Crew Quarters; Fuel Tank Capacity: 2,000-Gallons Skid Mounted (Mounted on Manac Trailer); Cathead: Hydraulic

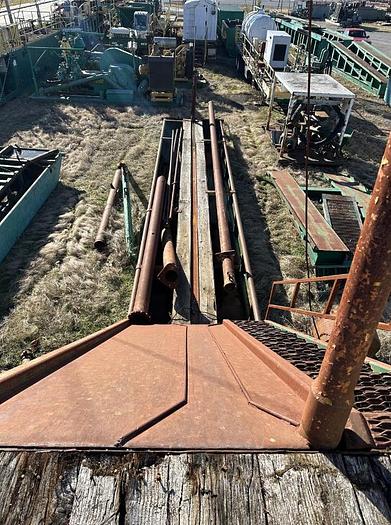

Special Equipment: Drilling Rig Pad Approximately 35’ x 16’ x 4” Square Tube Construction; Ramp Approximately 36’ TIW Valve; Complete Winterization Package w/Tarps

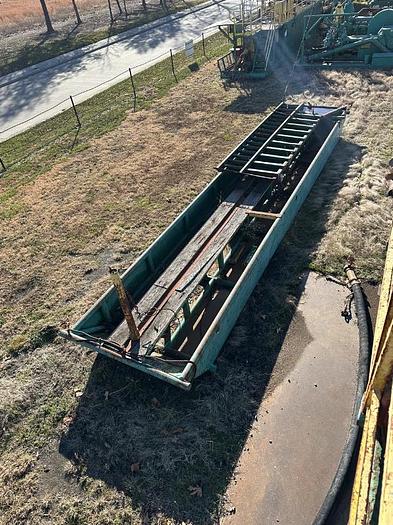

Extra Center Tub

Fuel Skid, accumulator, straight hole unit

Tarps, hand rails, etc. in tubing tub
