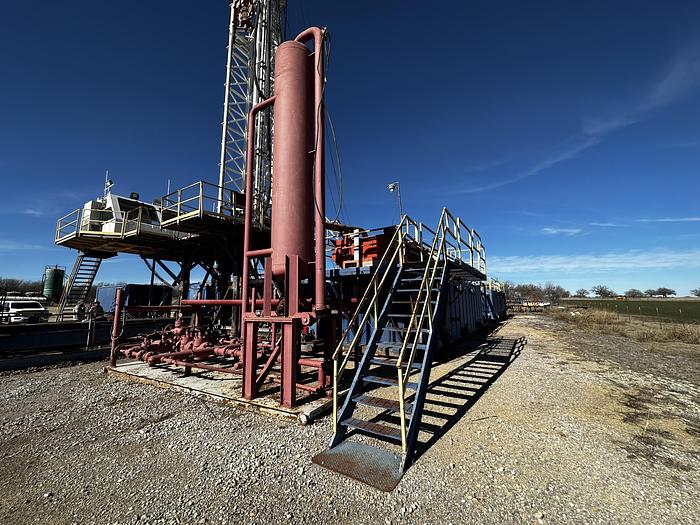

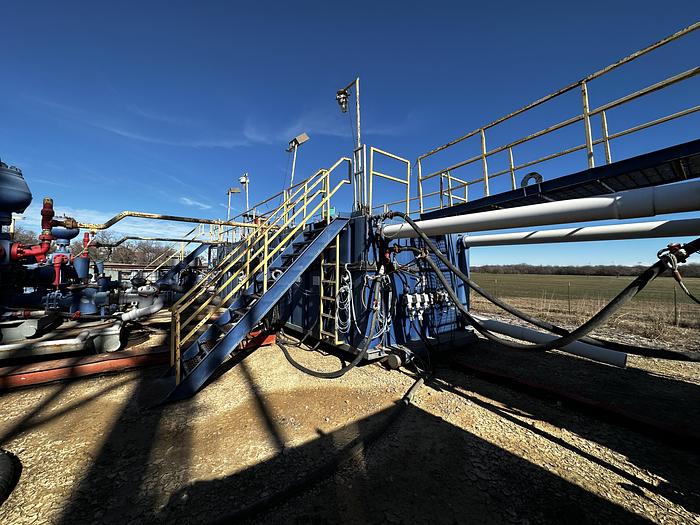

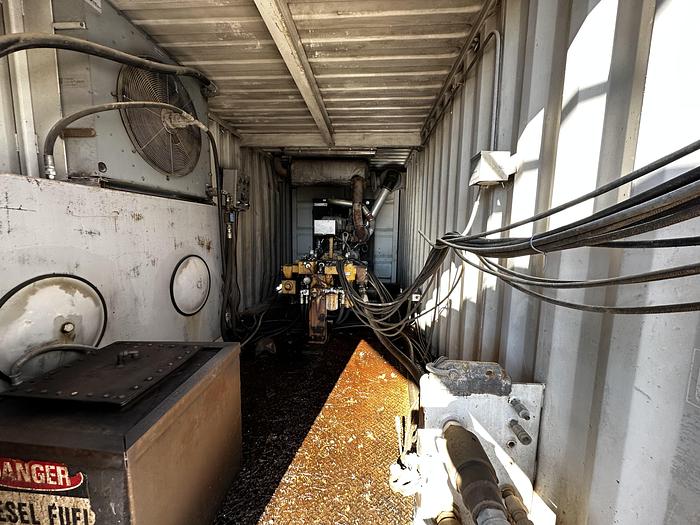

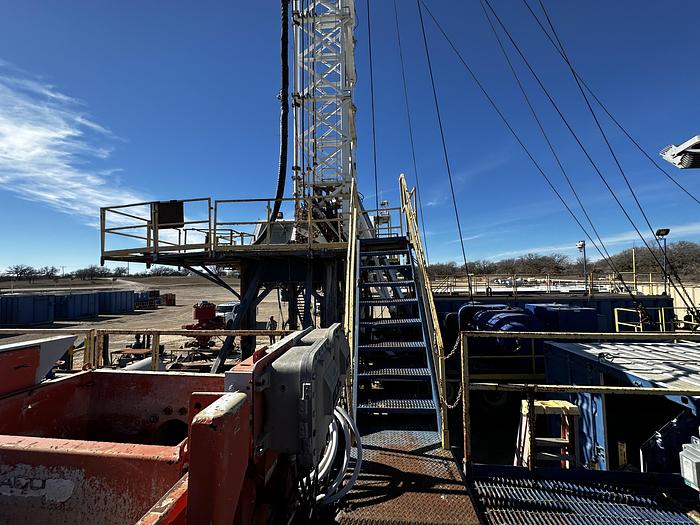

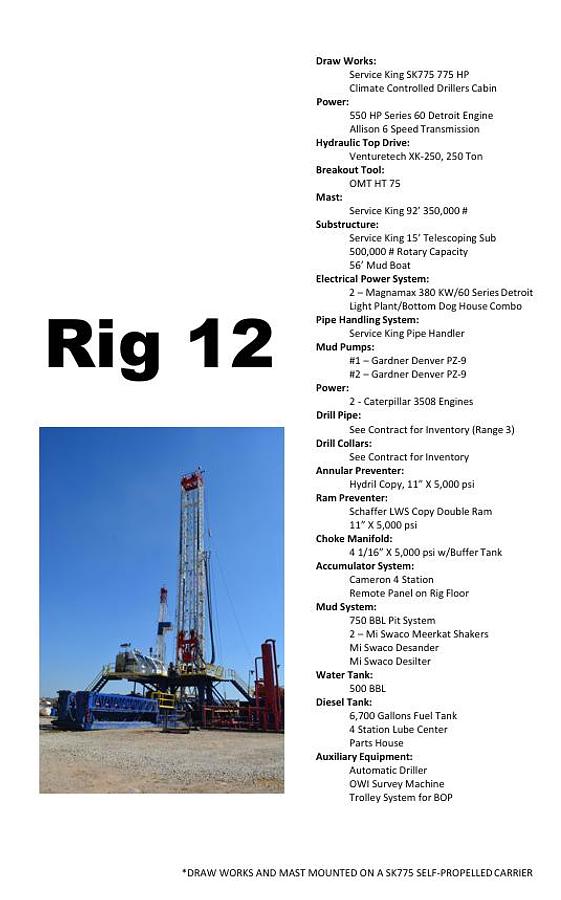

2015 Service King SK 775 Drilling Rig

2015 Service King SK775 Complete Drill Rig

Draw Works:

Service King SK775 775 HP

Climate Controlled Drillers Cabin

Power:

550 HP Series 60 Detroit Engine

Allison 6 Speed Transmission

Hydraulic Top Drive:

Venturetech XK-250, 250 Ton

Breakout Tool:

OMT HT 75

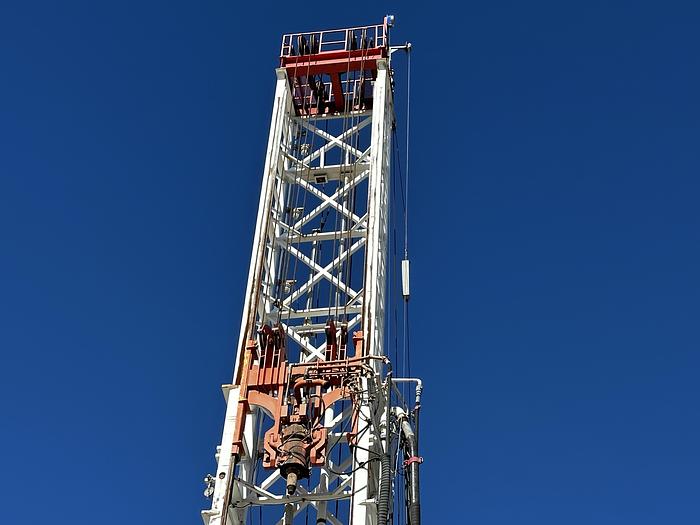

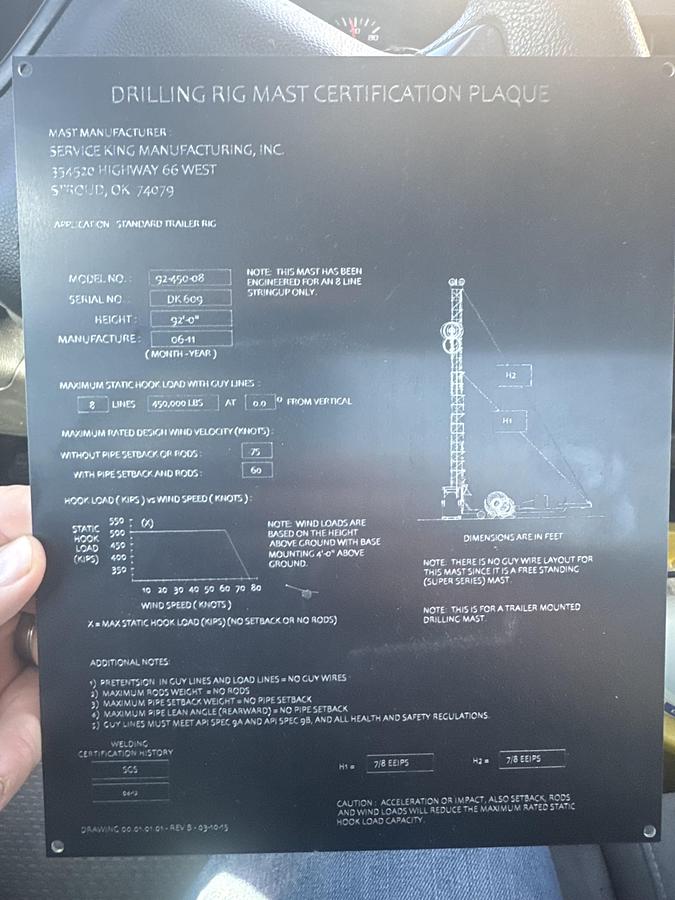

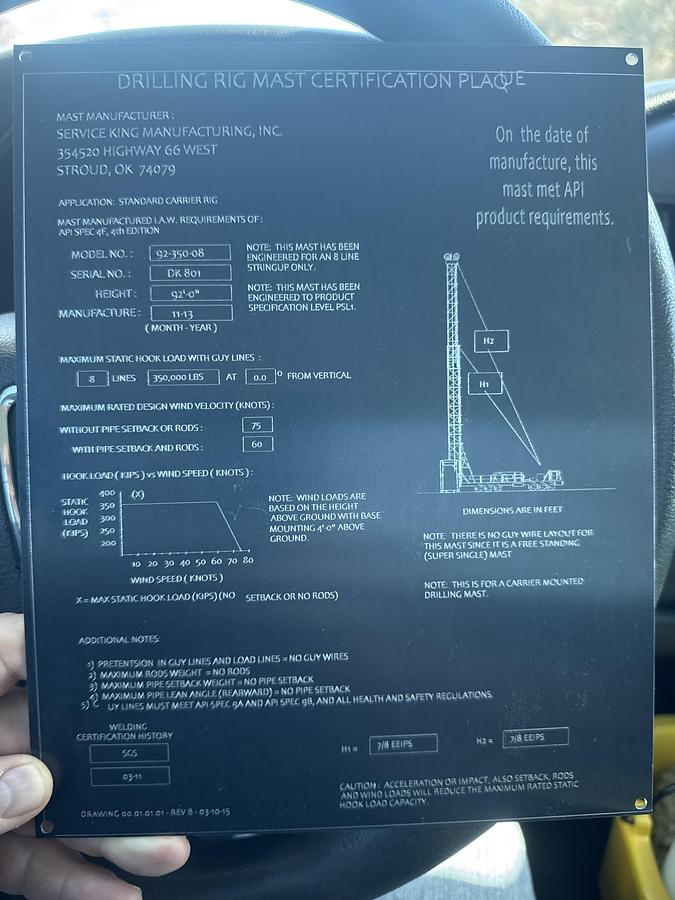

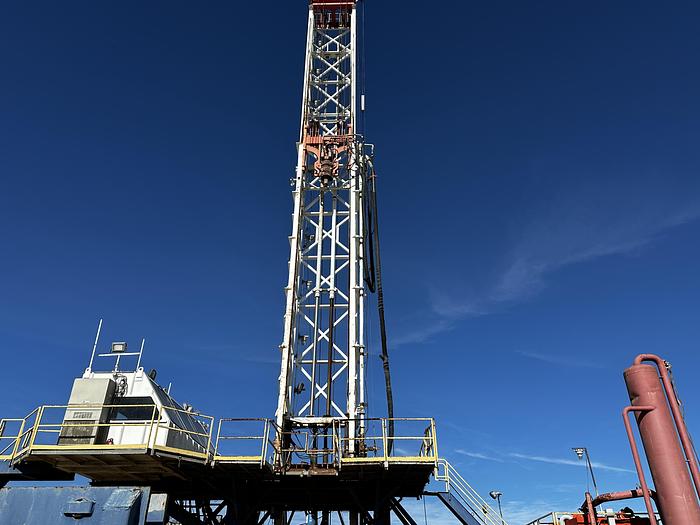

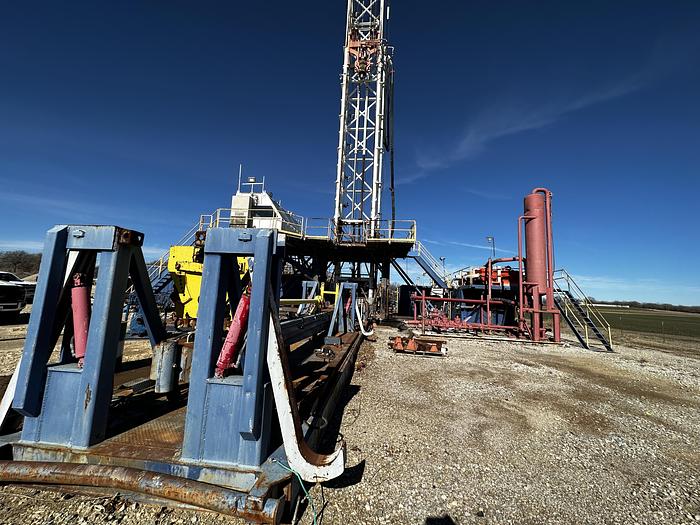

Mast:

Service King 92’ 350,000 #

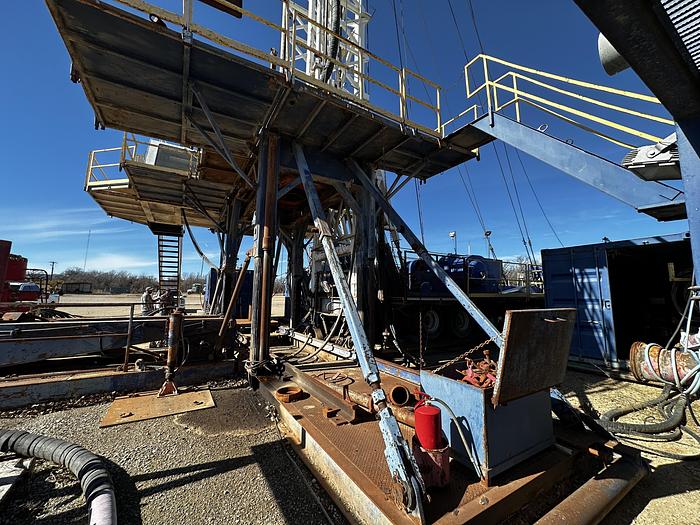

Substructure:

Service King 15’ Telescoping Sub

500,000 # Rotary Capacity

56’ Mud Boat

Electrical Power System:

2 – Magnamax 380 KW/60 Series Detroit

Light Plant/Bottom Dog House Combo

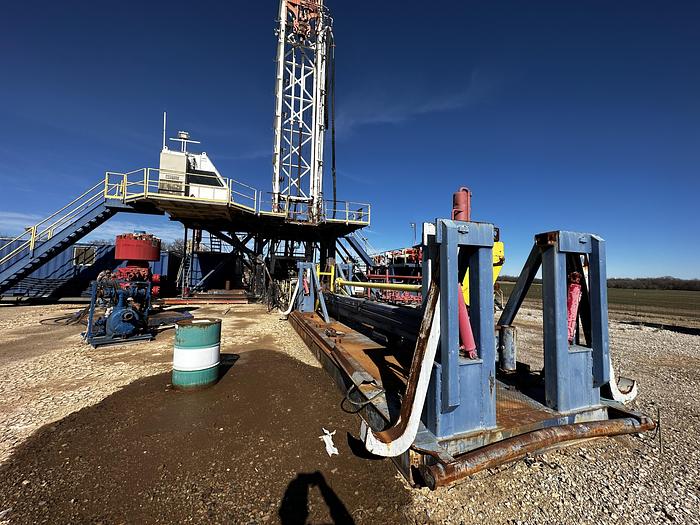

Pipe Handling System:

Service King Pipe Handler

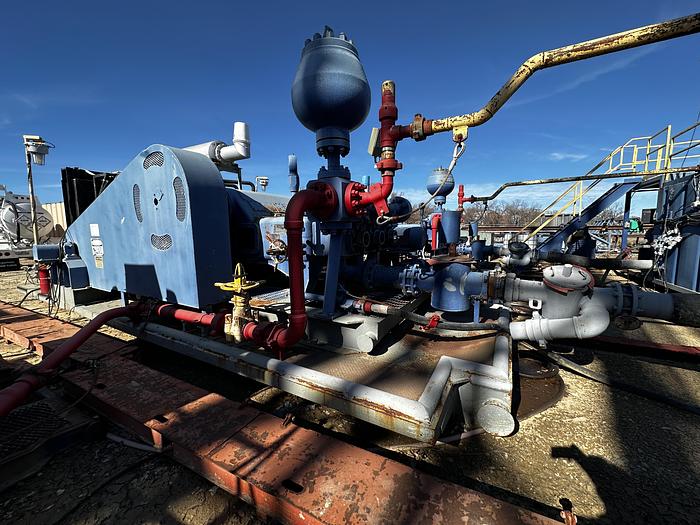

Mud Pumps:

#1 – Gardner Denver PZ-9

#2 – Gardner Denver PZ-9

Power:

2 - Caterpillar 3508 Engines

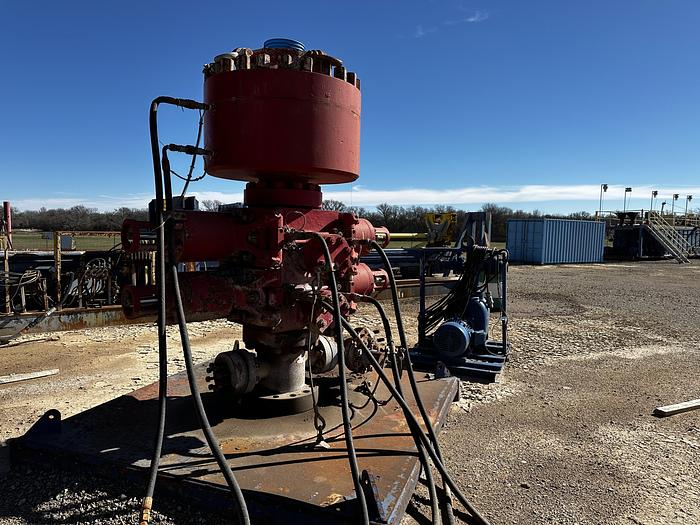

Annular Preventer:

Hydril Copy, 11” X 5,000 psi

Ram Preventer:

Schaffer LWS Copy Double Ram

11” X 5,000 psi

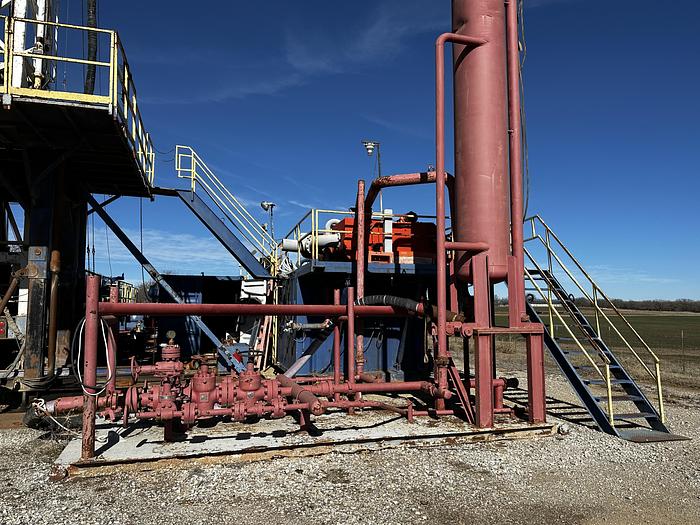

Choke Manifold:

4 1/16” X 5,000 psi w/Buffer Tank

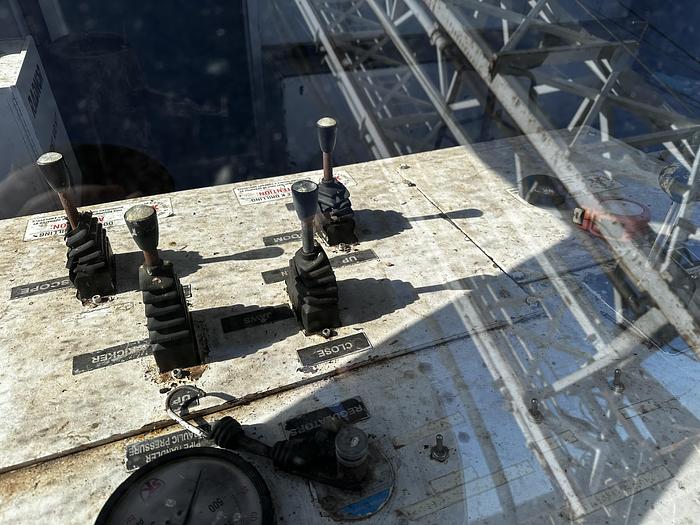

Accumulator System:

Cameron 4 Station

Remote Panel on Rig Floor

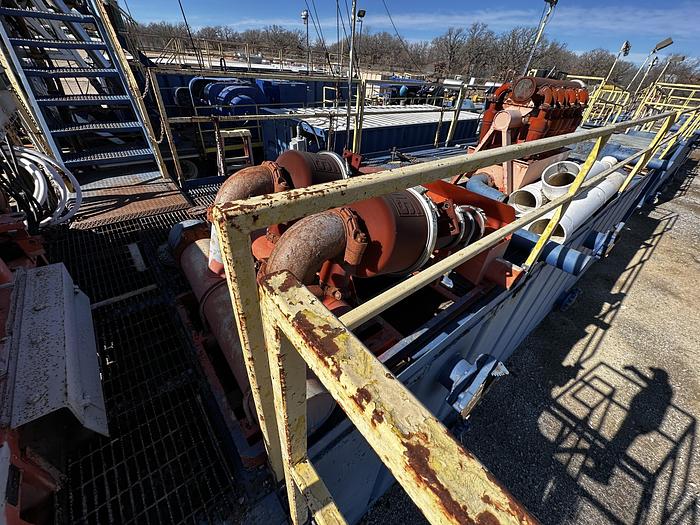

Mud System:

750 BBL Pit System

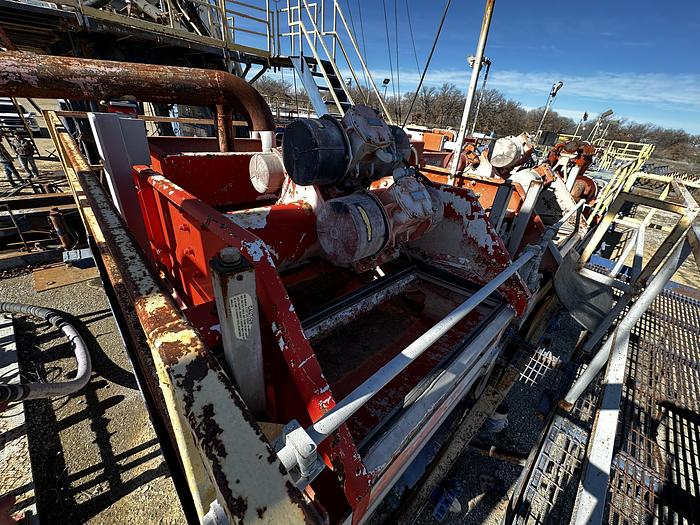

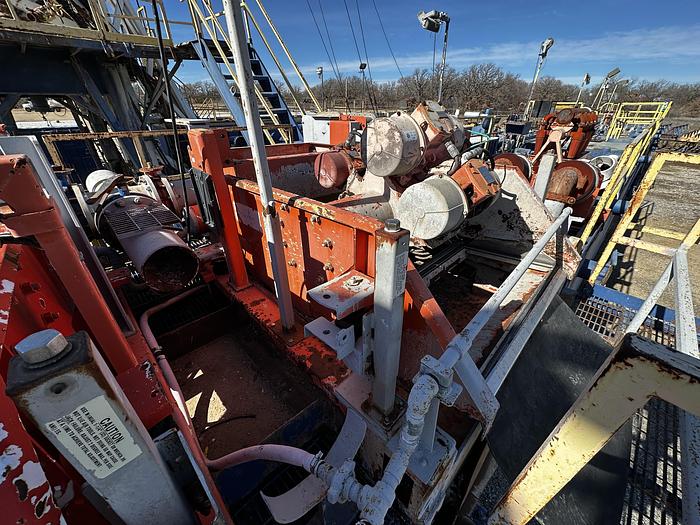

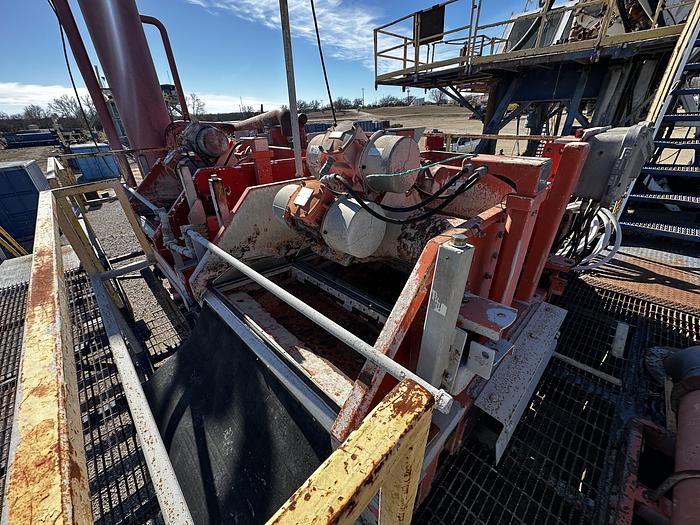

2 – Mi Swaco Meerkat Shakers

Mi Swaco Desander

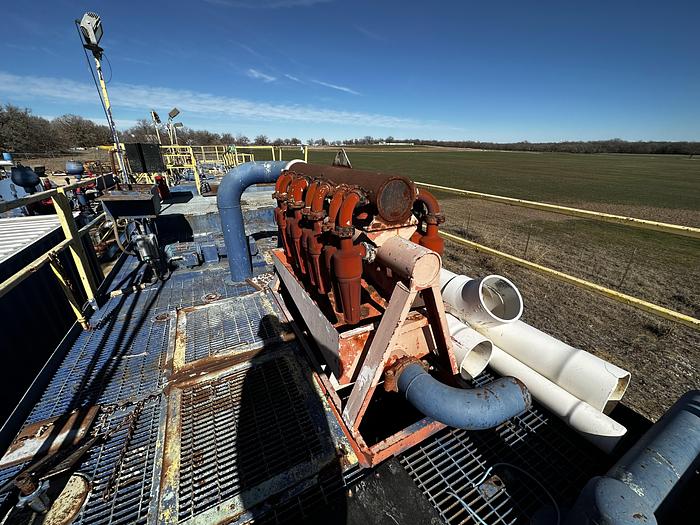

Mi Swaco Desilter

Water Tank:

500 BBL

Diesel Tank:

6,700 Gallons Fuel Tank

4 Station Lube Center

Parts House

Auxiliary Equipment:

Automatic Driller

OWI Survey Machine

Trolley System for BOP

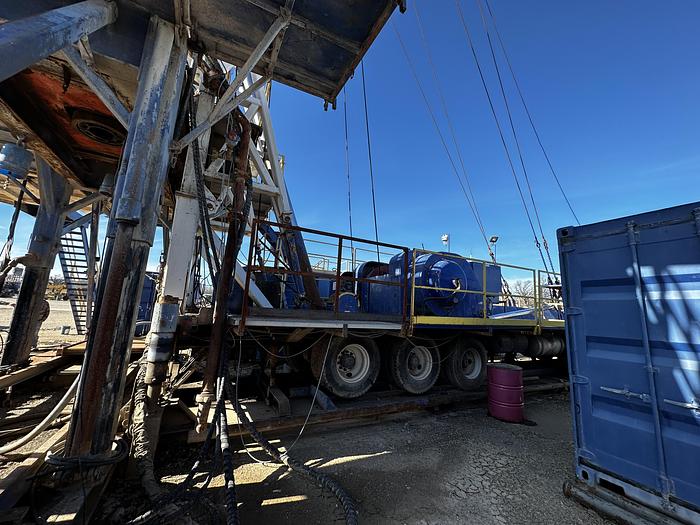

*DRAW WORKS AND MAST MOUNTED ON A SK775 SELF-PROPELLED CARRIER
