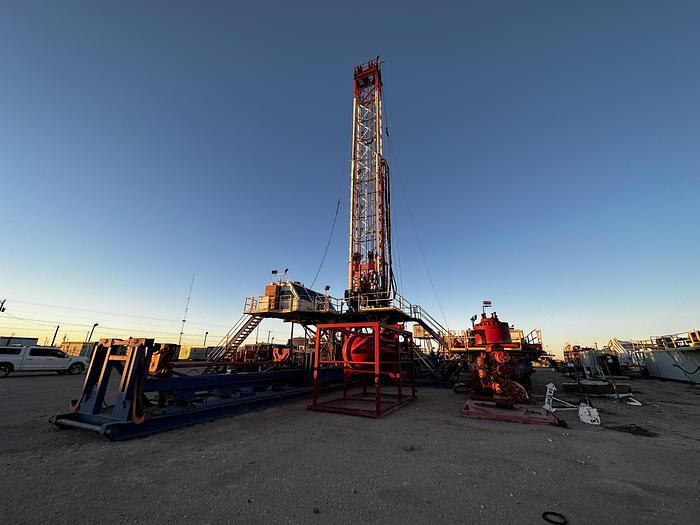

2013 Service King SK-775 Drill Rig

2013 Service King SK775

Draw Works:

Service King SK775 775 HP

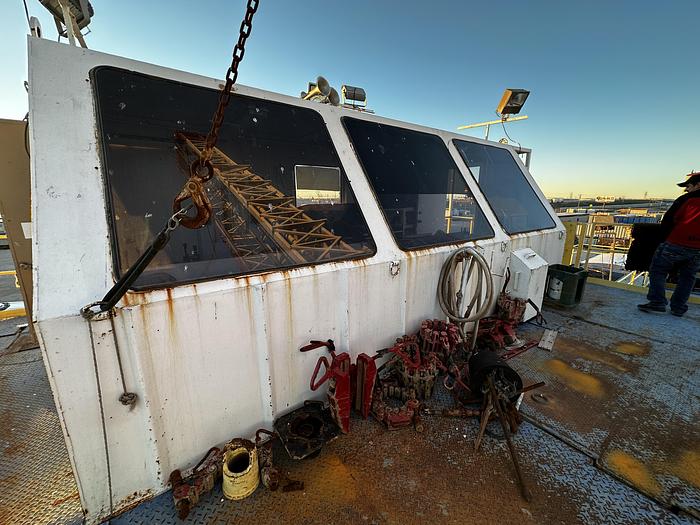

Climate Controlled Drillers Cabin

Power:

550 HP Series 60 Detroit Engine

Allison 6 Speed Transmission

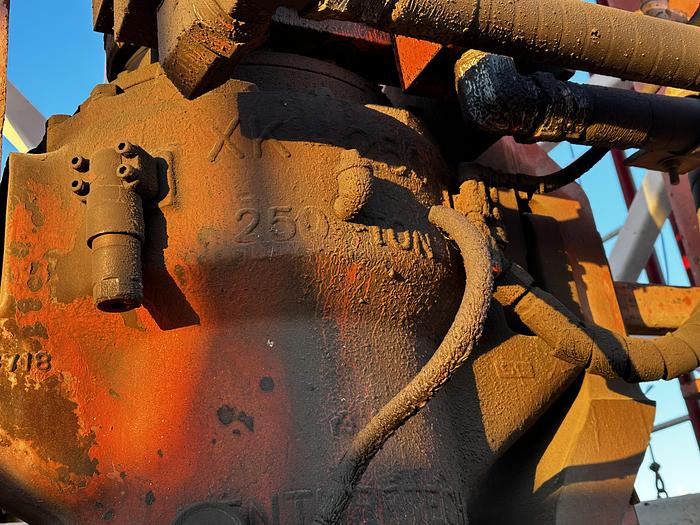

Hydraulic Top Drive:

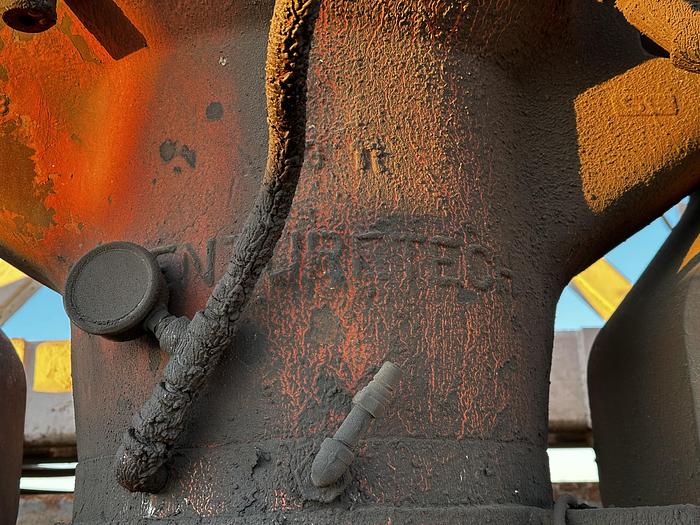

Venturetech XK-250, 250 Ton

Breakout Tool:

OMT TW-100

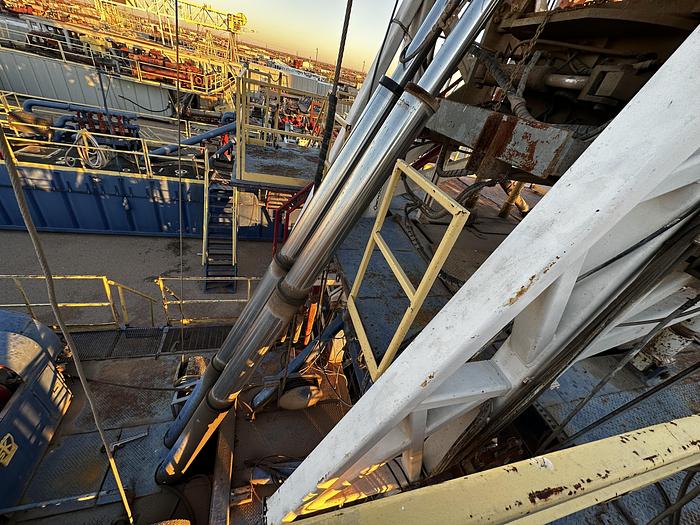

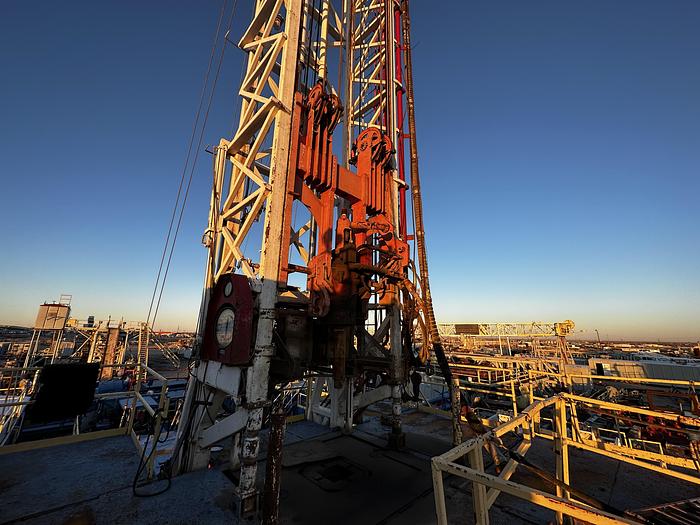

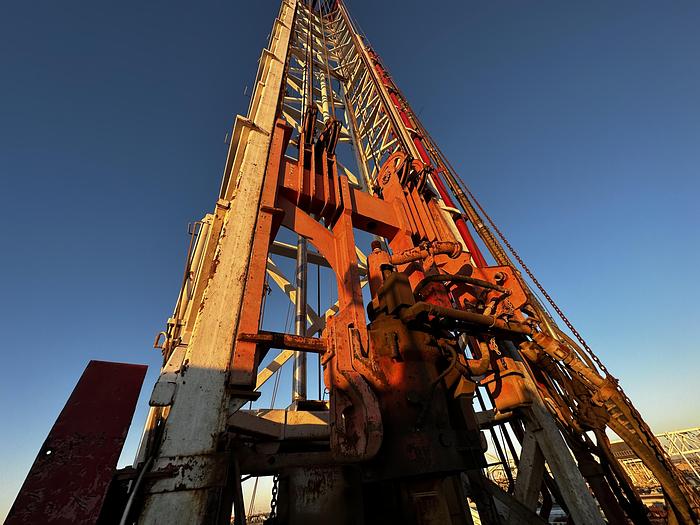

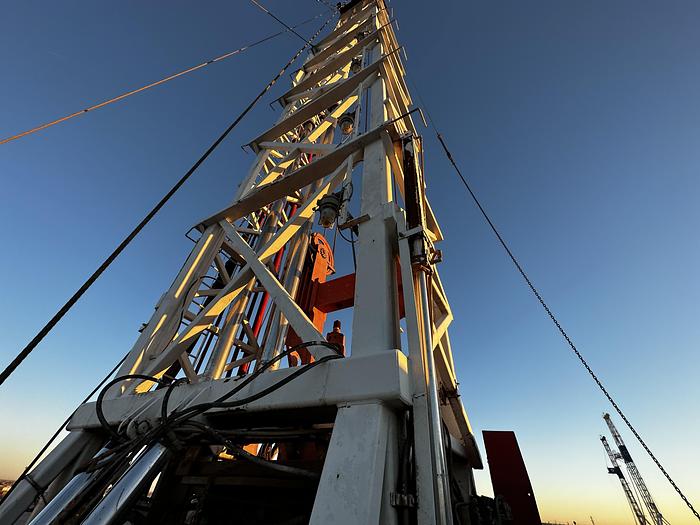

Mast:

Service King 92’ 450,000 #

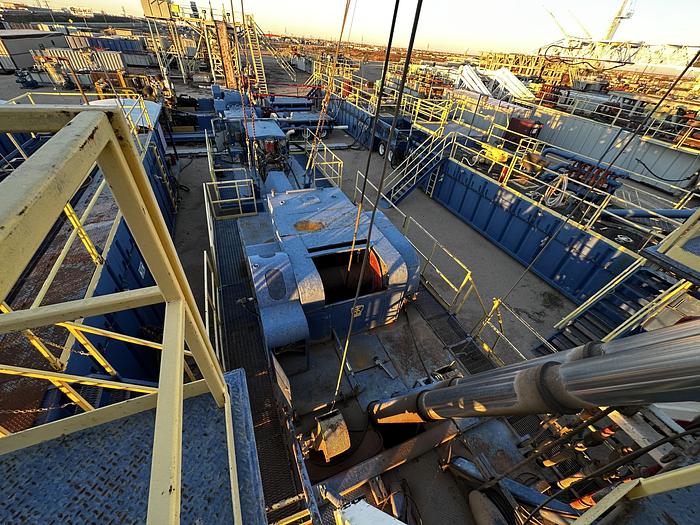

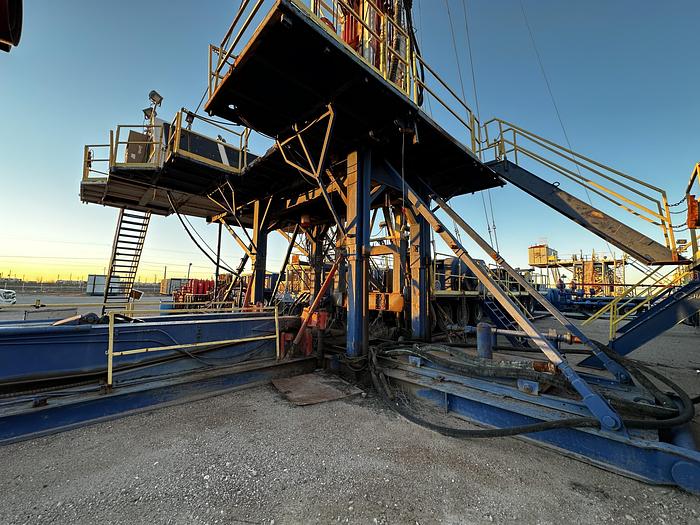

Substructure:

Service King 15’ Telescoping Sub

500,000 # Rotary Capacity

56’ Mud Boat

Electrical Power System (On Axles):

2 – Kato 455 Kw with C-15 Caterpillar Engines

Light Plant/Bottom Dog House Combo

Sullivan Palatek Air Compressor

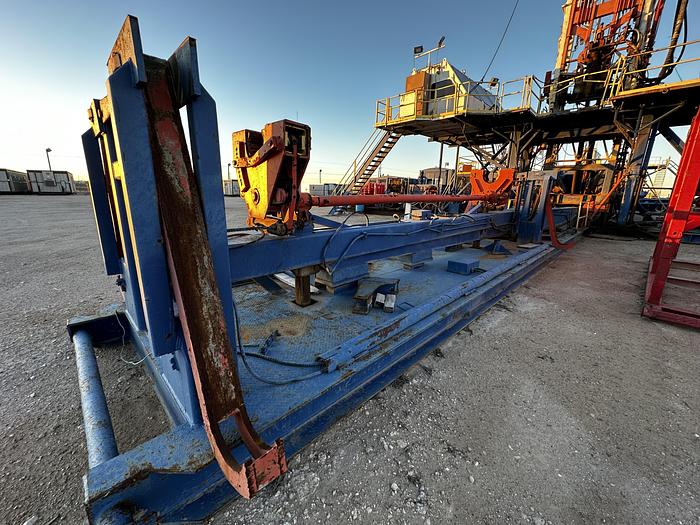

Pipe Handling System:

Service King Pipe Handler

Mud Pumps (On Axles):

#1 – RS F1000

#2 – RS F1000

Power:

2 – 1000 HP Cat C-32 Acert Engines

Allison DP8962 Transmissions

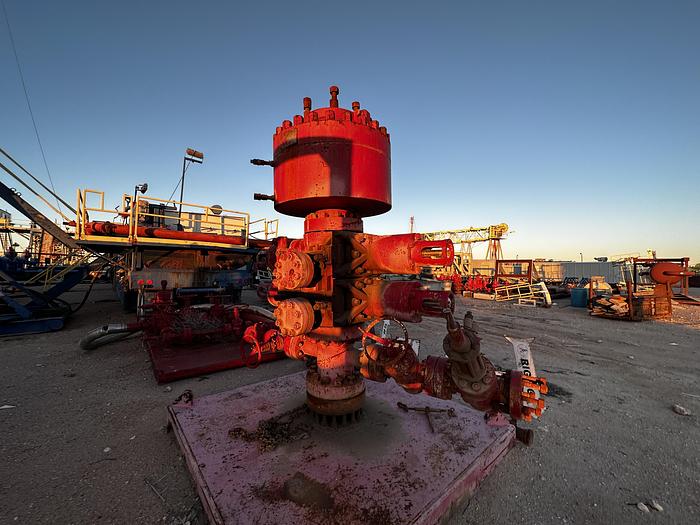

Annular Preventer:

Hydril Copy, 11” X 5,000 psi

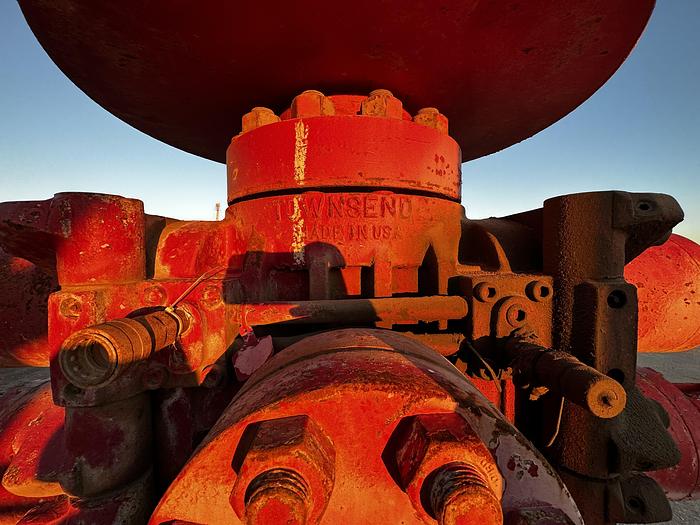

Ram Preventer:

Schaffer LWS Copy Double Ram

11” X 5,000 psi

Choke Manifold:

4 1/16” X 5,000 psi w/Buffer Tank

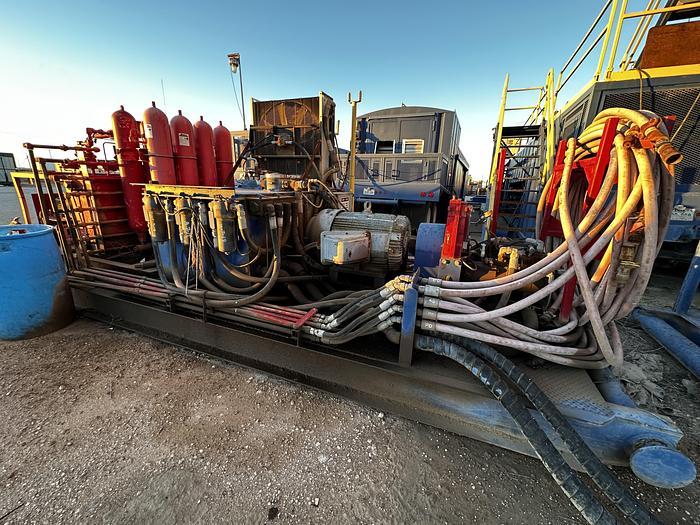

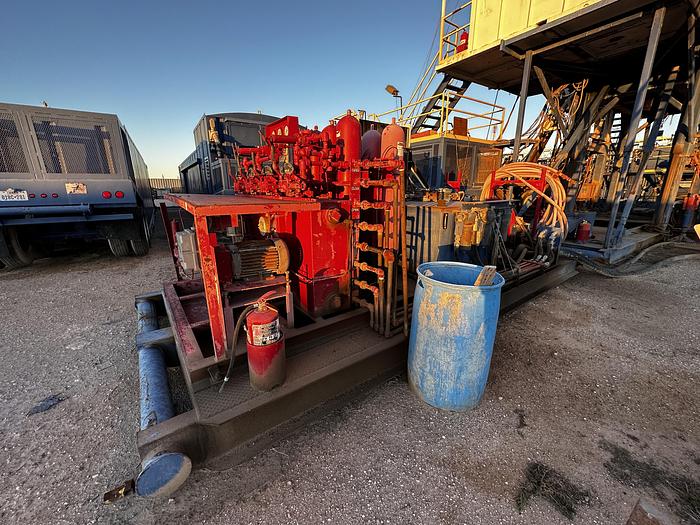

Accumulator System:

Cameron 4 Station

Remote Panel on Rig Floor

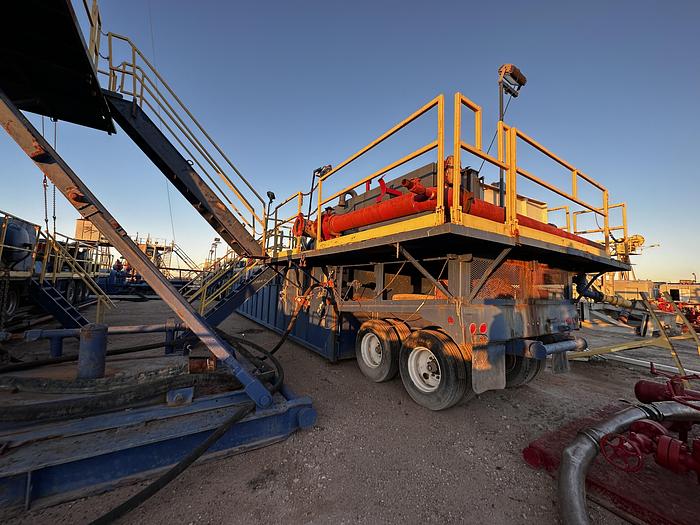

Mud System (On Axles):

800 BBL Pit System

2 – Ruff Shakers

PSI 2 Cone Desander

PSI 16 Cone Desilter

Water Tank (On Axles):

420 BBL

Diesel Tank (On Axles):

5400 Gallons Fuel

Tank 4 Station Lube

Center Parts House

Auxiliary Equipment:

Automatic Driller

OWI Survey Machine

Trolley System for BOP

*DRAW WORKS AND MAST MOUNTED ON A SK775 SELF-PROPELLED CARRIER
