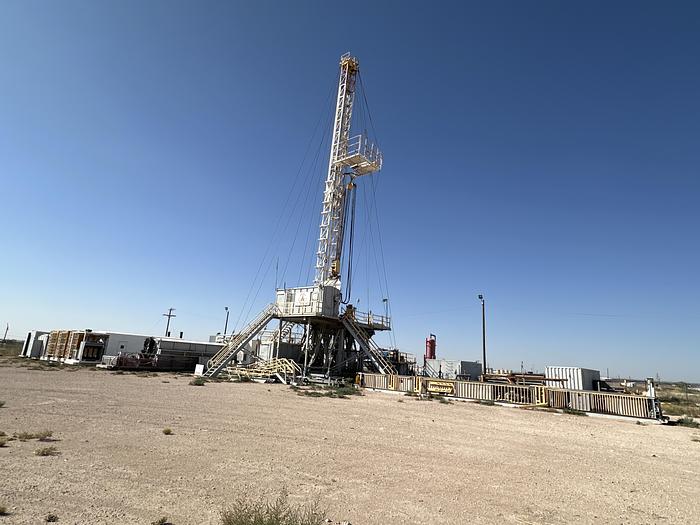

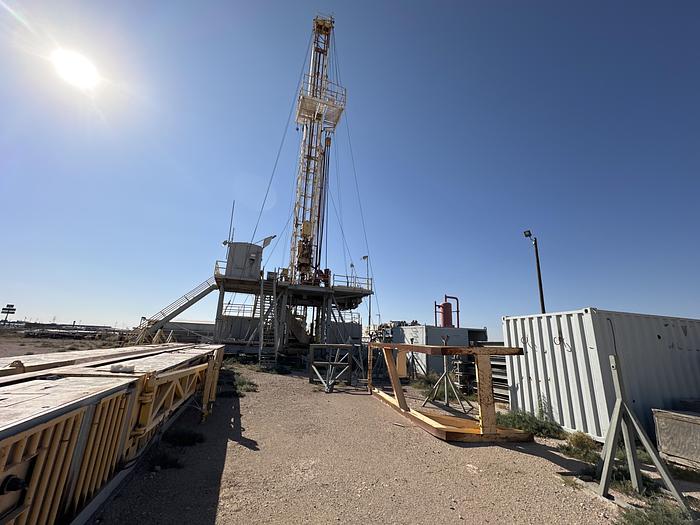

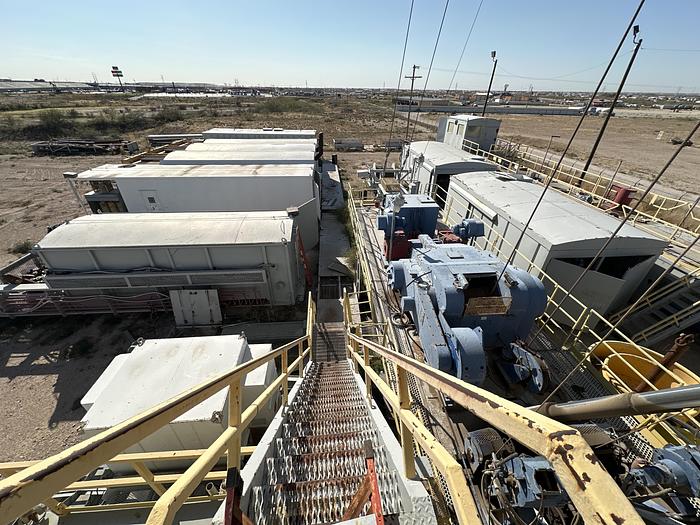

2006 Loadcraft 1000HP Trailer Mounted, Skidding SCR Drilling Rig

Loadcraft 1000 HP Trailer Mounted Rig on Skidding Package

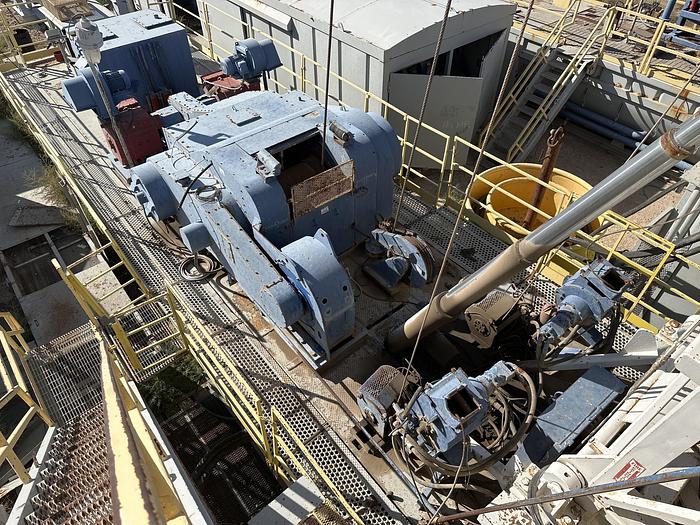

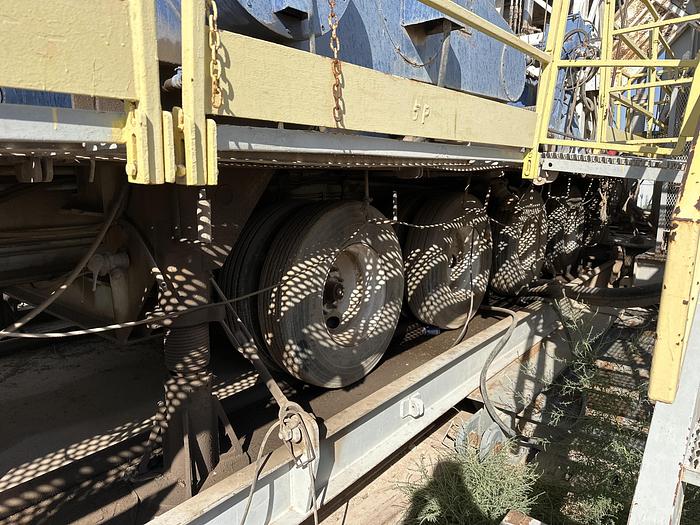

Draw Works:

HRI 1000-E 1000HP

Power:

2 - GE 761 600 HP Traction Motors

Rotating System:

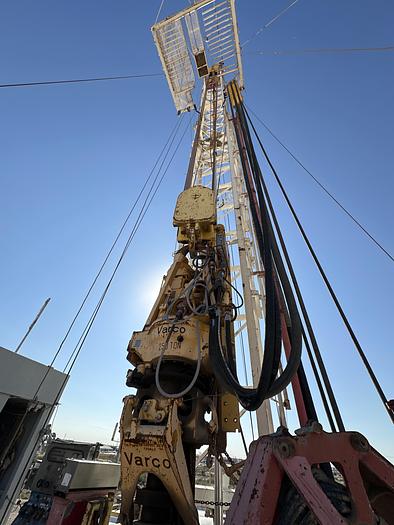

NOV TDS 10SA 250 Ton w/VFD

AB 27-1/2” Rotary Table

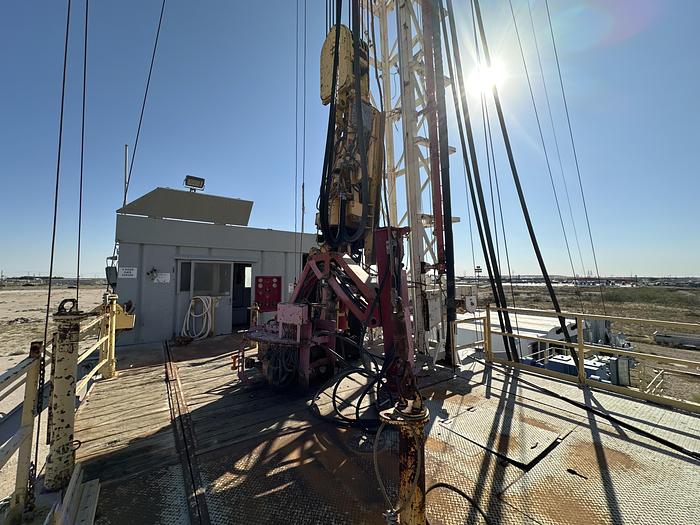

NOV-ST 80-C Iron Roughneck

Mast:

DSI 118’ with 425,000 # SHL

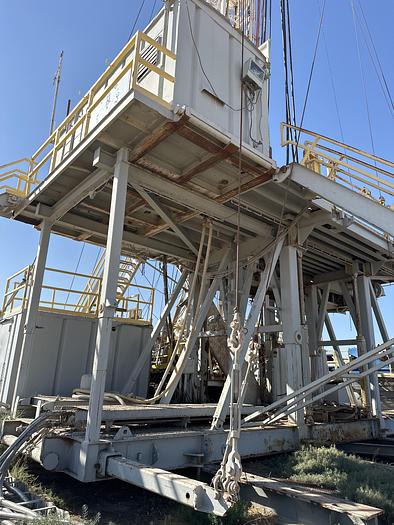

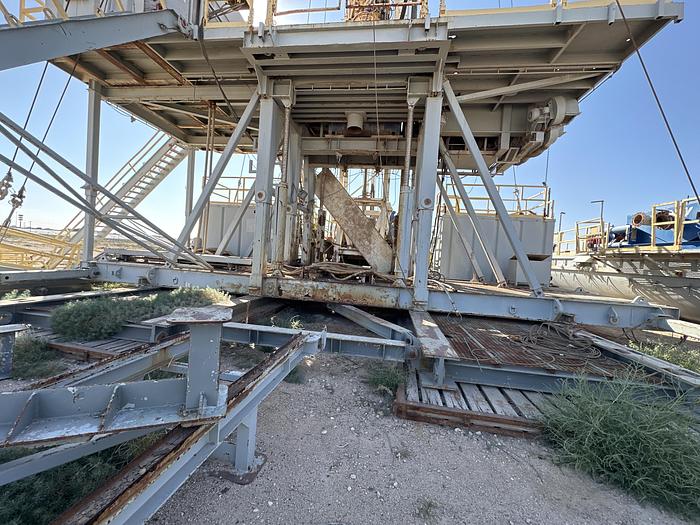

Substructure:

DSI 17’ Telescoping Sub

425,000 # Rotary, 300,000 # Setback

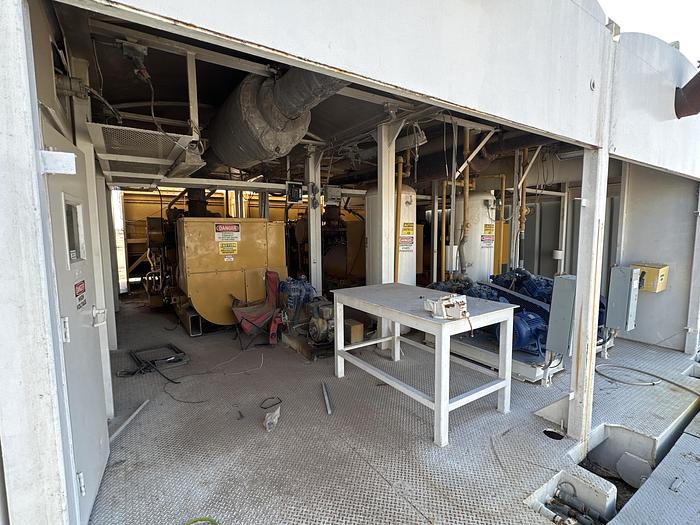

Electrical Power System:

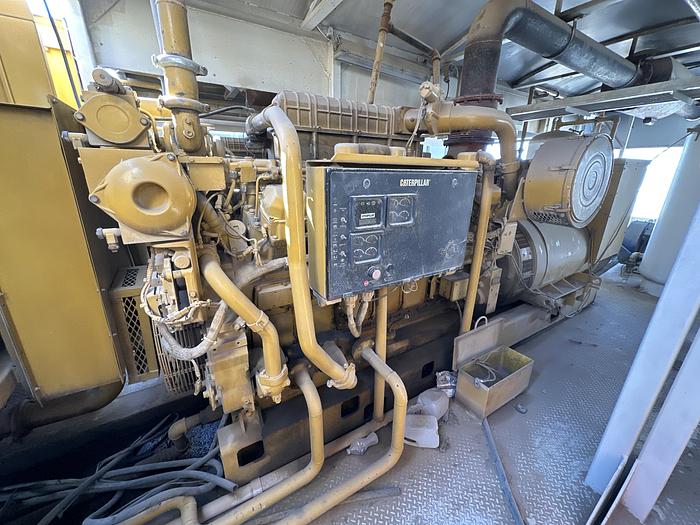

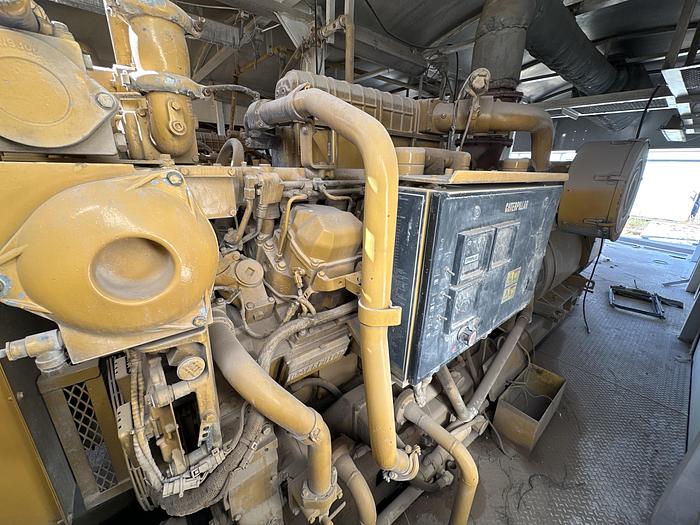

3 – Cat 3512C w/ Cat 1225 KW Gens

2 - 5120 Quincy air compressors

4 Bay IEC SCR House

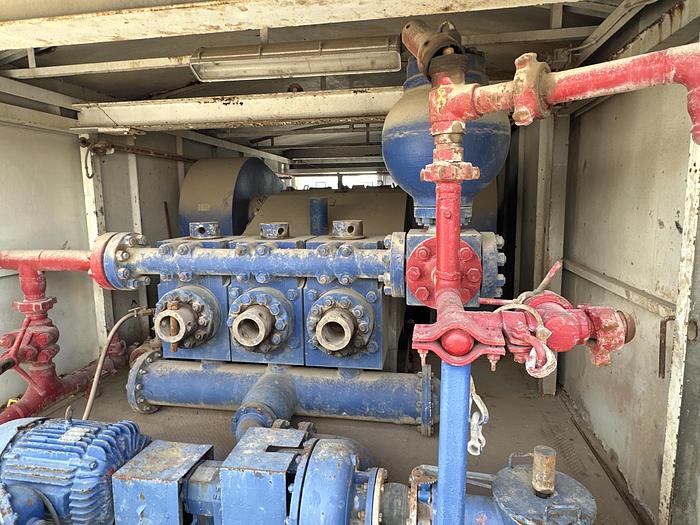

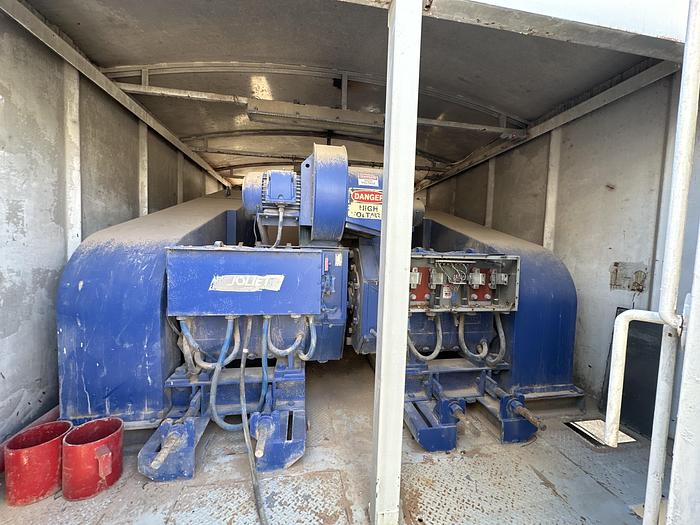

Mud Pumps:

#1 – RS F1600

#2 – RS F1600

Power:

2 - GE 752 1000 HP Traction Motors

Traveling Block:

250 Ton American Block

Choke Manifold:

4 1/16 X 5,000 psi

36” x 124” Gas buster

Accumulator System:

Chiles 5 station w/180 gal. Reservoir

Remote Panel on Rig Floor

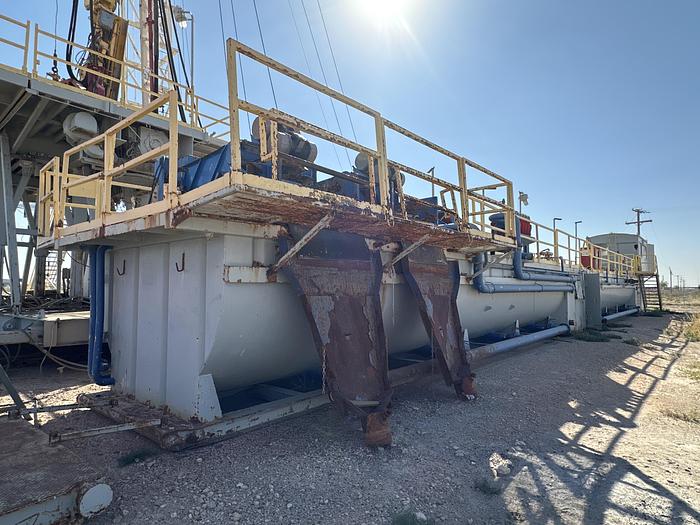

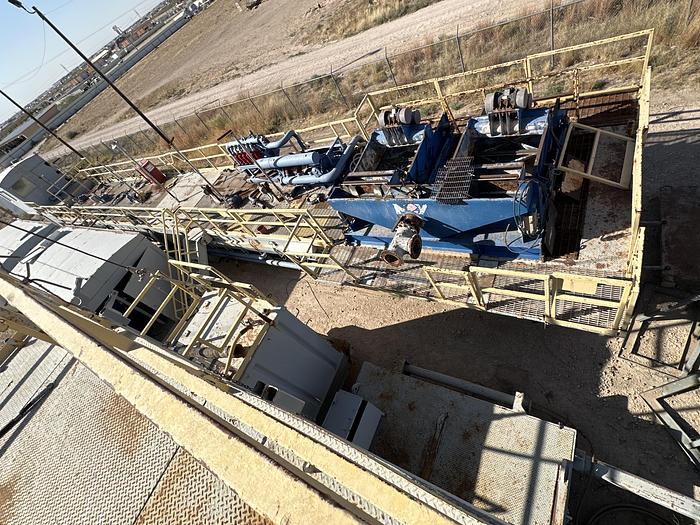

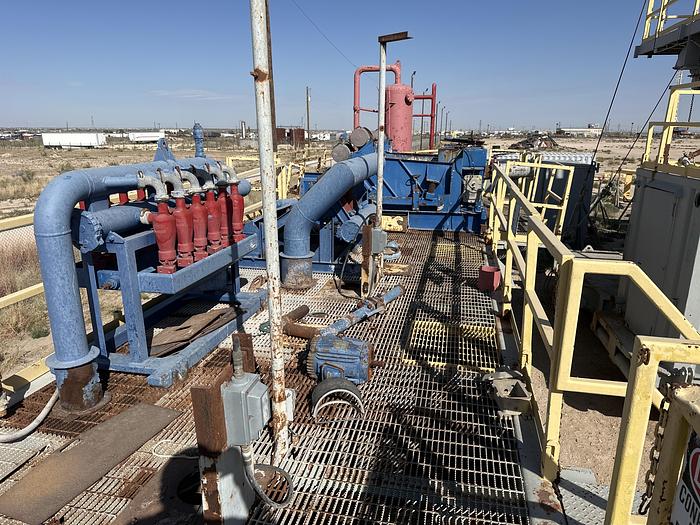

Mud System:

750 BBL Pit System

2 - King Cobra 4 Panel Shakers

Desander - Derrick 2 Cone

Desilter - Derrick 16 Cone

Drilco style degasser

Water Tank:

300 BBL

Diesel Tank:

8,400 Gallons w/Lube Center

Auxiliary Equipment:

OWI Survey Machine

Change House/ Parts House

Skidding package to move up to 150’

Trolley system for BOP

Two 8000# Braden hydraulic hoist
