2012 Oilwell 840E 1500 HP WALKING DRILL RIG

Recertified 2024!

Hoisting and Rotating:

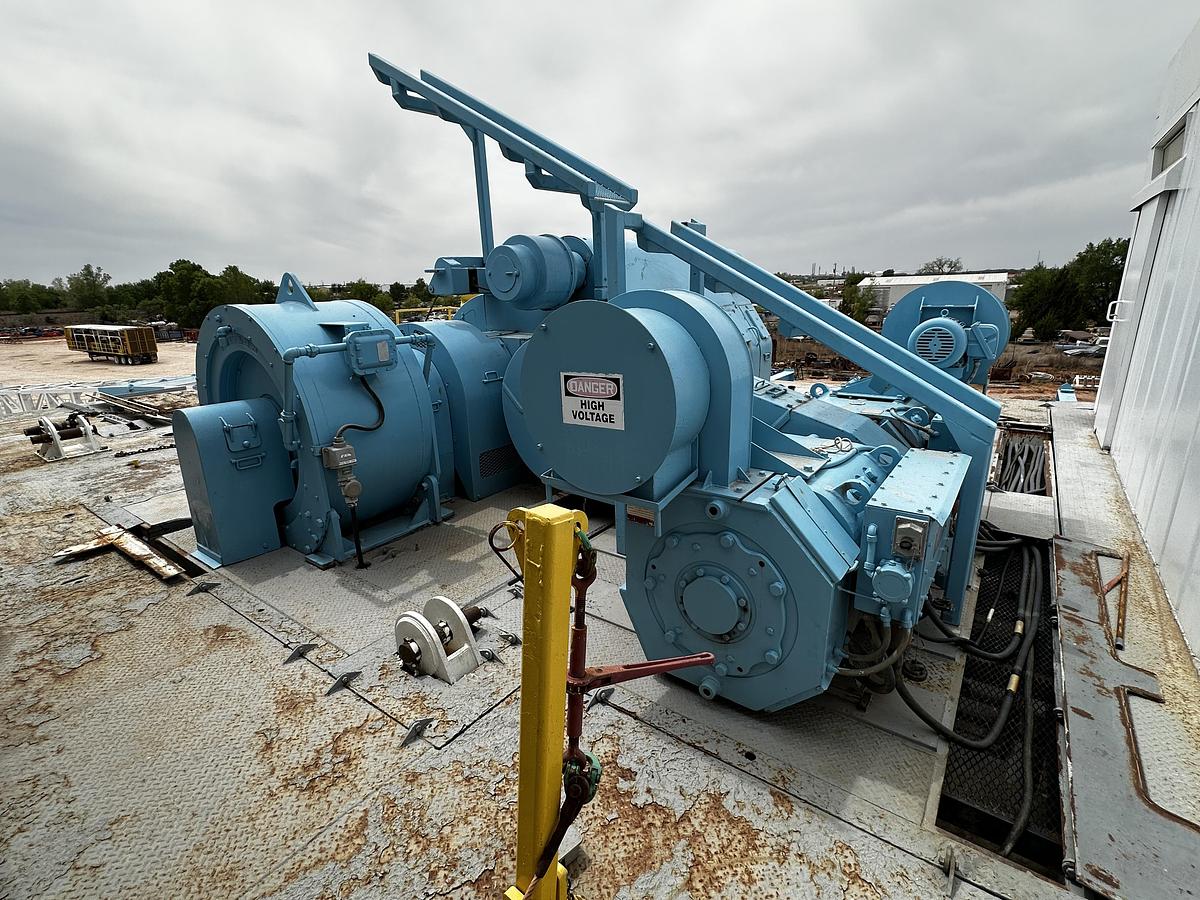

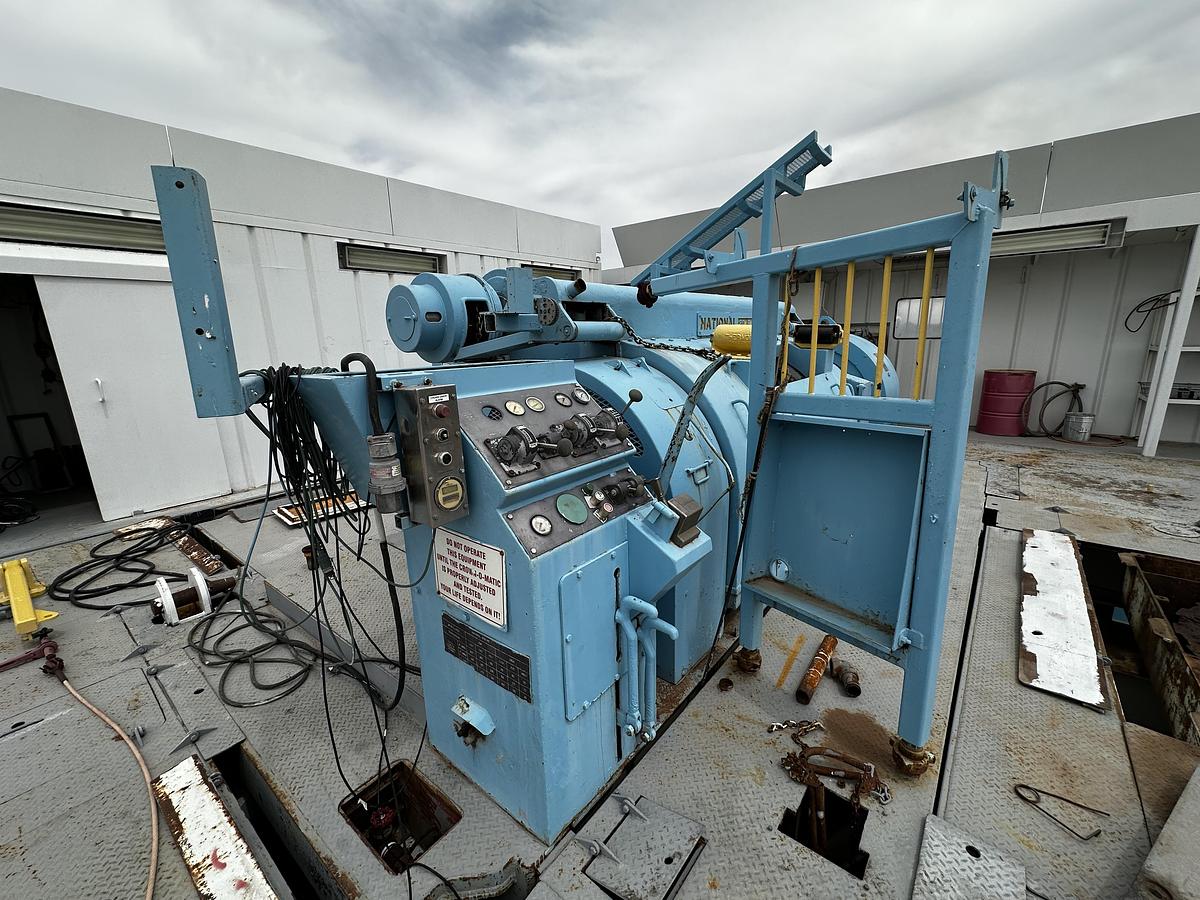

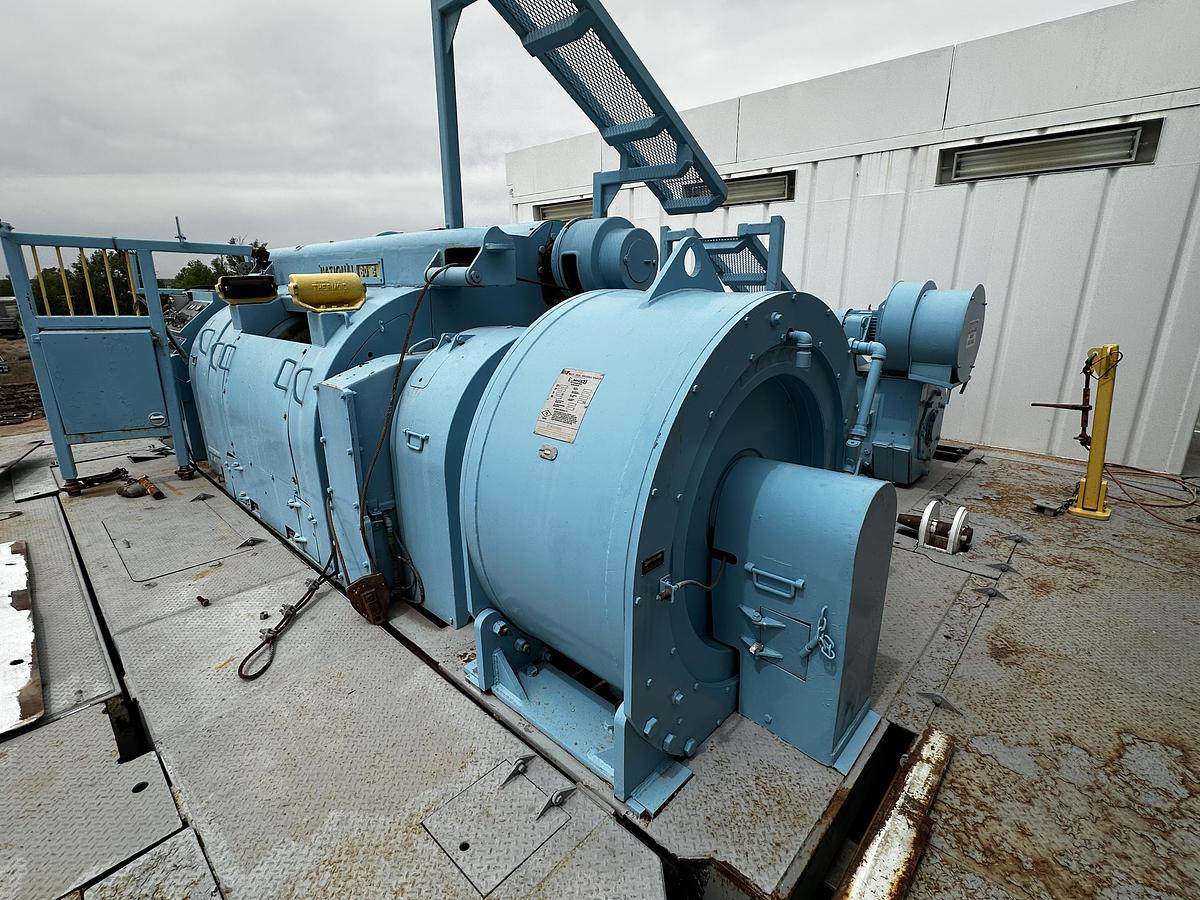

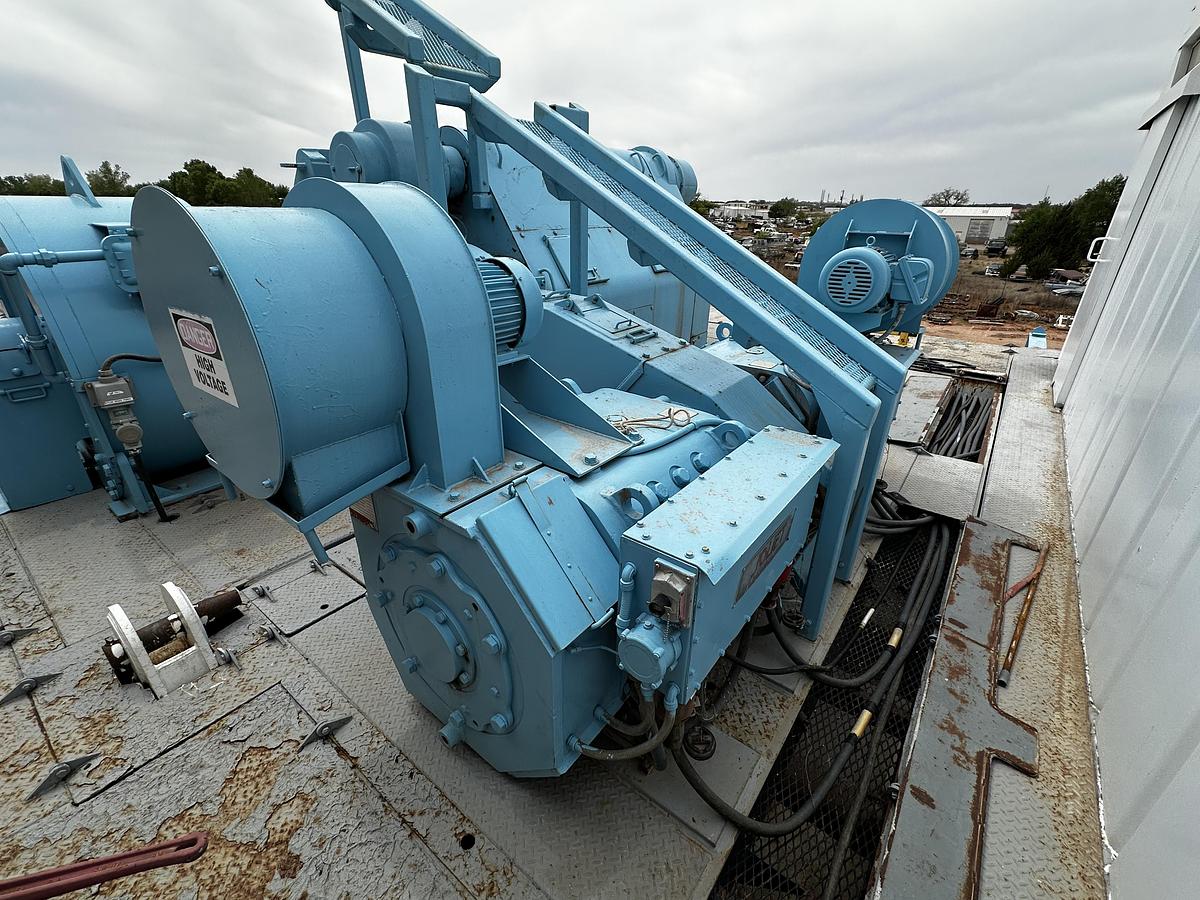

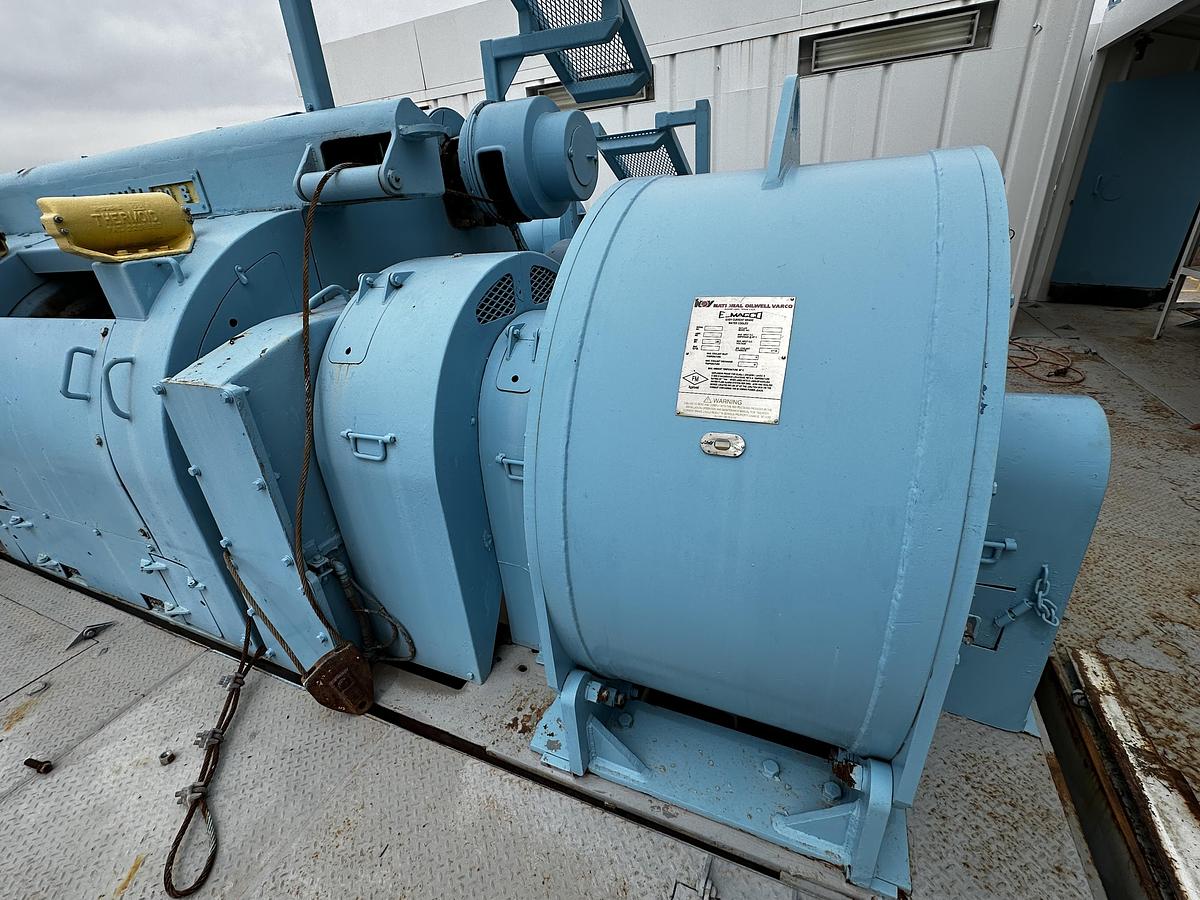

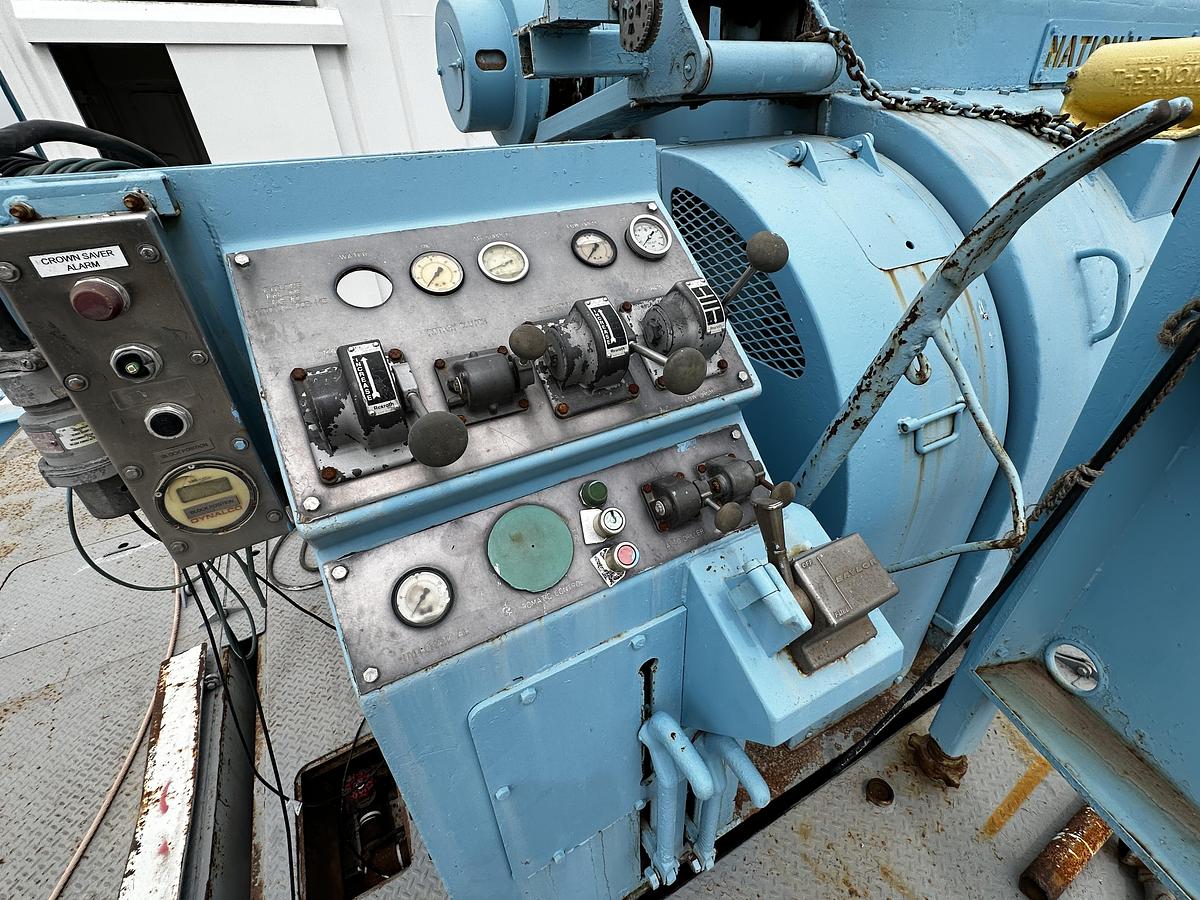

Drawworks Oilwell 840E 1500 (1,500 hp) powered by 2-GE 752 traction motors

Auxiliary Brake V200 Hydromatic

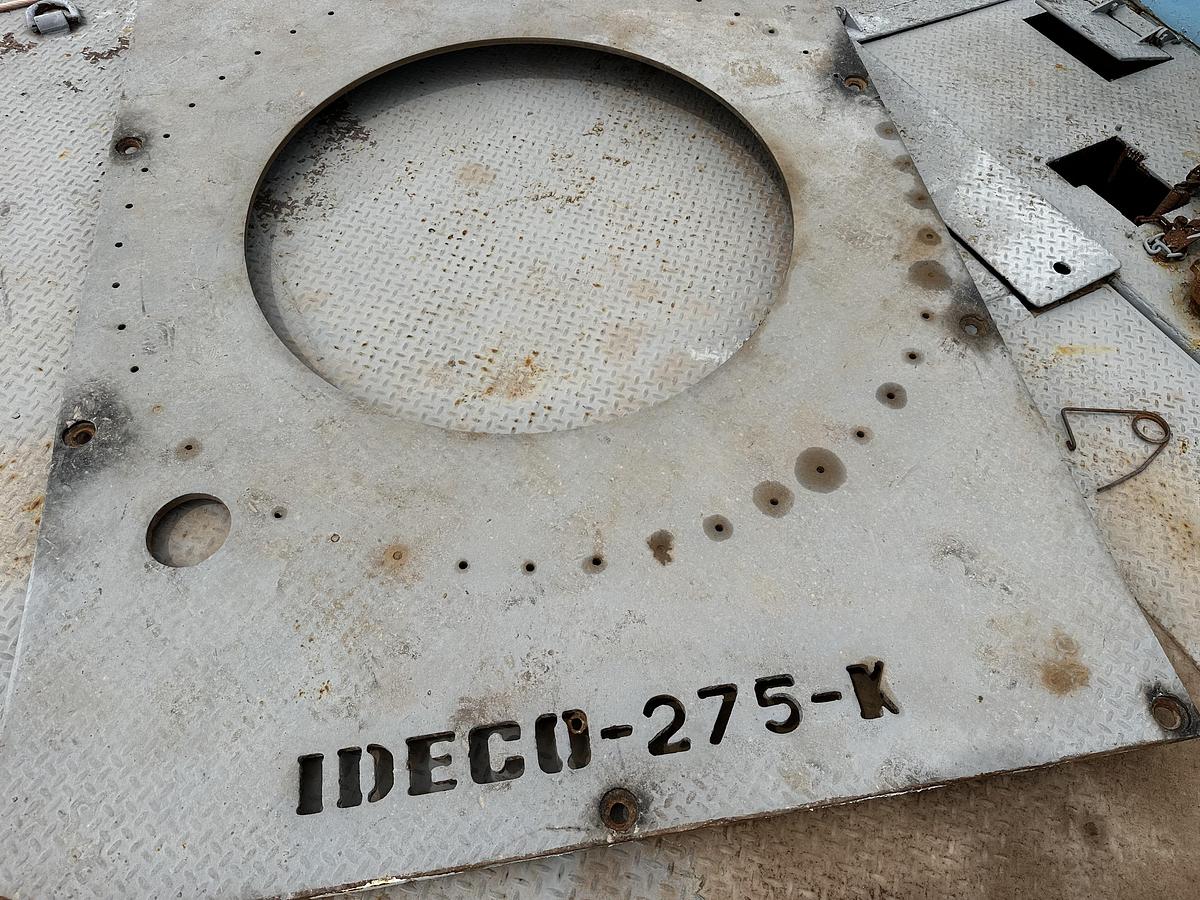

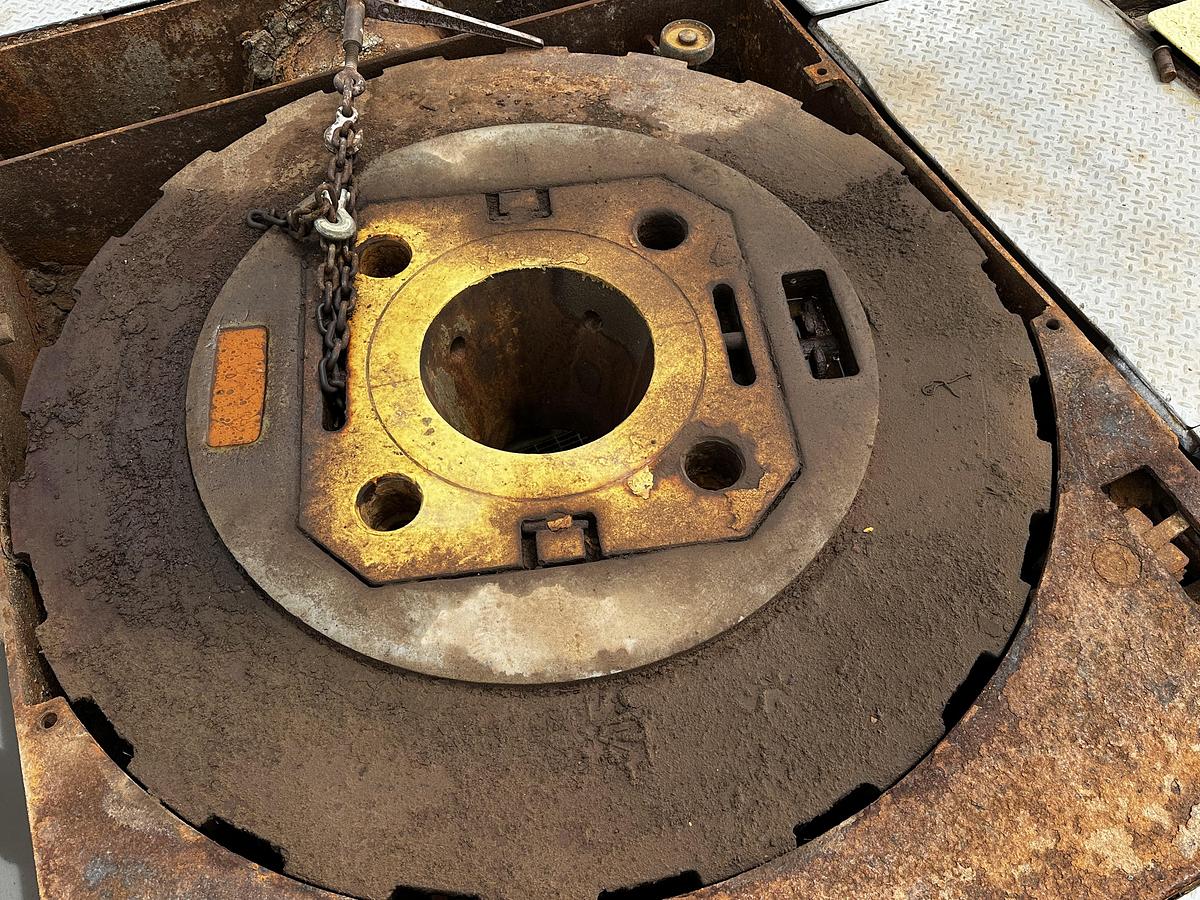

Rotary Table Ideco 27-1/2”

Traveling Block National G500-500 ton Combo- 1-1/4 Drilling Line

Swivel 500 Ton

Top Drive Tesco ECI 900 (900 hp, 500 Ton, electric)

Power Package:

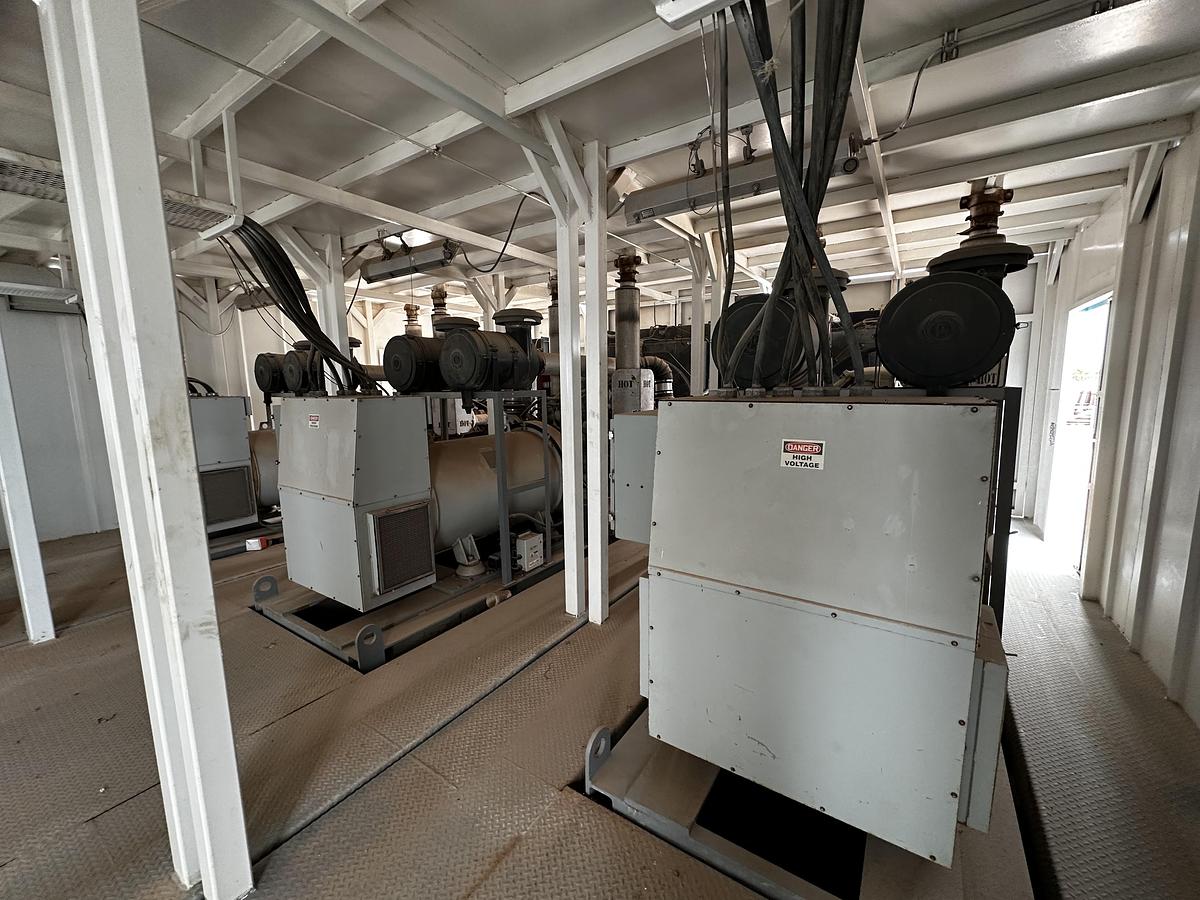

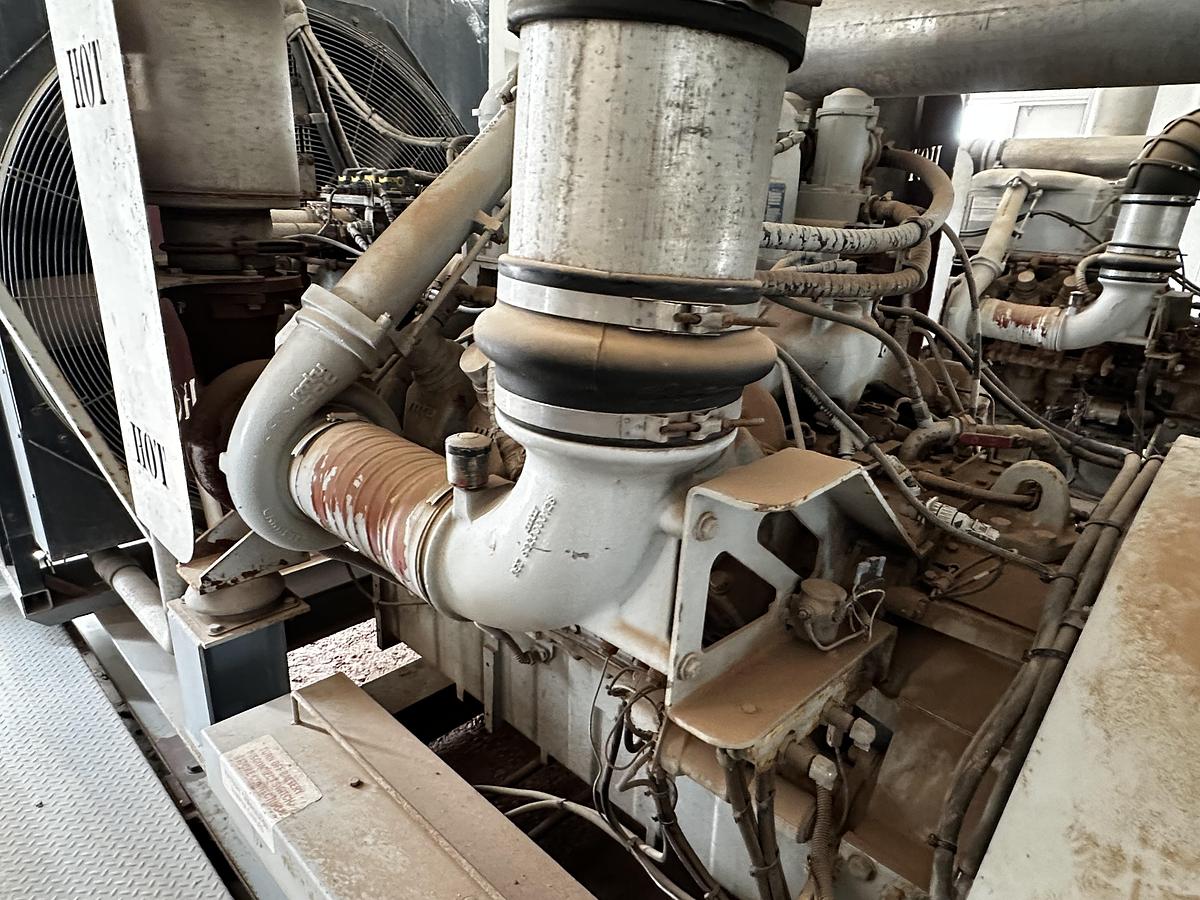

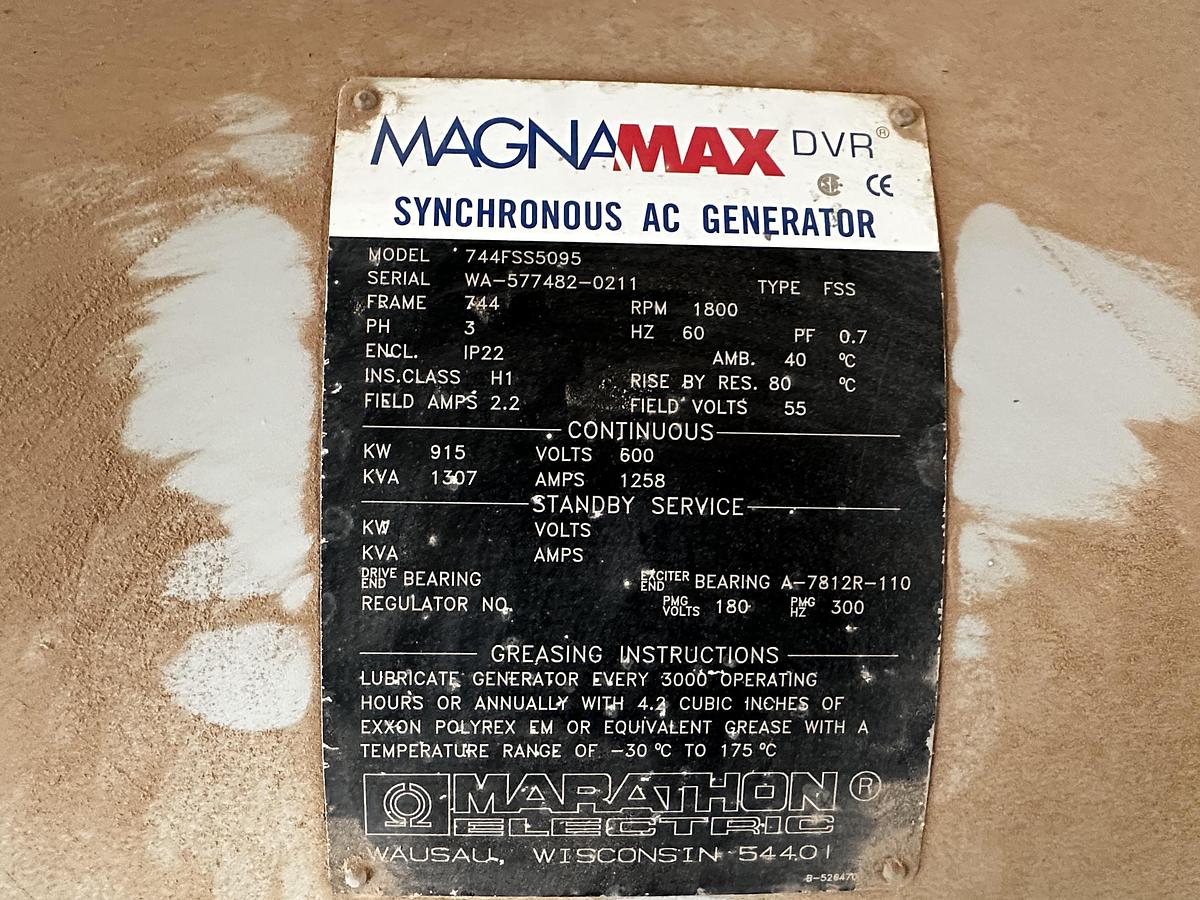

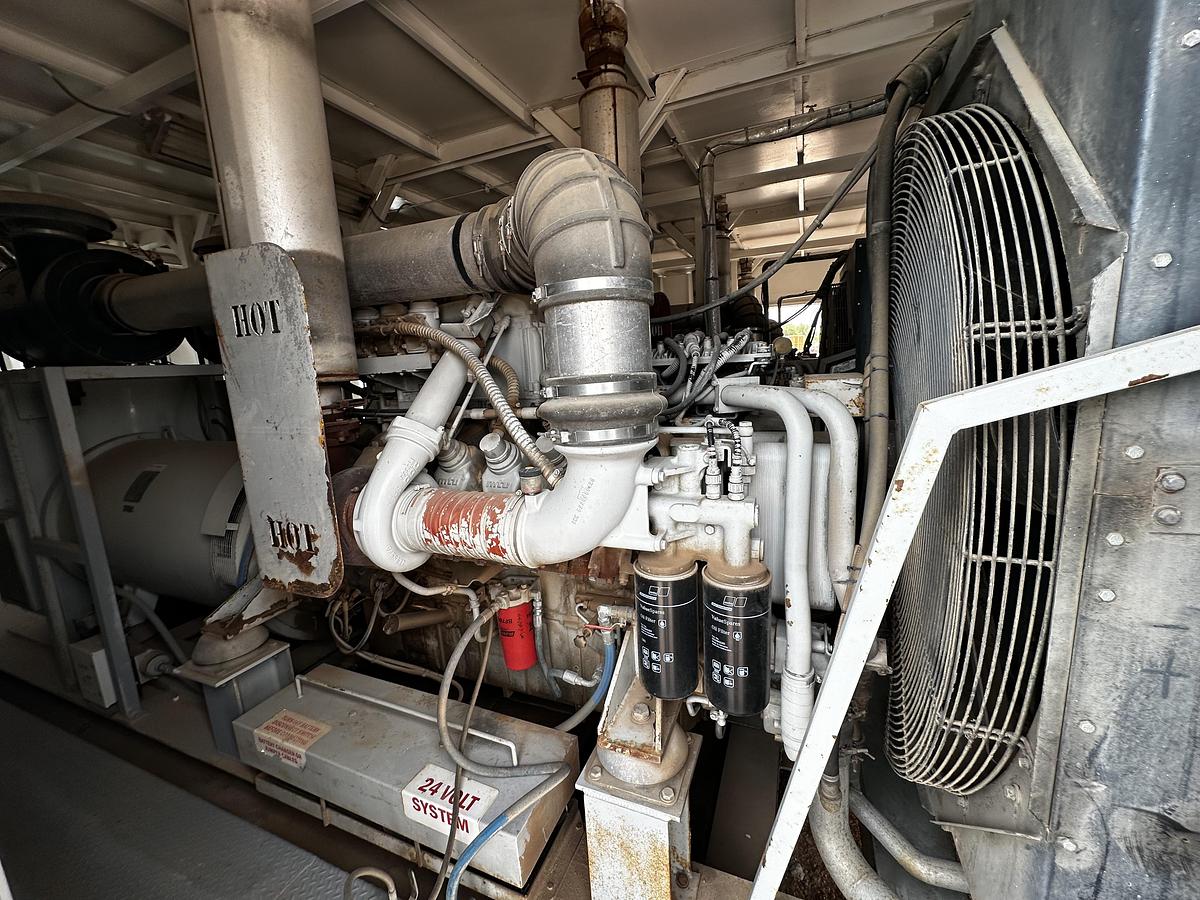

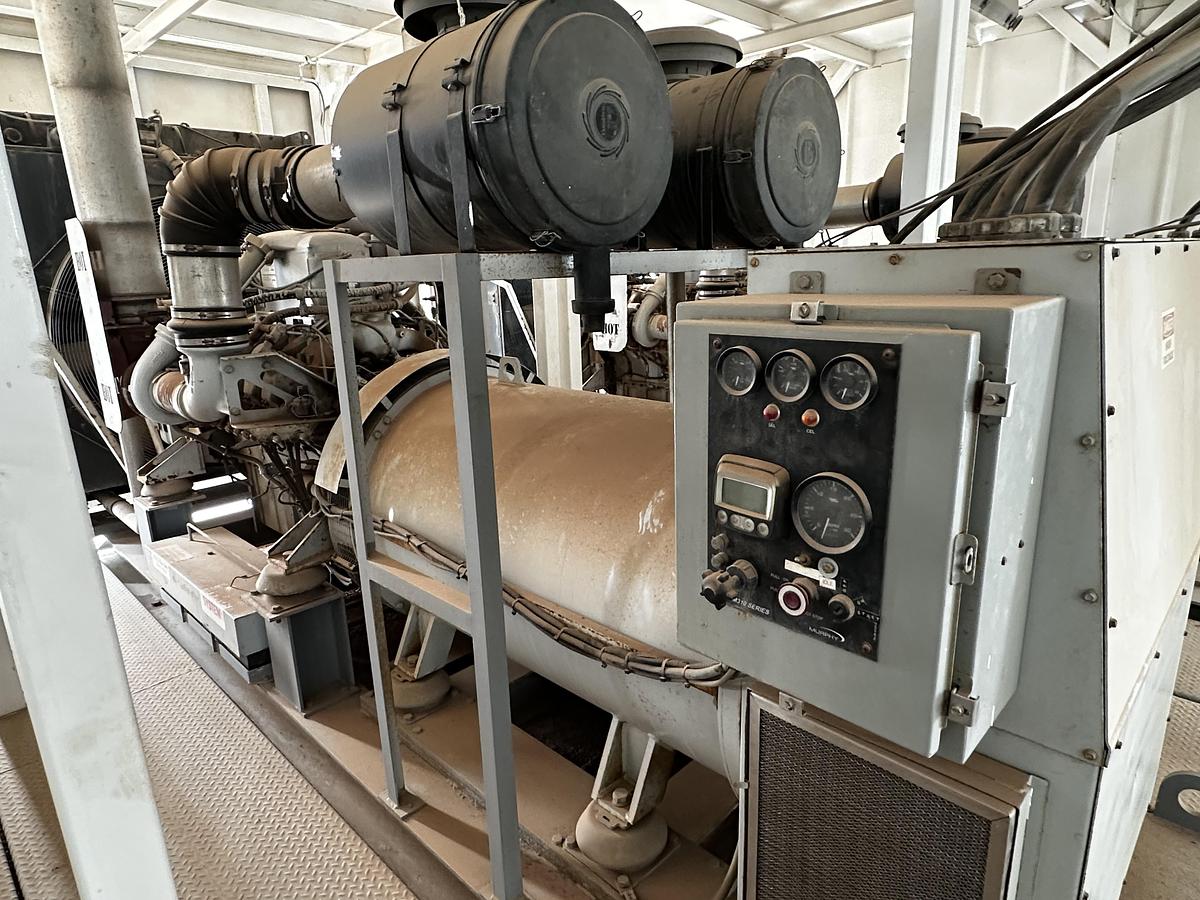

Generators 3-MagnaMax 915 kW powered by Detroit MTU 12V2000 (Cat 3512-B, Kato 1365kw available upgrade)

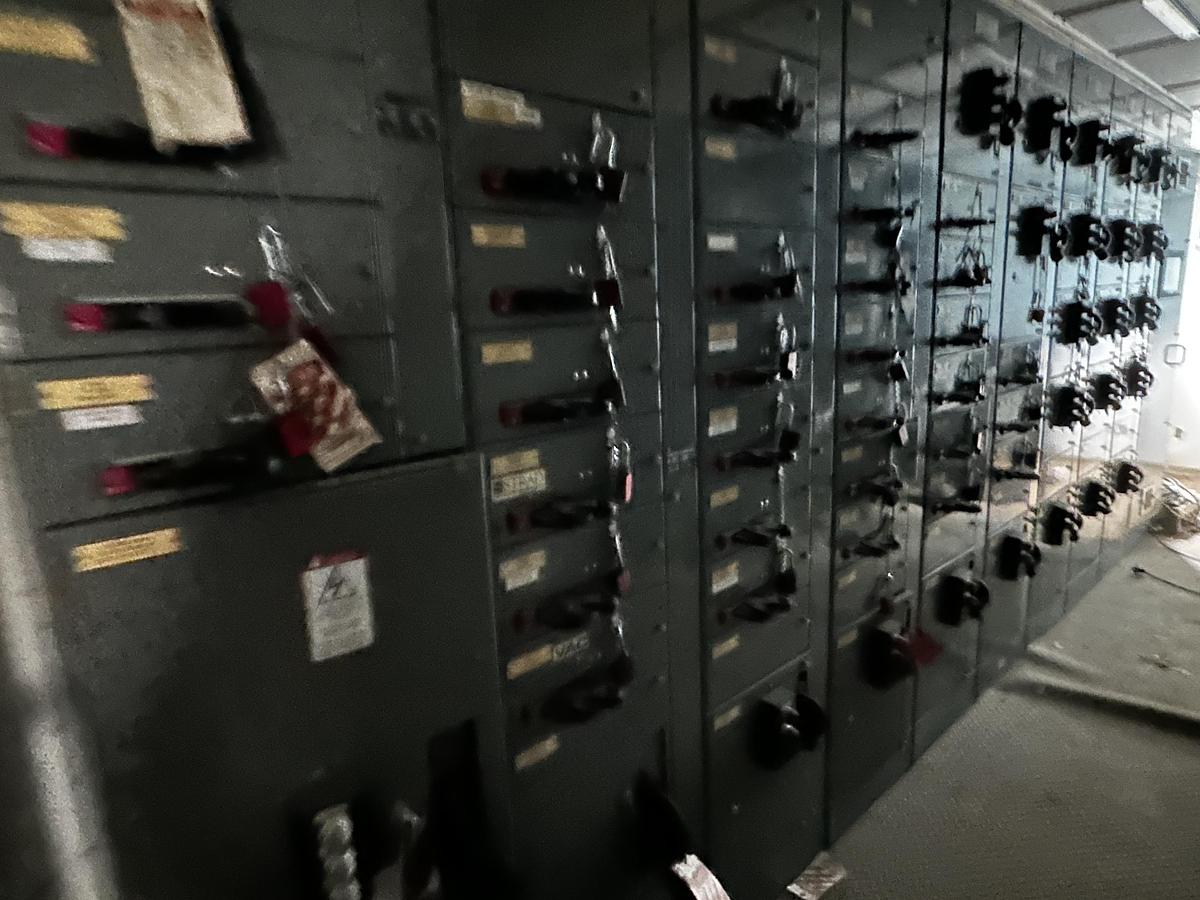

Control House Omron 3 - SCR 3 -Gen

Well Control:

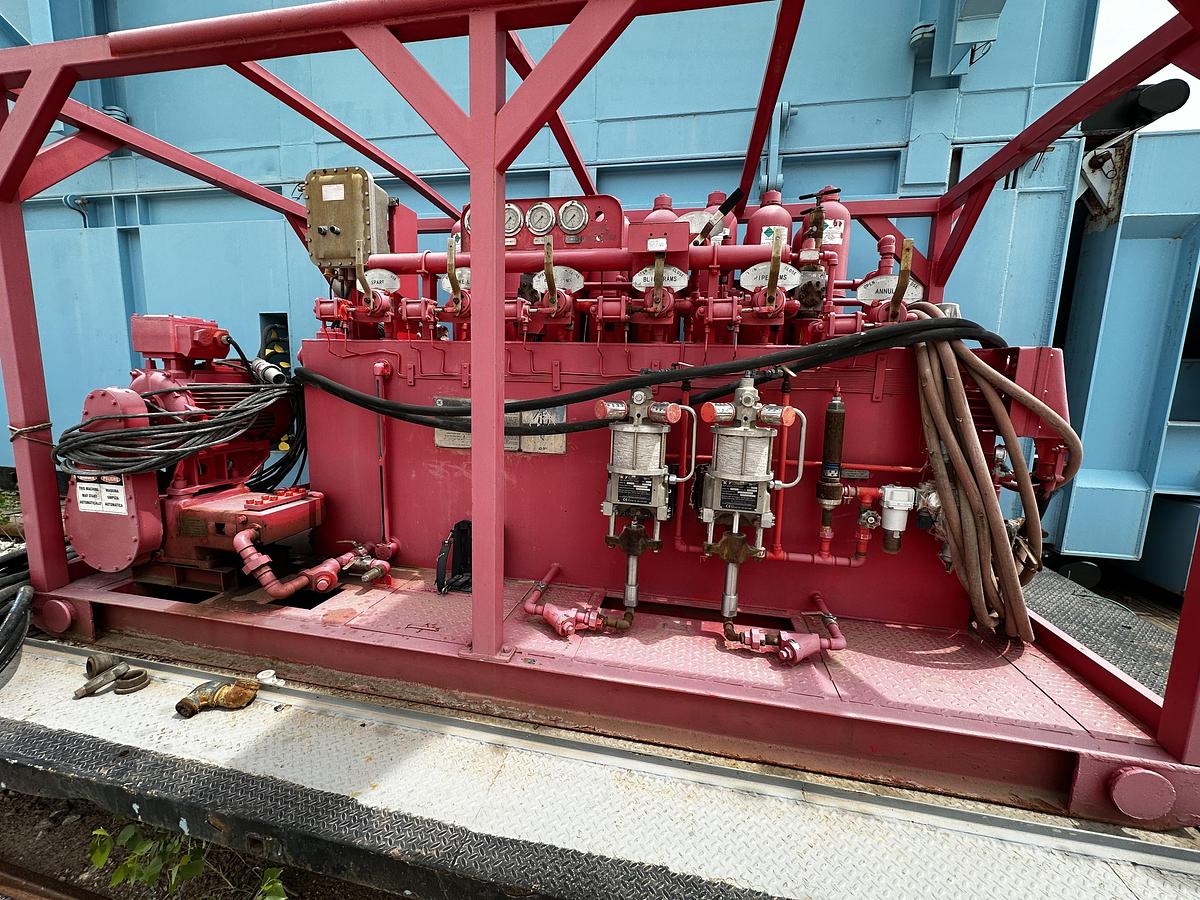

Accumulator Koomey 5 Station 192 gallon capacity

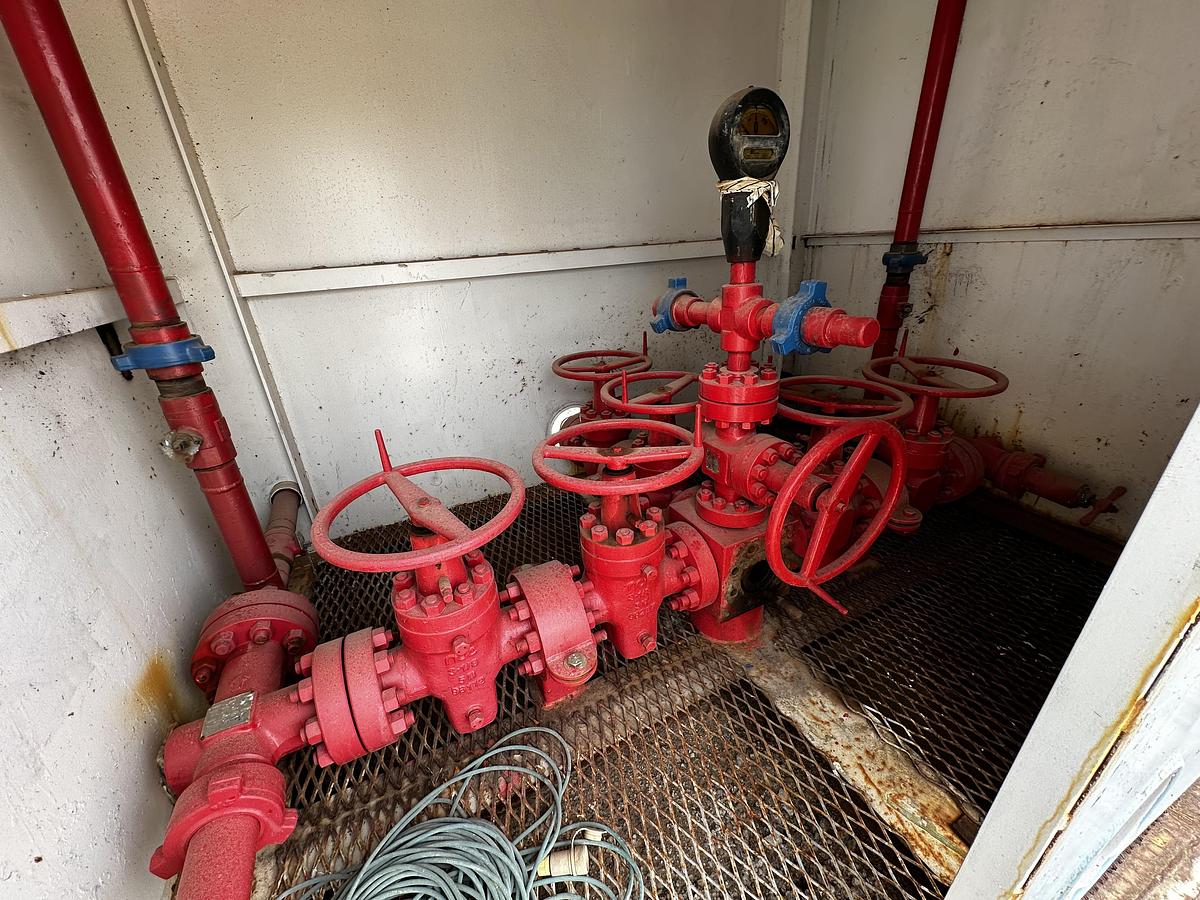

Choke Manifold 4" x 4" 5,000 psi

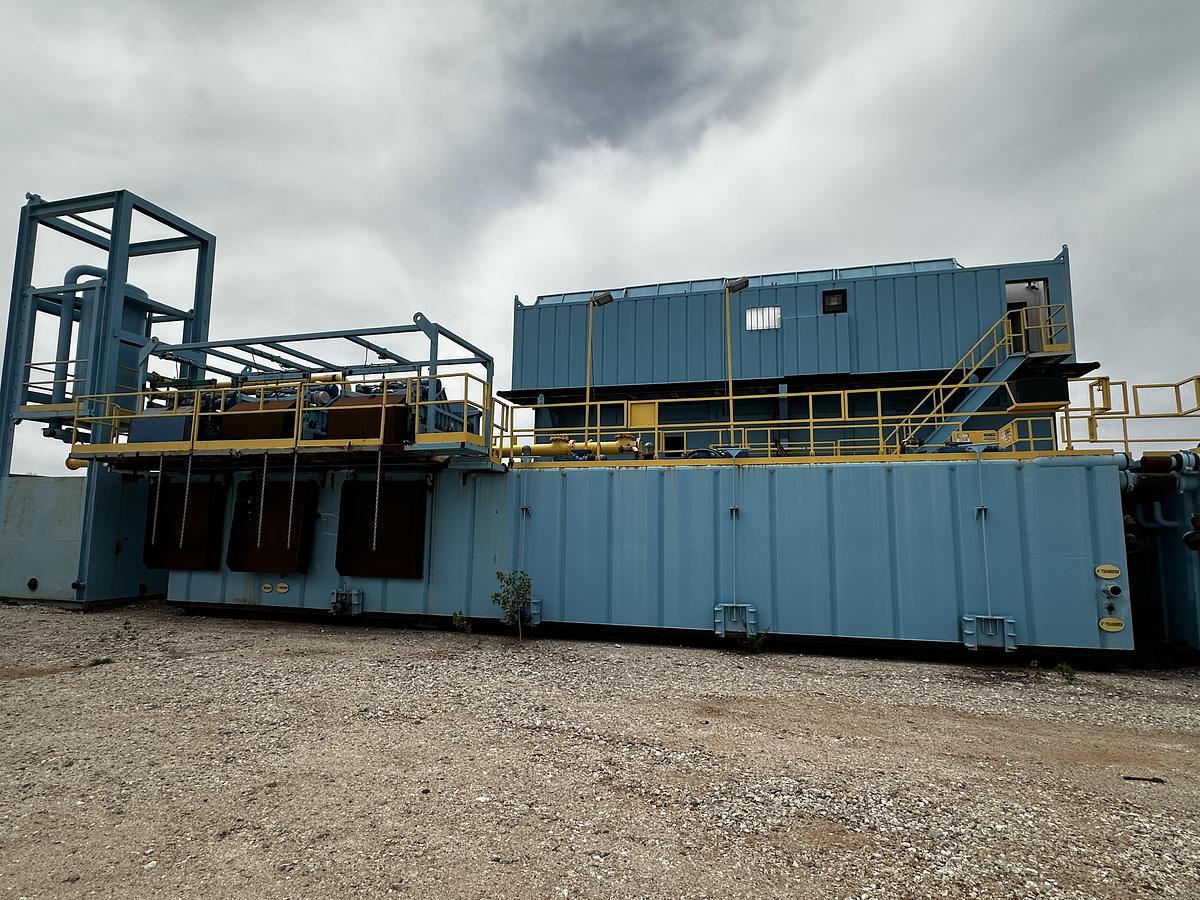

Mud System:

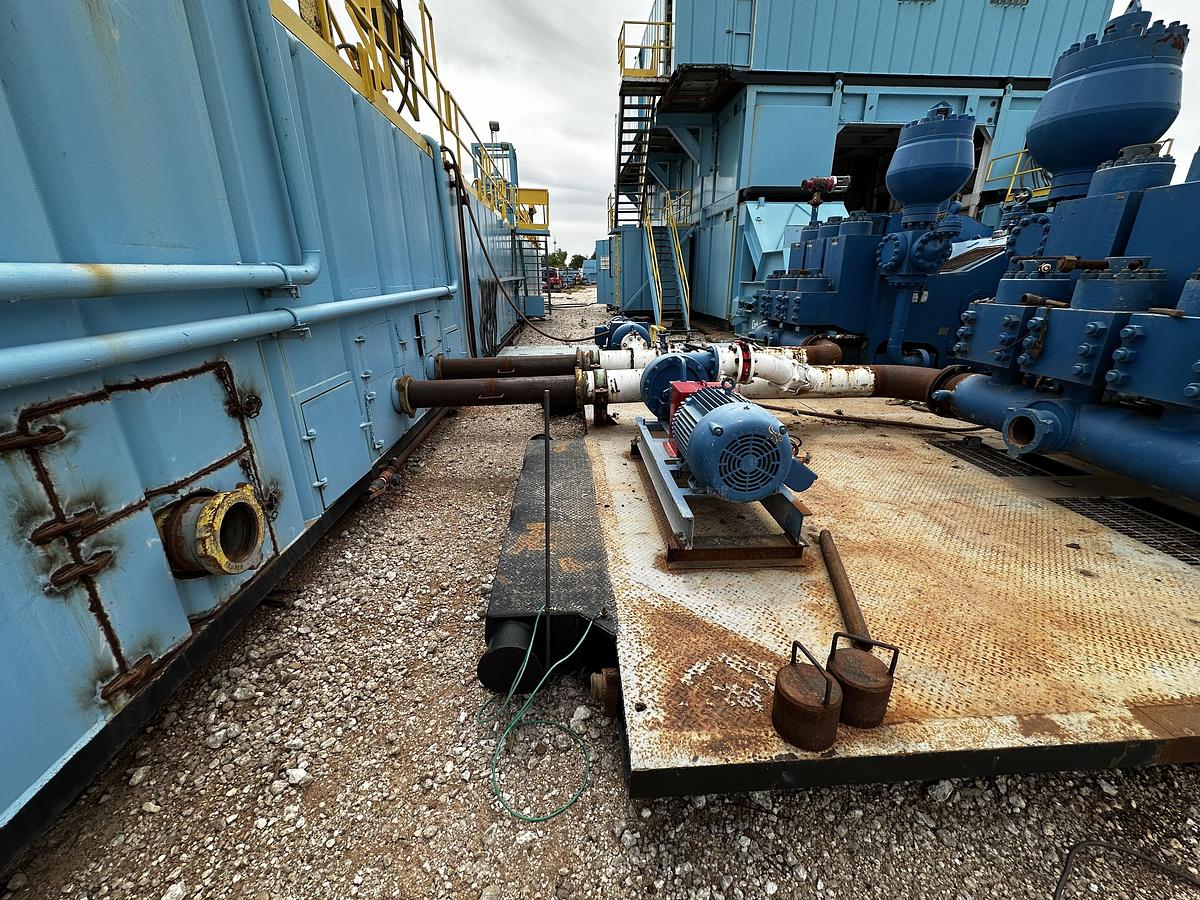

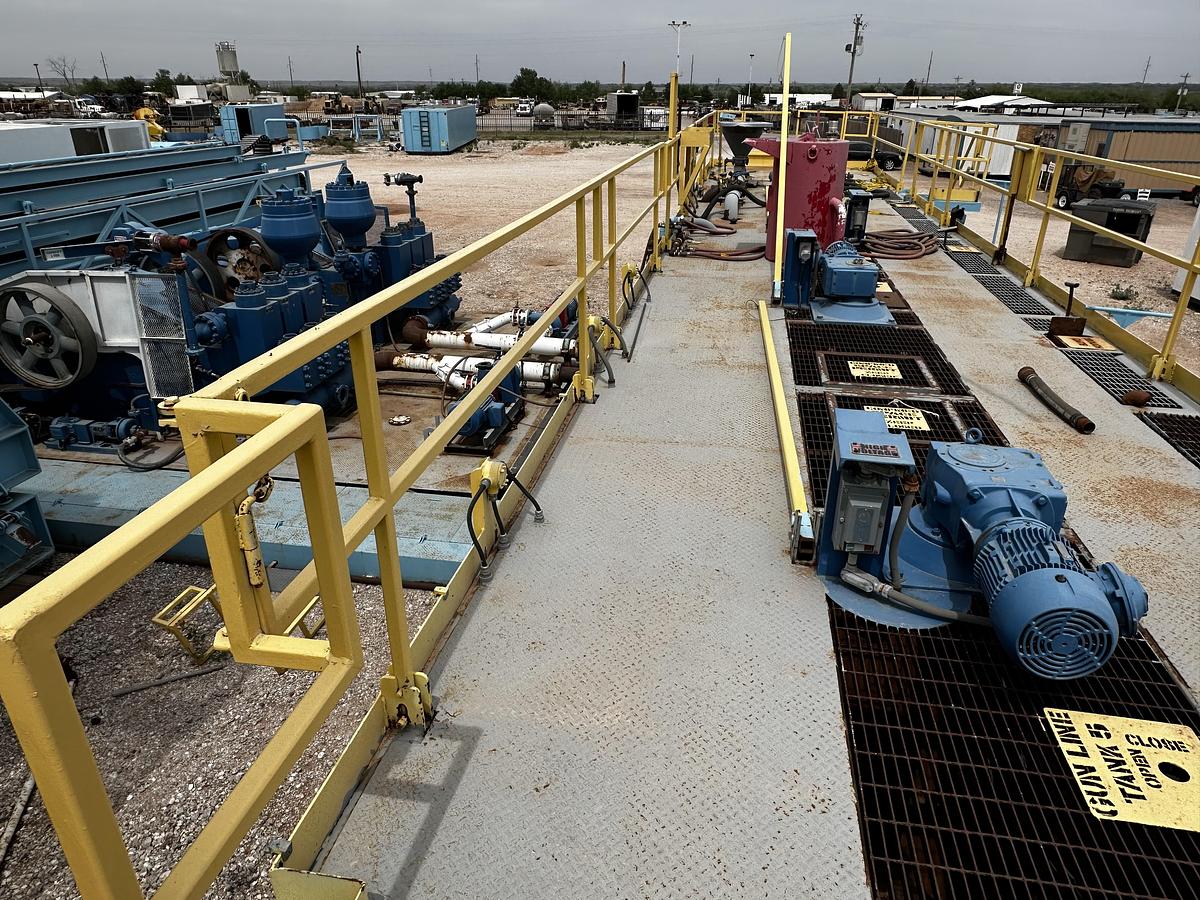

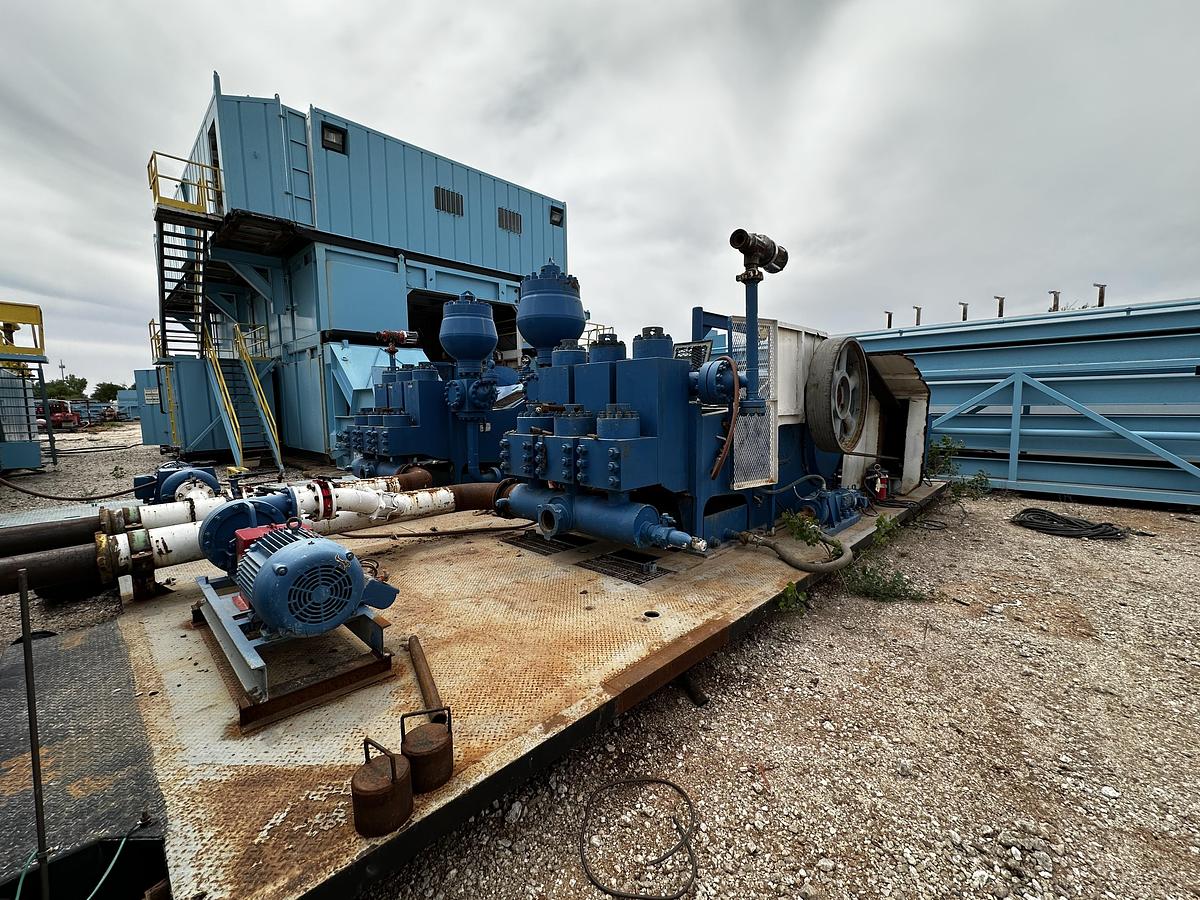

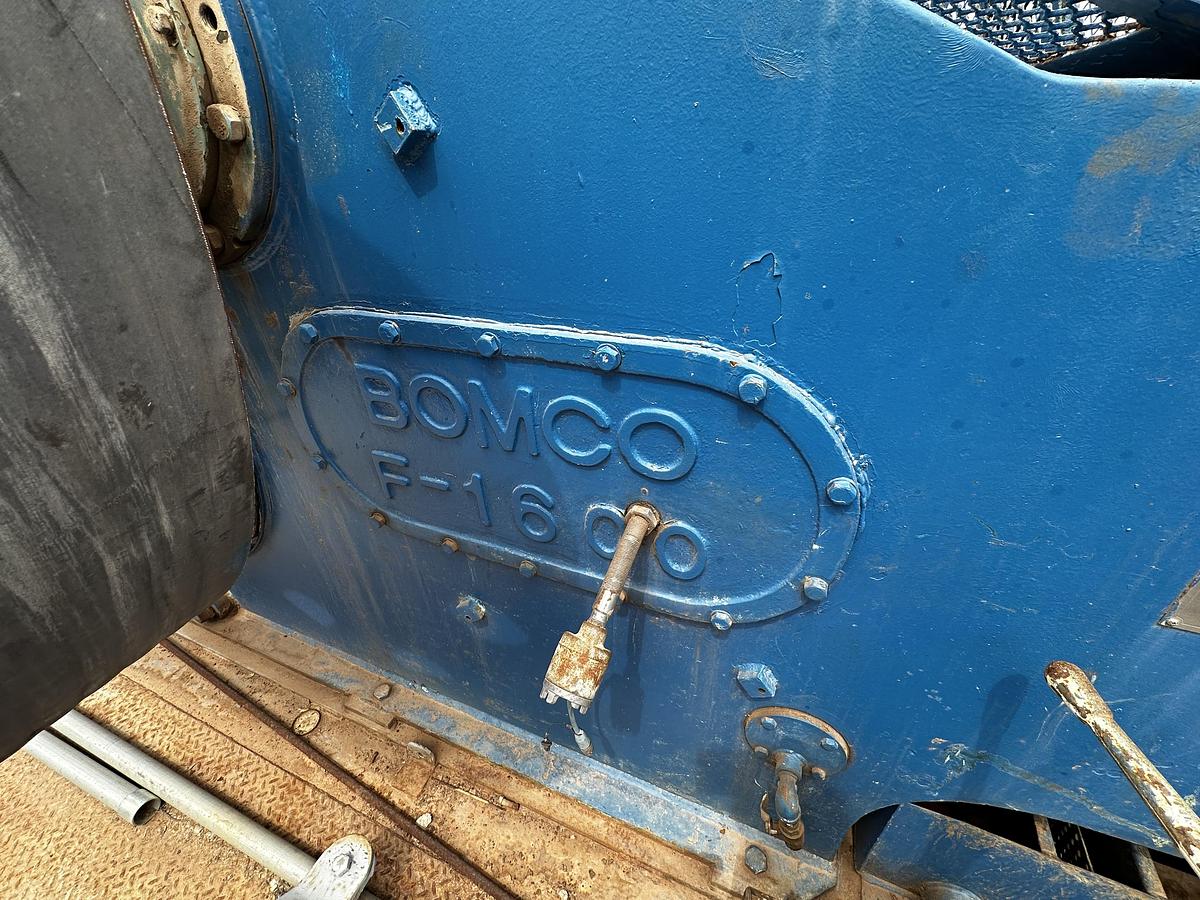

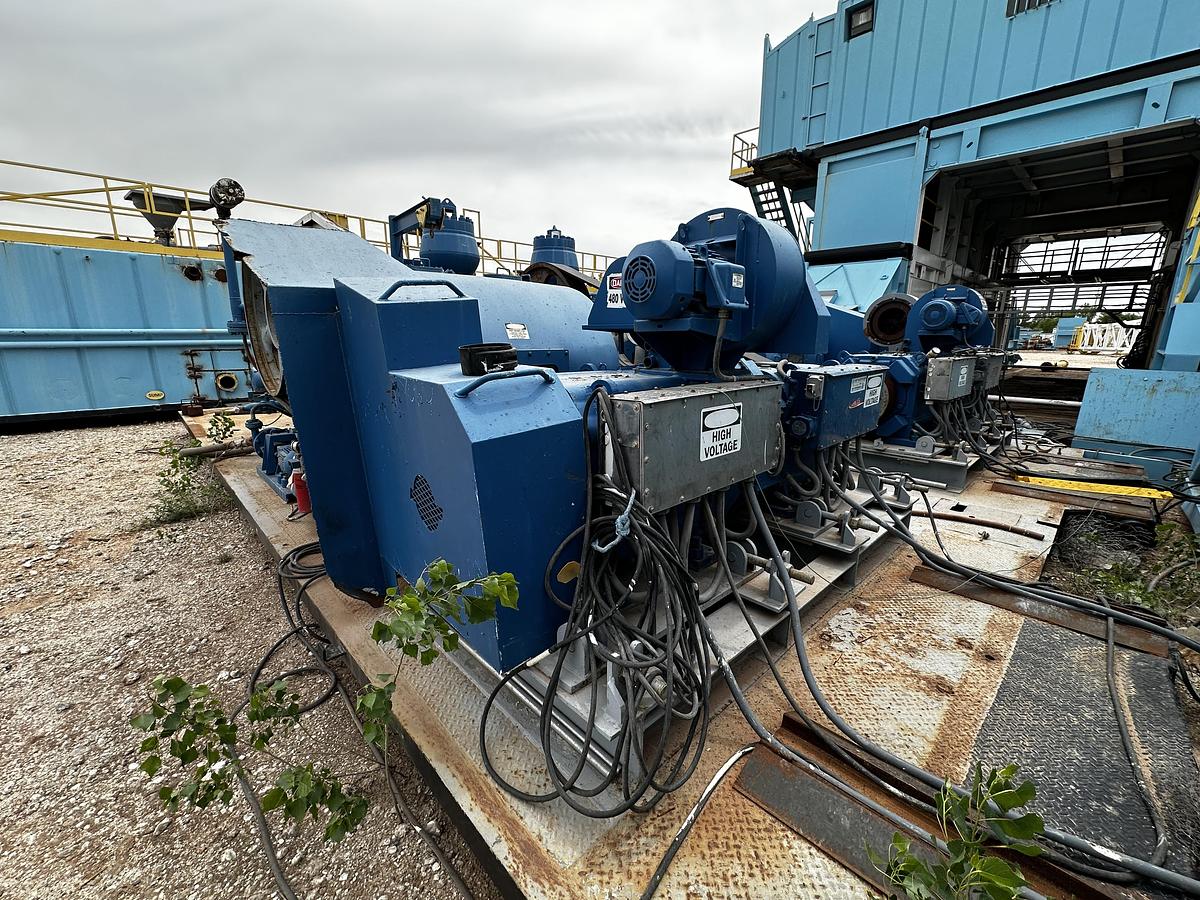

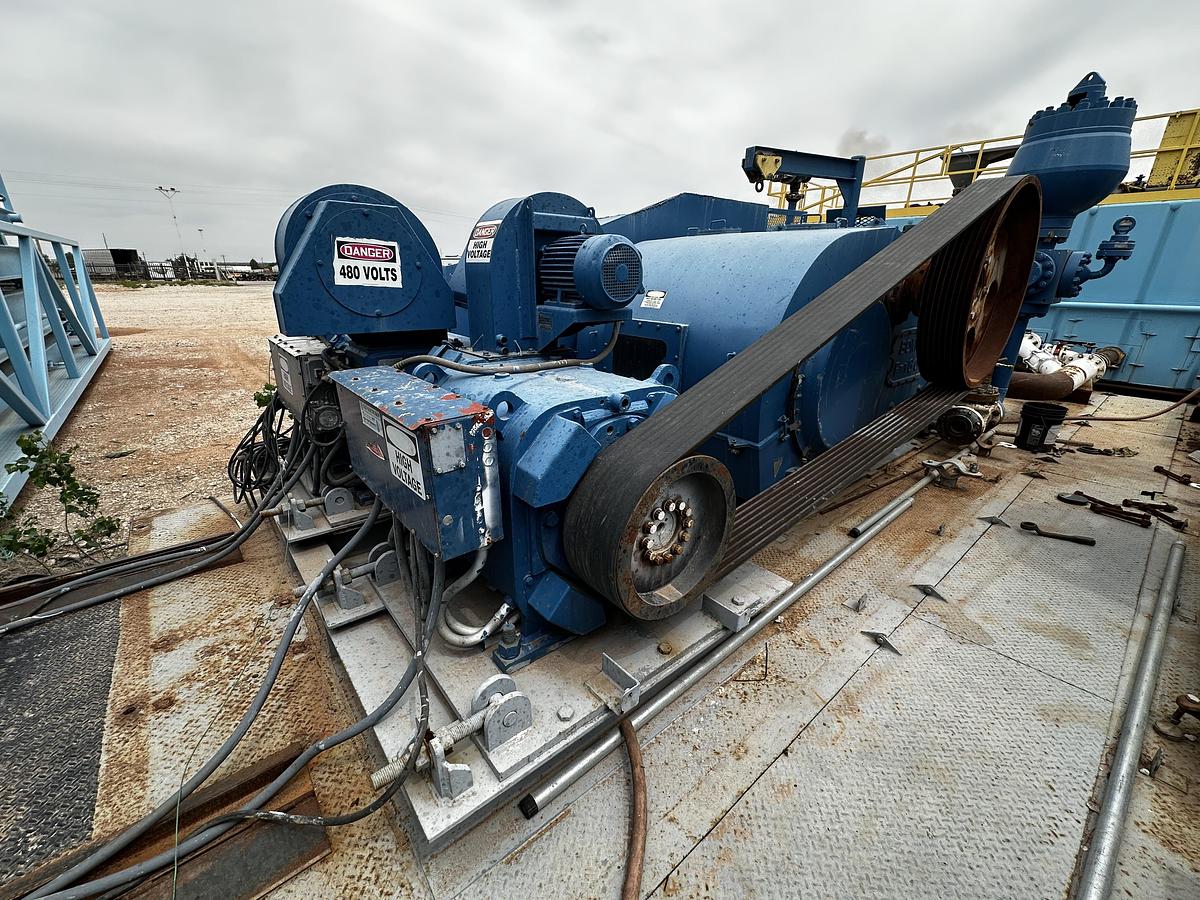

Mud Pump 1 HHF-1600 (1,600 hp) powered by 2-GE 752 DC traction motors (5,000 PSI fluid ends)

Mud Pump 2 HHF-1600 (1,600 hp) powered by 2-GE 752 DC traction motors (5,000 PSI fluid ends)

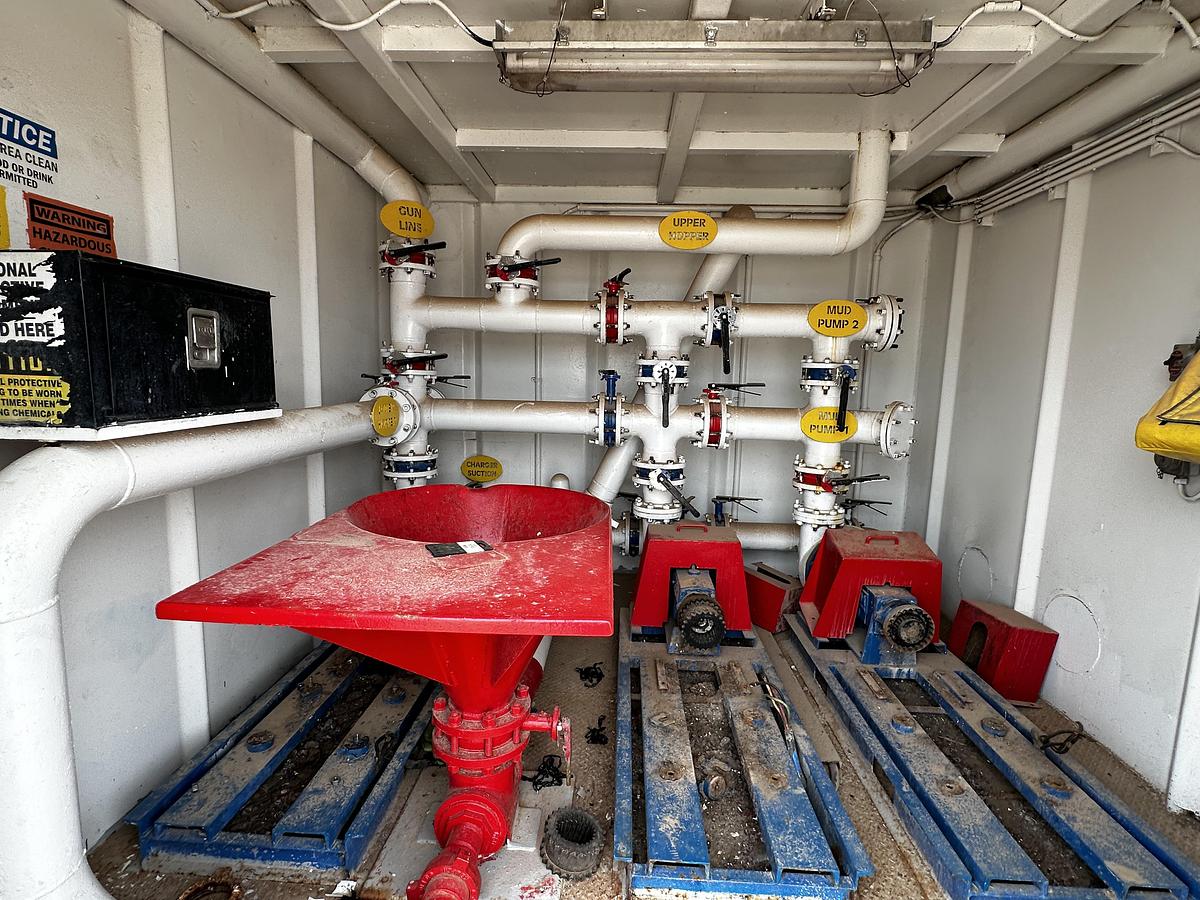

Mud Line 5'' Line, 5,000 psi system

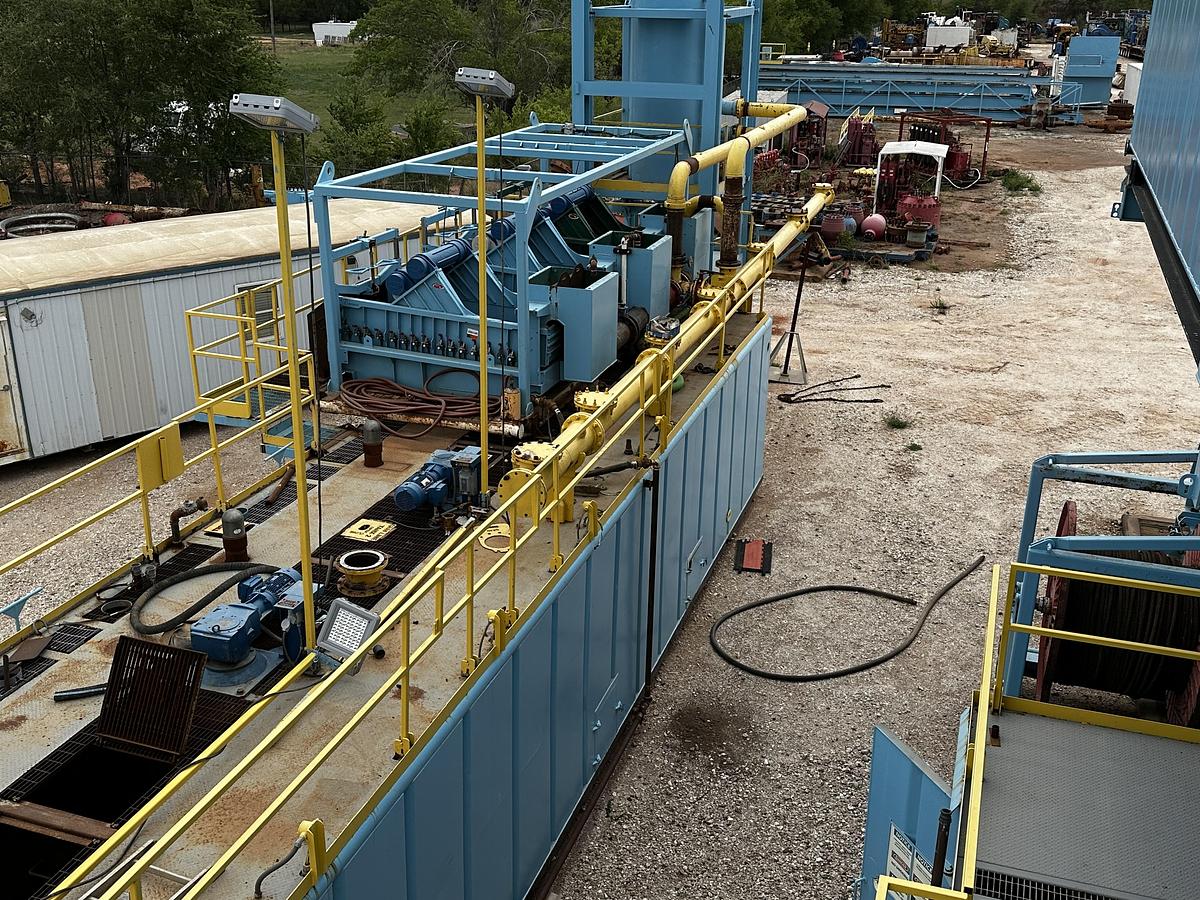

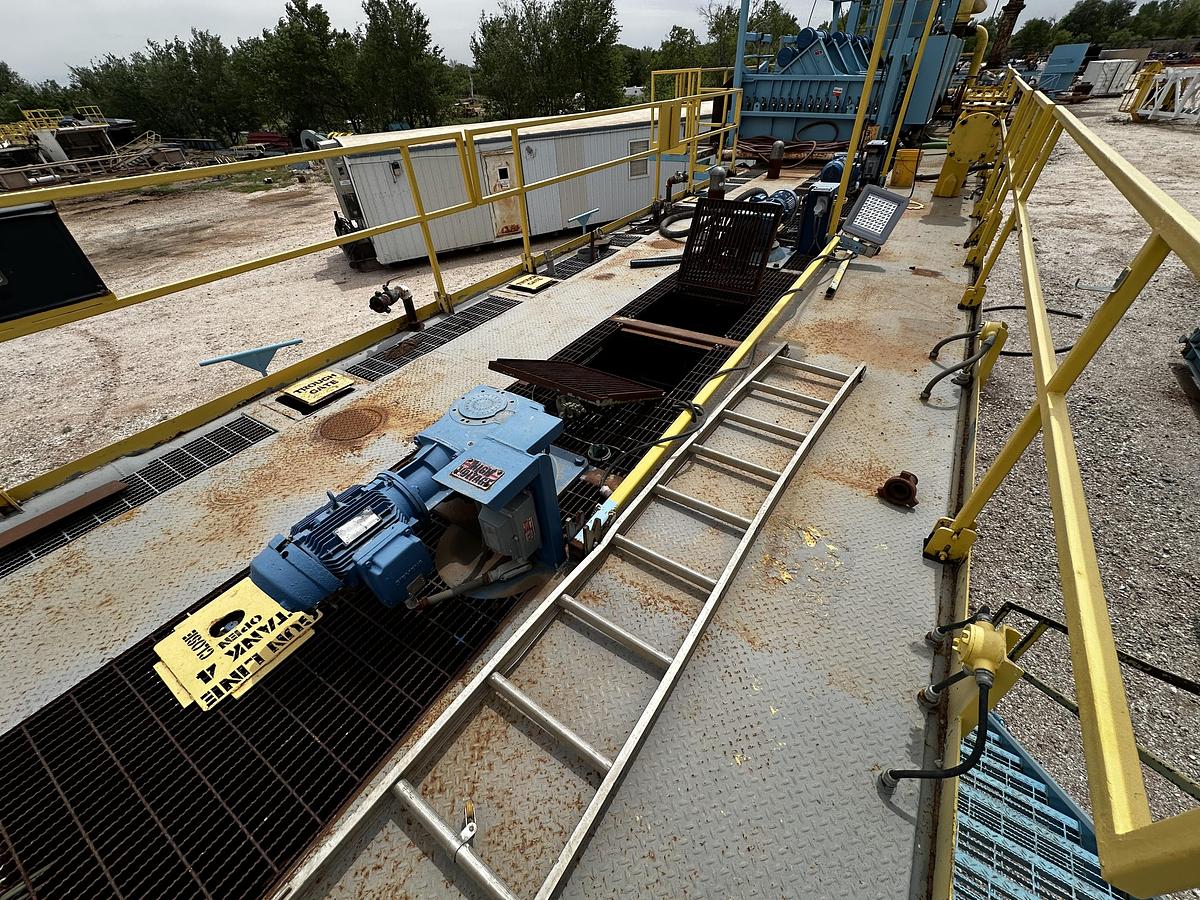

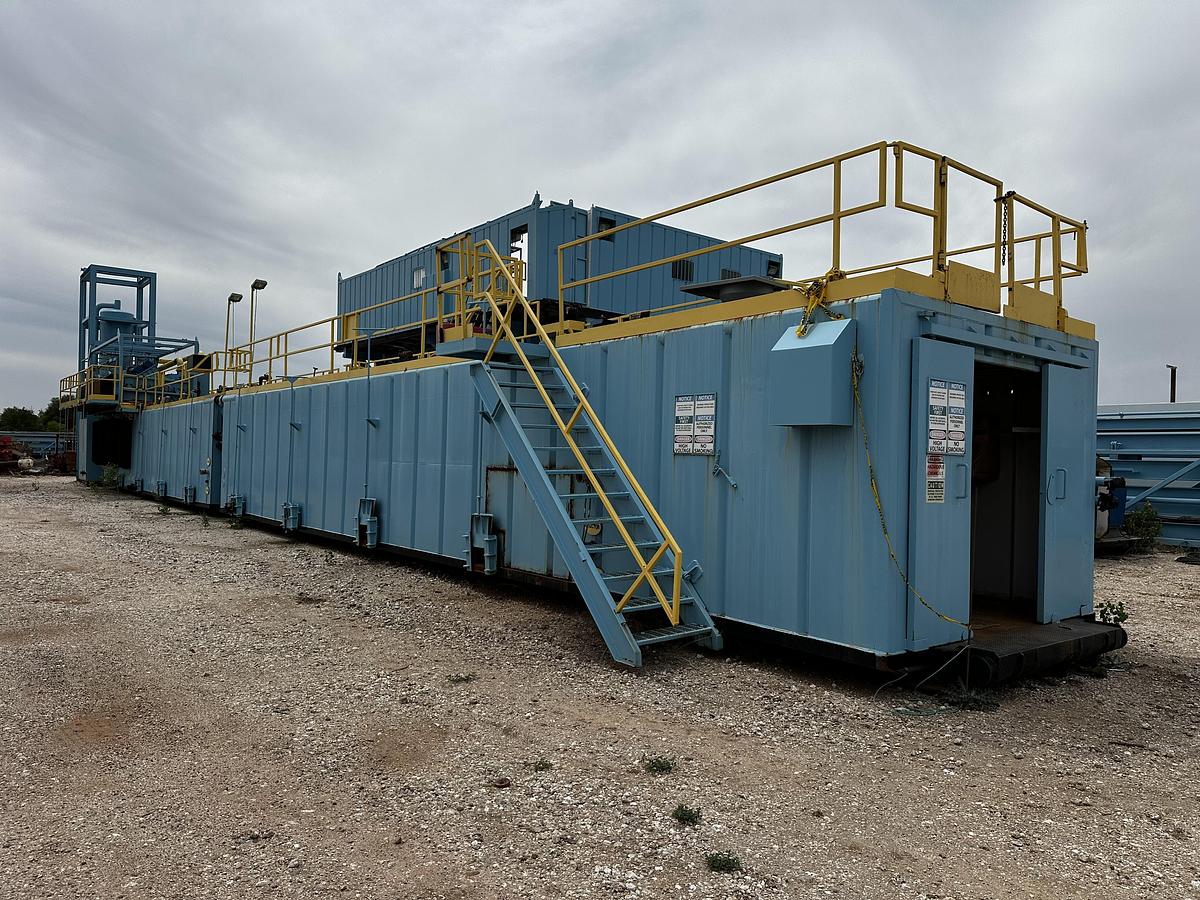

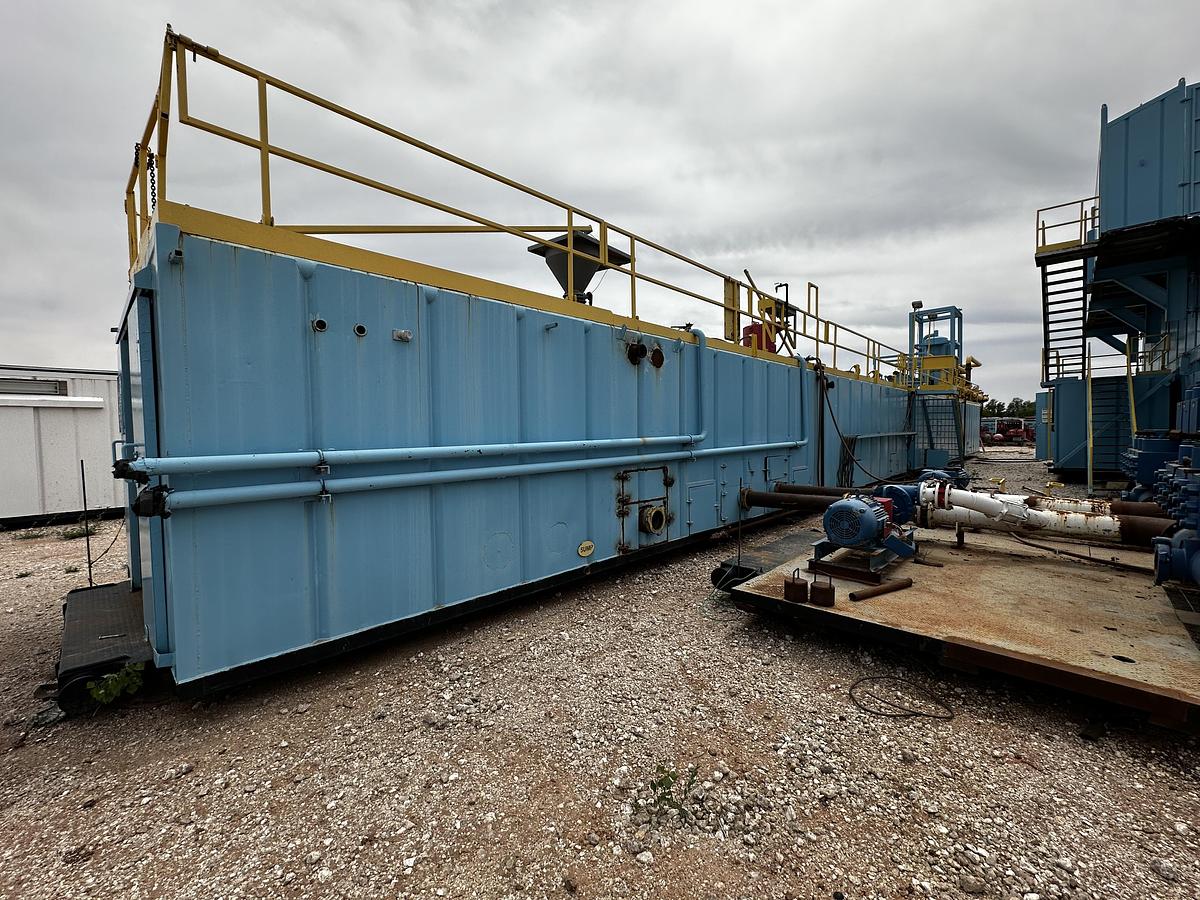

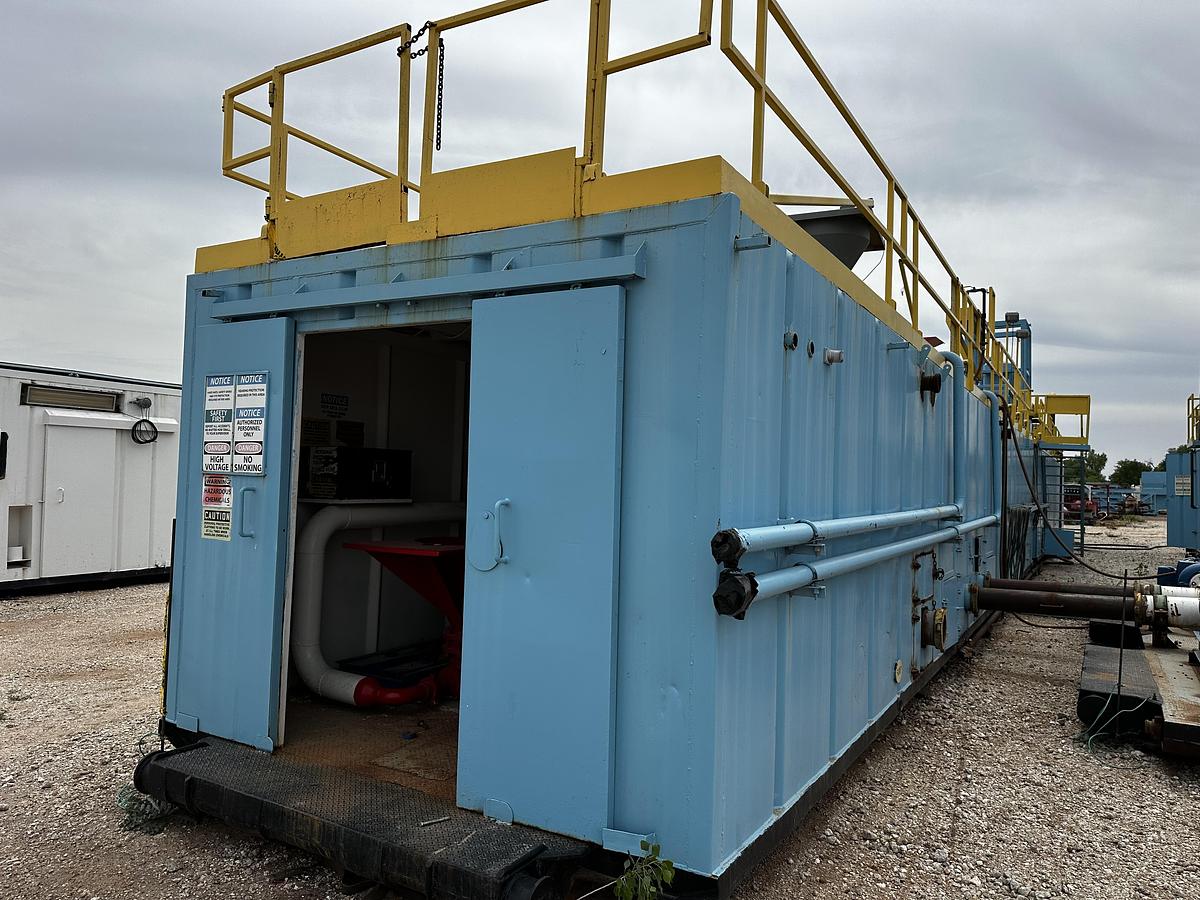

Mud Pits 3-pit system (900 bbl) with 7 agitators 100 bbl premix pit built into suction

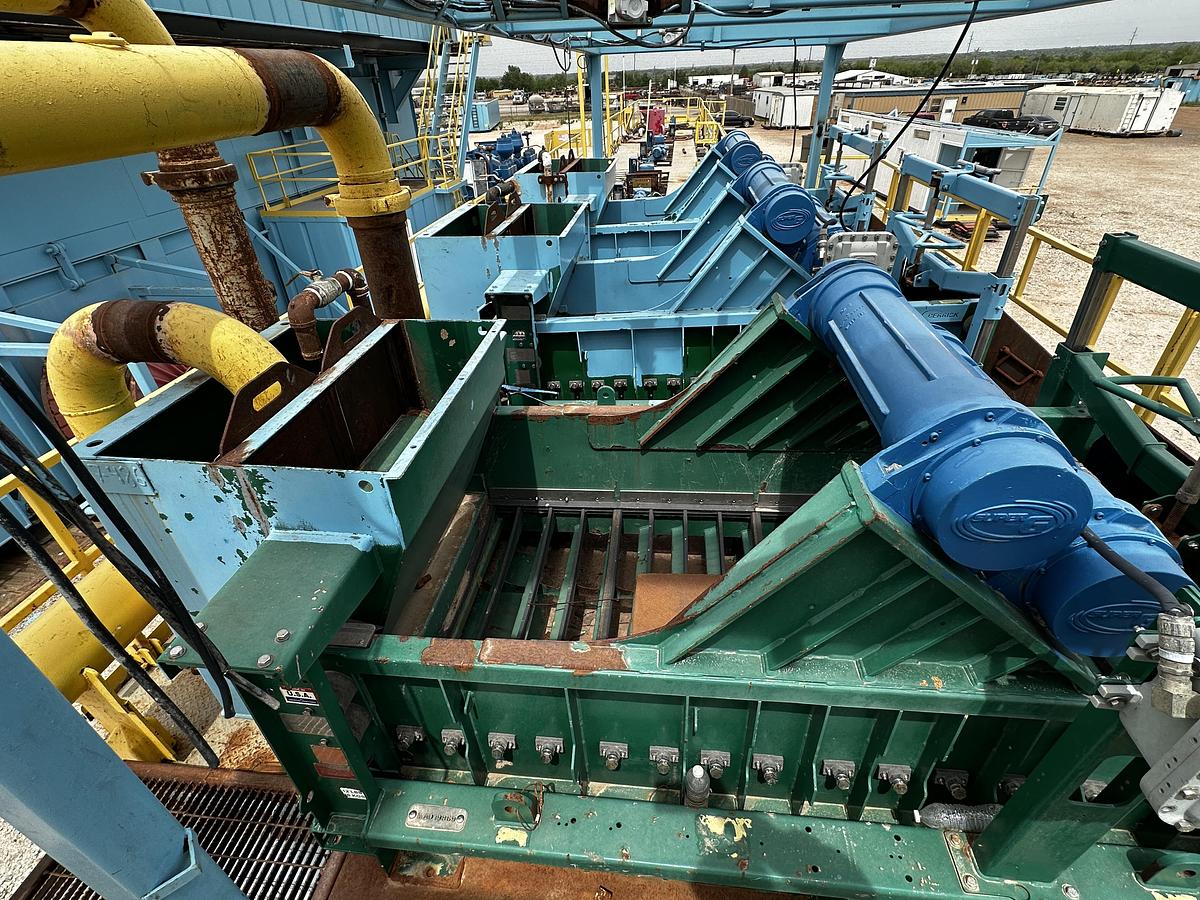

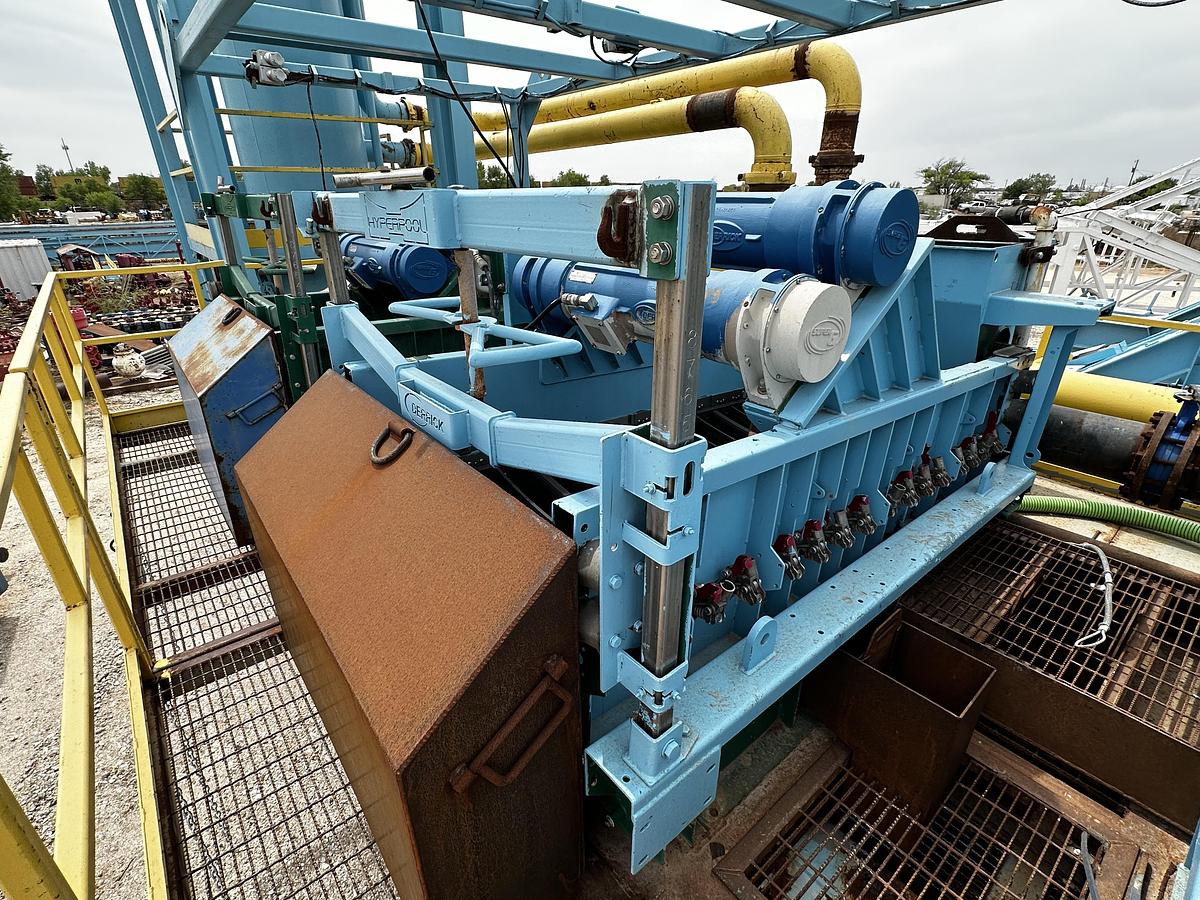

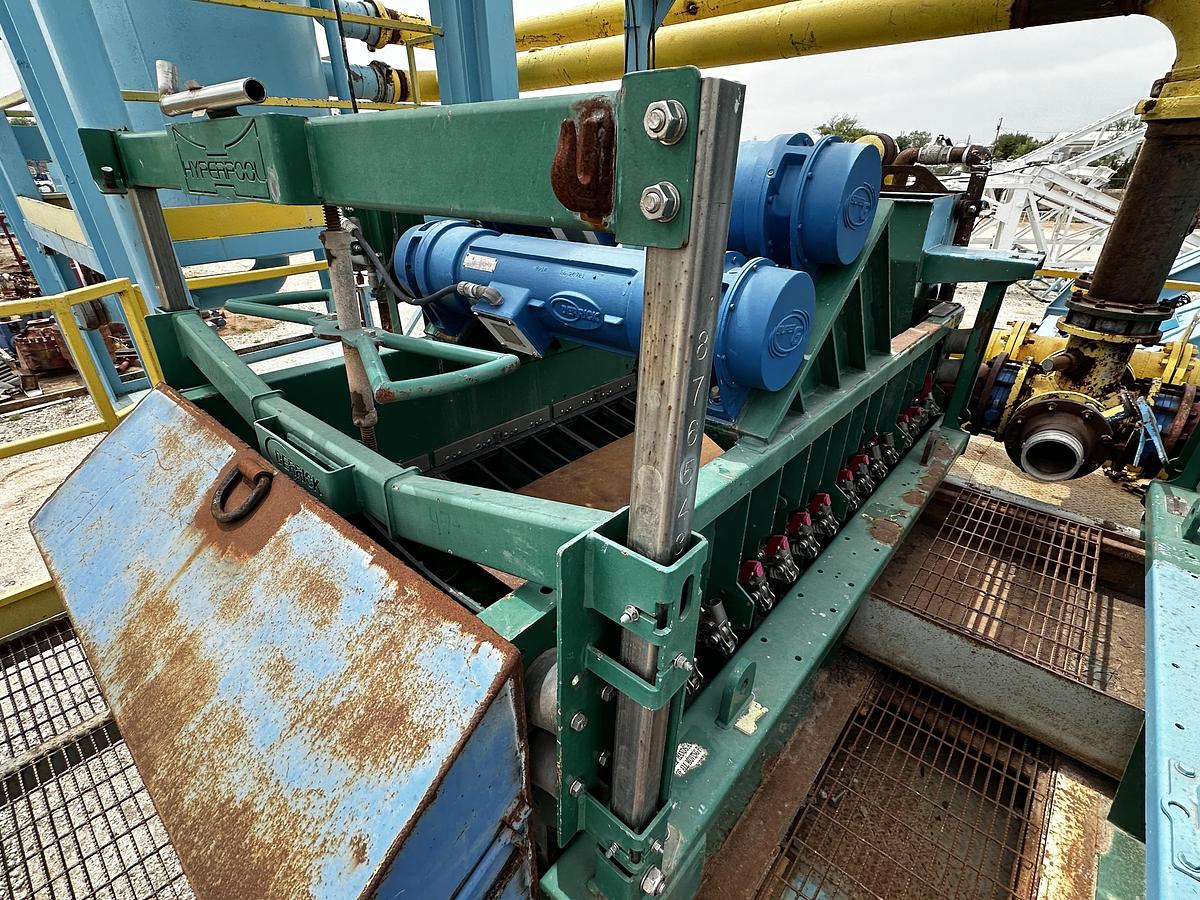

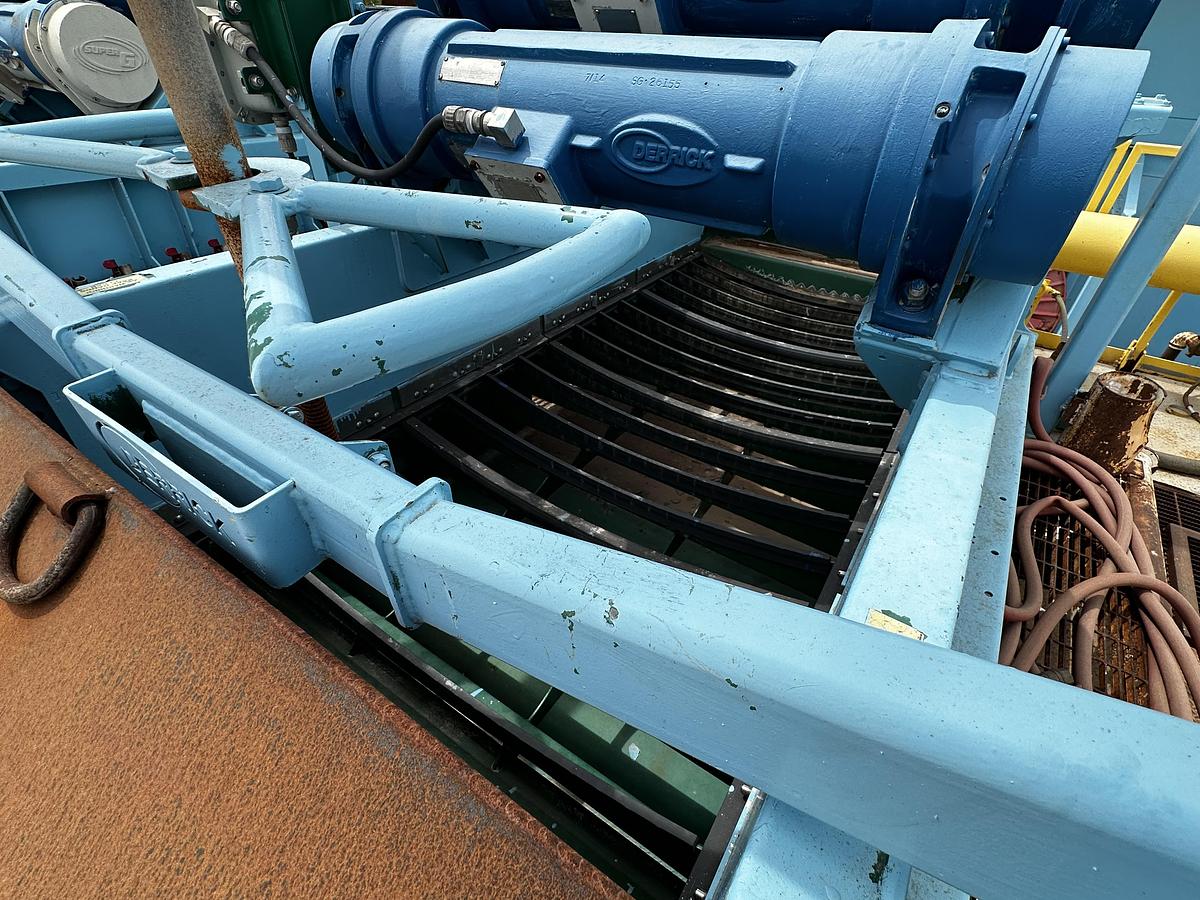

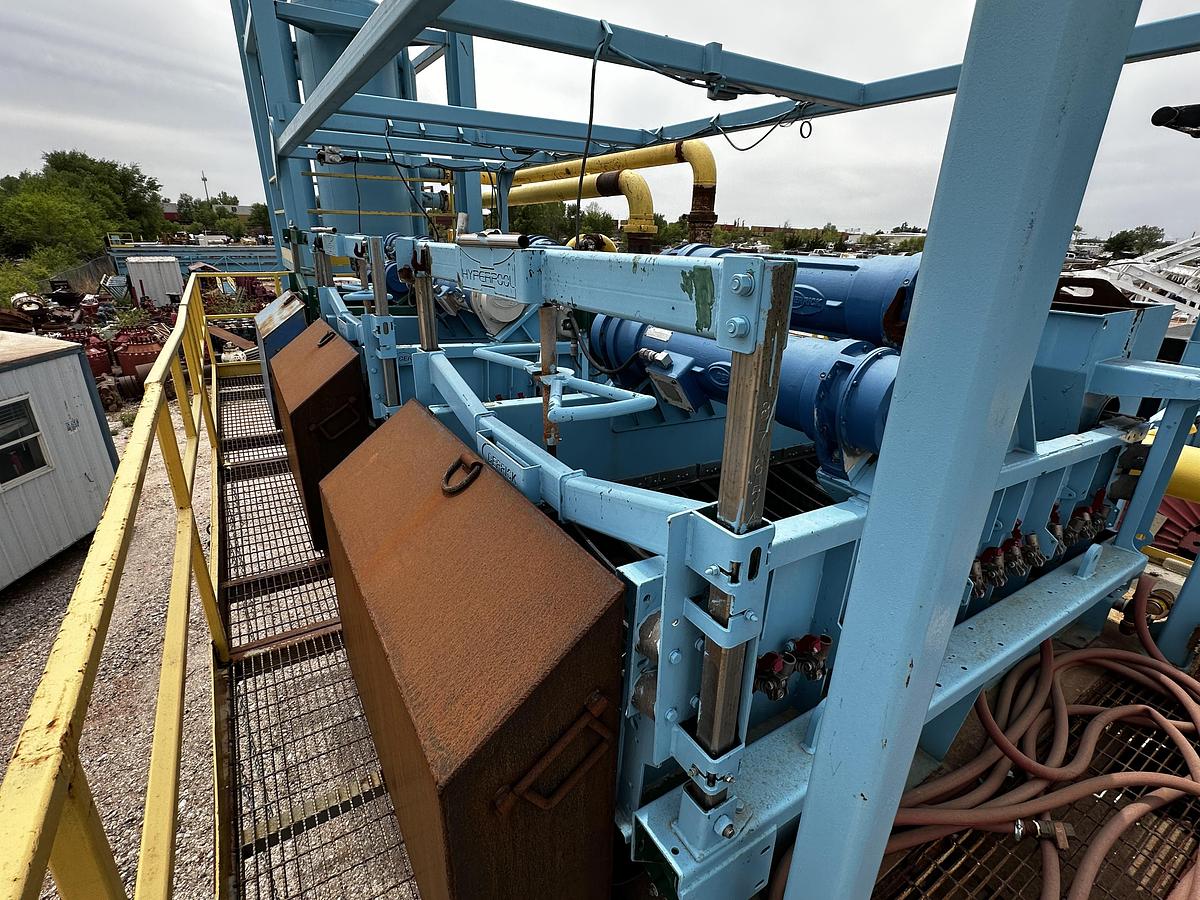

Shale Shakers 3-Derrick Hyperpool

Desander Double life I-210 (2 - 12" cones)

Desilter Derrick S-412-S (12 - 4" cones)

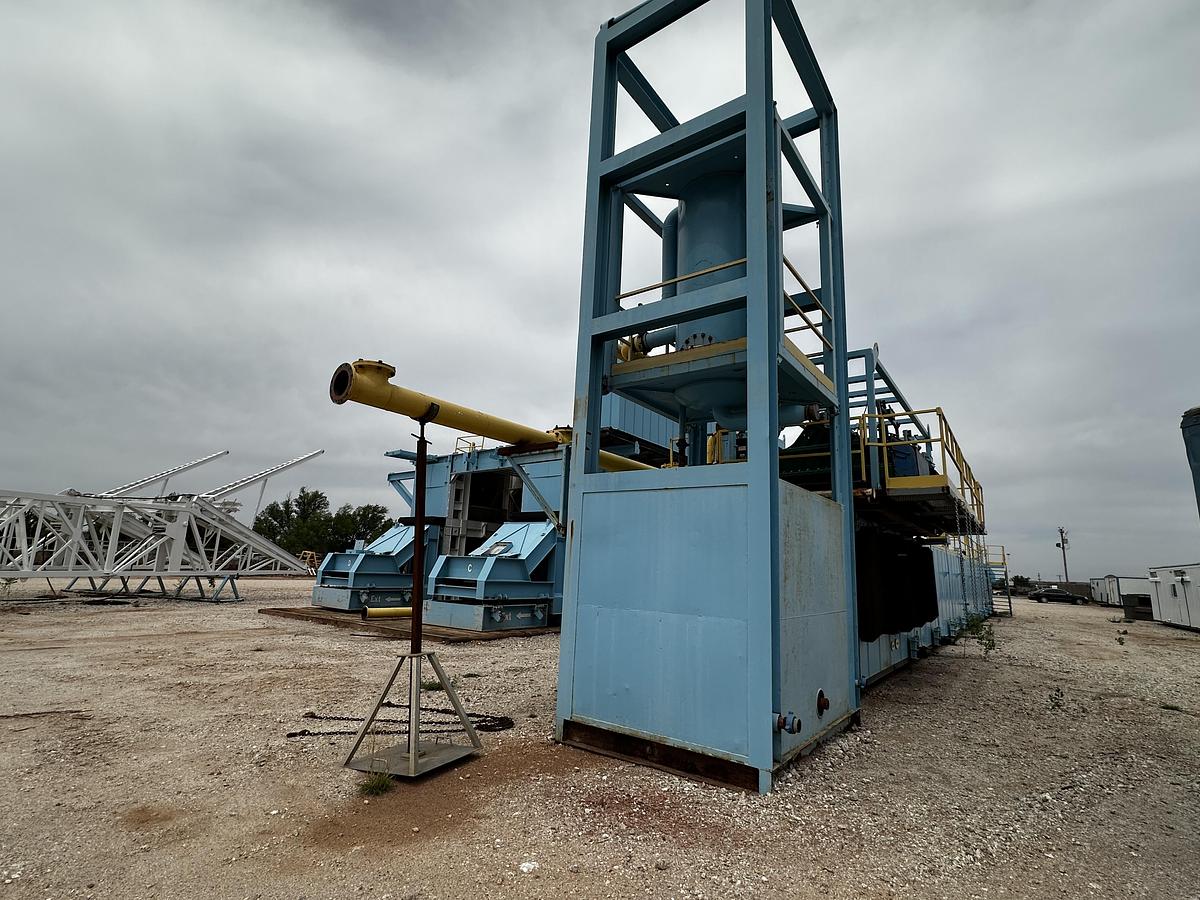

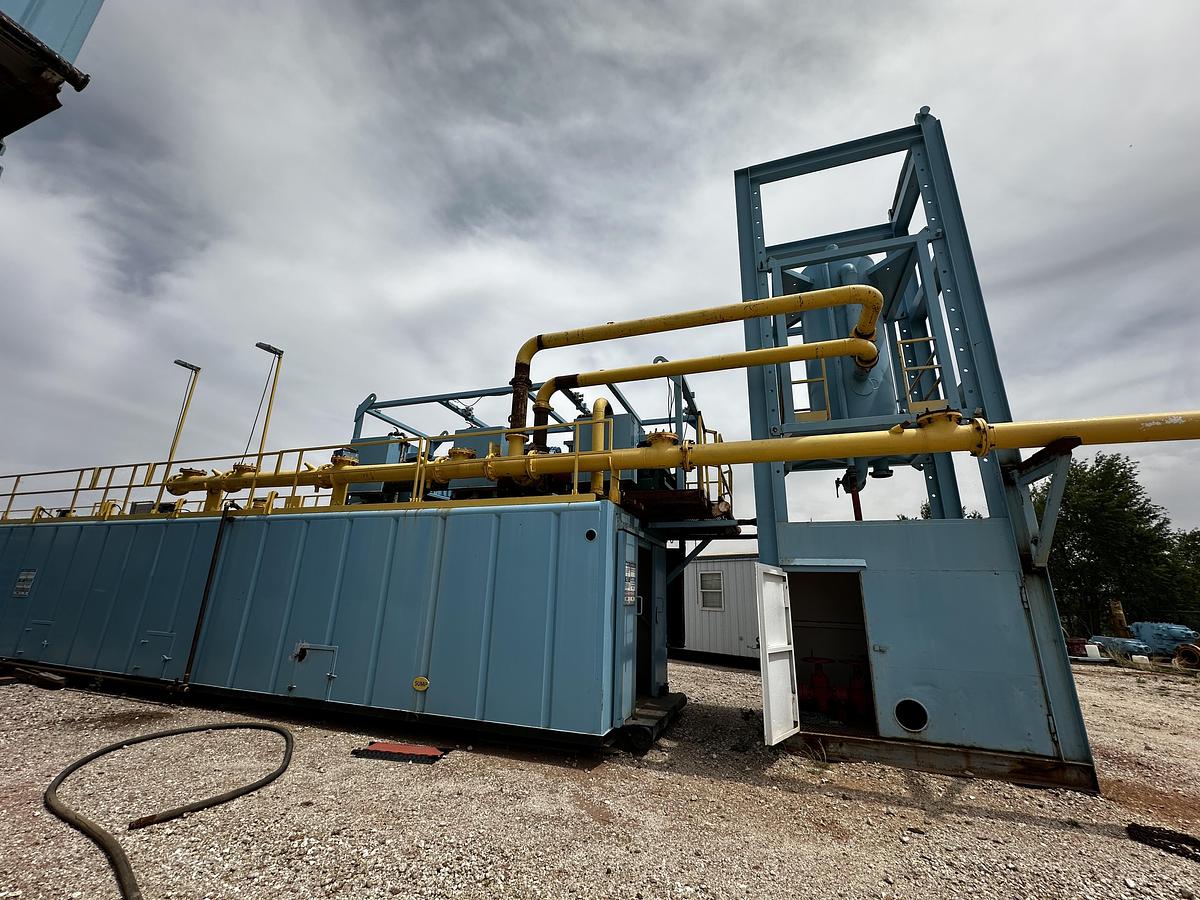

Degasser Brandt Atmospheric

Separator 5' x 17'

Trip Tank 100 barrels

Structural:

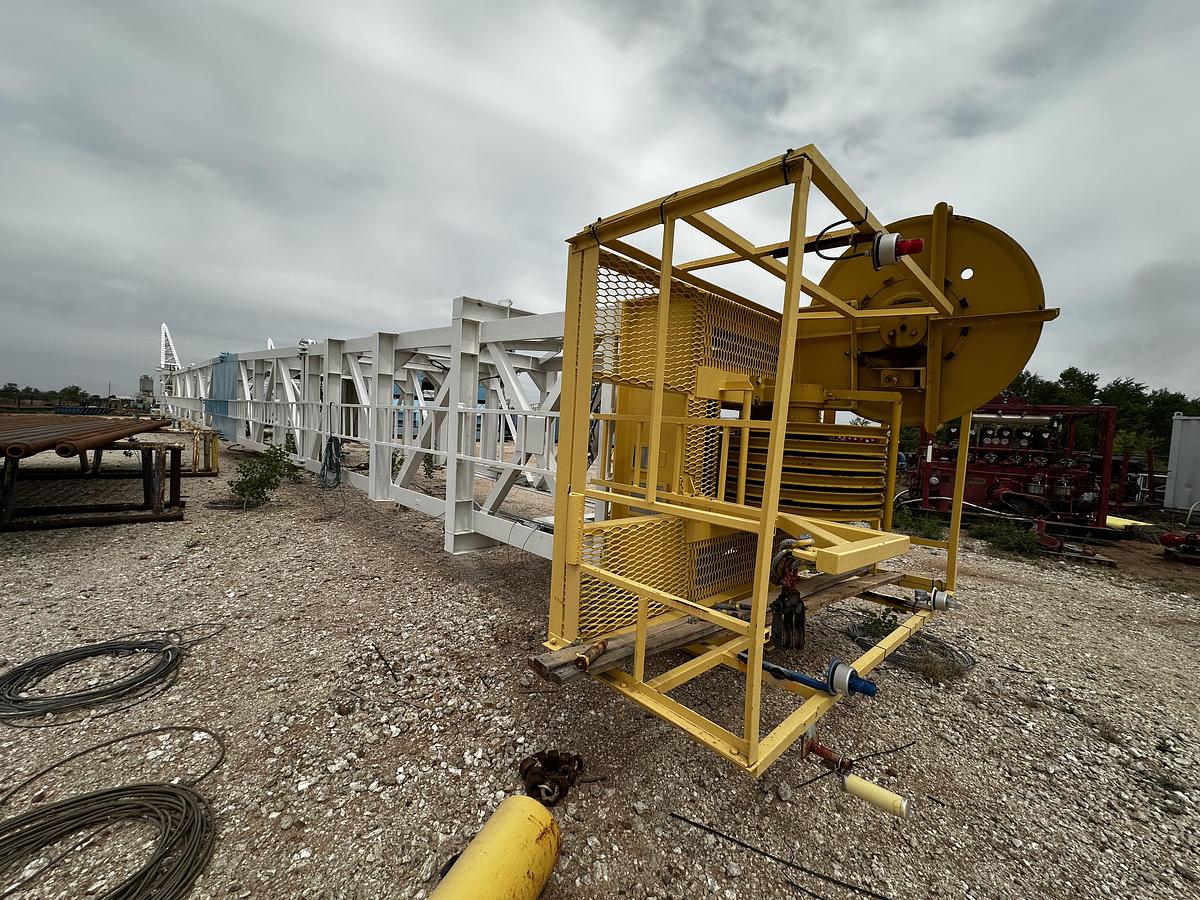

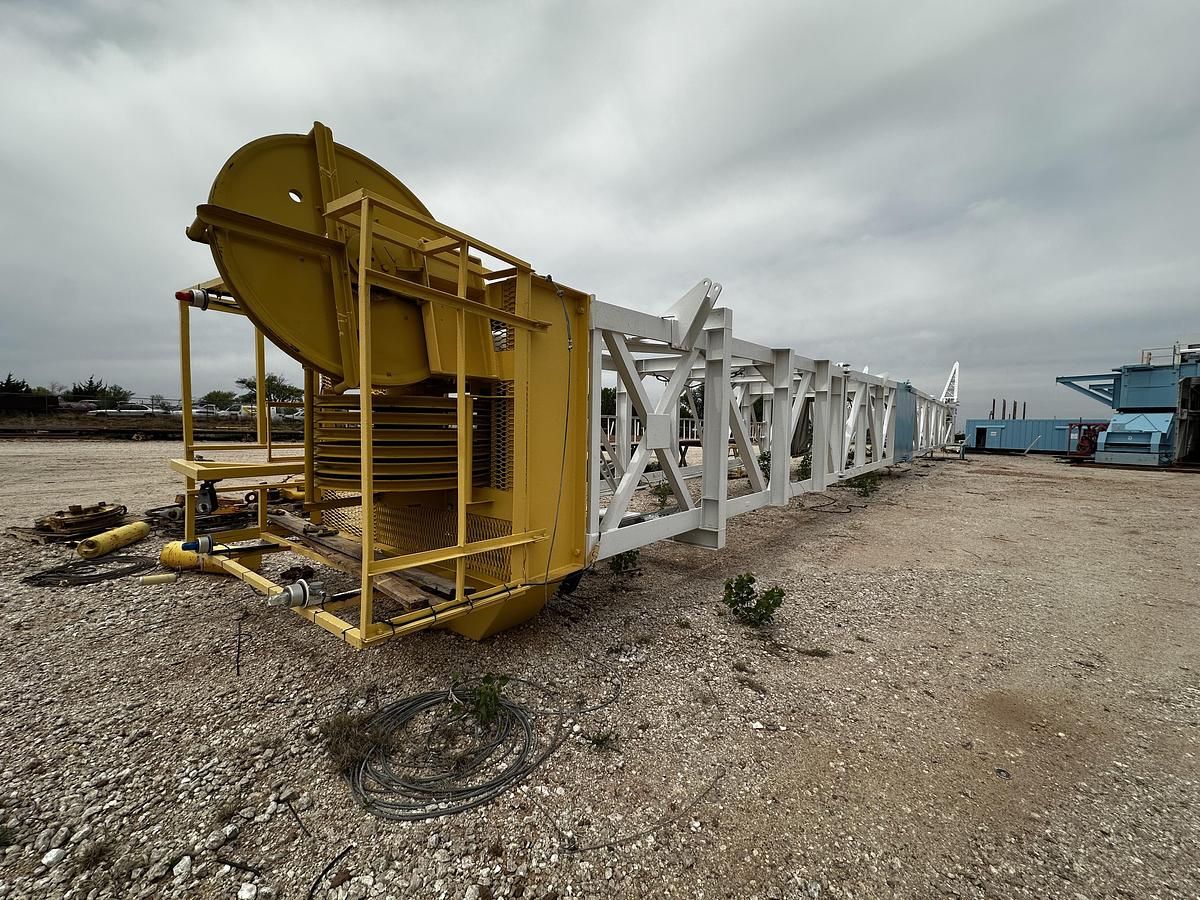

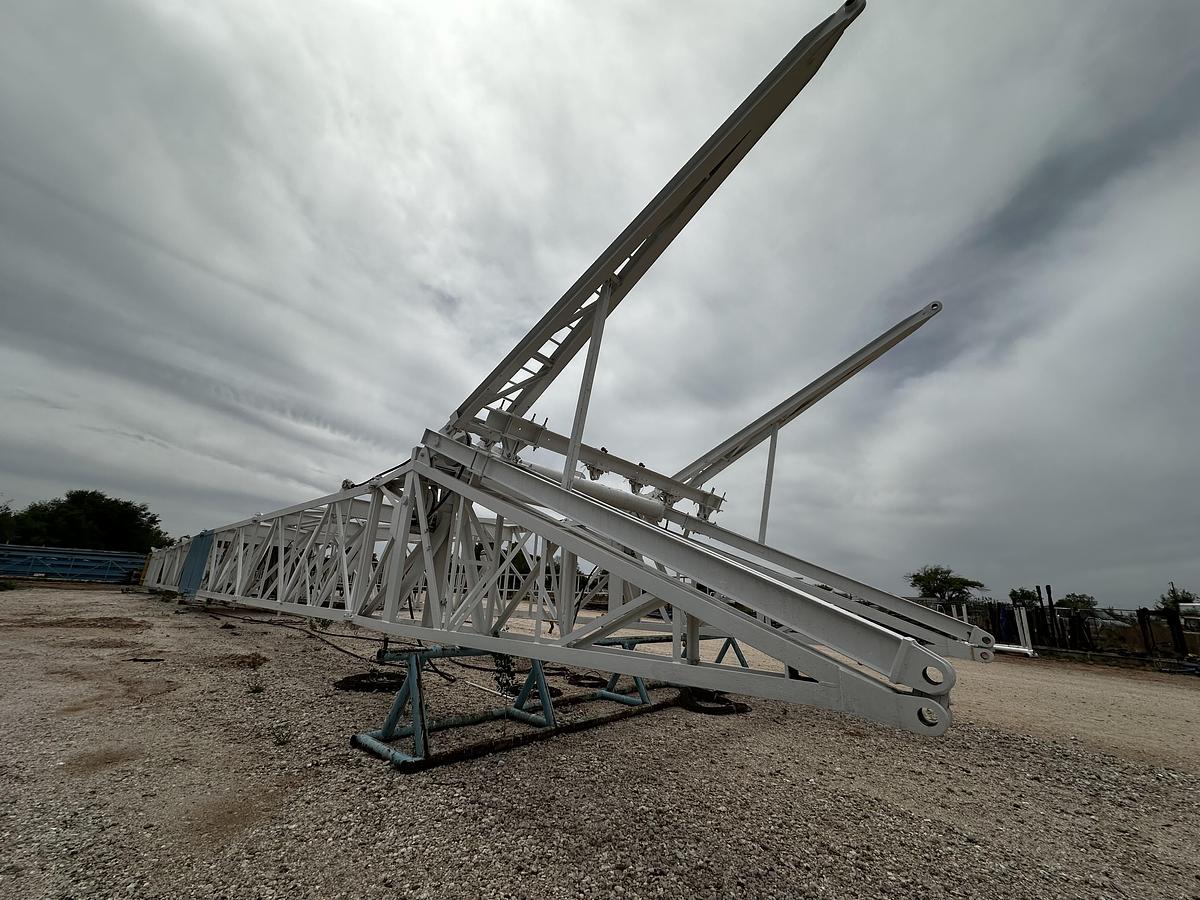

Mast: Superior 142' 768,000 pounds static hook load on 12 lines

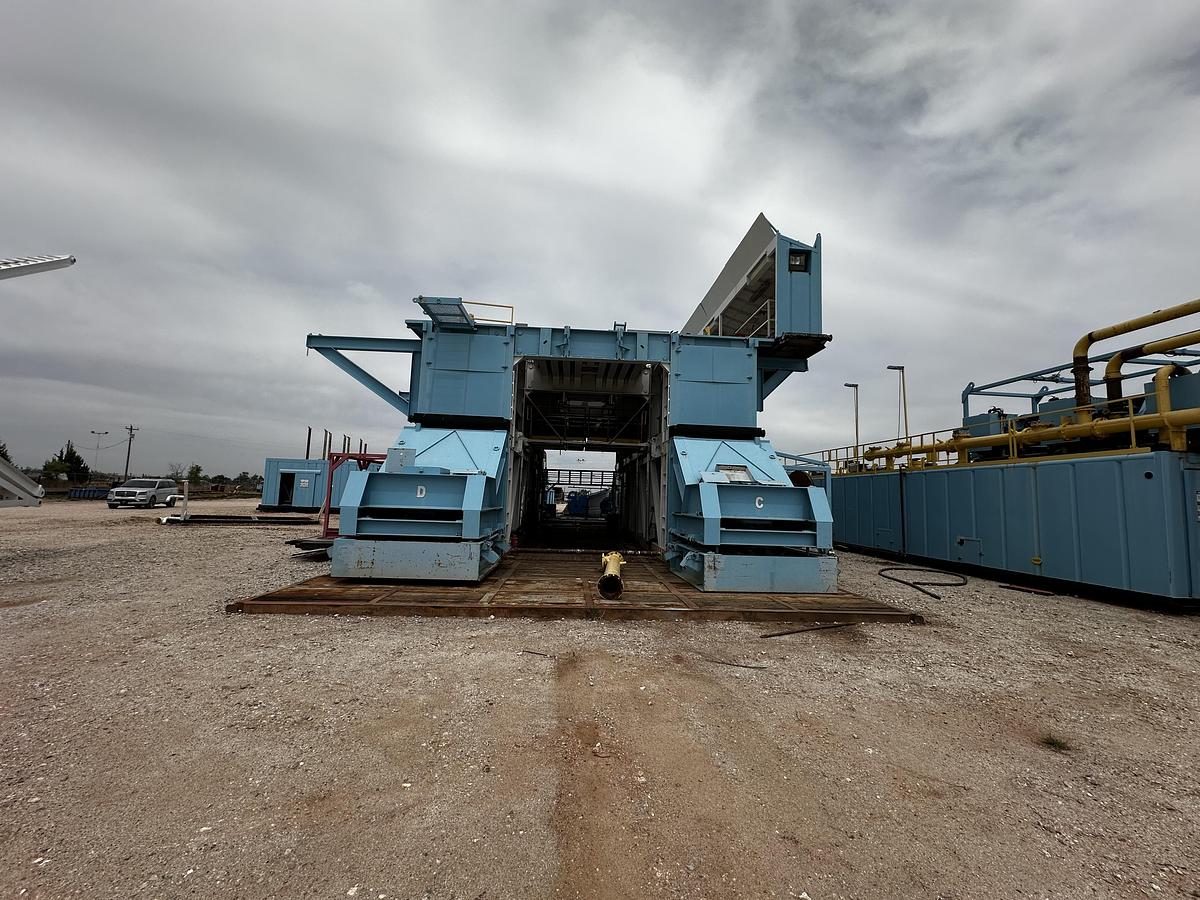

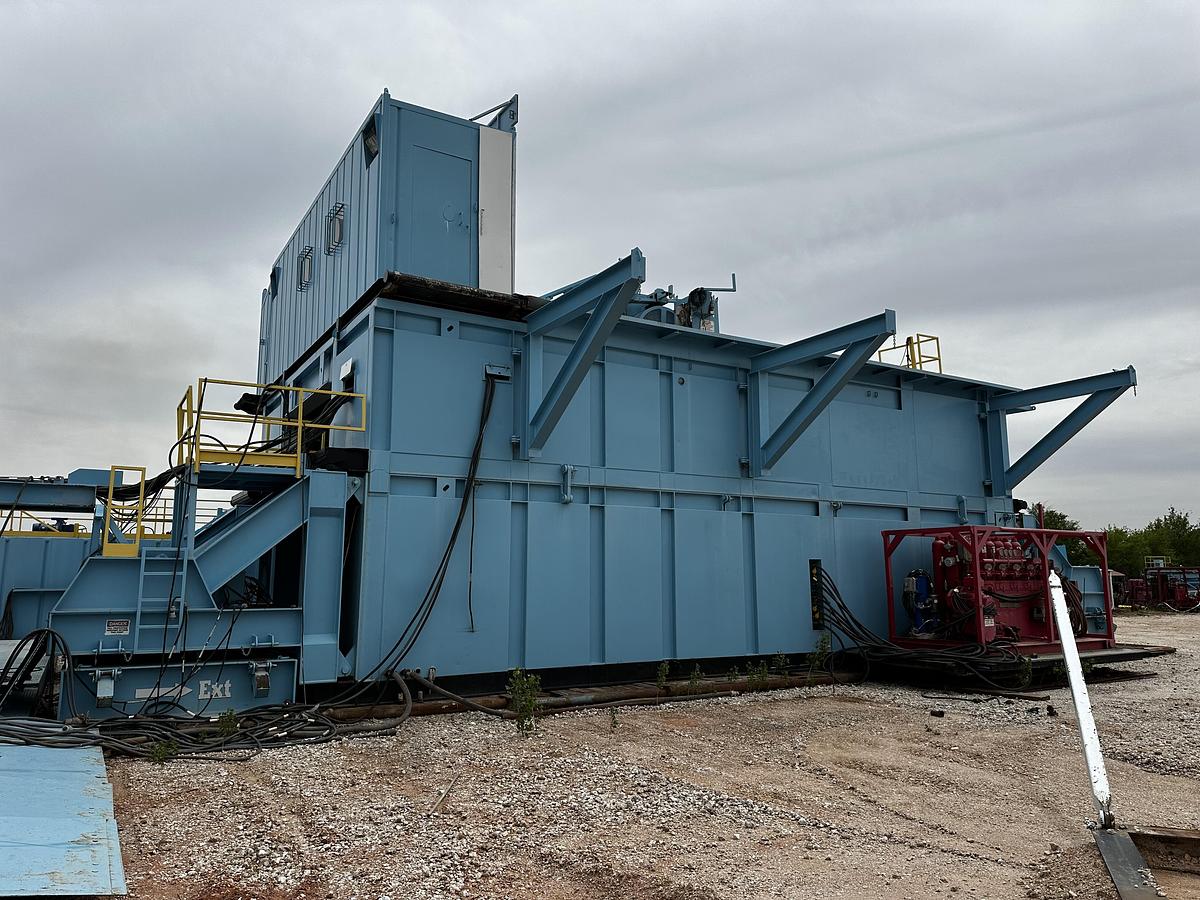

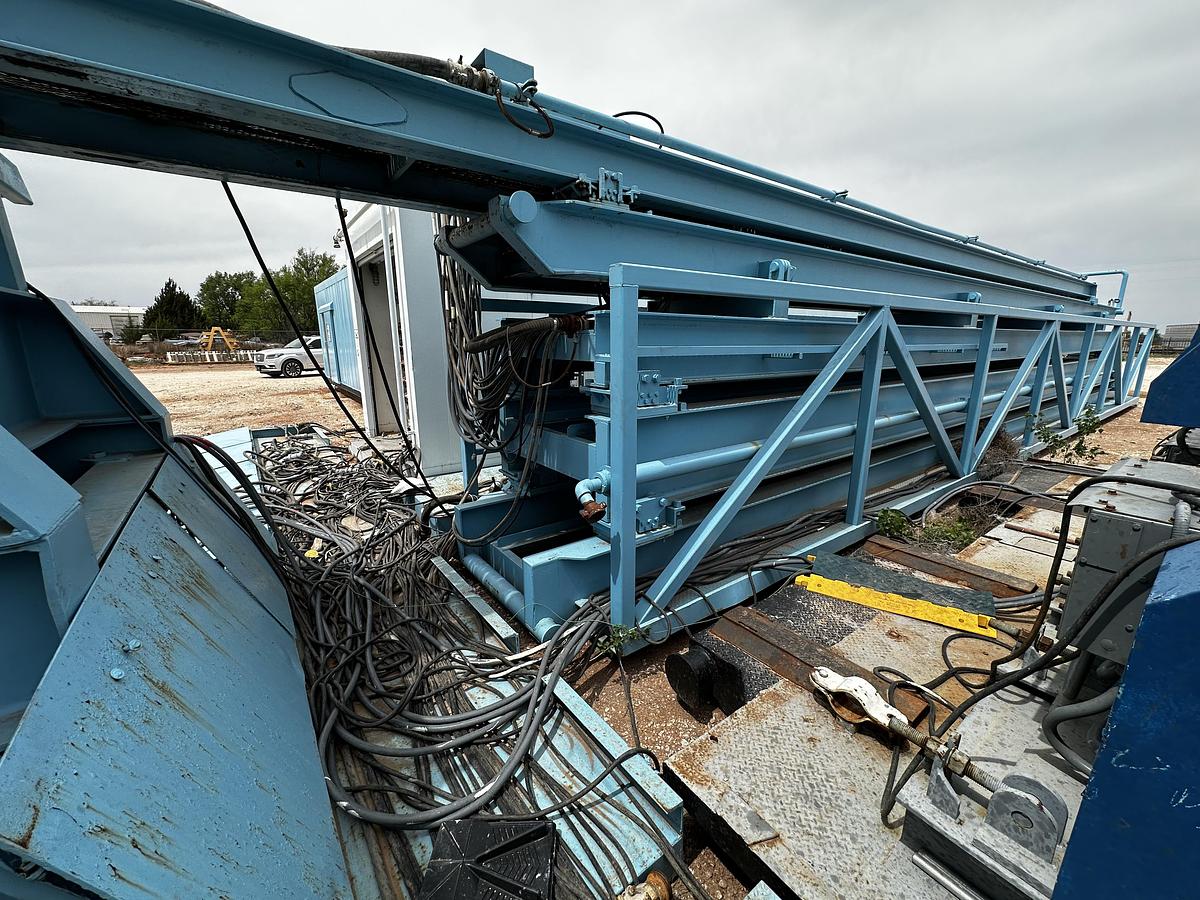

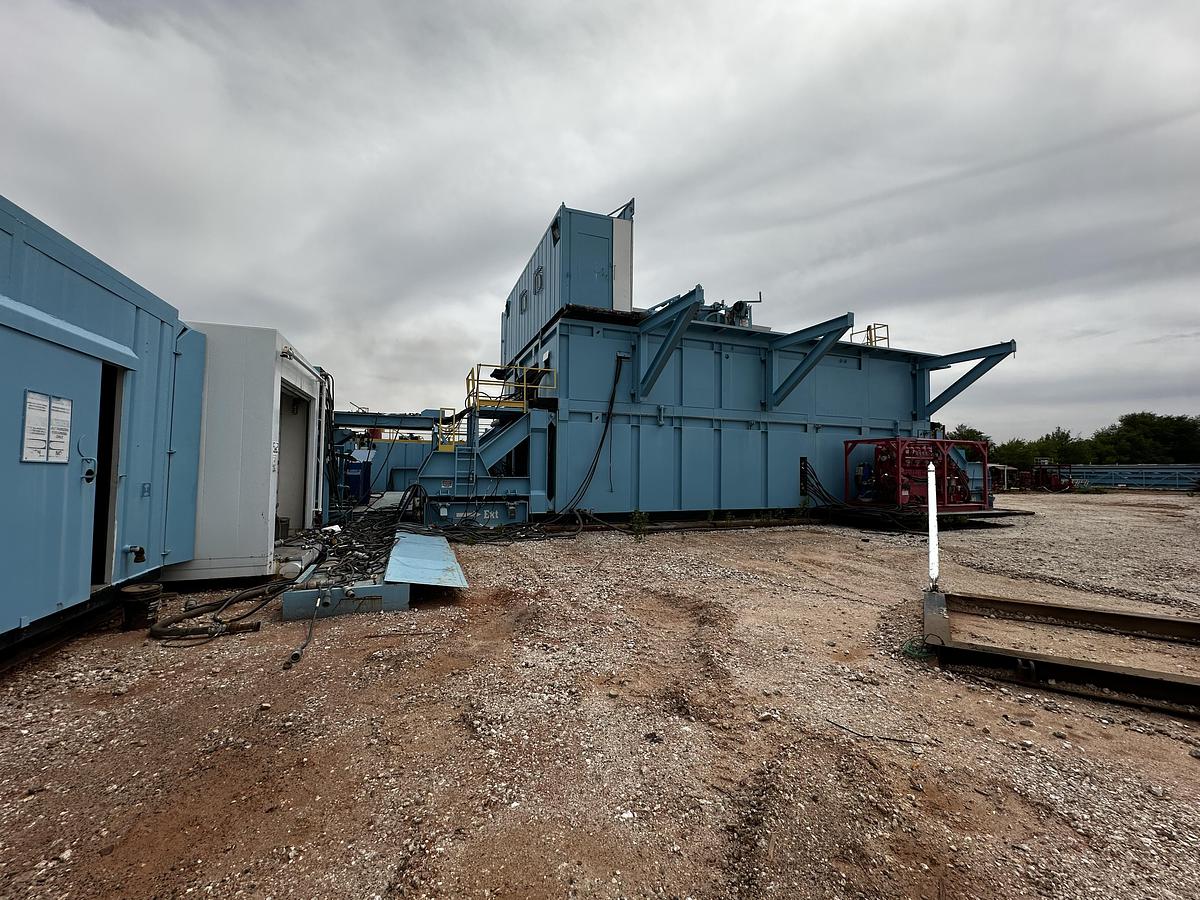

Substructure: Superior box on box 18' floor height

Fluid Storage:

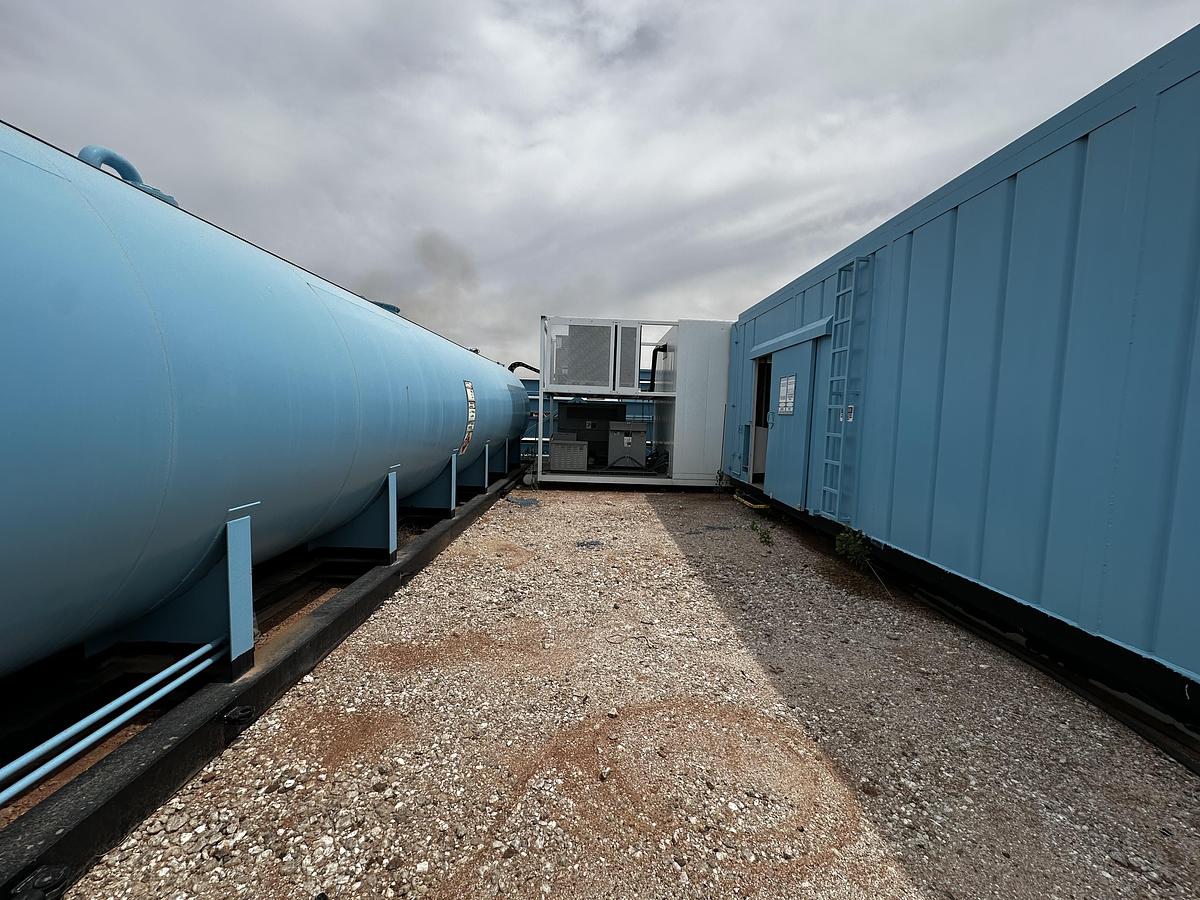

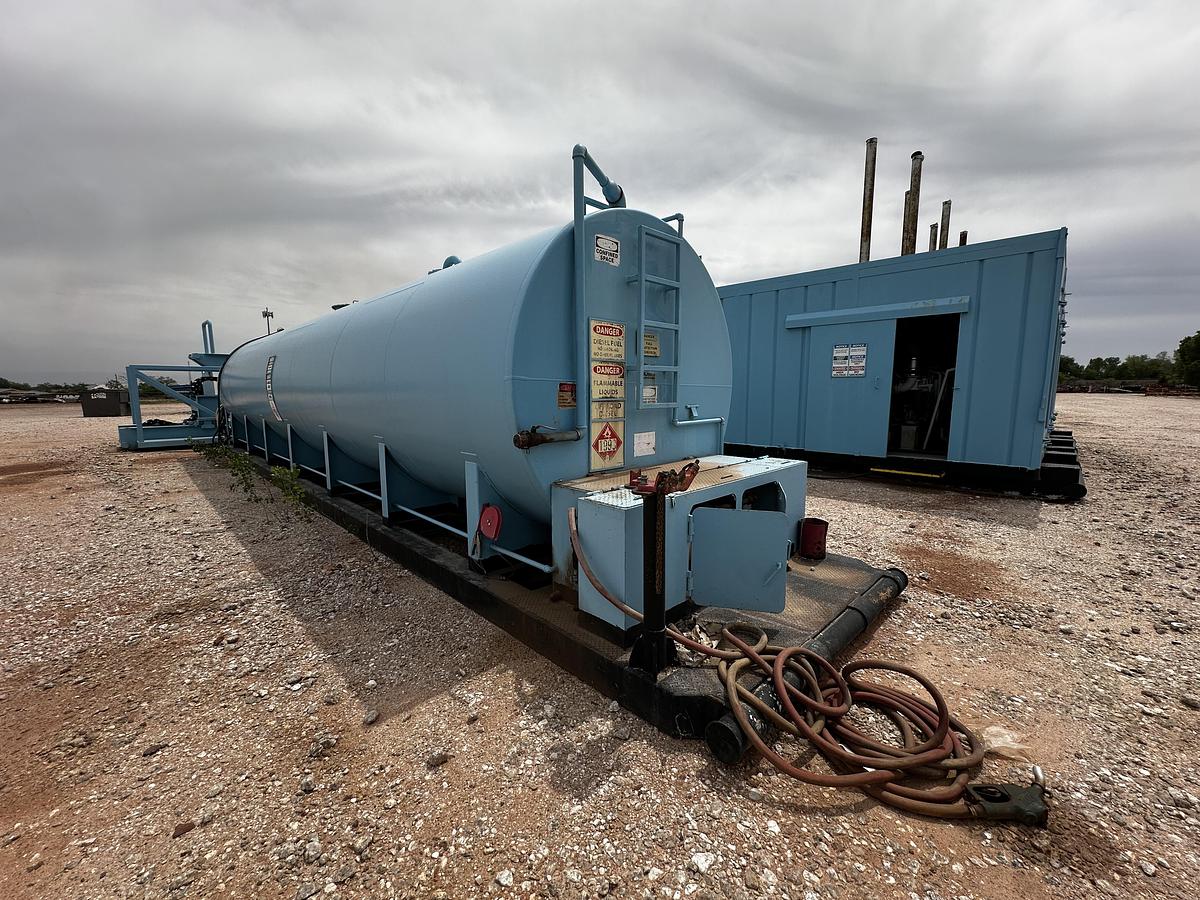

Diesel Tank 1-tank 15,000 gallon total capacity

Water Tank 1-tank 500 bbl total capacity

Miscellaneous

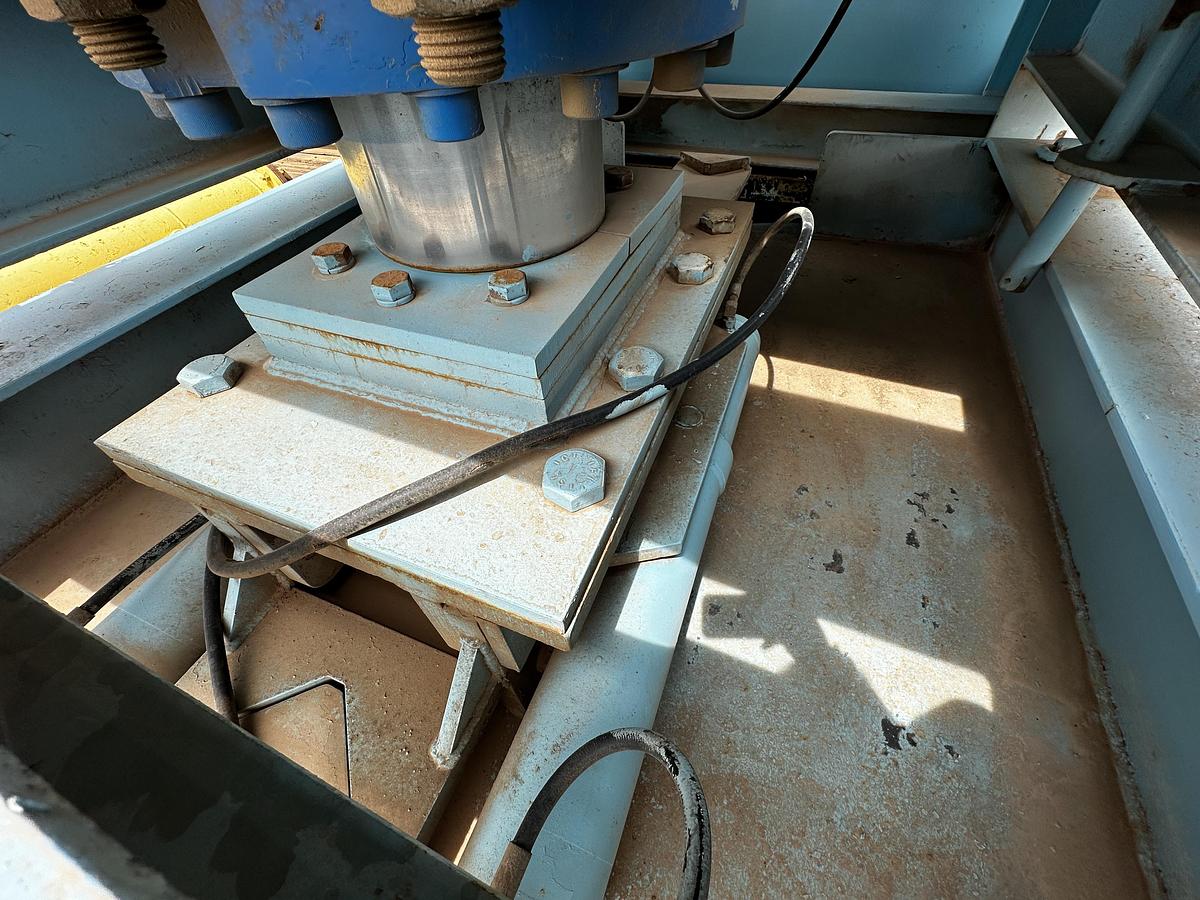

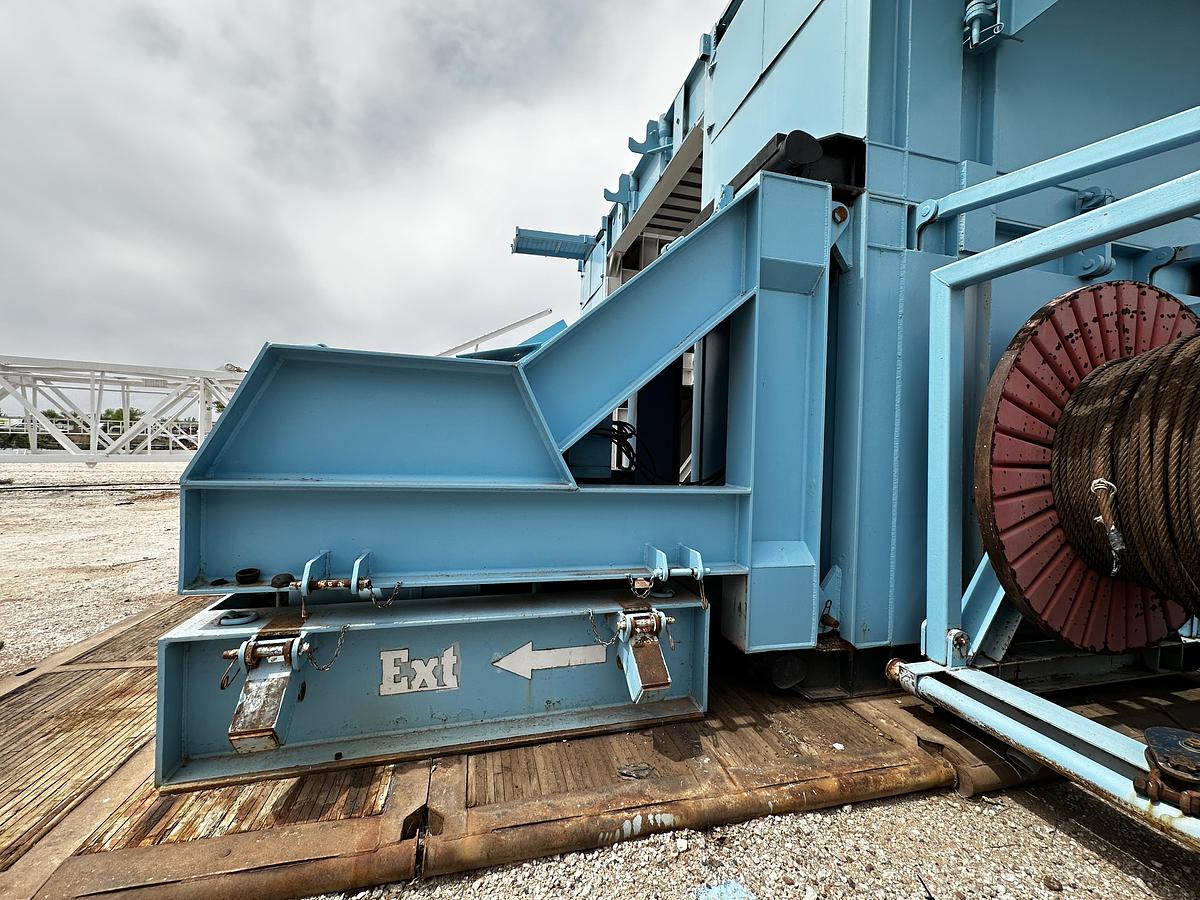

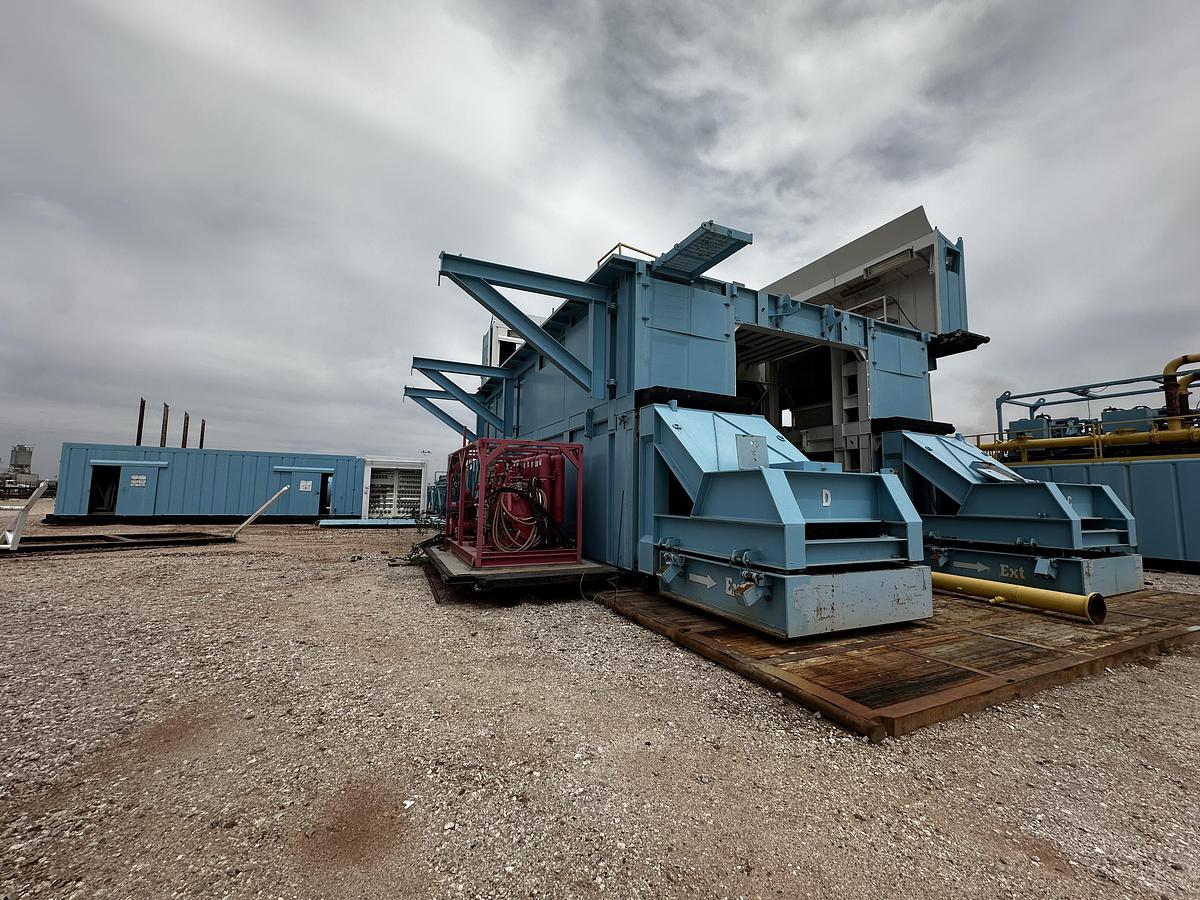

Stomping Feet Walking System

Pipe Spinner OWI 35C7

Air Compressor 2-Sullivan Palatek 50 DG 50hp

Survey Instrument Oilworks Explorer 1600 wireline unit
