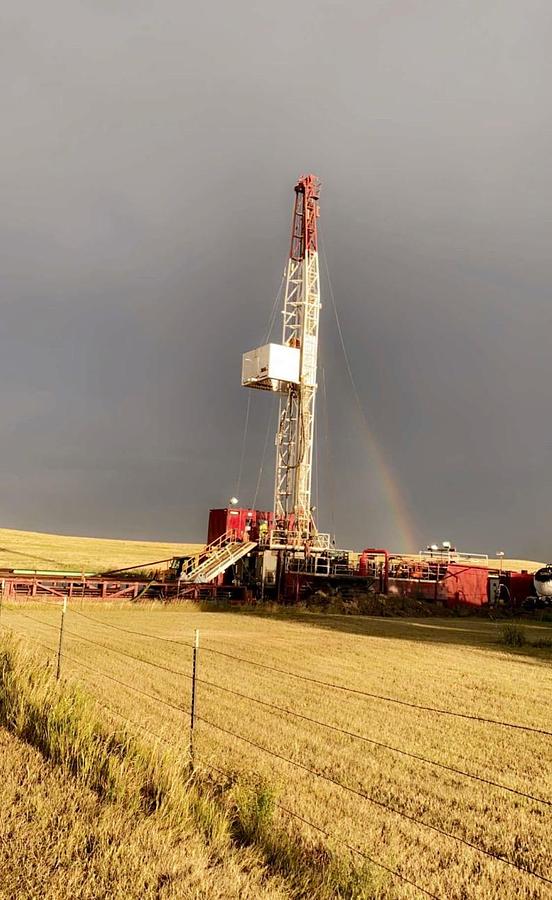

Rigmaster P-300 Trailer Mounted 450 HP Drilling Rig

DRAWWORKS:

Make: Rigmaster P-300

Drive: Cat 3406 B

Rating kw (hp): Cat 3406 B

Hoisting Capacity daN (lbs): 66,700 (149,900)

Auxiliary Brake: WCB 124 Eaton

MAST:

Make: Rigmaster Stiff Single

Height m (ft): 25.6 (84)

Static Hook load daN (lbs): 66,700 (149,900)

Number of Lines: 6

Drilling Line mm (inches): 25.4 (1)

SUBSTRUCTURE:

Make: Go Getter Trailer Mounted

Max Setback Load daN (lbs): 53,400 (120,000)

Max Rotary Load daN (lbs): 53,400 (120,000)

KB-Ground m (ft):  3.7 (12)

BOP Clearance m (ft):  3.19 (10.5)

HOISTING & ROTATING EQUIPMENT:

Rotary Table Size mm (inches): 457 (18)

Block Hook Capacity Ton (daN): 100 (66,700)

MUD PUMP 1:

Manufacturer & Model: Gardner Denver PZ-8 (800)

Drive & Rating kW (hp): Cat 3408E, 560 (800)

Liners mm (inches): 127 (5) to 152 (6)

Circulating Pressure kPa (psi): 21,000 (3,000)

MUD SYSTEM:

Number of Tanks: 1

Total Volume m3 (bbl): 5 compartments - 52 (436)

Shale Shaker(s): 1 x Derrick Flo-Line Cleaner

Pill Tank m3 (bbl): 2.5 (21)

Trip Tank m3 (bbl): 2.0 (17)

Agitators: 3 Brook Hansen 7.5hp

Accumulator:

Electronic Control System, 5 Station Capacity L (gallons): 400 (105.7)

ADDITIONAL EQUIPMENT:

Fuel Storage L (gallons):  18,000 (4,755)

Water Storage L (gallons): 60,000 (15,850)

Instrumentation:  Pason Electronic Drilling Recorder

Hydraulic Catwalk: Range 3 Skate Catwalk

Drill Pipe Spinner:  Spinmaster

Kelly Spinner: Foster TP77

Cold Start & Rating kW (hp):  1 x Cat, 320 (429)
