2014 FUCHS MHL 335

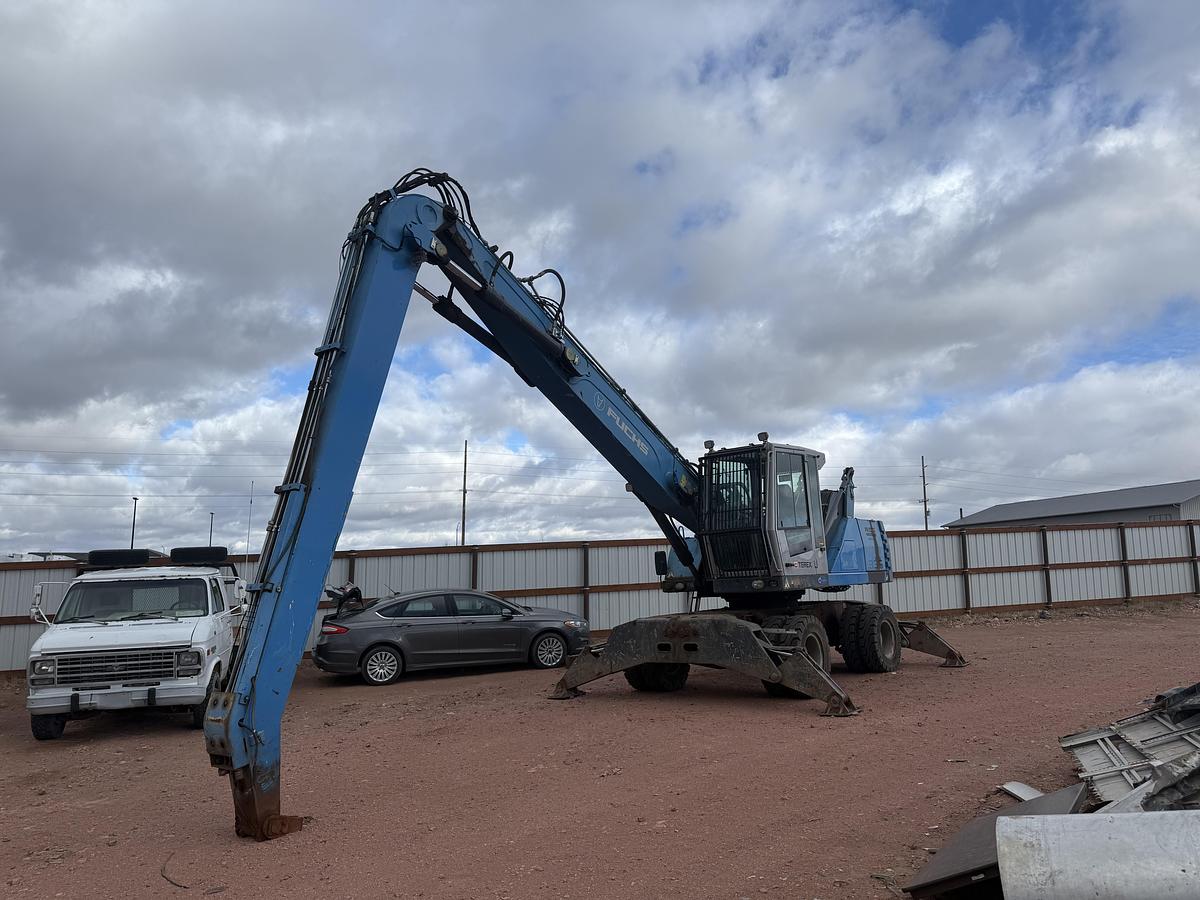

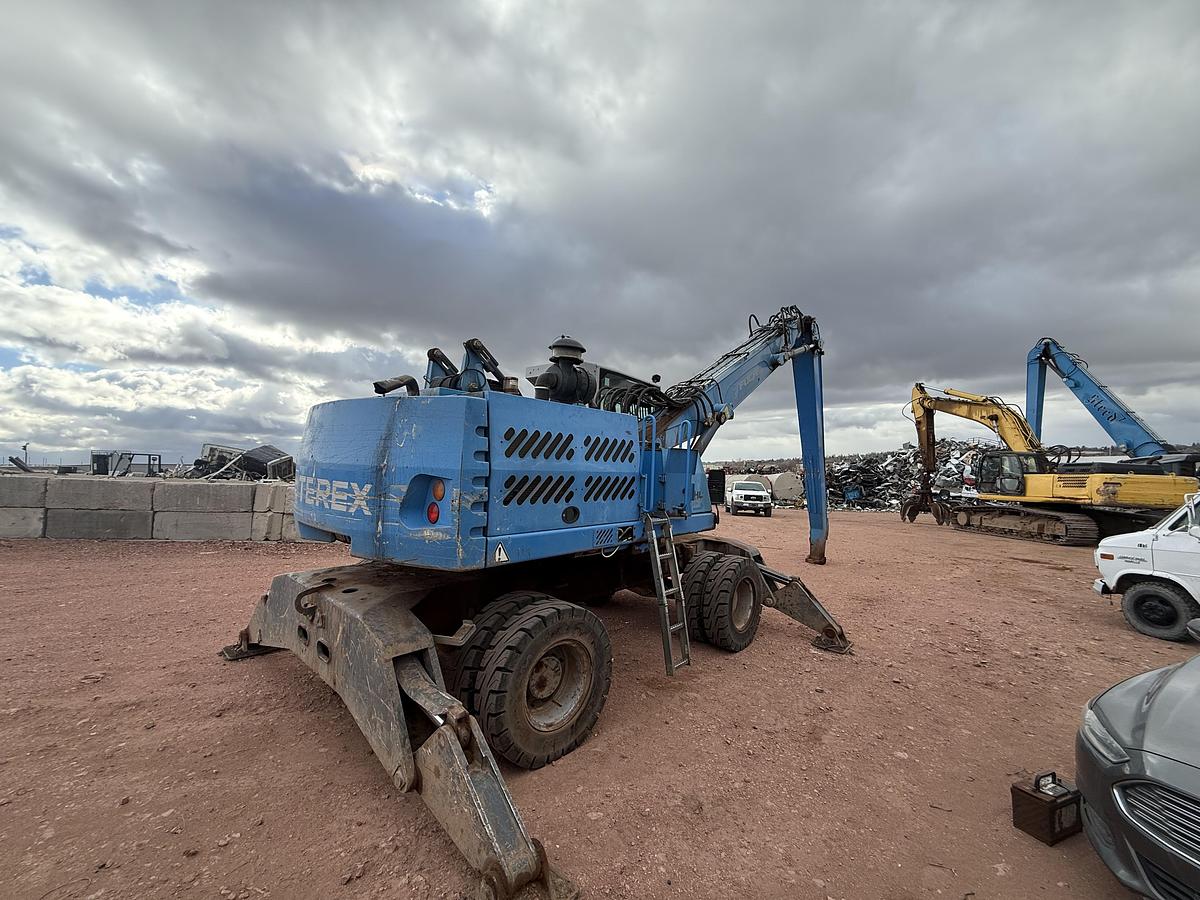

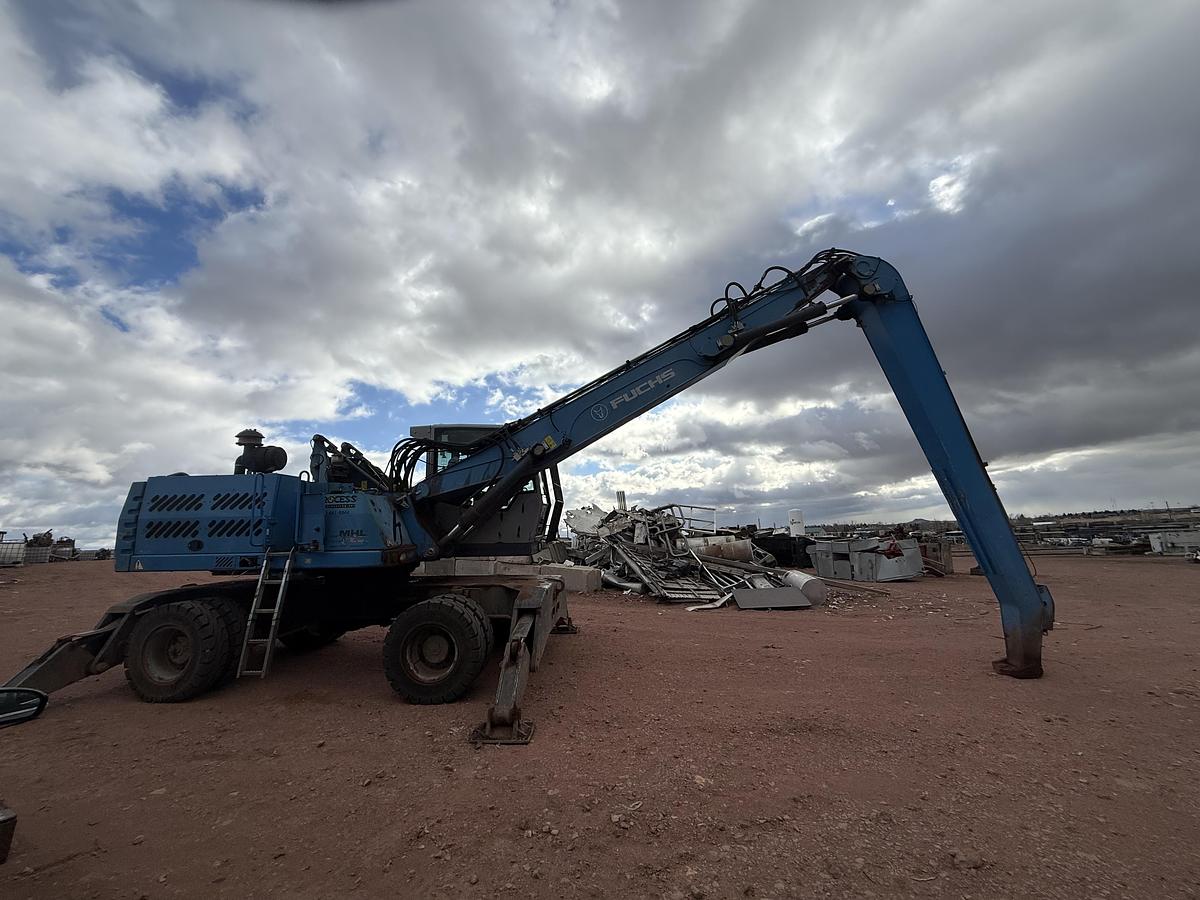

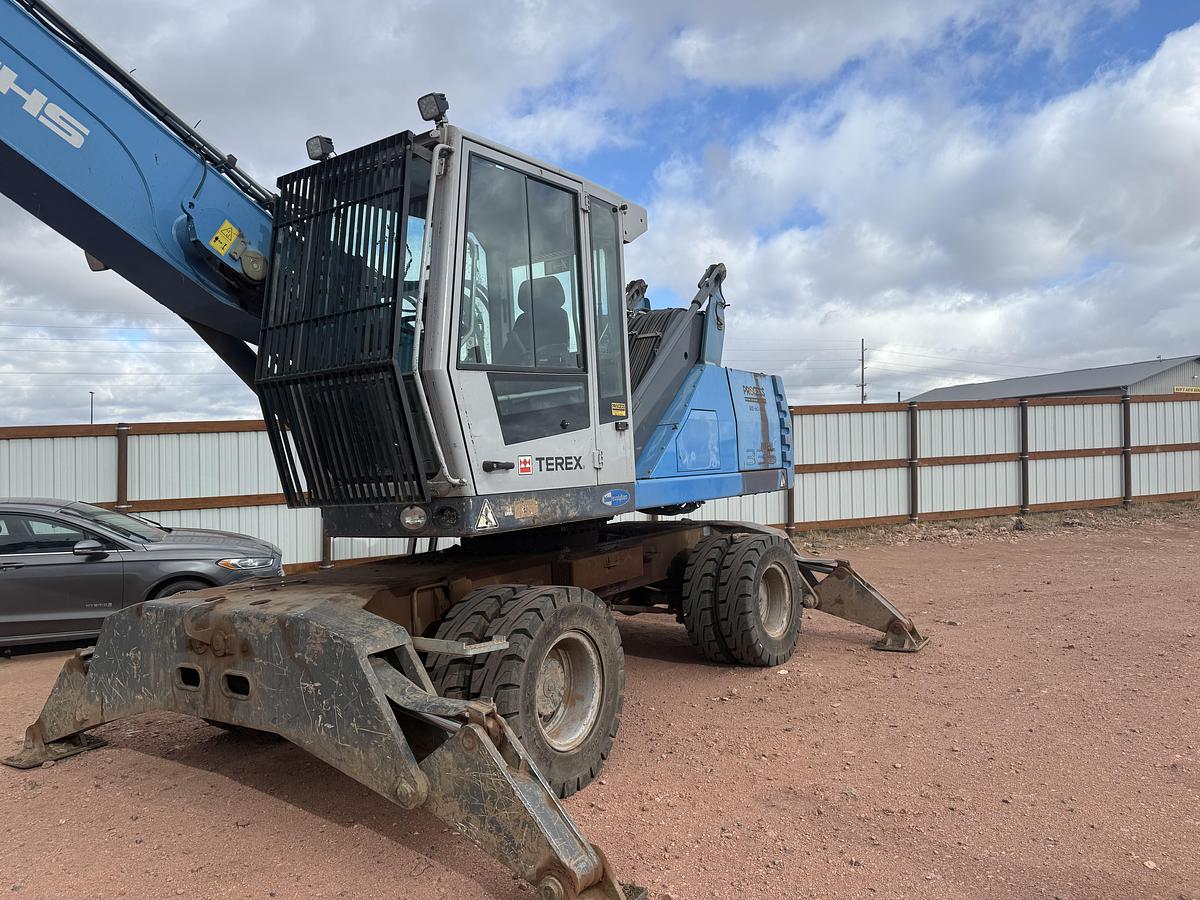

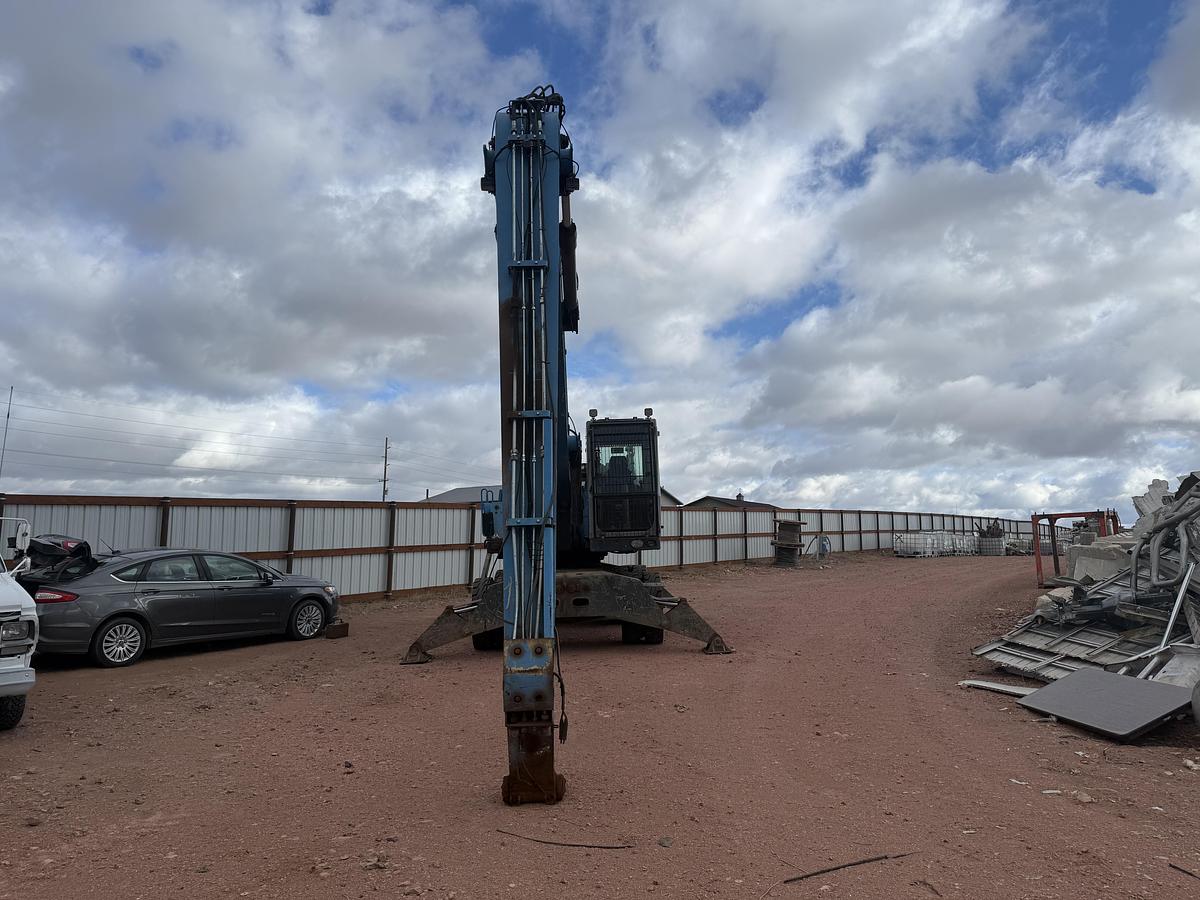

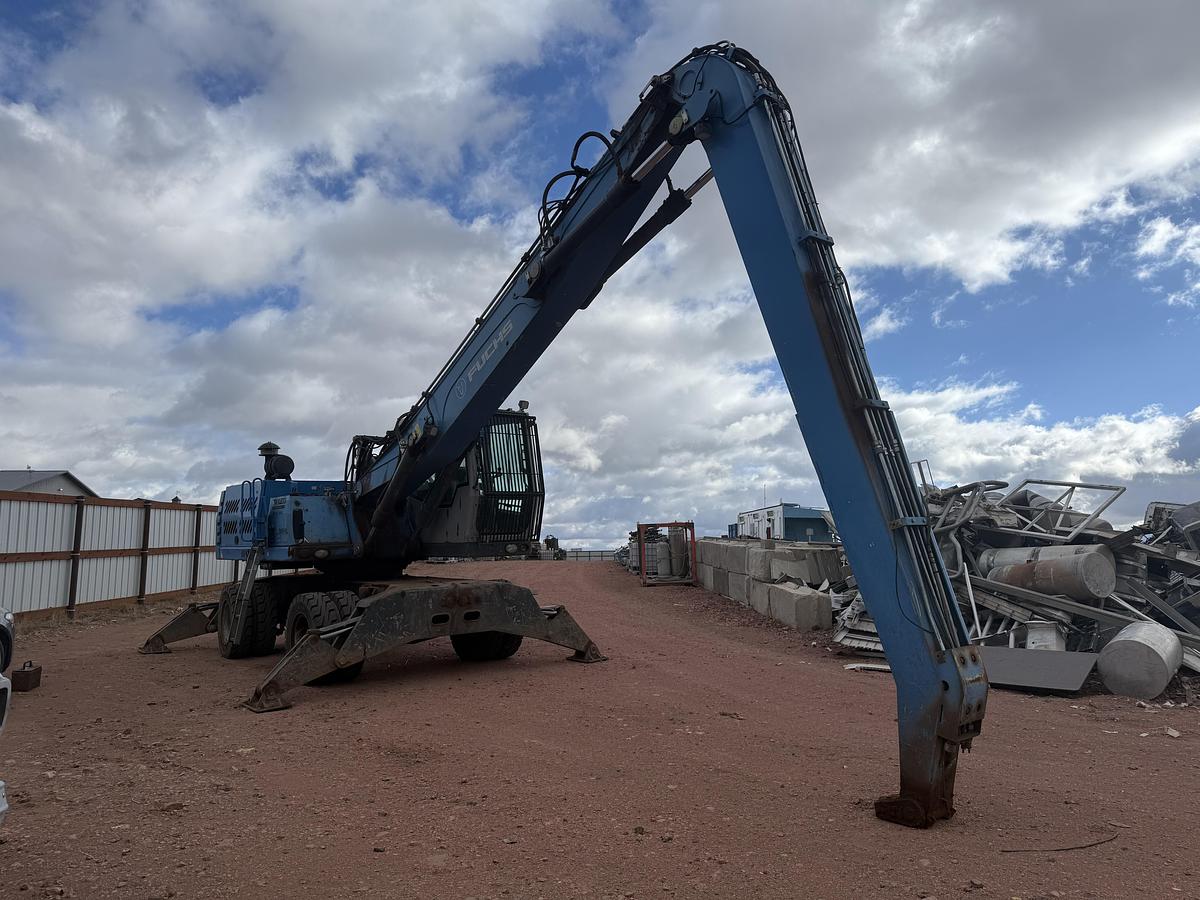

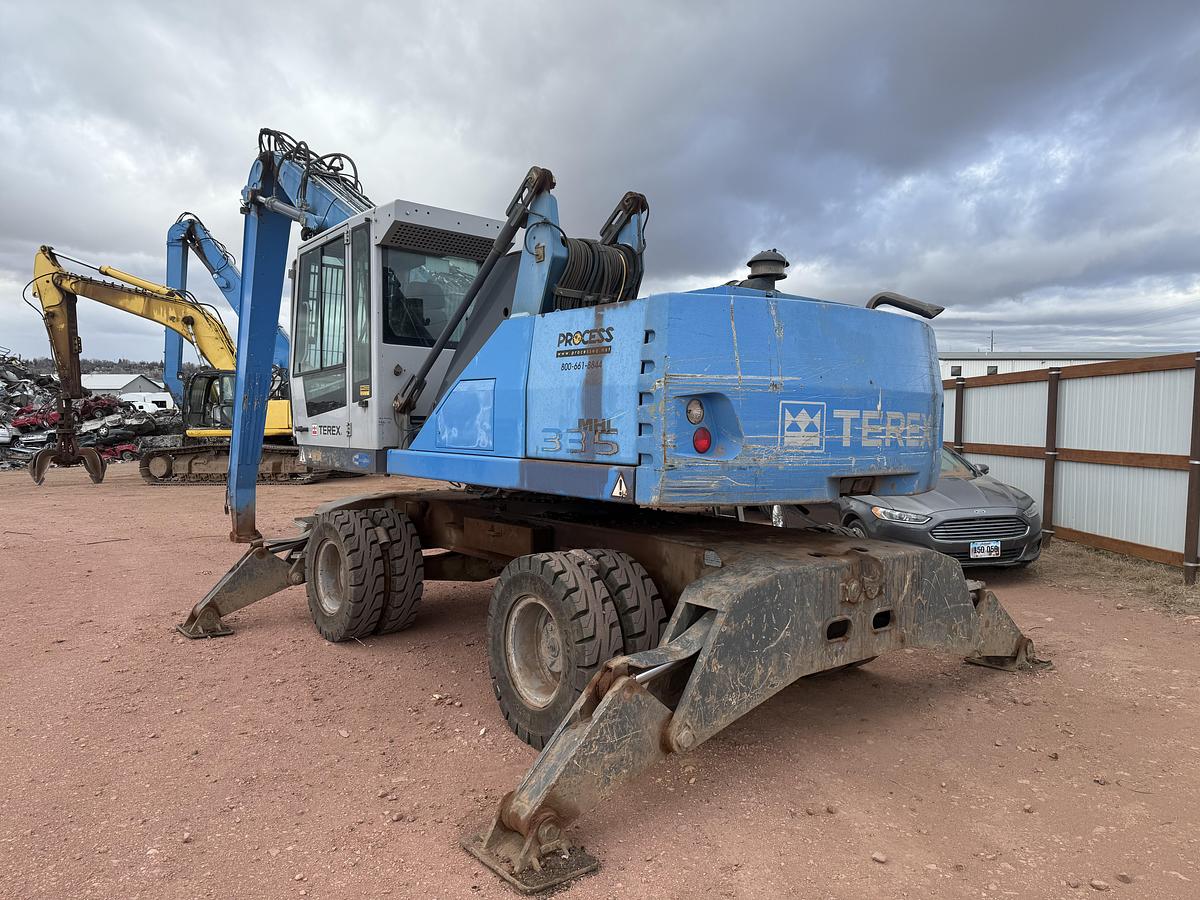

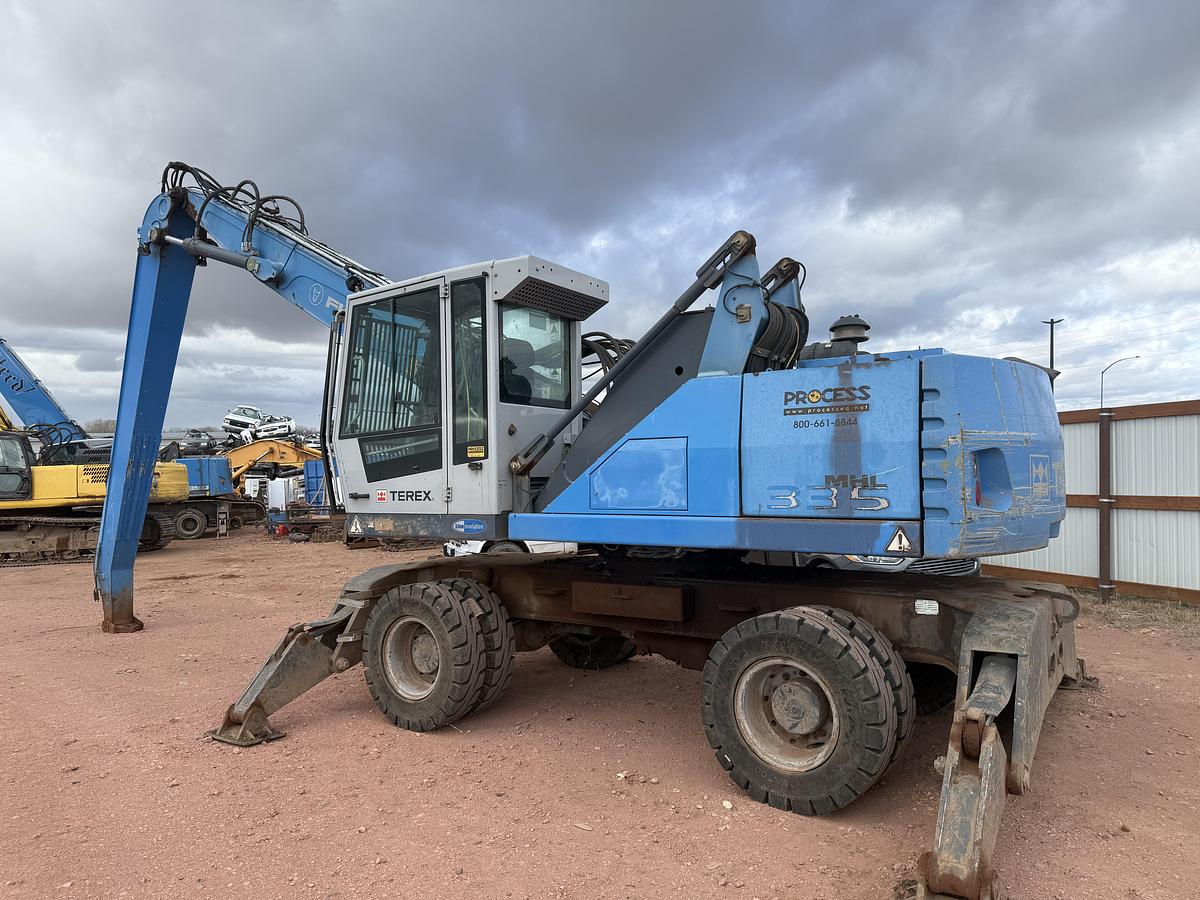

2014 Fuchs MHL 335 material handler.

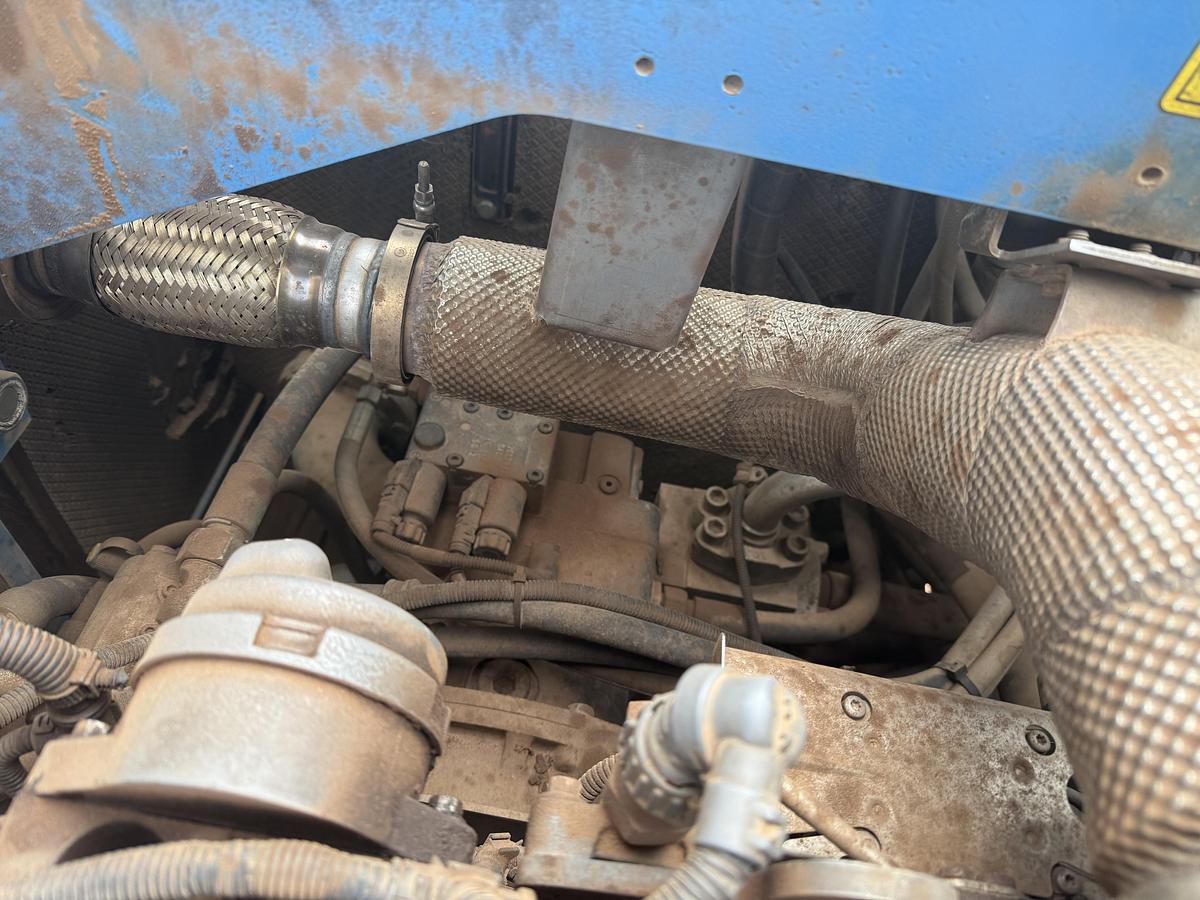

Engine Specifications

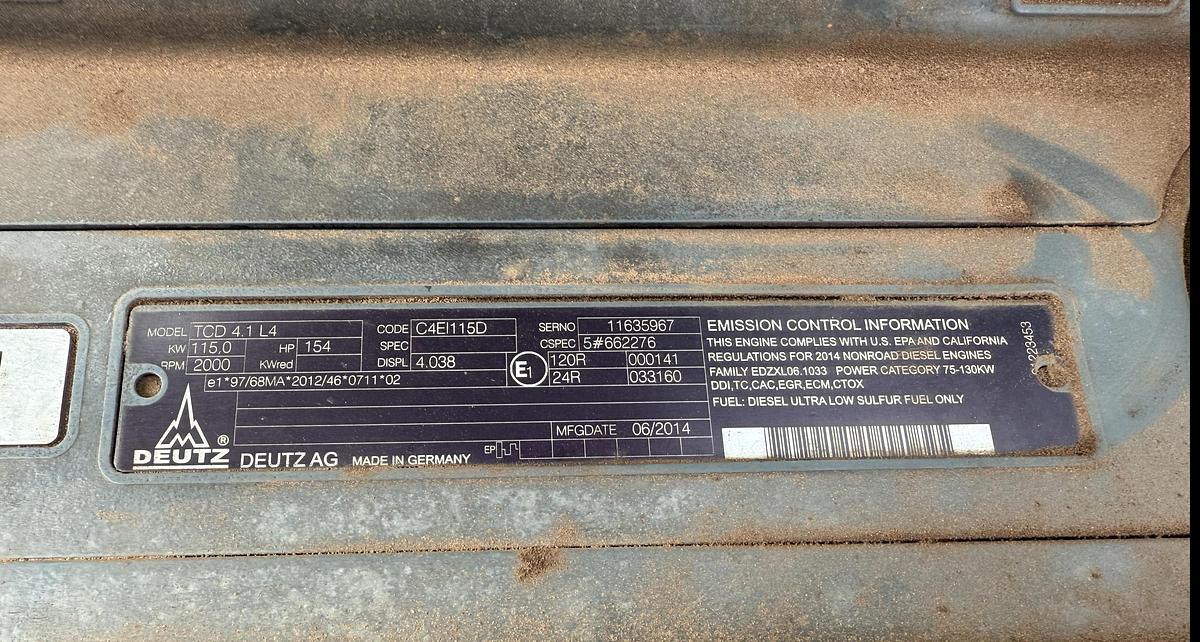

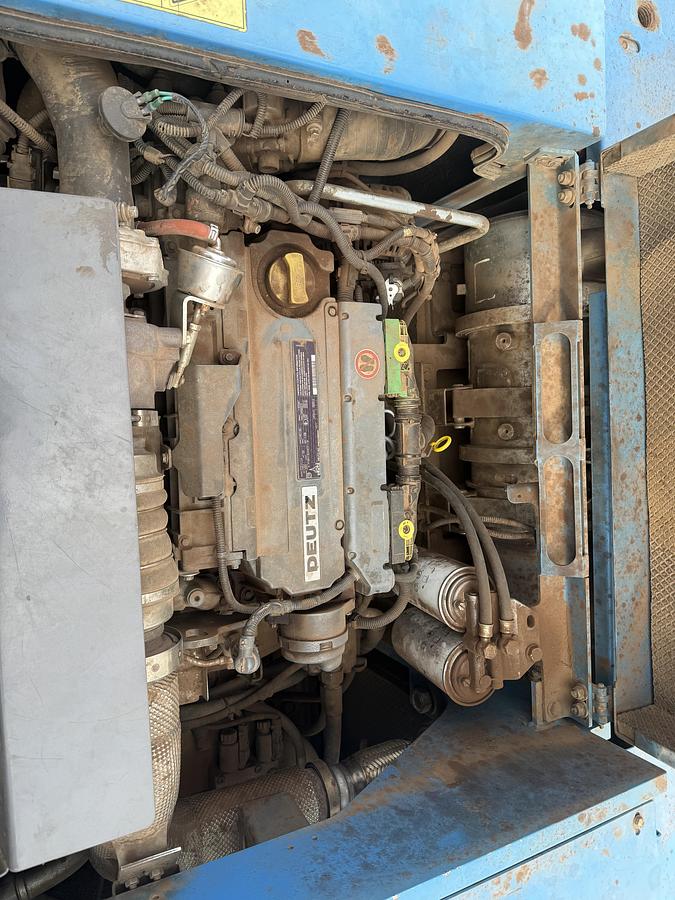

• Model: Deutz TCD 4.1 L4
• Gross Power: 154 hp (115 kW) at 2000 rpm
• Type: 4-cylinder in-line engine
• Displacement: 250 cu in (4.1 l)

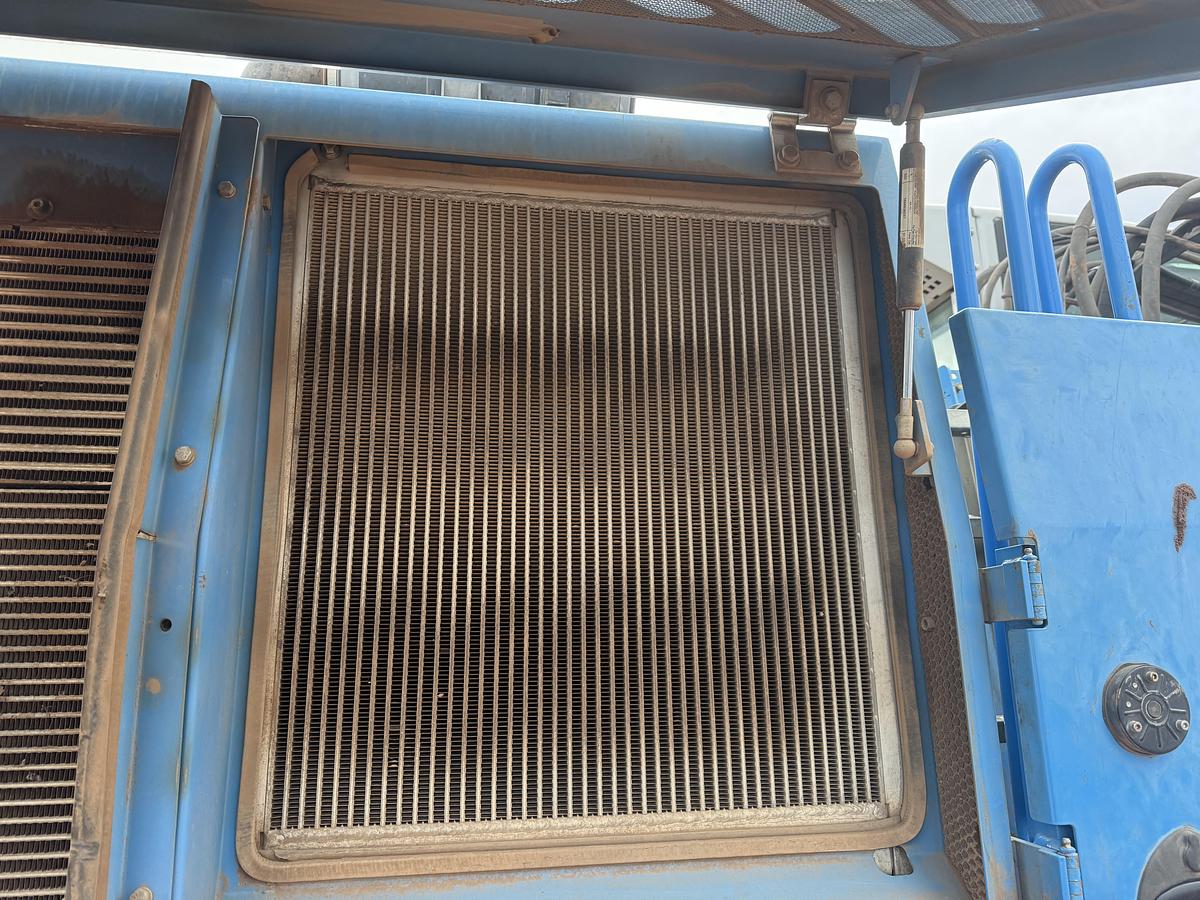

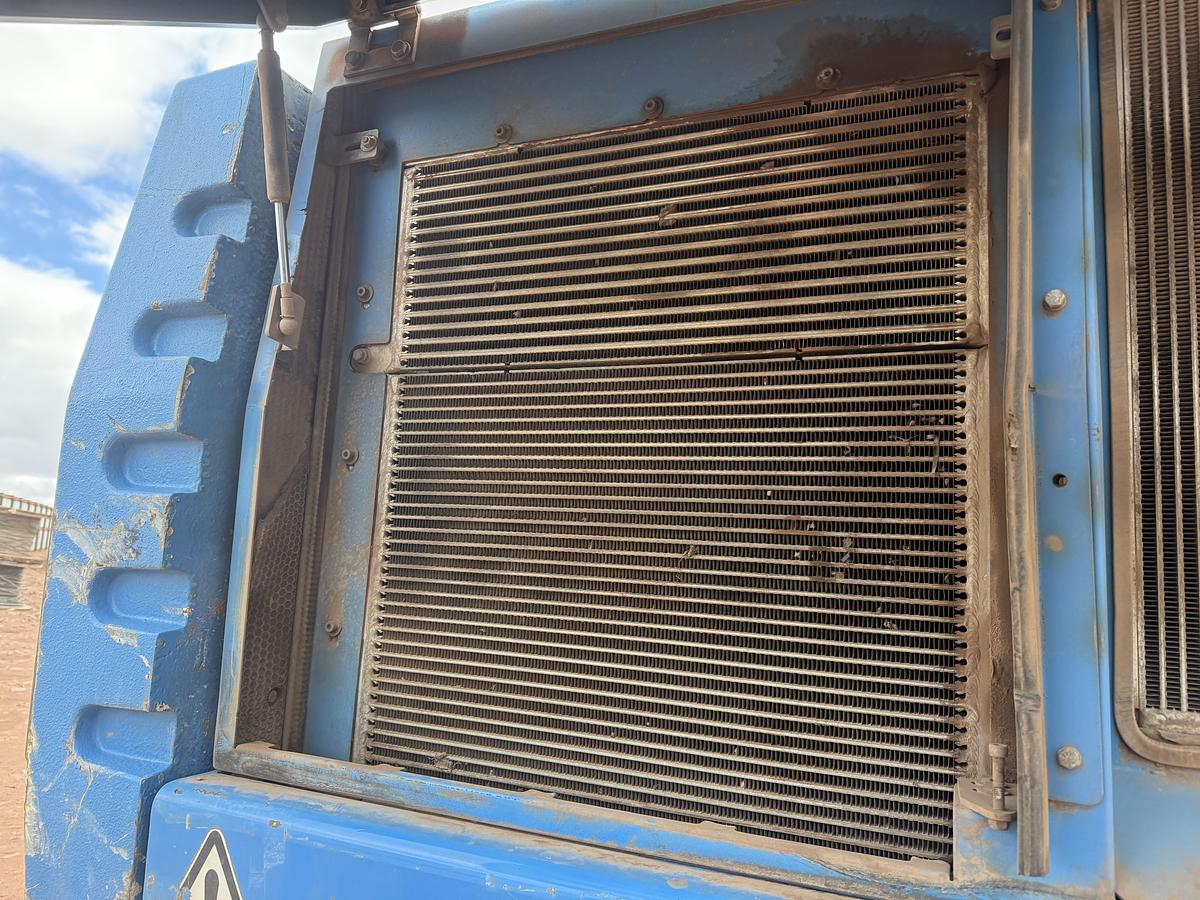

• Cooling Method: Water and charge air cooling with temperature controlled fan speed
• Fuel Capacity: 69 gal (261 l)
• DEF Tank Capacity: 8.5 gal (32 l)

Operational and Hydraulic Data

• Operating Weight w/o Attachment: 56,217 lbs (25,500 kg)
• Max Reach: Up to 39.4 ft (12 m)
• Max Travel Speed: 11.2 mph (18 km/hr)
• Swing Speed: 7.5 rpm
• Hydraulic System Fluid Capacity: 86 gal (326 l)
• Maximum Operating Pressure: 5221 psi

Dimensions

• Overall Length: 15.1 ft
• Overall Width: 8.2 ft
• Overall Height: 10.1 ft
• Wheelbase: 8.2 ft
• Ground Clearance: 1.2 ft
• Turning Radius: 26.1 ft
